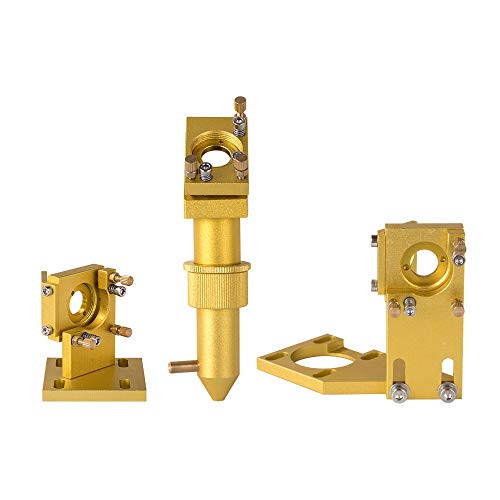

Cloudray K Series Whole Set Incl Head and Mirror Mounts With Focus Lens D20 FL50.8 Mo Mirrors for 2030 4060 k40 Laser engraving Cutting Machine

Brand: Cloudray

Color: Gold

Features:

• Used for Mirror Diameter: 20mm, Lens Diameter: 20mm, Focal Length of Lens: 50.8mm
• Made of aluminium. Integrative fixture mount with air assist nozzle.
• This component is for general configuration. There are some differences between different cutting opportunities, and some modifications may be needed. Please pay attention to whether the dimension size of the product matches your machine.
• Replacement Parts for CO2 Laser Engraving Machine

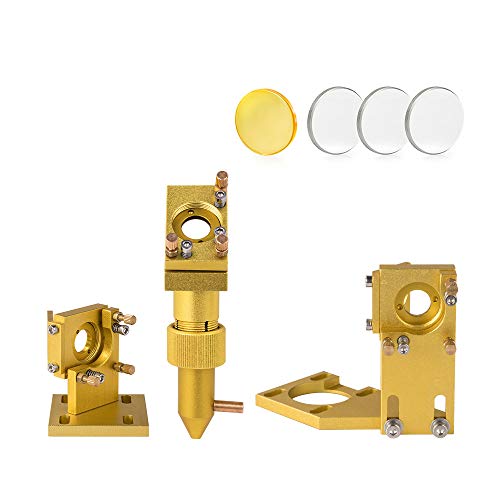

• Package 7 pcs: 1 pcs laser head set & 1pcs USA CVD focus Lens(D20 FL50.8) & 3 pcs Mo mirrors (D20mm)

Binding: Office Product

model number: K Series

Part Number: MP09LH4060BSC20G

Details: Notice:K40 has differernt structures. Some can use this laser beam set directly.
Sometimes, you need to make some modifications to the structure of the machine.
If it isn't a direct fit for your machine, maybe you need a custom head mounting plate.

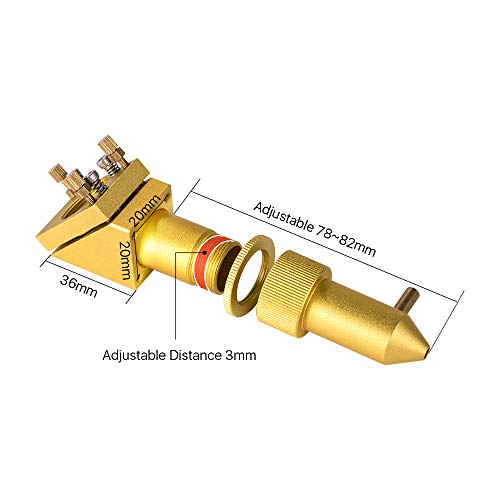

Made of aluminium. Integrative fixture mount with air assist nozzle.

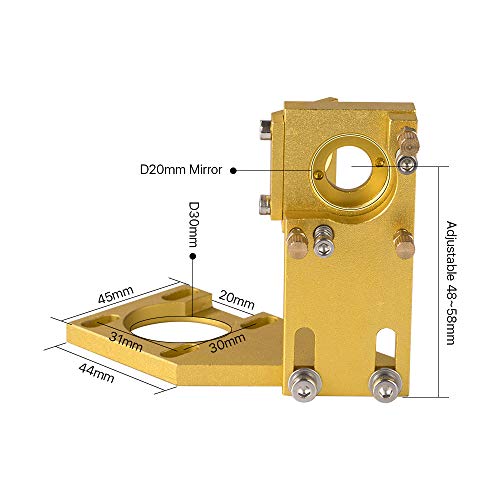

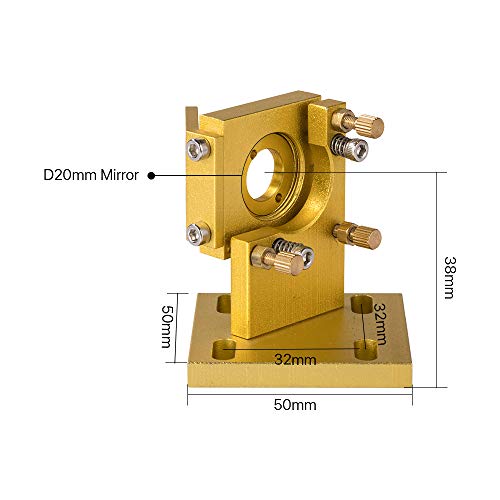

Mirror Diameter: 20mm

Lens Diameter: 20mm

Focal Length of Lens: 50.8mm

Packing List:

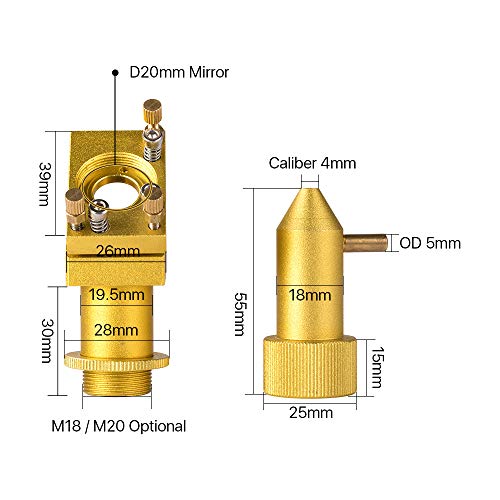

1 pcs Laser Head  (High Quality Aluminium Alloy with Air Assist Nozzle, Joint Plate and Belt Fastener)

EAN: 0669819725537

Package Dimensions: 7.7 x 5.4 x 4.3 inches
