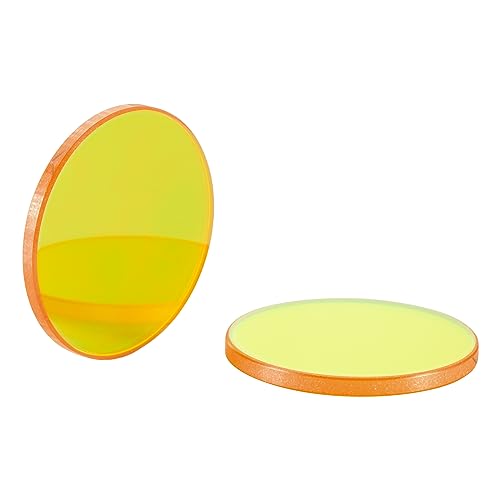

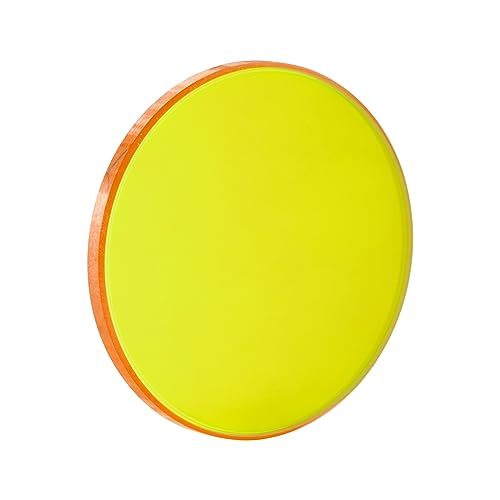

Cloudray Laser Beam Combiner Lens Diameter 25mm for CO2 Laser Engraving Cutting Machine to Adjust Light Path and Make Laser Visible
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Cloudray
Color: D25 T2
Features:

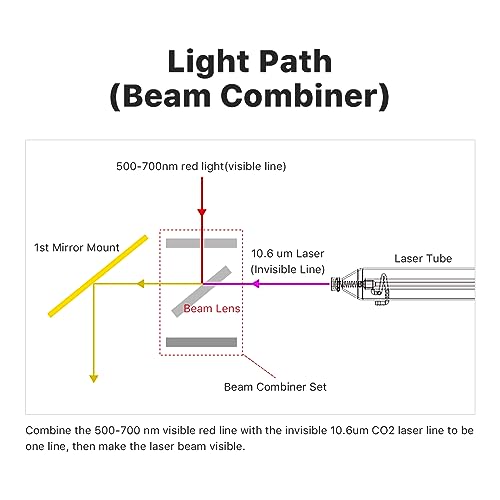

- Principle:The beam combiner is a half-mirror, it make the two or more wavelengths of light synthesized into one optical path by the transmission and reflection methods.
- Function:Combine the visible red line with the invisible 10.6um CO2 laser line to make the laser beam visible.
- Application: Widely used in CO2 laser industry, mainly make laser and light visible. It’s generally used to combine the 10.6um infrared laser and 500-700nm red light together.
- Package includes: 1x Beam Combiner
Binding: Office Product
model number: D25 T2
Part Number: BC

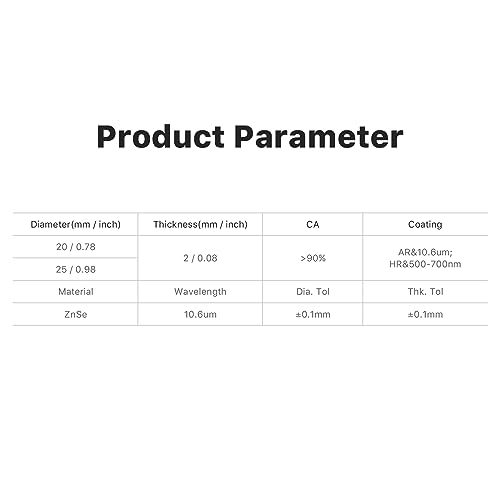

Details:
Size:Dia.25mm
Diameter:25mm
Thickness:2mm
Material:CVD Znse
Design Wavelengths: 10600nm Laser

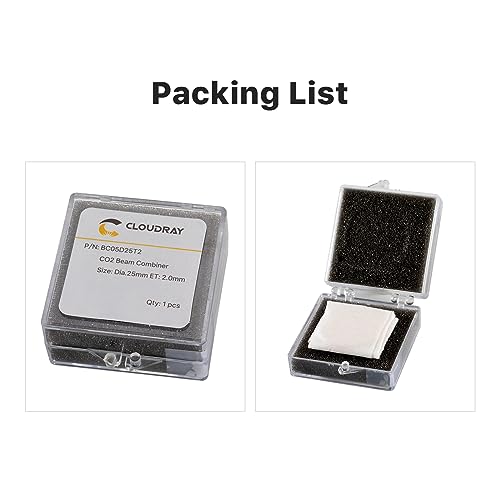

Package includes:
1x Beam Combiner
How to Clean Laser Lens and Mirrors?
Step 1 Cleaning for Light Contamination (dust, lint particles)
Use an air bulb to blow off any loose contaminants from the optic surface before proceeding to the cleaning steps.
Step 2 Cleaning for Light Contamination (smudges, fingerprints)
Lay the lens tissue on the optic's surface. Using an eyedropper.
Squeeze a few drops of acetone onto the lens tissue.
Wetting the complete optic's diameter. Without lifting the lens tissue.
Drag the lens tissue across the optic just fast enough so that the liquid evaporates behind the tissue.
This should leave no streaks.
Step 3 Cleaning for Moderate Contamination (spittle, oils)
Dampen an unused cotton swab or cotton ball with white distilled vinegar.
Using light pressure, wipe the optic's surface with the Damp cotton.
Wipe excess distilled vinegar with a clean dry cotton swab. Immediately dampen a cotton swab or cotton ball with Acetone.
Gengly wipe the optic's surface to remove any acetic acid.
Shipping Times:
Standard shipping 7-12 working days from China to USA by USPS
Expedited Shipping 4-5 wroking days from China to USA by DHL, Fedex or UPS.
EAN: 0669819721805
Package Dimensions: 5.2 x 3.6 x 3.2 inches
