Cloudray Laser Mirror Si Reflective Lens CO2 Laser Lens Si Gold Plated Mirror 25mm Co2 Laser Mirror for CO2 Laser Engraving Cutting Machine, Dia 25mm
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Cloudray
Color: 3pcs
Features:

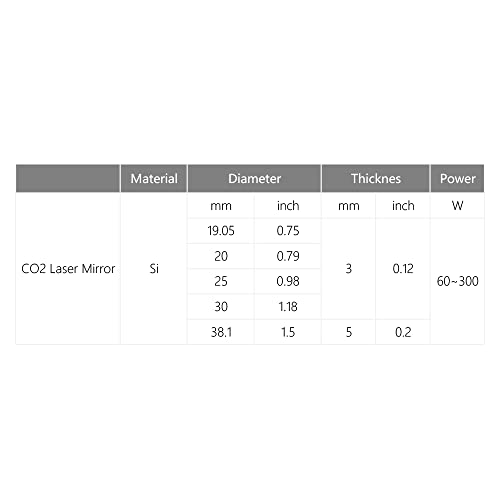

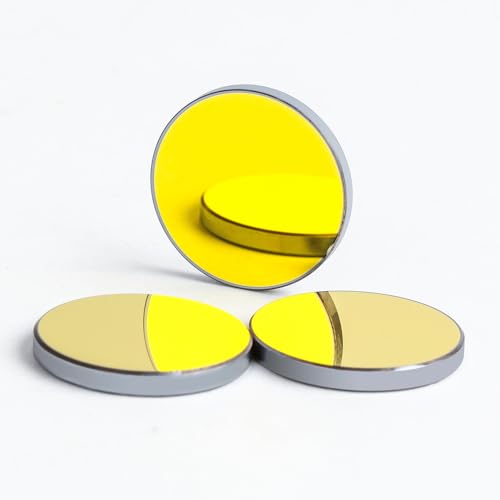

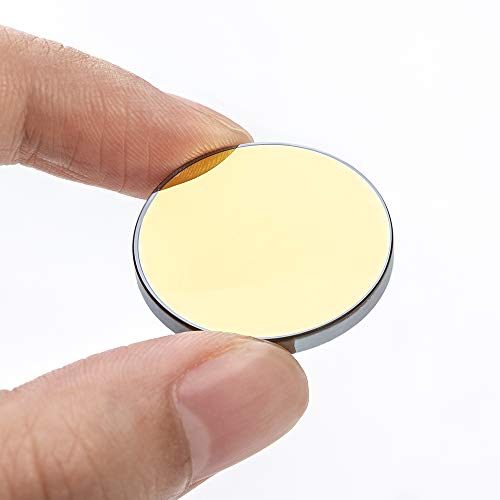

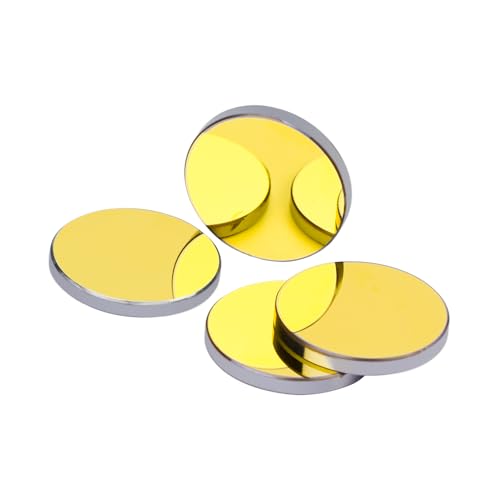

- 【Parameter Laser Mirror】This set includes 3 PCS si mirror with a diameter of 25mm (0.98inch) and a thickness of 3mm (0.12inch), providing a perfect replacement DIY part for your CO2 laser machine, engraver, k40 mirror upgrade and laser lens replacement.
- 【High Precision】Experience enhanced precision and efficiency with our high-transmittance co2 laser Mirror. These plane-shaped 25 mm co2 laser mirror boast excellent optical properties, ensuring optimal performance for laser machines with higher power ranging from 60W to 400W. In addition, their superb coating art, precision slicing, polishing, and grinding guarantee a long working life and high working efficiency.
- 【Superior Efficiency】Upgrade your laser machine with our si gold plated mirror for co2 laser K40 laser, these mirrors ensure stability and precision in every operation. Experience superior performance and longevity with our 25mm laser mirror today.
- 【High Reflectivity】Cloudray laser si mirror are specially provide excellent optical properties and a transmittance of over 99.2% reflectivity of infrared light at the critical 10600nm wavelength, minimizing loss of power in transmission from your tube to the workbed,ensuring optimal performance with your CO2 laser machine.
- 【Wide Compatibility】Upgrade your k40 mirror,laser cutter mirrors,lens laser with Cloudray laser si-mirror.This set of high-transmittance laser mirrors also offers superior heat resistance to work with a wide range of laser engravers, etchers, markers, and cutters from K40 lasers to powerful 300W industrial engraving equipment.
Binding: Home
model number: Gold Coated Si D25 T3
Part Number: D25
Details:
Note: In general,a laser machine needs 1 pies of focusing lens and 3 reflective mirrors.
CO2 Laser Lens Purchase ASIN: B07B8HLZLH
CO2 Laser Head Purchase ASIN: B07BGTWRY1
Features and specifications:
Mateial: Gold-coated Si
Wavelength: 10.6 μm
Diameter Tolerance: +0/-0.13 mm
Thickness Tolerance: ±0.25 mm
FL Tolerance: < ±2%
Centration: < 3 arc minutes
Clear Aperture: > 90%
Surface Figure: < λ/2 per 1 inch diameter
Surface Quality: 40-20 scratch and dig
AR/AR coating: R < 0.5% per surface
The difference between Si mirror and Mo mirror:

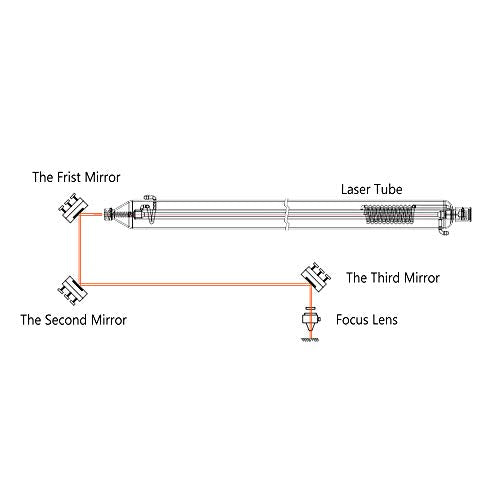

Usually a complete beam path outside the laser tube requires three reflect mirror and a focus lens. Laser will loss when it travels, so the laser machine need a higher reflectivity mirror.
There are two kinds of reflect mirror used in co2 laser machine: molybdenum (Mo) mirror and silicon mirror.
Silicon mirror has a better reflective ability, which can reach 99.2%，there is less loss of energy, if the reflective is better, the machine can work better.
For molybdenum, the reflective can only reach over 97%.
But Mo mirror is more durable, like one year, for silicon mirror, 9 month maybe. And Mo mirror can work under very bad situation, like in low temperature, highly oxidability environment.
On the surface of silicon, it was coated with film, sometime the cutting material would rust the film
For laser machine with good quality, producer always choose silicon mirror.
Packing List:
Si mirror x3pcs
EAN: 0661021765721
Package Dimensions: 7.2 x 3.7 x 3.3 inches
