Cloudray Leadshine 3 Phase Stepper Motor 573S09-L-18 Stepper Driver 3DM580 for CO2 Laser Engraving Cutting Machine

Brand: Cloudray

Color: 3dm580+573s09-l-18

Features:

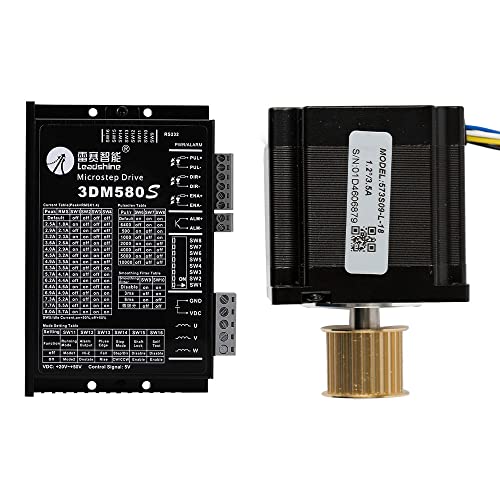

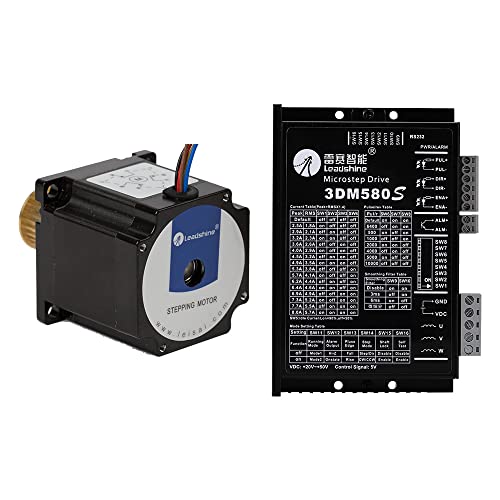

• This item include: 1PCS 3DM580,1 PCS 573S09-L-18 Stepper Motor

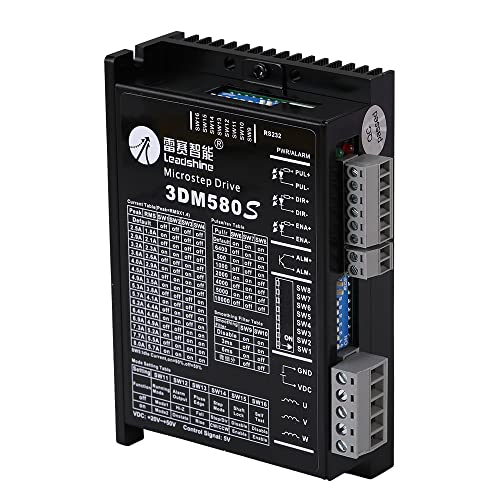

• 3DM580(3 Phase Driver):Suitable Stepper Motors Nema23,34,42

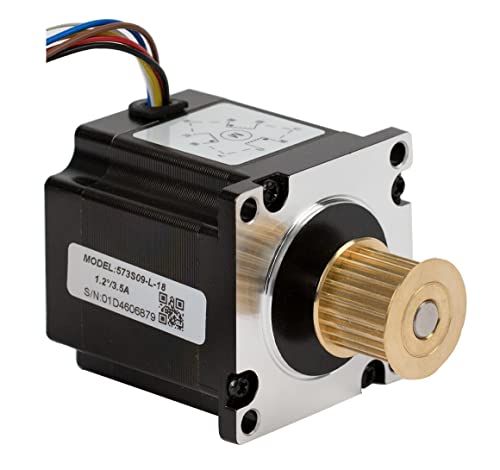

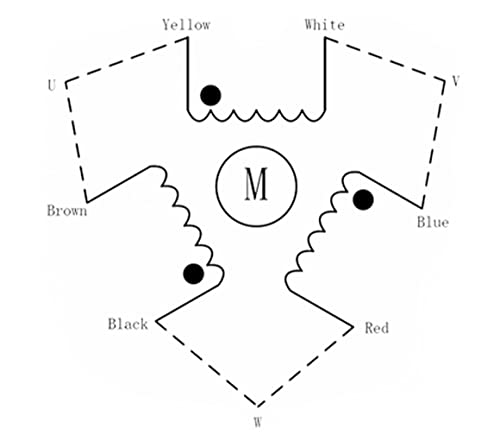

• 573S09-L-18(3 Phase Stepper Motor-six wires): Step Angle 1.2°；Position Accuracy ±5%；Dielectrice Strength 500VAC 1Min
• 573S09-L-18: Frame size Nema23 ,Holding Torque 0.9N.M; Current/phase 3.5A;Length 50mm(1.97'');Shaft size 6.35mm(0.25'')
• 573S09-L-18 Match Drivers: 3DM580

model number: 3DM580+573S09-L-18

Part Number: SM10L258001S1

EAN: 0727277173847

Package Dimensions: 9.1 x 6.4 x 5.1 inches
