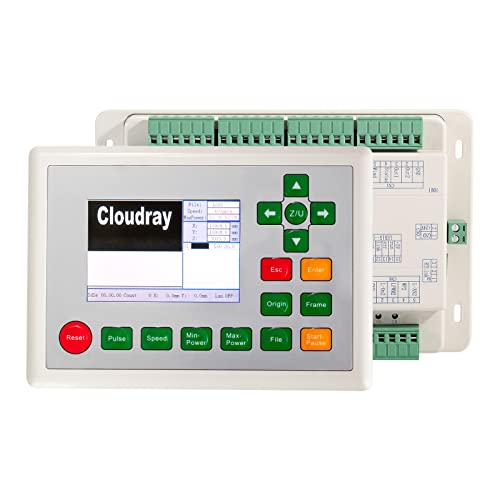

Cloudray Ruida DSP Controller RD RDC6442G RDC6442S for CO2 Laser Engraver Engraving Machine

Brand: Cloudray

Color: Set a 6442s

Features:

• The RD6442S, an improved version of RD6442G, is expertly designed to provide enhanced control over multi-head laser engraving and cutting machines. This Cloudray Ruida RDC6442S controller guarantees precision and accuracy in every task, making it perfectly ideal for any detailed work.
• Engineered under the prestigious Cloudray Ruida brand, this Ruida Controller presents high-performance motor control signals through a common-anode output. Boasting a 20 mA drive ability, it ensures an immaculate finish with breath-taking precision and details.
• The Ruida+controller has a notable feature of a motor control pulse frequency that extends up to 500KHZ. This contributes to quick and uninterrupted laser motion, significantly enhancing the final output with a clean and professional-looking finish.
• Impressively, the Ruida Controller supports a USB transmission rate of 12M bps, with a maximum distance reach of 5 meters. Also notable is its strong network transmission rate of 100M, covering a wholesome distance of up to 200 meters.

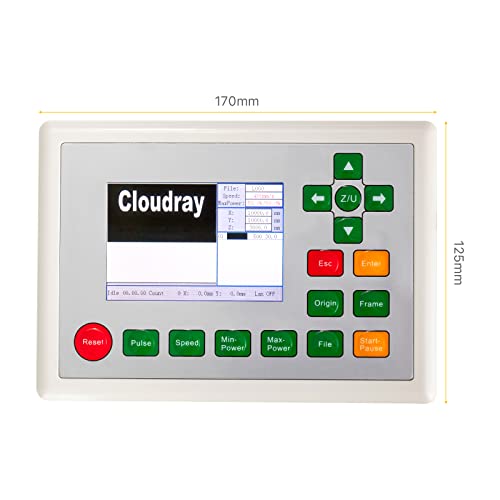

• An advanced interpolation system, including Linear/circular arc/B spline options, complemented by a 3.5-inch Colorful Display Screen, makes working with this CO2 Laser Controller a user-friendly and efficient process. Featuring digital precision, this Ruida Laser Controller ensures remarkable results every time.

model number: 6442S

Part Number: 6442S -B

Details:

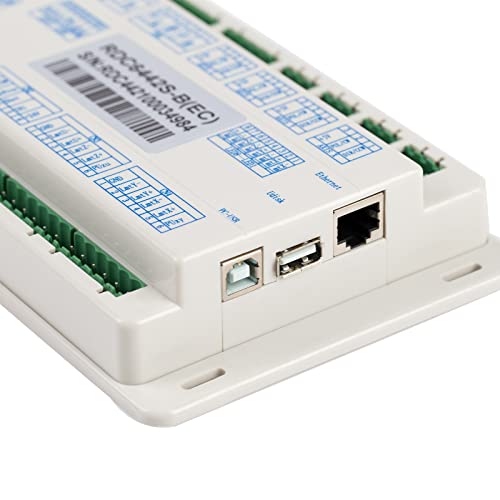

with stronger software function including perfect 4-axis motion control function, large-capacity file storage, two-channel adjustable digits laser power control interface, USB driver of stronger compatibility, multi-channel general/special IO control, and, this system can communicate with PC by USB2.0 or Ethernet, and the communication mode is automatically checked by the system.

Main Features:

1, Digital laser control signal (1) TTL level output, 50mA drive capability (2) PWM Adjustable Frequency 2K ~ 50K (3) PWM duty cycle of 1% to 99% adjustable

2, OC motor control signal output, 300mA drive capability

3, Maximum motor control pulse frequency 500KHZ

4, The maximum transfer rate of USB 12M, the longest distance 5 m

5, Line / circle / B -spine interpolation accuracy + / -0.5 pulse

6, 4 -way universal optical isolation OC gate output, maximum 500mA drive capability (with freewheeling protection) Application: RDC6442S can be widely used in laser cutting, laser engraving, laser welding, etc.

Specification:

Product Model : RDC6442S

6: the sixth generation controller

4: controller version

4: 4-axis

X: displayer type (1: TTF; 2:3.5 inch colorful screen; 3: 5.7 inch colorful screen; 4:7 inch touch screen)

G: standard

If you do not have dual head,Set it in software, click-File(F) -Vendor settings , the password is RD8888, then click other,set the head num: 1 ,Drive type :Single belt head dis 1: 50 .LAST: click SAVE--exit

EAN: 0661021760177

Package Dimensions: 10.0 x 7.8 x 6.4 inches
