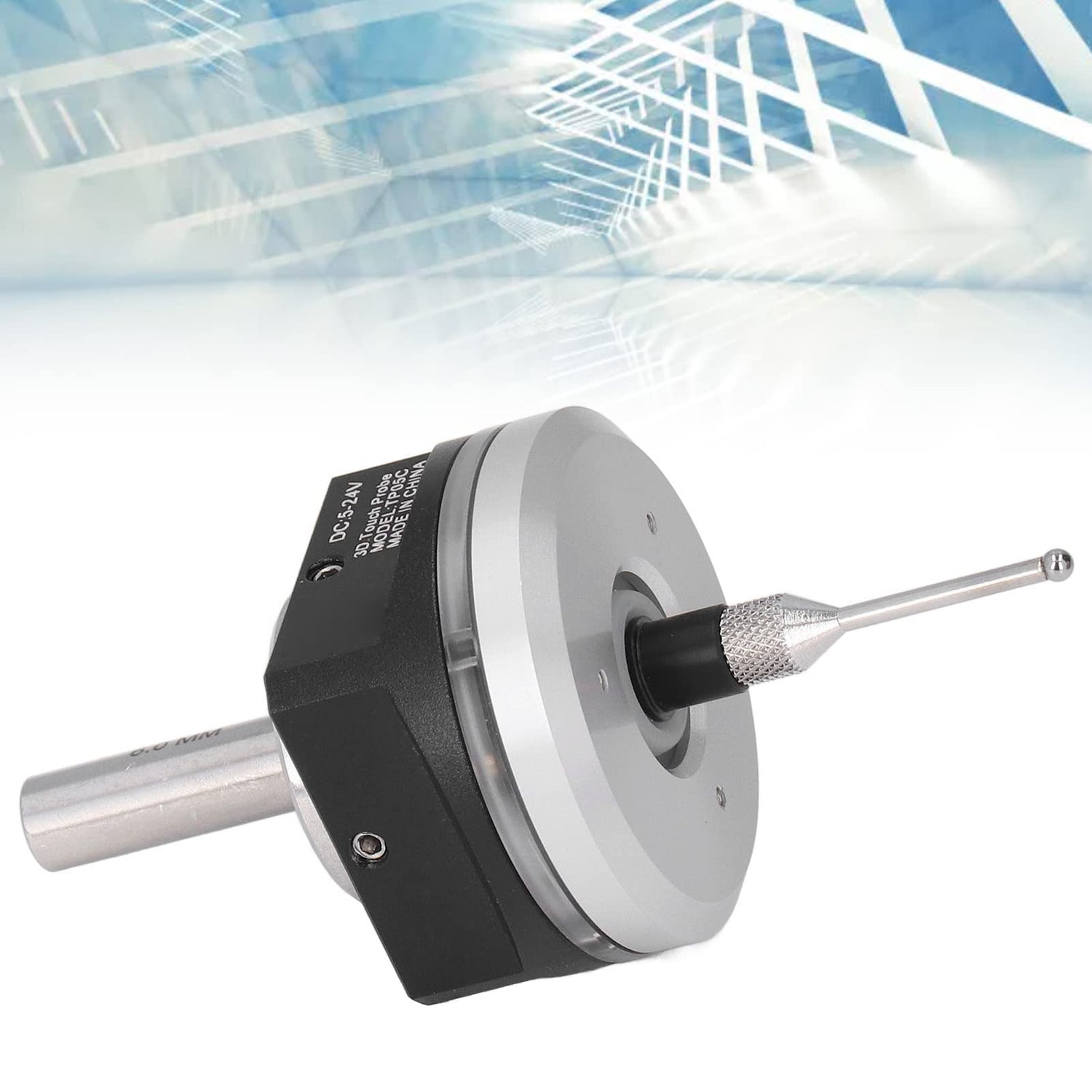

CNC 3D Edge Finder, Professional High Accuracy Universal 3D Sensor Probe, Waterproof Multifunctional 3D Edge Locator with Tungsten Steel Tip for X, Y
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Diydeg
Features:
- 【FOR CNC EQUIPMENT】This 3 dimensional edge finder with probe tip can locate in X,Y and Z axis, it is compatible for Mach3, for GRBL CNC equipment, support XYZ coordinate stroke, simple in wiring, has strong practicability.
- 【EXCELLENT MATERIAL】This 3D edge finder's housing is made of anodized aluminum alloy, with flat anti roll design, and has stainless steel needle and tungsten steel ball head. and adopts waterproof dustproof design, can maximize the service life of the probe.
- 【MULTIPLE FUNCTIONS】This high accuracy edge finder set features with fast edge finding, circle center finding and table shape measurement functions, solve the trouble of clamping workpiece positioning.
- 【LIGHT DISPLAY】This CNC 3D edge measuring tool comes with light prompt, the green light is displayed after power on, and the red light is displayed after the trigger, intuitive and clear.
- 【100% QUALITY ASSURANCE】We are very confident in the quality of this 3D edge finder, and provide warranty or refund for it. Please feel to reach us if you have any questions about your purchase. We will solve your problem within 24 hours.
Part Number: Focketytcrkfhwi2s5586
Details: Feature:

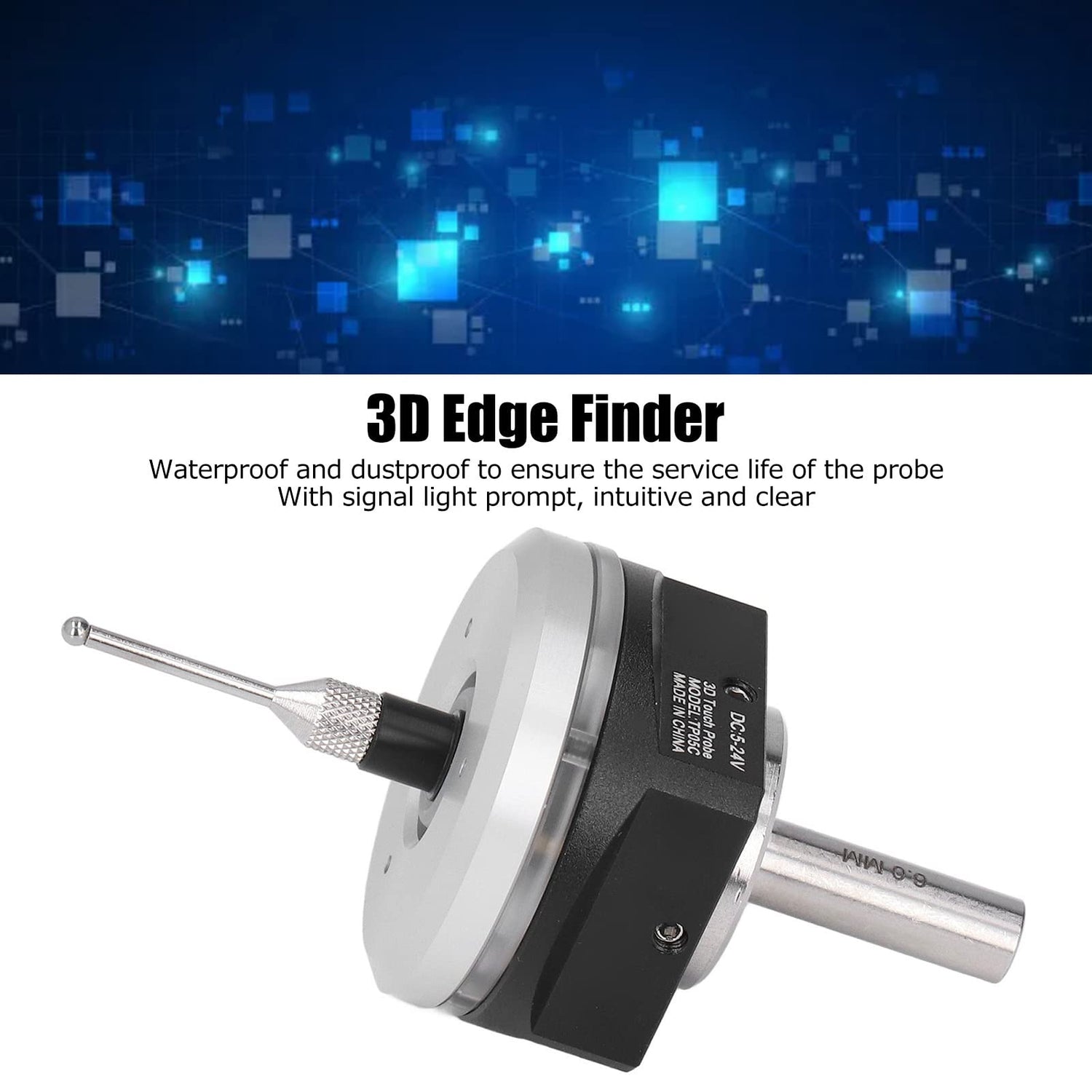

1. GOOD DURABILITY: The 3D edge finder adopts multiple waterproof and dustproof design, which can maximize the service life of the probe.
2. LIGHT DISPLAY: With signal light prompt, the green light is displayed after power on, and the red light is displayed after the trigger, intuitive and clear.
3. MULTIPLE FUNCTION: With fast edge finding, circle center finding and table shape measurement functions, solve the trouble of clamping workpiece positioning.

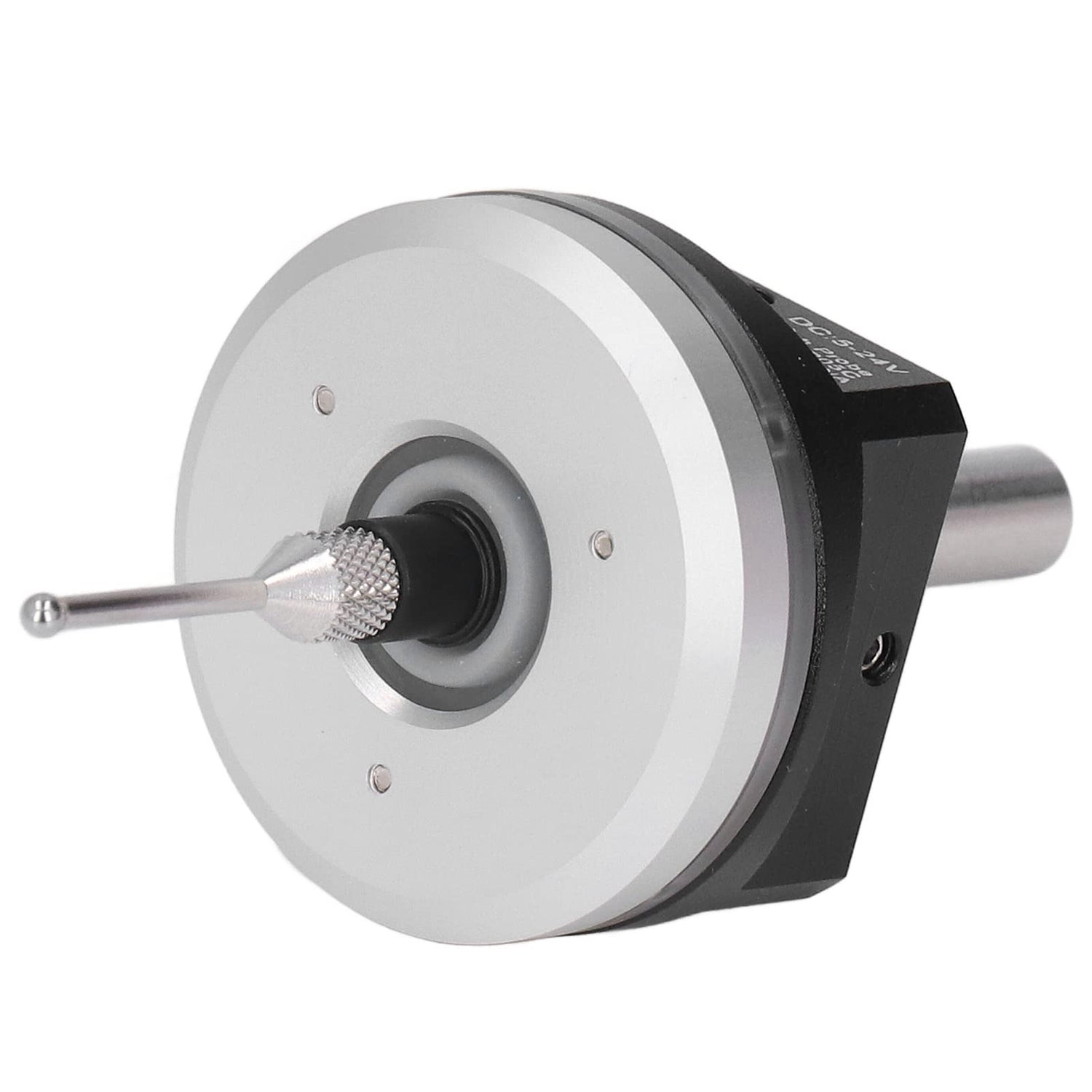

4. EXCELLENT MATERIAL: The housing is made of anodized aluminum alloy, with flat anti roll design, and has stainless steel needle and tungsten steel ball head.
Specification:
Item Type: 3D Edge Finder
Material: Stainless Steel, Tungsten Steel, Aluminum Alloy
Product Model: V6 Version TP06
Stylus Direction: ±X, ±Y, +Z
Unidirectional Repeatability: <0.01mm
Stylus Stroke Protection Distance:
XY Plane: Approx. ±4mm / 0.16in
Z Direction: Approx. 2mm / 0.08in
Trigger Life: >3 million times

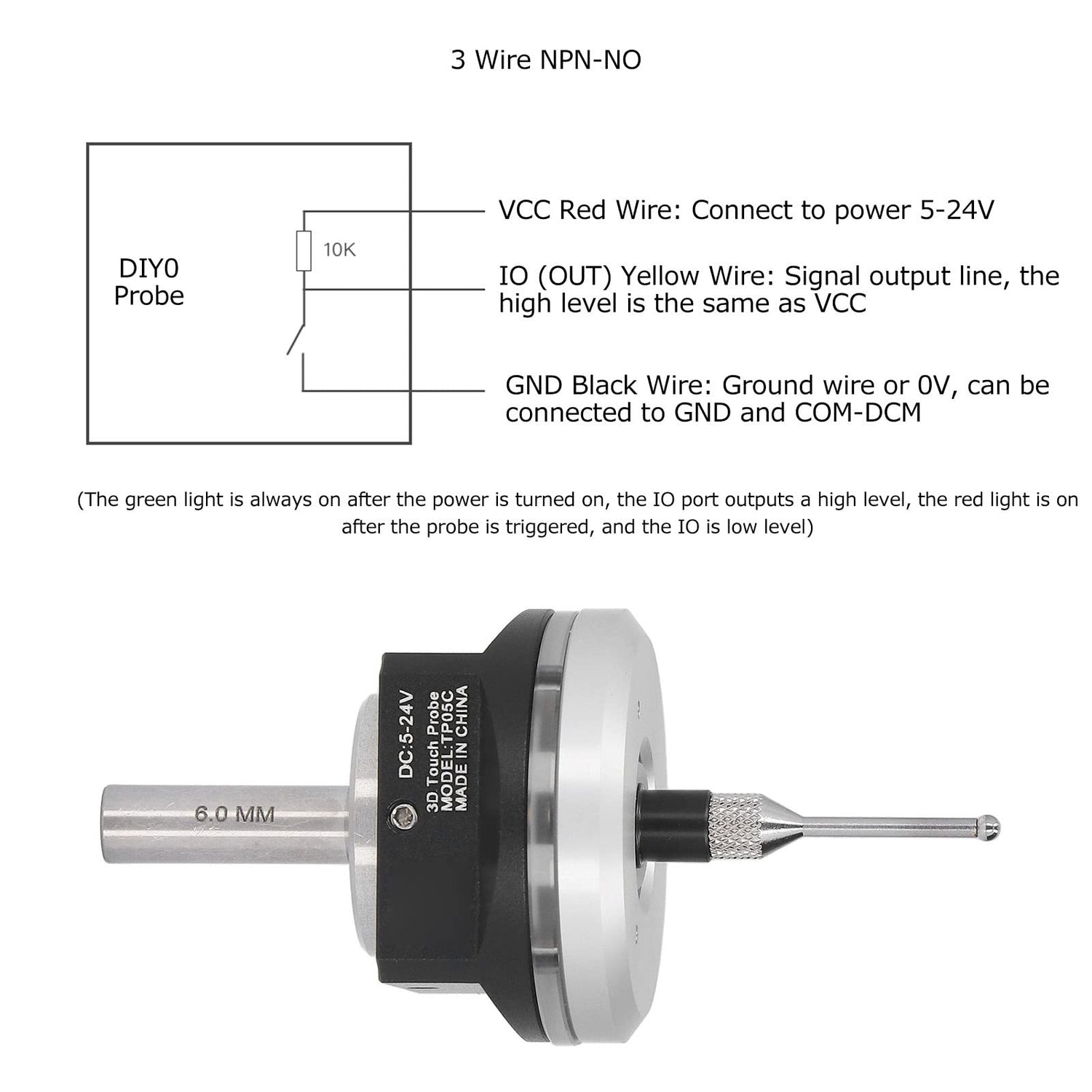

Power Supply: 5~24V DC
Cable Length: Approx. 2 meter / 6.6ft

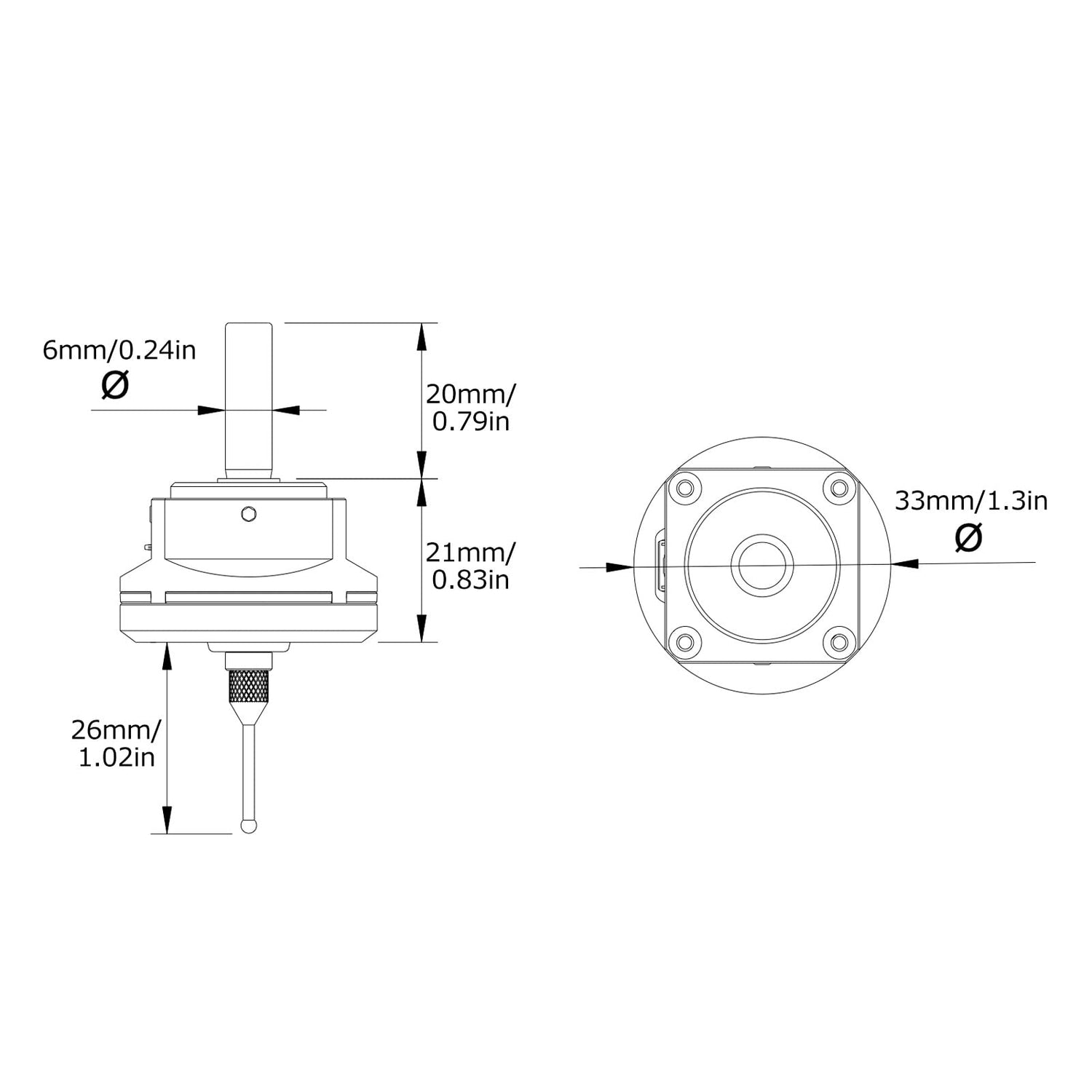

Edge Finder Shank Diameter: Approx. 6mm / 0.24in

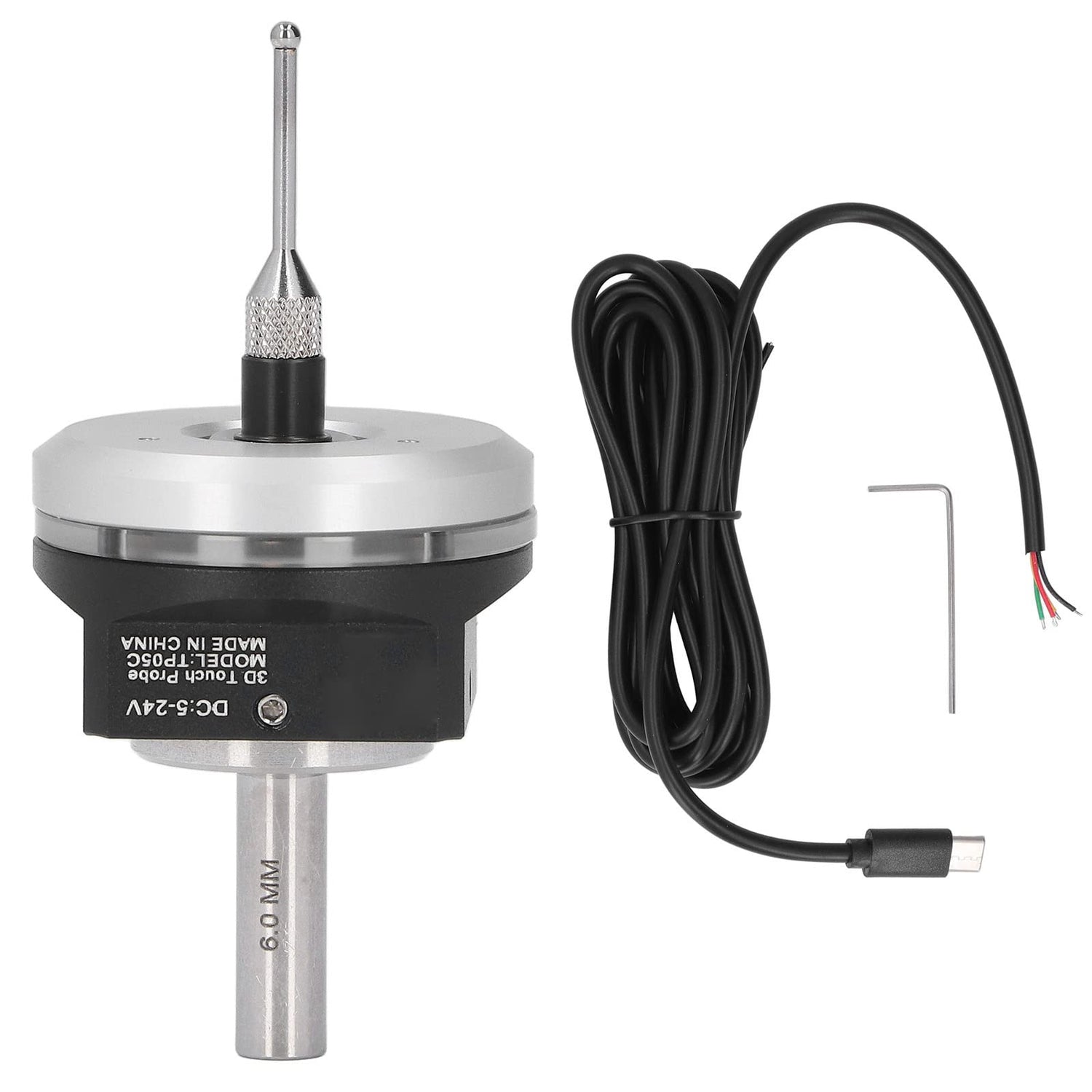

Package List:
1 x 3D Edge Finder
1 x Wrench

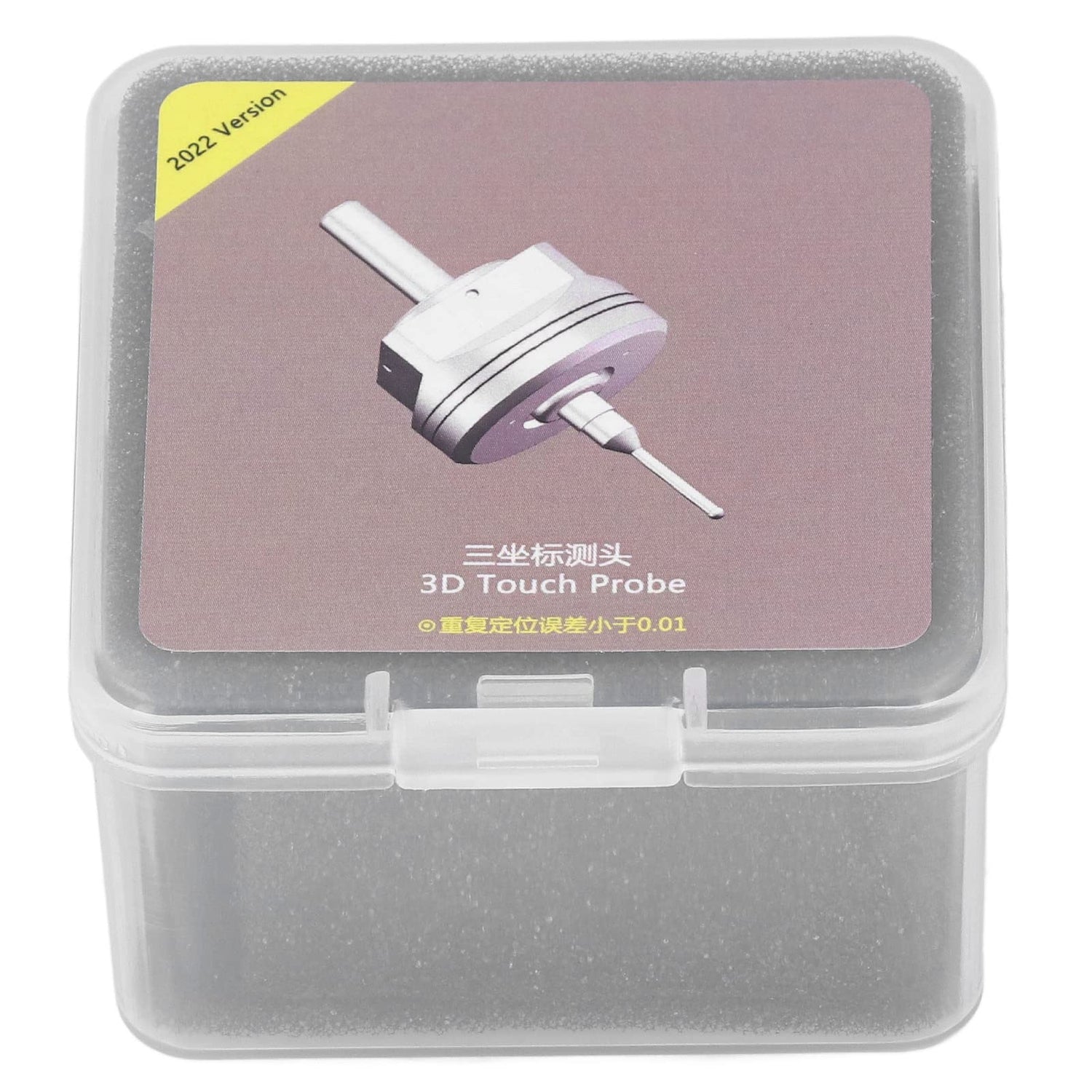

1 x Storage Box
1 x Cable
Note:
Please do not open the spindle speed during measurement. In order to ensure the accuracy of the measurement, be sure to use a chuck of AAA level or above, and pay attention to water and moisture when using and storing the probe
EAN: 7800207716093
Package Dimensions: 5.2 x 3.5 x 3.0 inches
