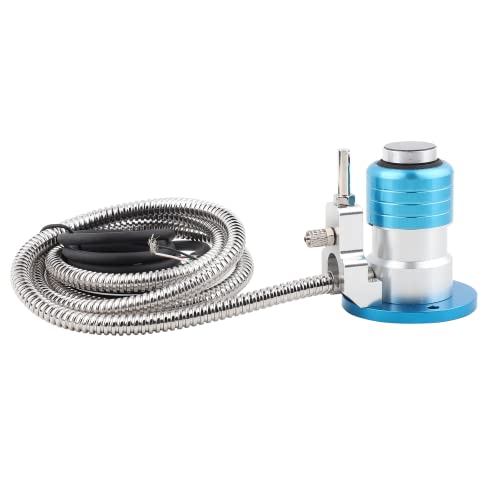

CNC Automatic Tool Sensor Gauge, DC 24V Normally Closed CNC Z Axis Tool Setter with LED, Aluminum Alloy Z Axis Probe Tool Touch Sensor Setting Gauge

Brand: BTER

Features:

• 【MAIN FUNCTIONS】This CNC router tool is a special tool setting instrument for the engraving machine and CNC equipments. The output of it is received by the numerical control system and then the tool length setting, tool wear detection and tool breakage are detected by the program control. The sharpness corner of the tool directly contacts the tip of the tool related to the machining size, and its position and size are measured.
• 【HIGH PERFORMANCE】This automatic tool setting instrument is designed with 5mm / 0.2in stroke, 0.001mm repeat positioning accuracy, 1.5N contact force, with high accuracy and sensitivity. No built‑in amplifier required, no deviation due to temperature and power supply voltage fluctuations of the part where the tool is located, can be directly input to the NC and program (PLC).
• 【PREMIUM QUALITY】This Z axis touch tool setter features dustproof and waterproof layout of this tool setting instrument can still work stably under the condition of flying coolant and iron filings. When the tool setter has tripped over, an alarm should be sent out in time to avoid other troubles caused by the operation of the equipment. The shell is made of ground 4S material, durable and not easy to damage.
• 【WIDE APPLICATIONS】This Z axis tool touch sensor's bottom with magnet design, can be directly connected to the machine, firmly attached to the body. It is normally closed and equipped with 2 meter oil resistant 4-core cable, can be used with most CNC equipments. Alarm can be sent when overtravel. The product adds a blowing function, which can automatically clean the counter knife surface.
• 【100% QUALITY ASSURANCE】We are very confident in the quality of this automatic tool setting gauge, and provide warranty or refund for it. Please feel to reach us if you have any questions about your purchase. We will solve your problem within 24 hours.

Part Number: BTER1am6w2trnf5585

Details: Feature:
1. With dust‑proof and waterproof structure, it has good durability under the conditions of cooling liquid and iron filings flying
2. No built‑in amplifier required, no deviation due to temperature and power supply voltage fluctuations of the part where the tool is located, can be directly input to the NC and program (PLC)

Specification:
Item Type: Automatic Tool Setting Gauge
Output Mode: B: NC (normally closed)
Stroke: 5mm
Repeatability: 0.001mm
Electric Shock Life: 3 million times
Protection Structure: IP67
Contact Force: 1.5N
Material of the Contact Area: Hard-bonding
Housing Material: Ground 4S
Protection Tube: 1 meters minimum bending radius R25
Cable: 2 meters oil resistant 4-core
Electrical Aspects:
1. Contact rating DC24V ± 10% 20mA (maximal)
2. When the body of the machine is grounded, use the tool setter to install it on the side of the ground wire.
3. For the tool setting instrument with LED, pay attention to the connection (+) (-) when connecting. Recommended value is 10mA, resistance load.
4. For the output structure when the interface unit is attached, please read the user manual

Package List:
1 x Automatic Tool Setting Gauge

Note:
1. Please control the tool setting speed at 50 ~ 200mm / min
2. Operating ambient temperature range: 0 ℃ ~ 80 ℃
3. Please control the voltage at DC24V and the current below 20mA

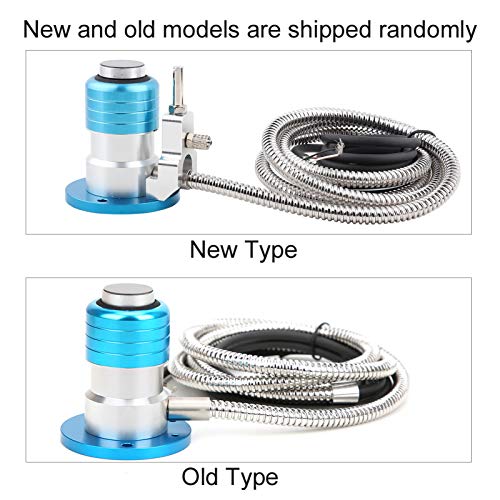

4. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

EAN: 7080669955043

Package Dimensions: 8.7 x 5.6 x 2.5 inches
