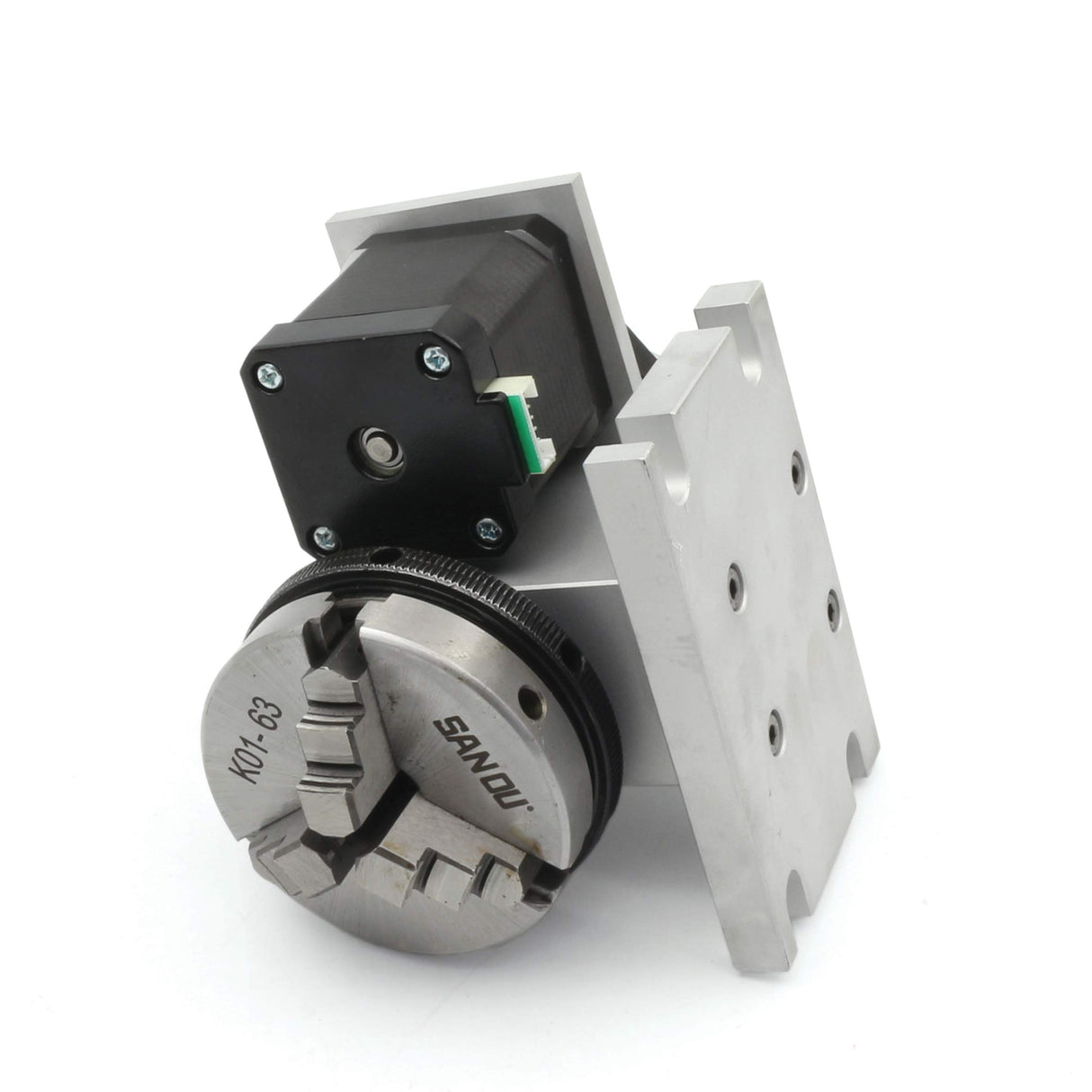

CNC Milling Machine Rotational Axis CNC Router Rotary Table Rotary a axis 4th Axis 65mm 3 Jaw Chuck Dividing Head w/ Nema17 stepper motor w/ 54mm
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: CNCTOPBAOS
Features:

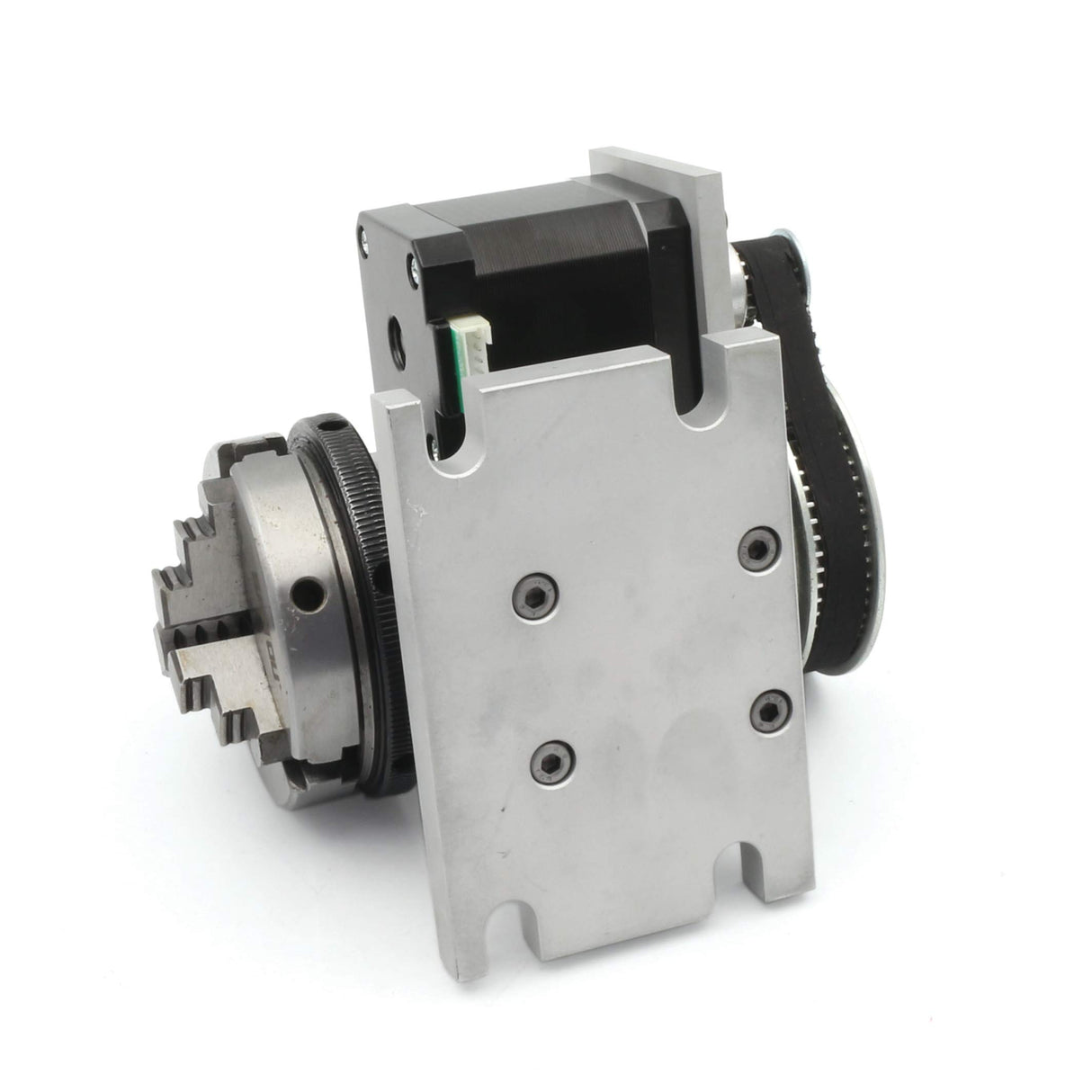

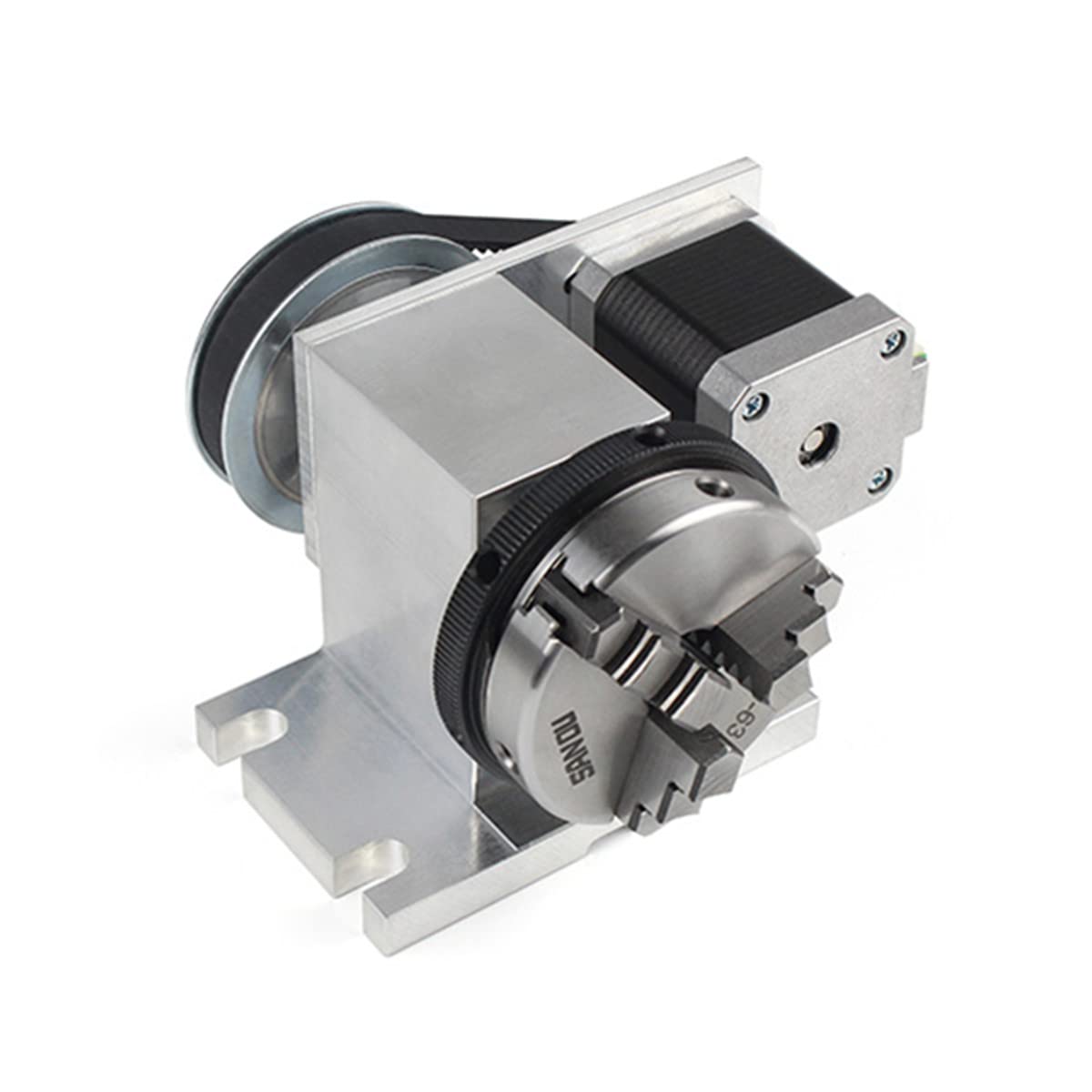

- ♞【Rotation 4th Axis】Model:K11-65mm; Chuck Type:K01-63mm 3 Jaw Chuck;54 mm tailstock

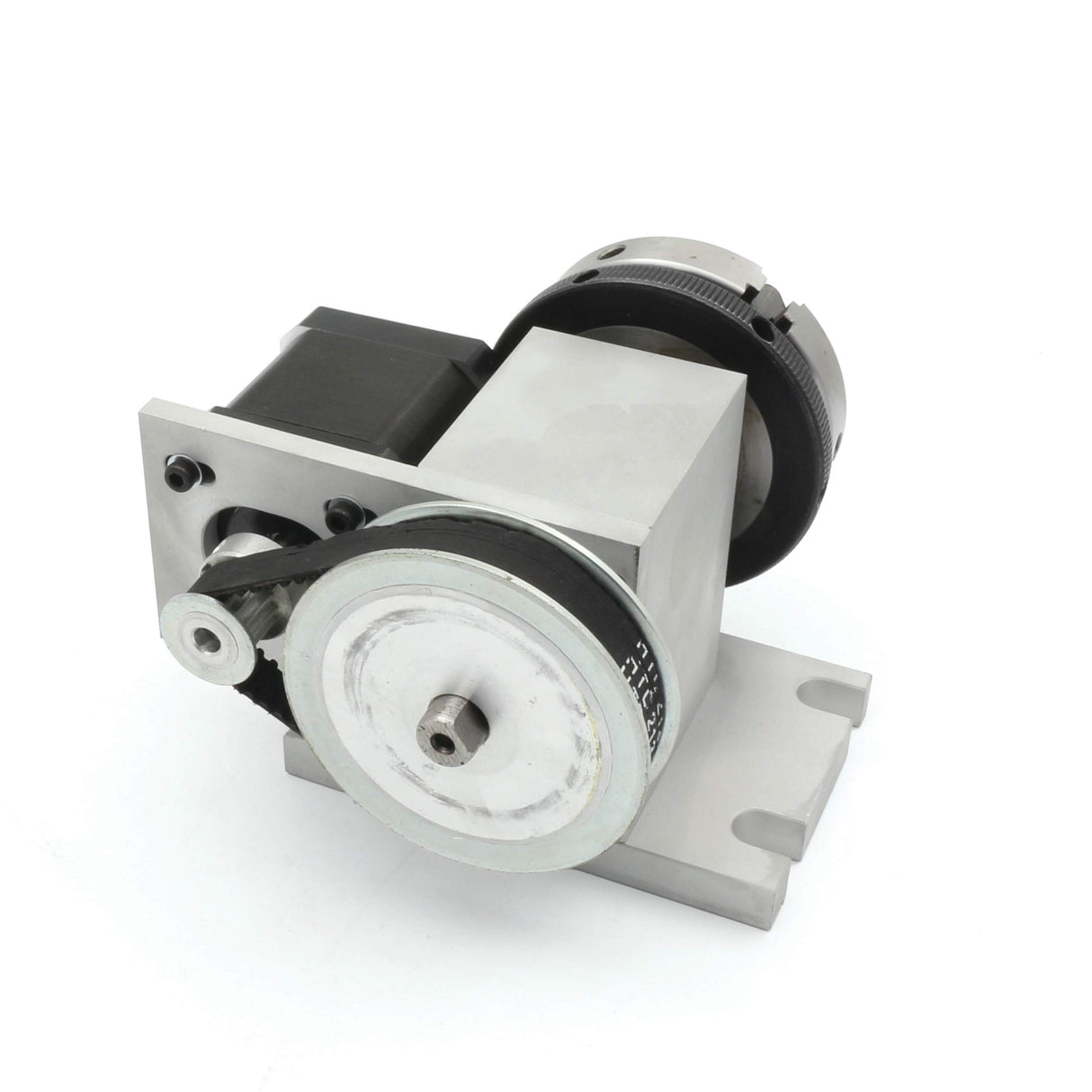

- ♞【Feature】K11-65mm with three-jaw centering chuck: middle height: 54mm, total height: 85mm, angle: 0.3°/step, diameter of gear output shaft: 20 mm, reduction ratio: 4:1 (belt delay mode).
- ♞【Stepper motor】Nema17 2-phase stepper motor 45N.cm (64oz-in) 1.7A
- ♞【Advantages】Rust-proof dust cover, polishing and anode oxidation cover, rust protection coating. ,stable 3 jaw chuck structure,fine workmanship,solid and practical jaw, excellent process to maximize service life.

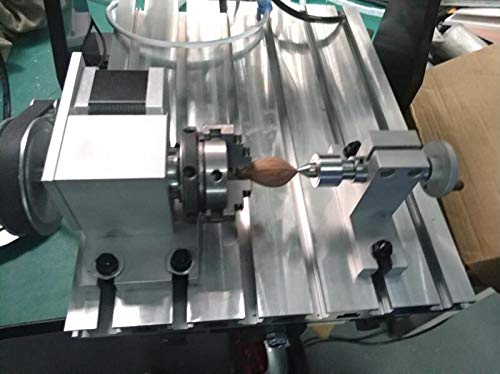

- ♞【Application】 The fourth axis can be used for three-dimensional processing of cylinders, bends and circles. The fourth axis engraving machine can be used for engraving spirals, scars, bamboo joints, etc.
Binding: Tools & Home Improvement
model number: K11-65
Part Number: S23

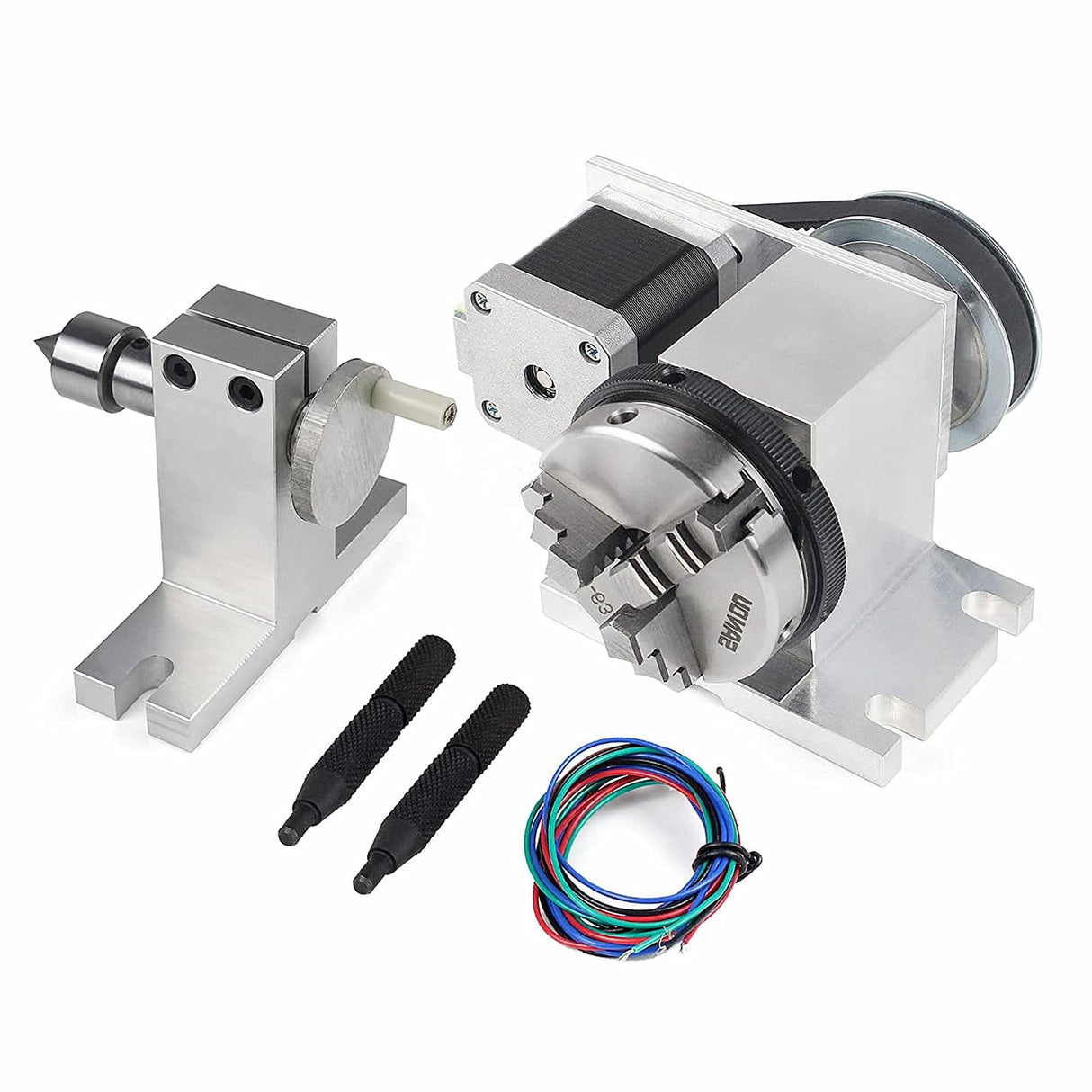

Details: Package include:
1 x Rotary axis 4th axis (include 3 jaw chuck & Nema17 stepper motor)
1 x 54mm Tailstock
(Reducing ratio 4:1)
Specifications
4th Axis
Center height: 54mm
Speed reducing ratio: 4:1
Motor Model:2 phase Nema17 42 stepper motor
Motor Torque: 52N.cm
Motor Current:1.3A
Step Angle:1.8 degree
Chuck Model: K01-63
Chuck:3 Jaw Chuck
Chuck Diameter: 63mm
Clamping Range : 1-50mm
Hold tight size range:16-50mm
Centering precision: 0.05mm
Size: 128mm*122mm*85mm

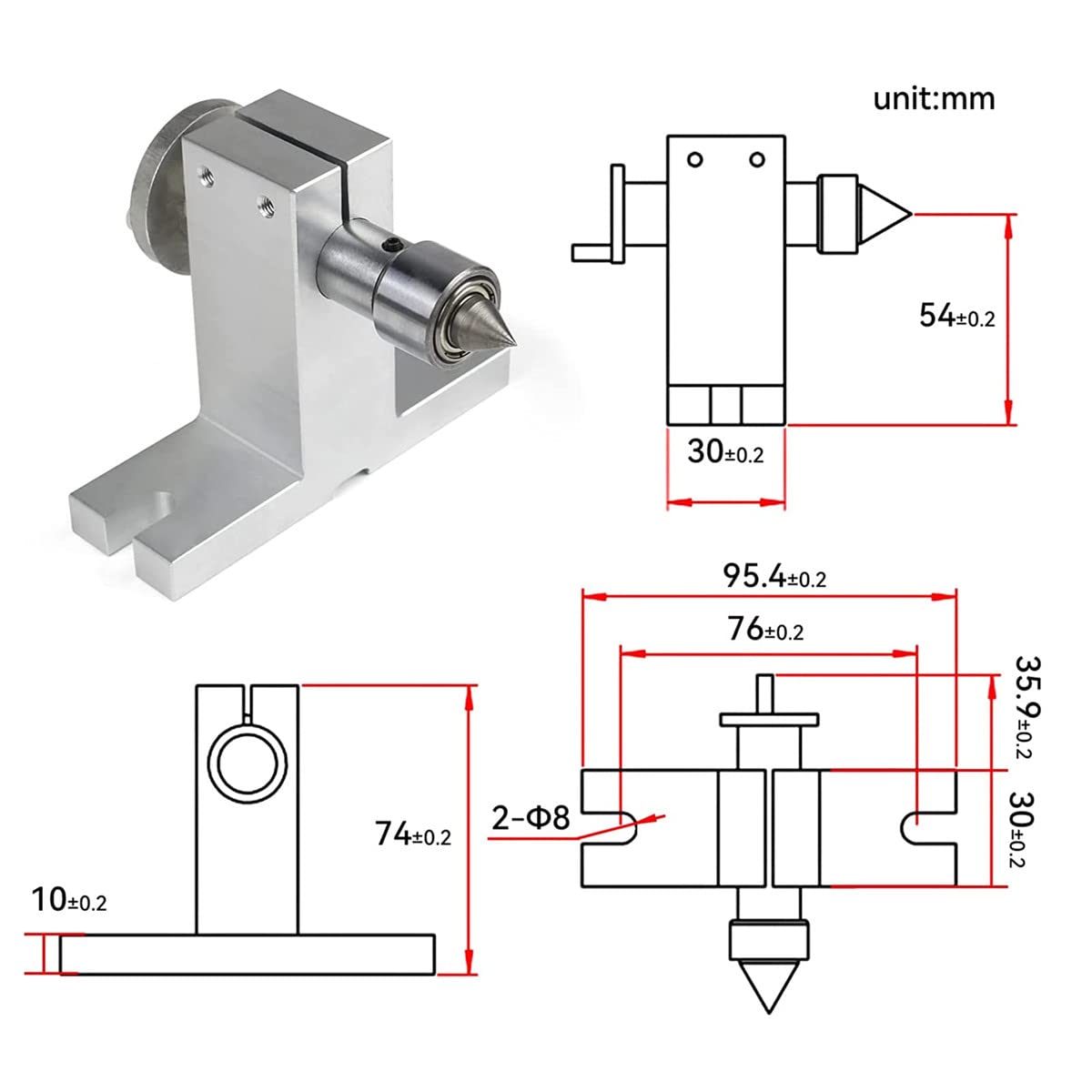

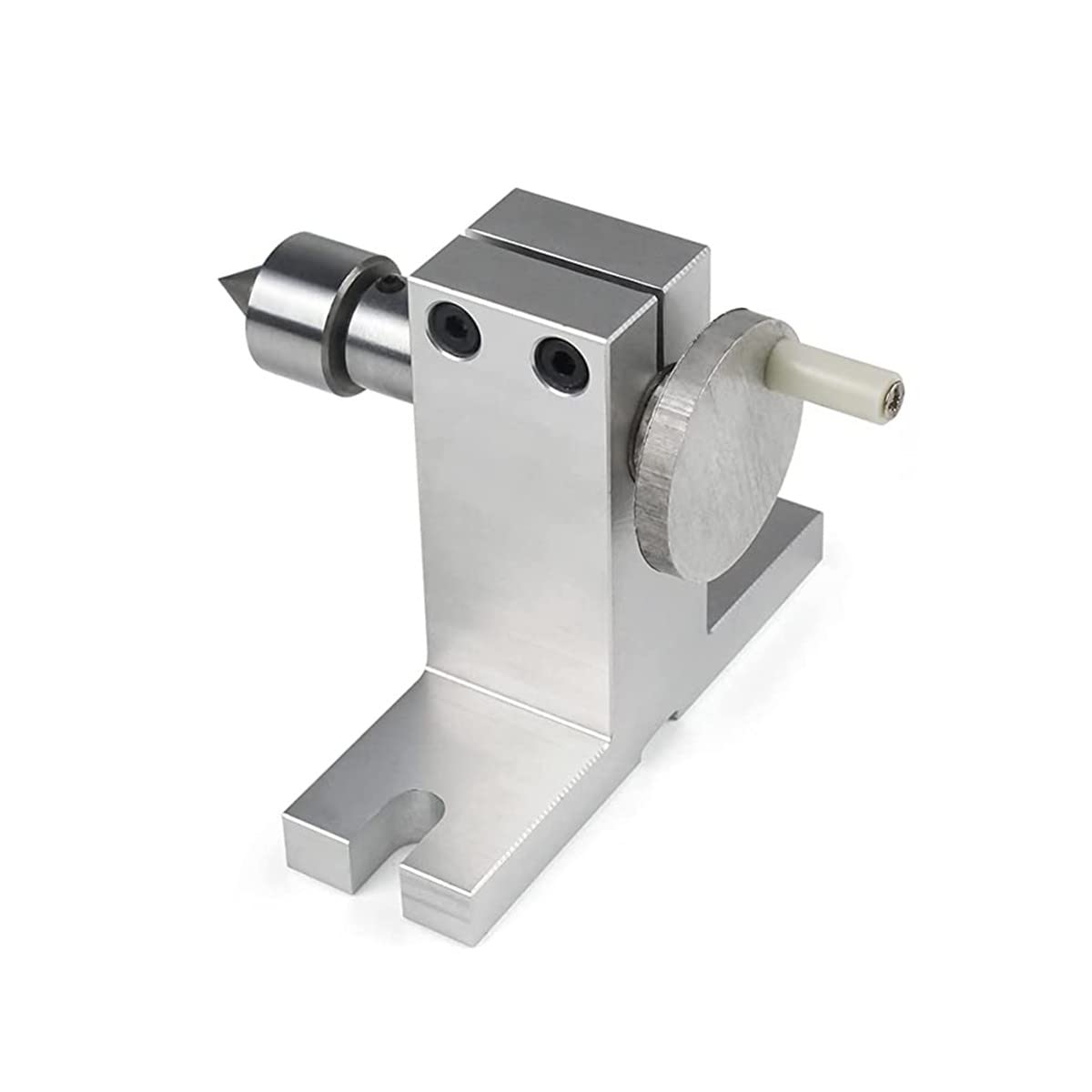

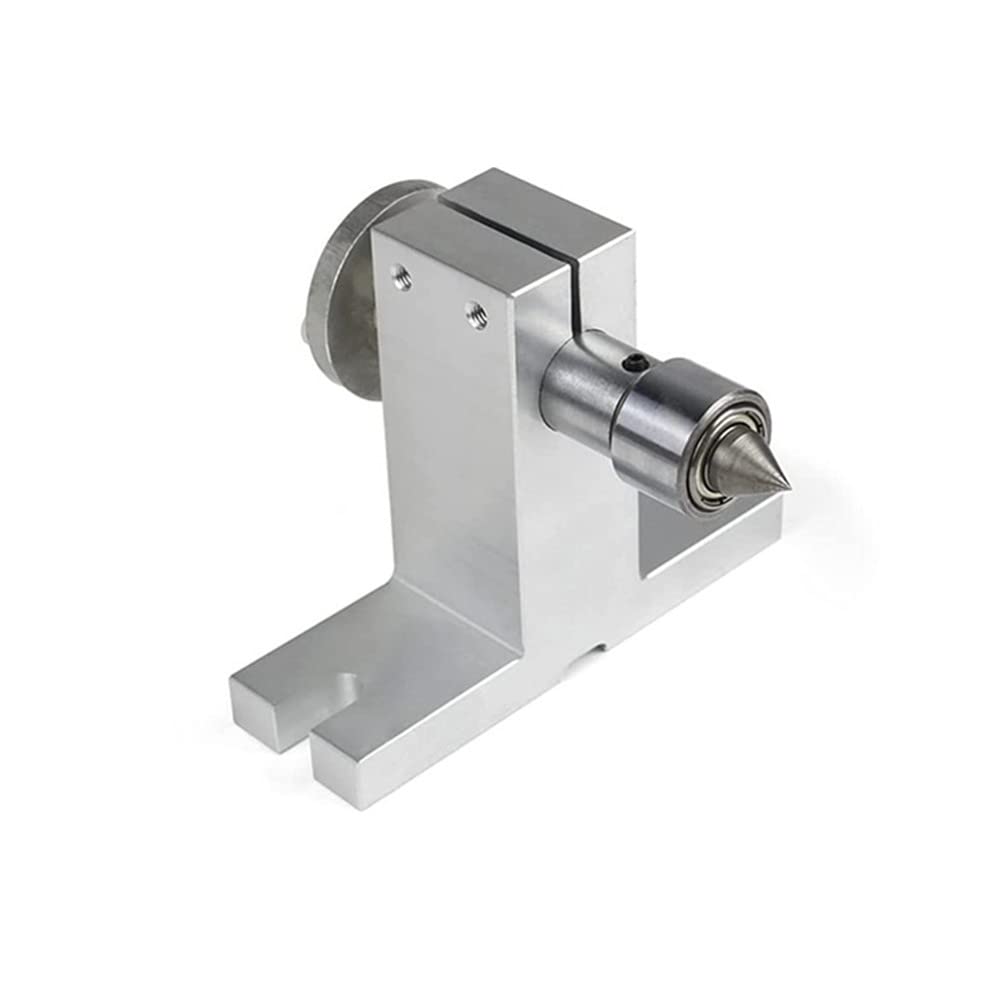

Tailstock:
Center height: 54mm
Telescopic stroke: 30mm
EAN: 0681385631142
Package Dimensions: 11.9 x 7.6 x 5.9 inches
