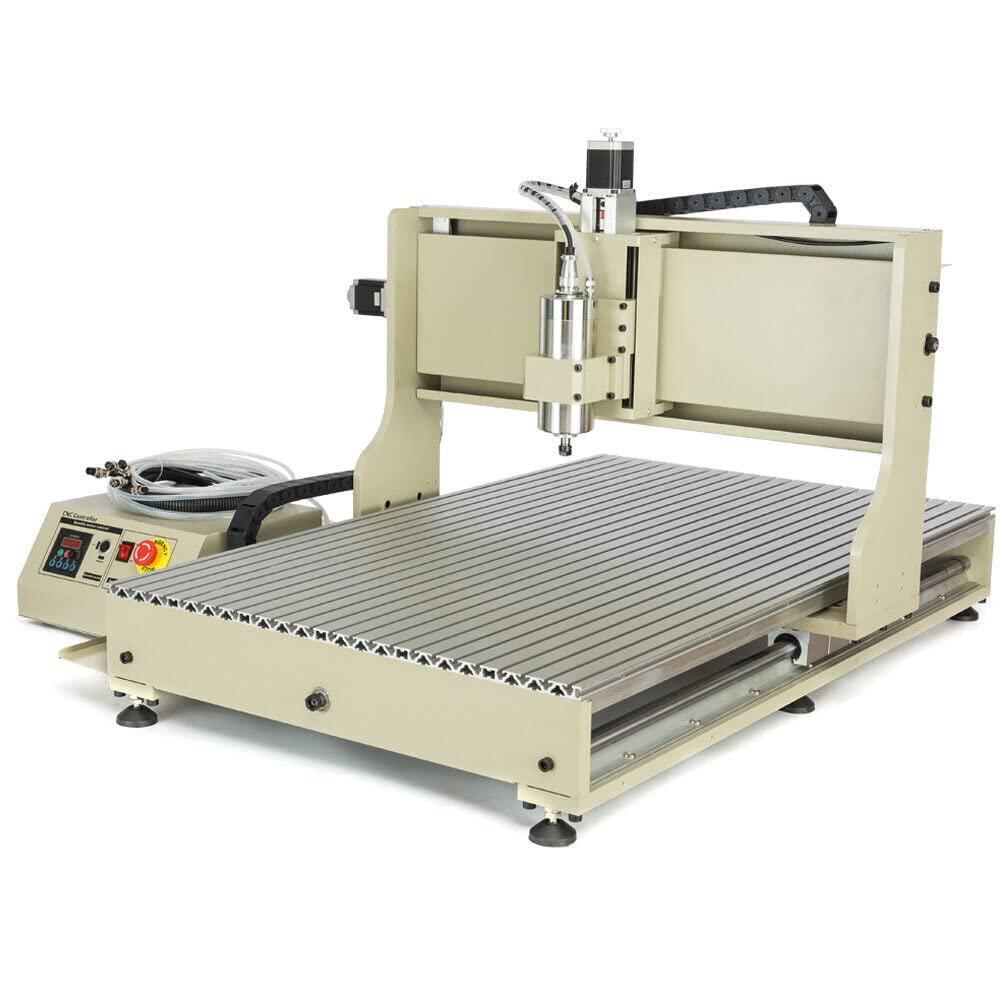

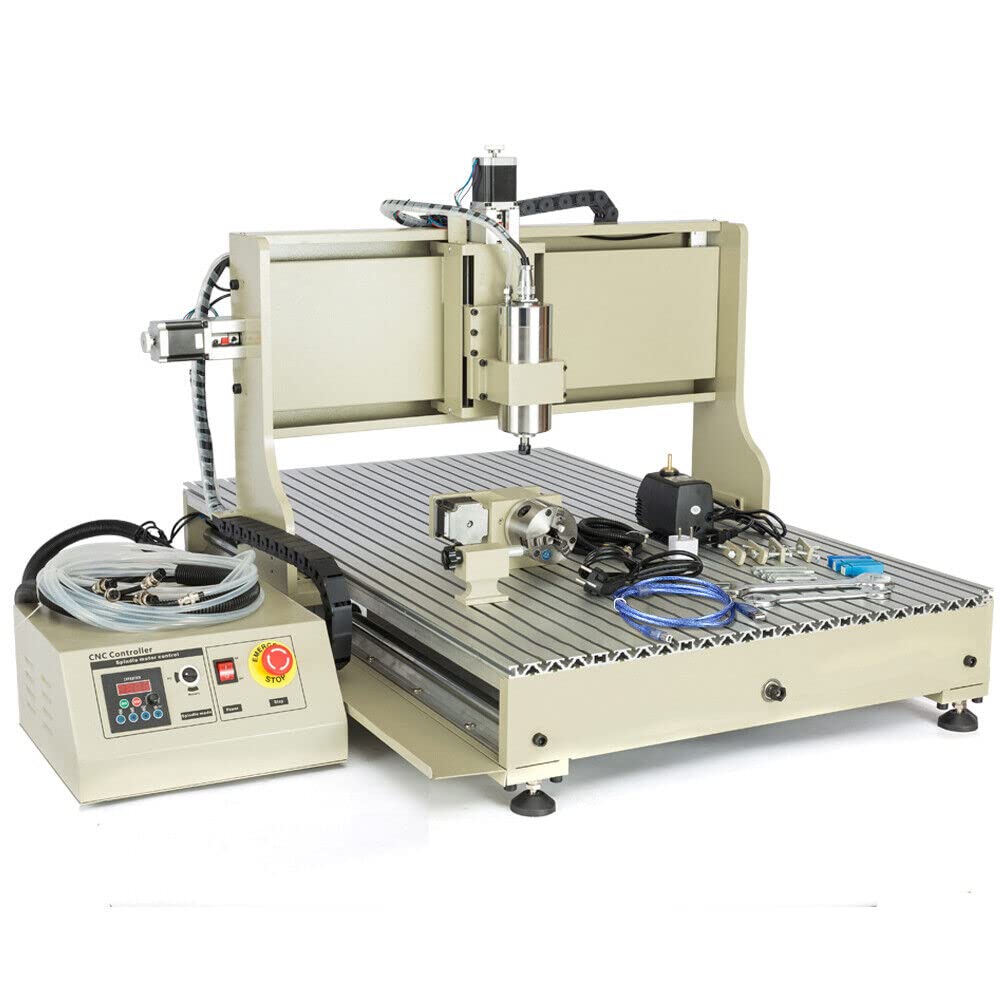

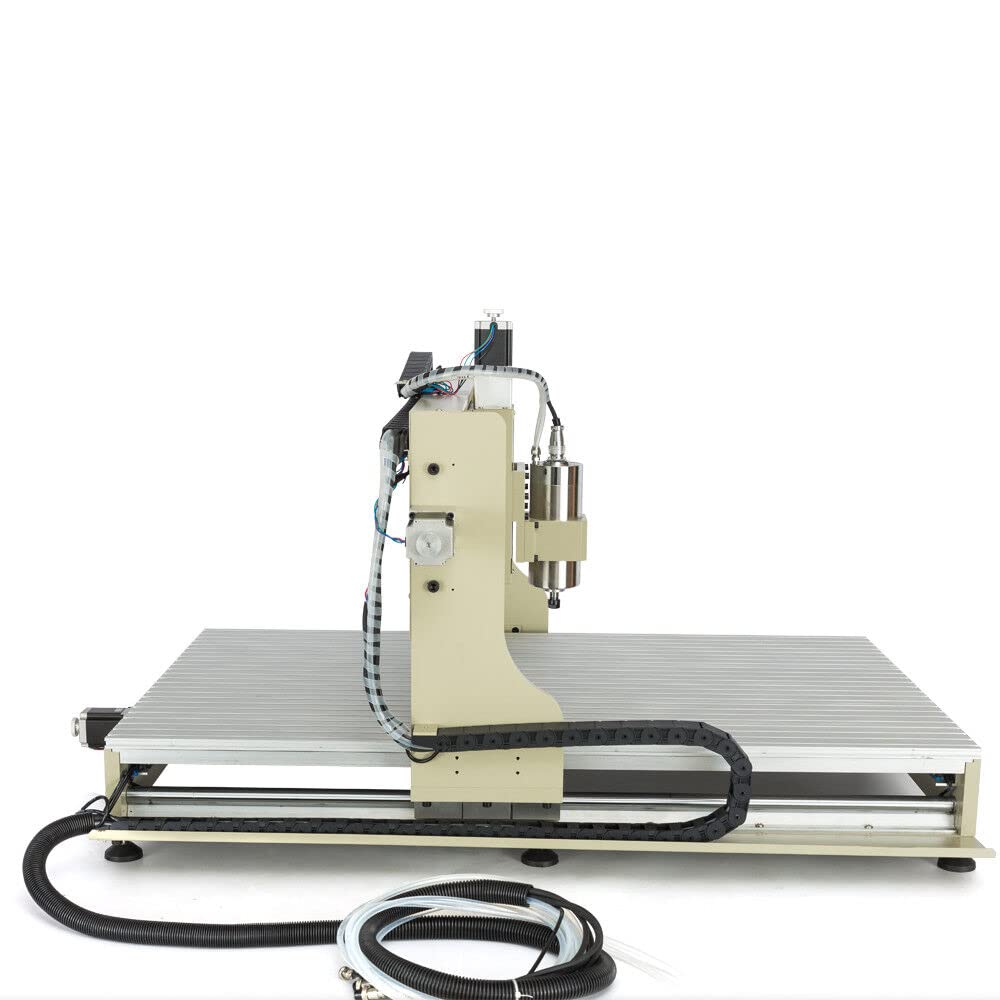

CNC Router Kit Engraver Milling 3D Cutting Machine, Carving Milling Engraving Machine, USB 4AXIS 6090

Brand: TOWOHIPPKI

Features:

• The NEW 2.2KW water-cooled VFD is available operating for long time,which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood.
• High quality accurate ball Screws drive make the engraving more precision. Anti-blackflash,high precision,long life circle.
• Application industry: The engraver could do shadow-carved, sculpture which widely used in the gift industry; can be used in aluminum cutting industry,such as aluminum, aluminum-plastic plate, aluminum honeycomb panels, aluminum, 3D engraving process, Artificial plate, cutting LED and neon letter , making plastic light box model; also can engrave on acrylic, copper, PVC board, artificial stone, MDF board, and other metal sheet.
• Tips：1,The spindle motor must connect with the VFD.2,It cannot directly connect with the supply voltage (AC110V/220V). 3,Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.
• Drive of Stepping motor 0-3.5A adjustable four-axis drive(TB6560AHQchip, 24V power supply, 2,4,8,16Subdivisionsettings, Factorysetting:8subdivided)

Binding: Misc.

model number: 003

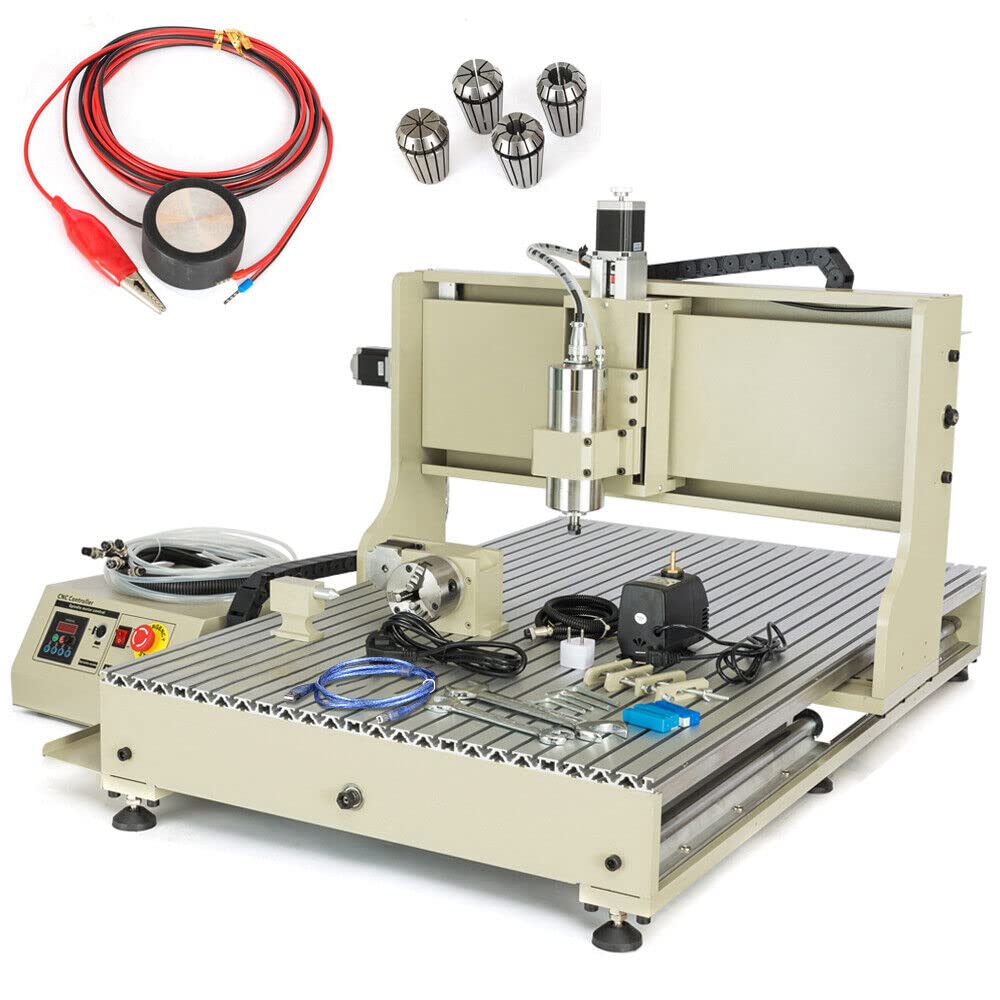

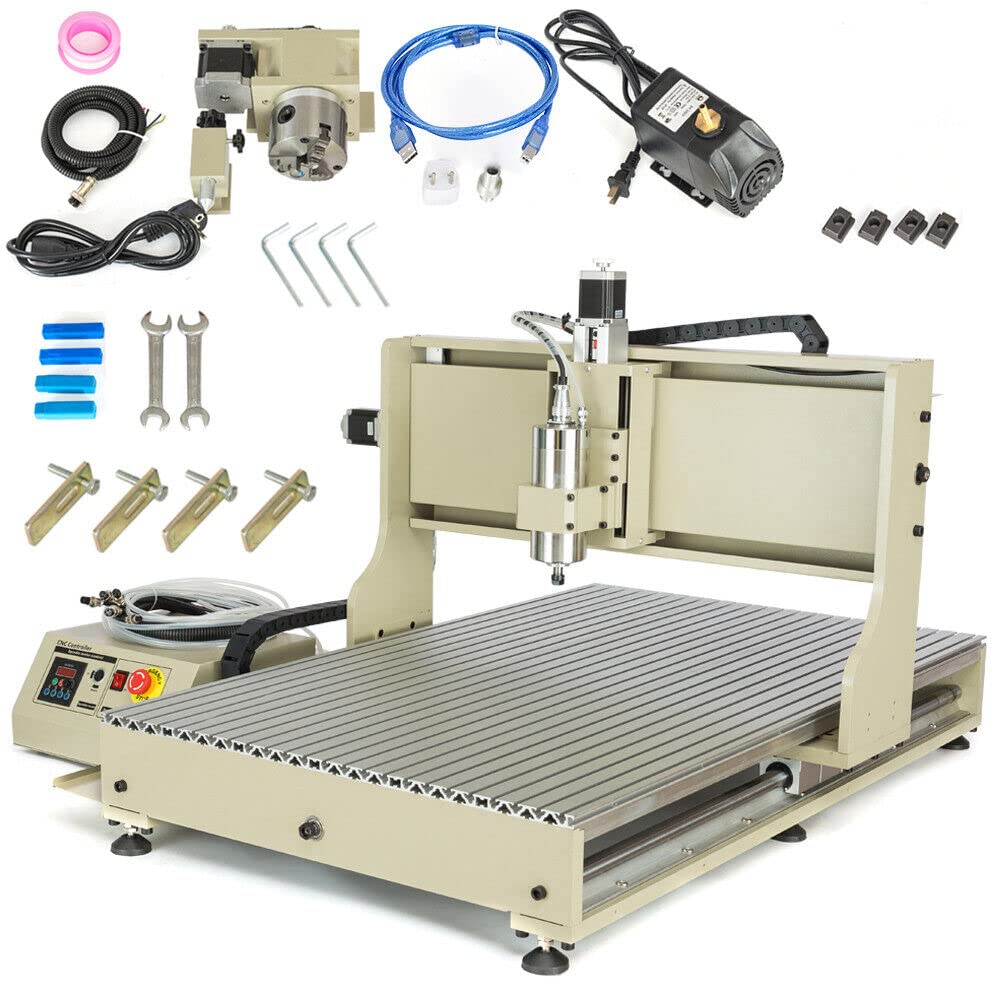

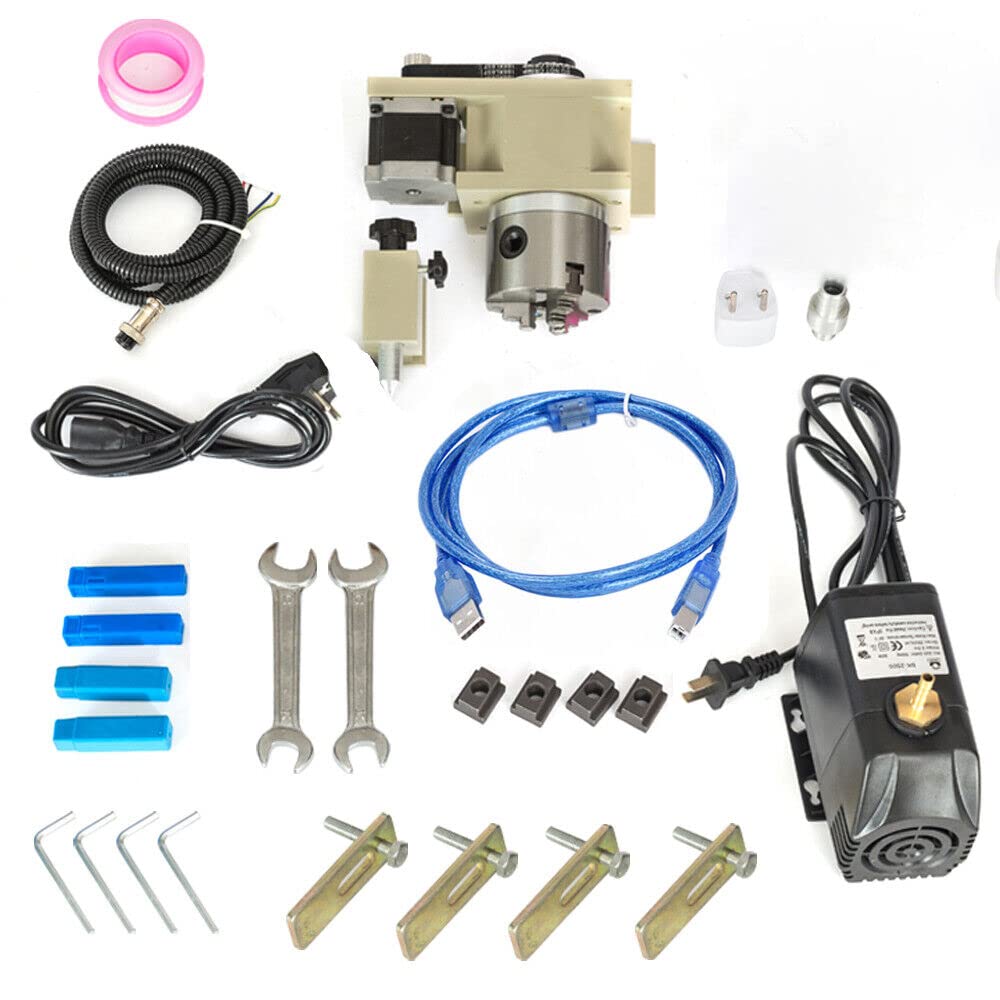

Details: 6090 router 4Axis+2.2kw Spindle motor +VFD +USB Port Metal Wood Engraver with tool sensor

Router engraving machine parameters:

Model:6090GZ
Outside dimension:1150x970x650mm(LxWxH)
Working platform size:1045x720mm(LxW)

Frame Material:
The whole machine used 6061 aluminum profiles
Max. Feeding height:≤140mm(From base of Z axis to platform)
X,Y,Z Working Area:600x900x150mm

Sliding unit:
X axis:SFU1605 Ball Screws;
Y axis:SFU1605 Ball Screws;
Z axis:SFU1204 Ball Screws

Drive unit:
X axis:ø20 High intensity round rail,
Y axis: SBRø20 high-strength aluminum base rails;
Z axis: ø12 high-strength round rail

Stepping motor:two-phase 3A (with handwheels)
Driving Power for Stepping motor:AC110,240W, Output DC24V10A
Maximum Idle speed:1500mm/m
Working Speed:50-1500mm/min (different material with different speed settings)
Spindle motor:2200Whigh-speed variable frequency spindle motor, ER11 chuck , matching 6mm bur

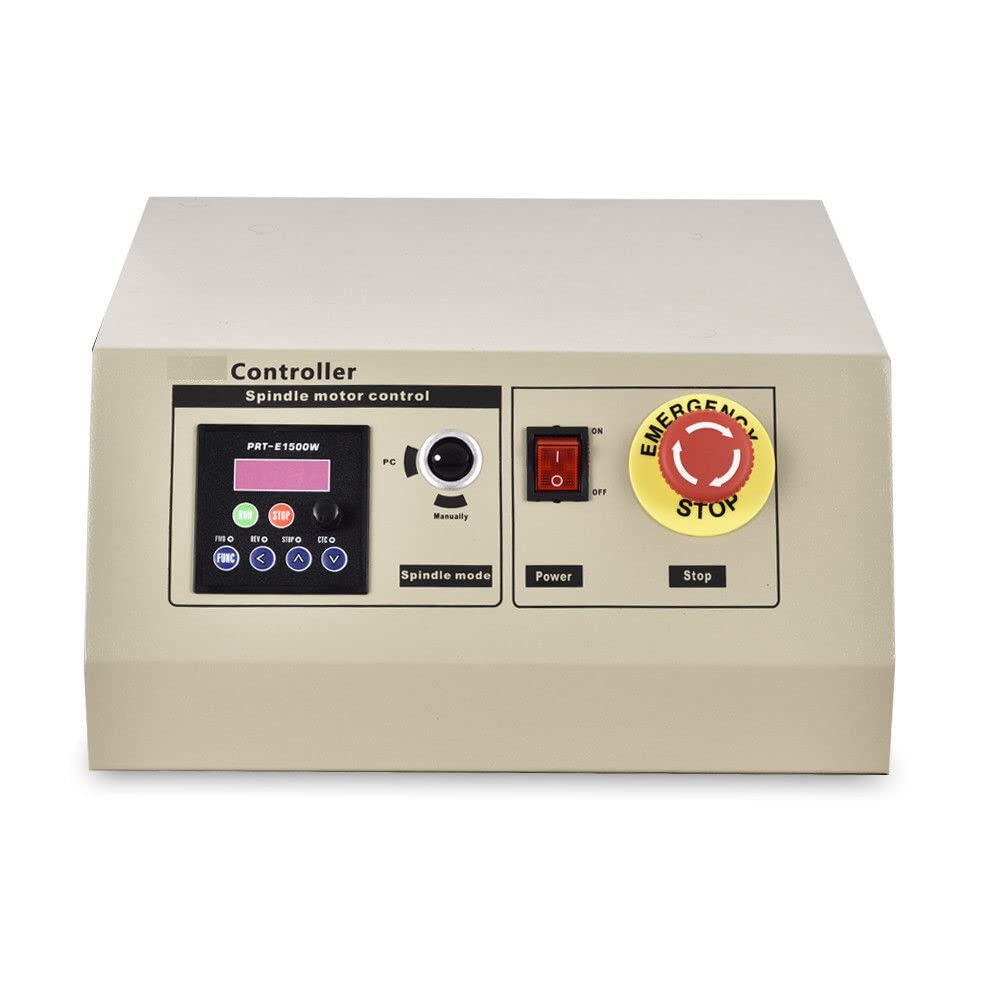

Variable-frequency Drive(VFD):AC110V, 2200W, 0-400Hz(built-in Control box )

Repositioning precision:≤0.05mm
Speed:0-24000r/m
Cooling method:Water cooling,Matching heat dissipation water pump
Spindle precision:Radial runout≤0.03mm
Carving command:G code/TAB file/nc/TAB /NCC/file
Protection:Emergency stop button
Communication interface:through USB PORT connect with computer
Input Volts: AC110V
Gross weight of machine :About 145kg/320lb
Update function: with limit switch
