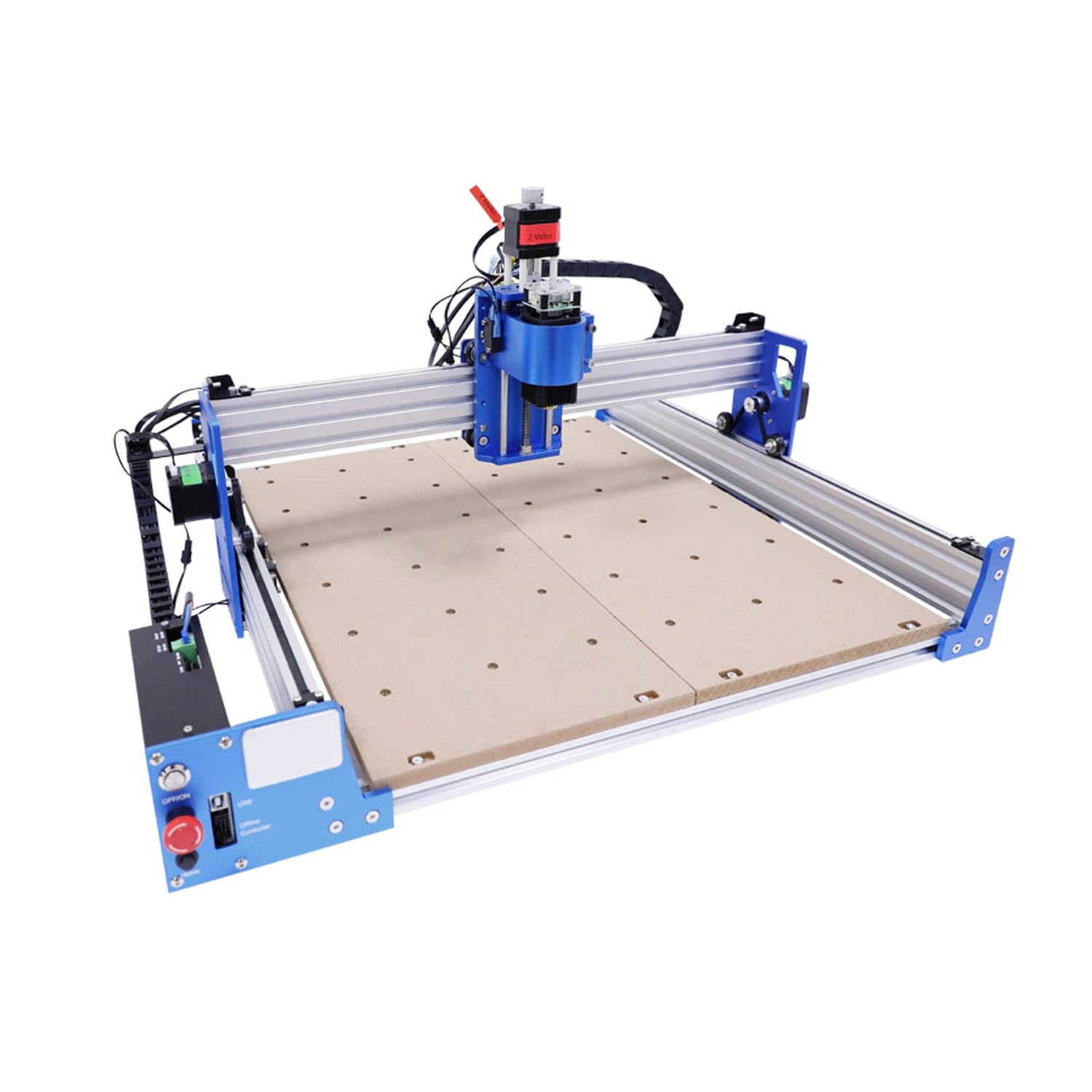

CNC Router Machine, CNC Machine Kit Pro Milling Machine, Mini DIY CNC Router Kit, Engraving Machine, for Wood Metal Acrylic MDF Carving Arts Crafts

Brand: InSyoForeverEC

Features:

• 【CNC Router Machine】The engraving machine with an aluminum frame and wood panel workbench is corrosion-resistant and strong. Turning your ideas into the next fun project will be much easier with our desktop CNC machine. Maximum Workpiece Thickness: 78mm/3.07inch; Effective Stroke: 400*400*83mm/15.75*15.75*3.27inch; Drive Power: 12V 5A; Spindle Power: 75W; Voltage: 110V; Power: 100W; Spindle Speed: 0-10000rpm; Spindle Accuracy: Radial Runout ≤ 0.05mm.
• 【Stable Performance】The 75W high-power spindle Motor has good control performance. The starting, stopping, and flipping are done within a few pulses. Also, CNC router machine is equipped with limits in several directions to prevent accidental touching of the edges and to reduce damage to the machine.
• 【Efficient & Precise】The engraving machine with the industrial-grade chip and 75W high-power spindle motor takes a very short time to complete the engraving, which is more highly efficient. The engraving machines with industrial-grade chips have precise calculations and can achieve precise engraving of ≤ 0.05mm/0.001inch. With an effective engraving area of 400*400*83mm/15.75*15.75*3.27in, the desktop CNC machine can easily accommodate most projects.

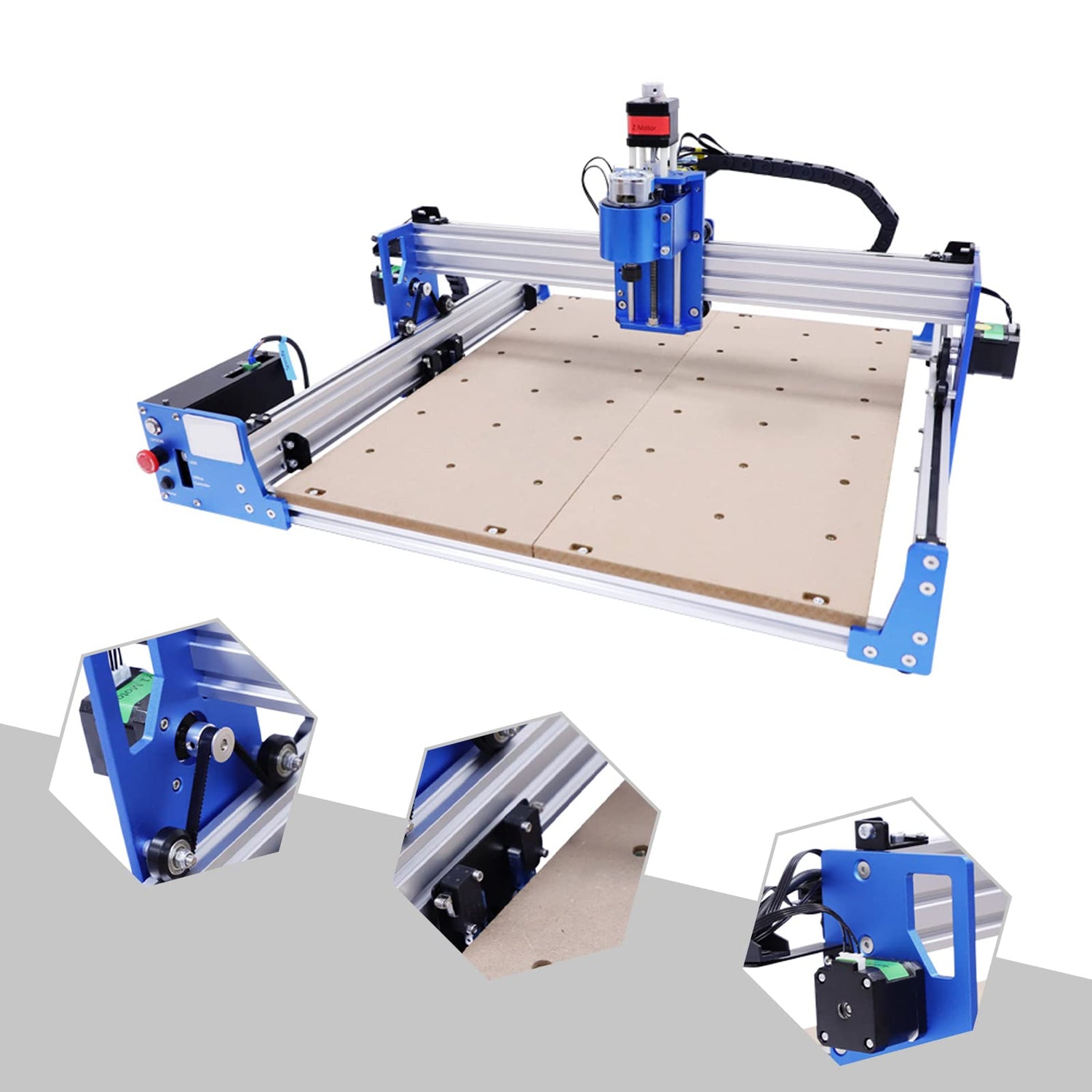

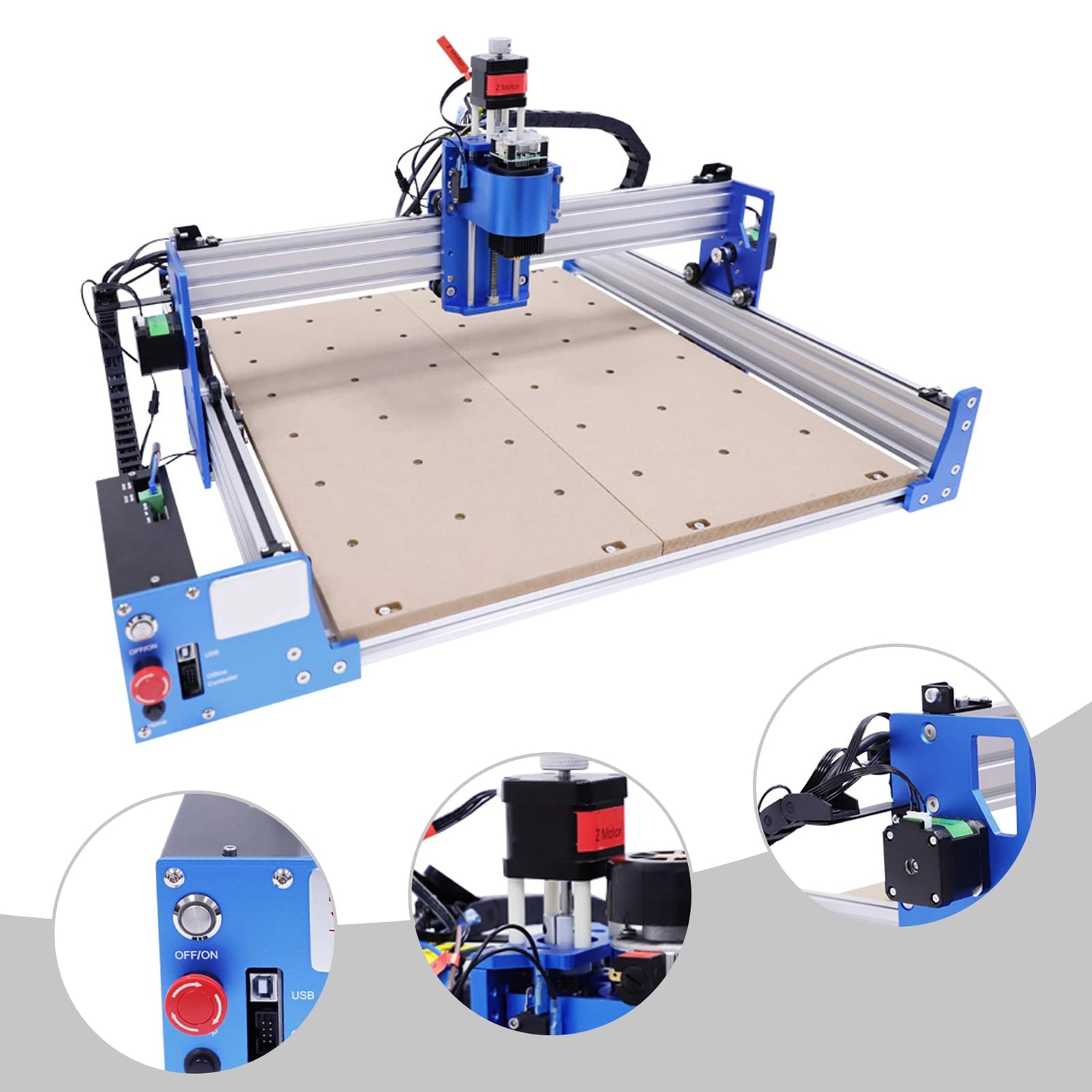

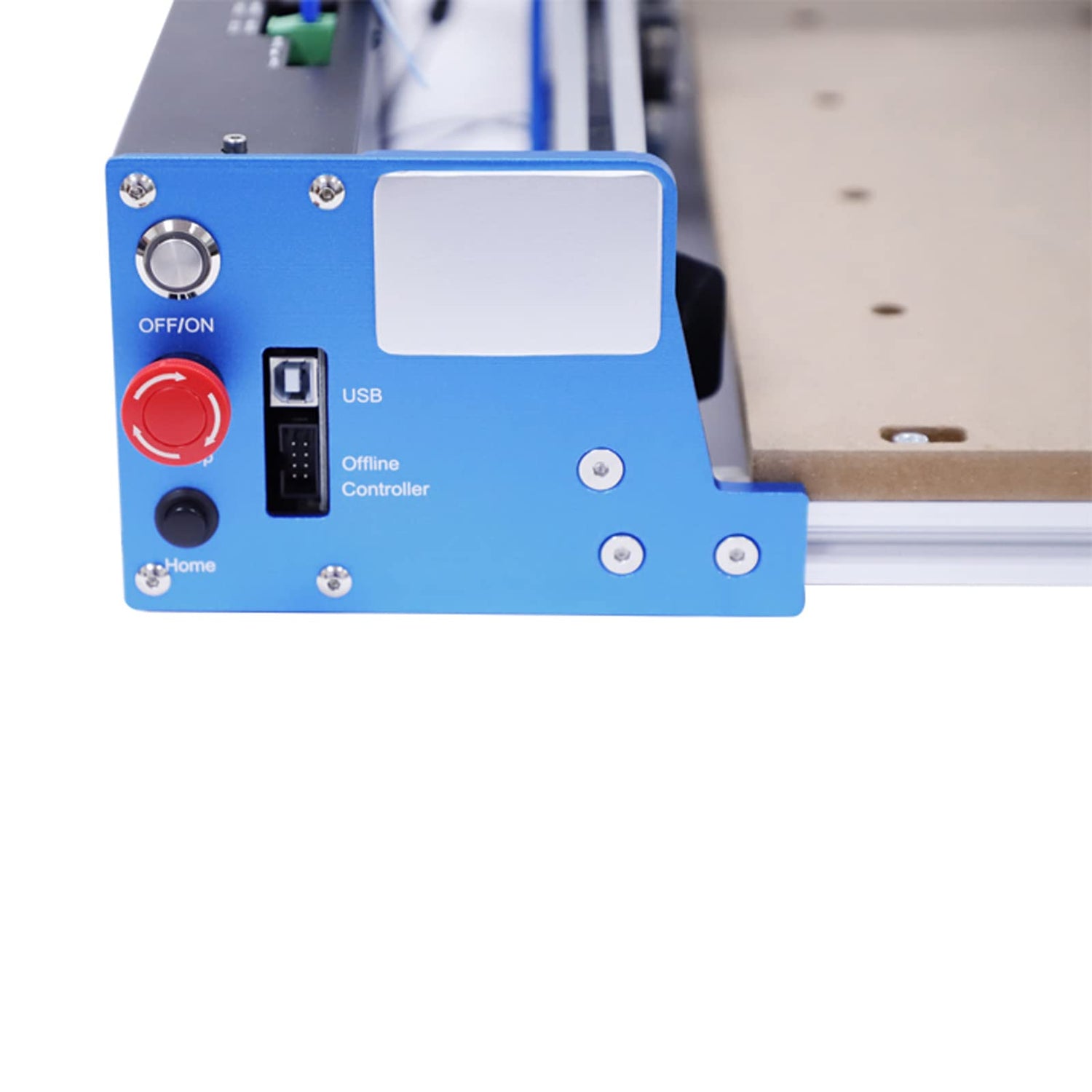

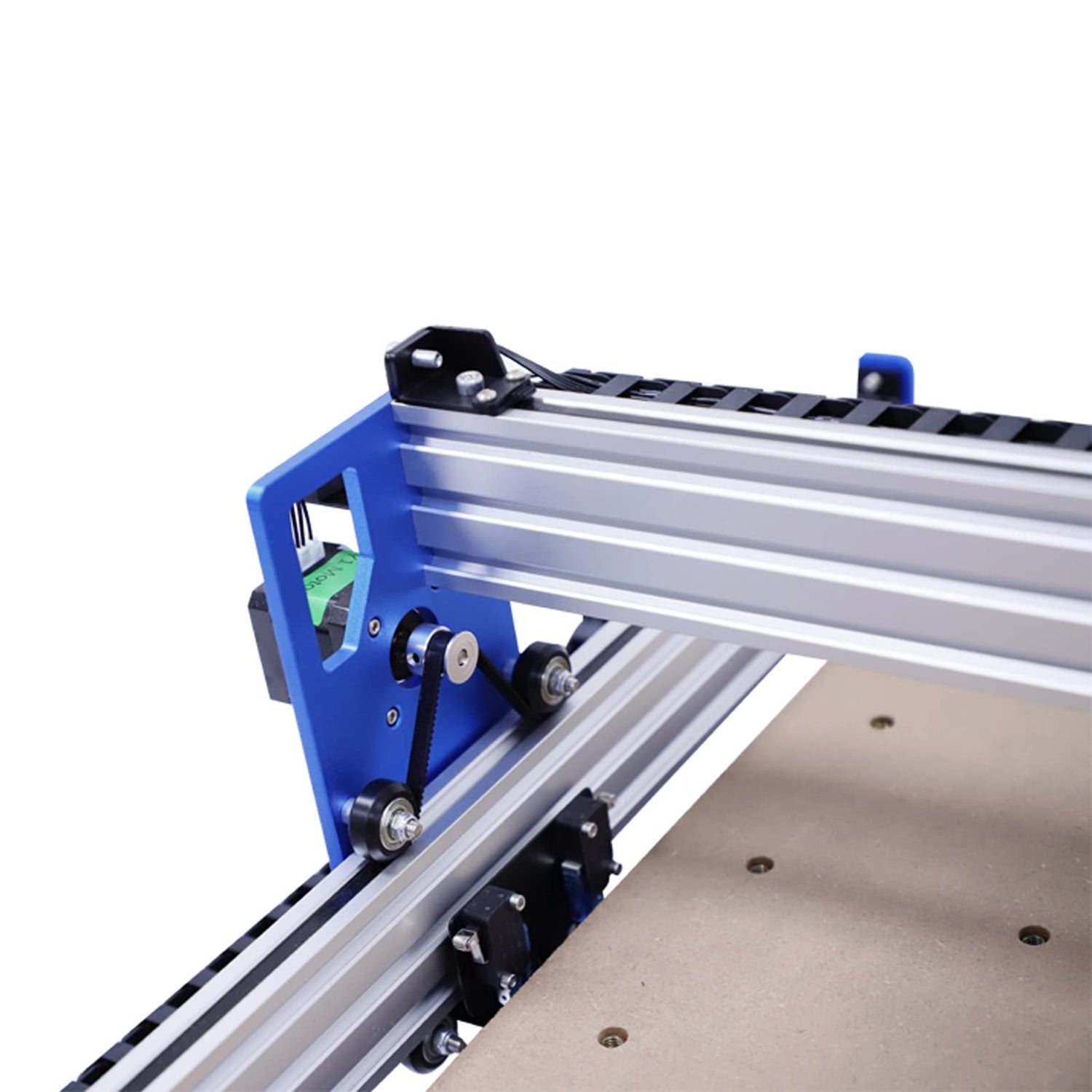

• 【User-friendly】The straight square rails allow the bearings to work for long periods without affecting performance. You can press the emergency stop button to protect the machine when CNC router machine is affected or when it is working erratically. The machine has clearly displayed function buttons and we have provided a manual to enable you to use the machine quickly
• 【Package Included】No additional parts required: Everything you need out of the box. Our CNC router already includes all of the accessories and components you need at an affordable price, including 1 Set* Carving Bit; 1* Z Probe; 1* Right-Y-axis; 1* U Disk; 1* USB; 1* Power Supply; 1*Power Cable; 4* Clamps; 1*Manual; Other Accessories for Installation.

Binding: Misc.

model number: ksaj-5439

Details: Application

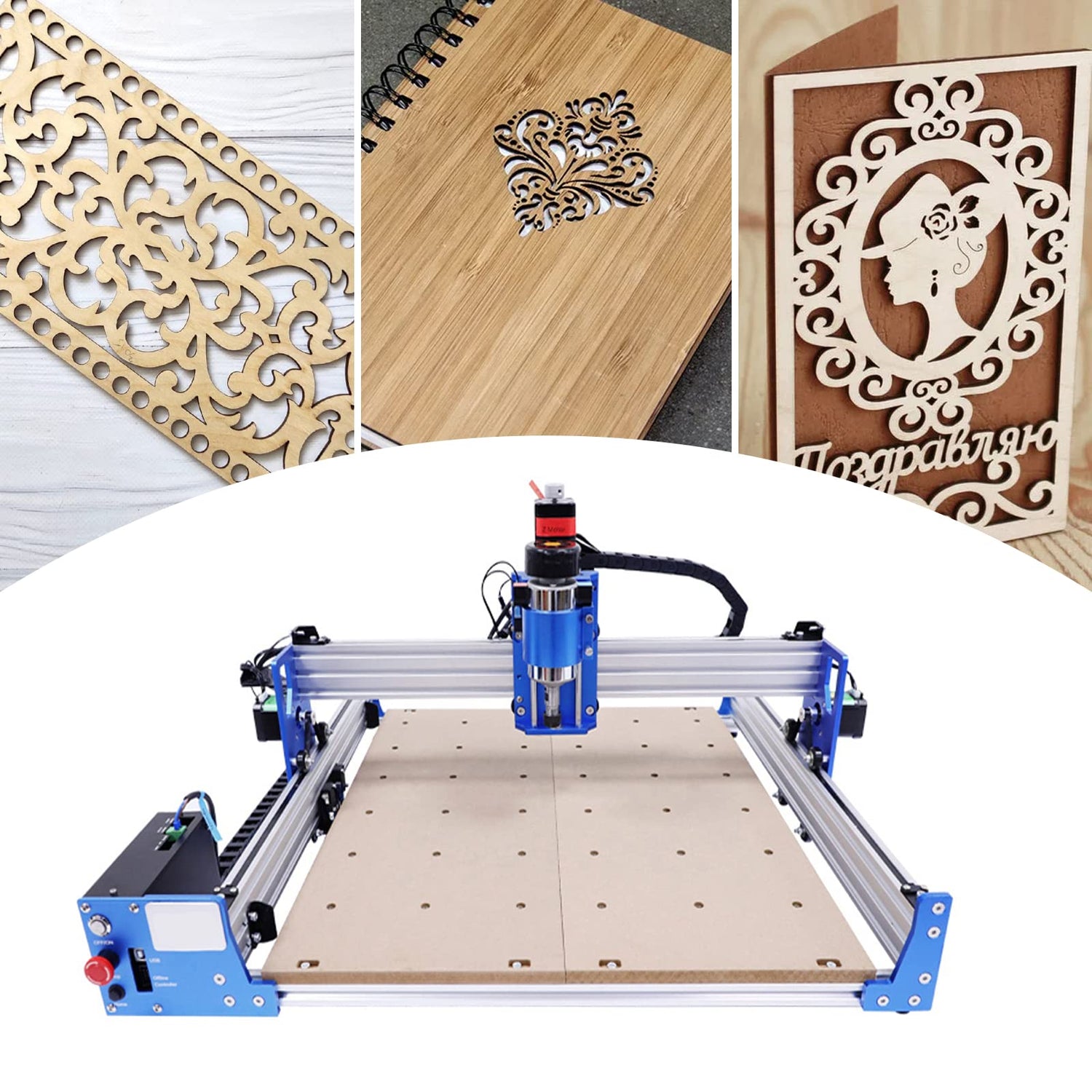

It is suitable for industrial technology, advertising design, art, educational programs, amateurs, architectural models, printed circuit boards, etc. It is suitable for engraving plastic and wood.
Specification
Color: Blue, Silver
Material: Aluminum, Wood
Maximum Workpiece Thickness: 78mm/3.07inch
Effective Stroke: 400*400*83mm/15.75*15.75*3.27inch
Drive Power: 12V 5A
Spindle Power: 75W
Voltage: 110V
Power: 100W
Spindle Speed: 0-10000rpm
Spindle Accuracy: Radial Runout ≤ 0.05mm
Stepper Motor: 42 Two-phase Stepper Motor
Rotation Speed: 6000rpm
Acceptable Software: GRBL/Candle
Communication Interface: USB
Gross Weight: 12kg/26.46lbs
Engraving Speed: 50-1500mm / min (Depending on the Material Speed Setting)

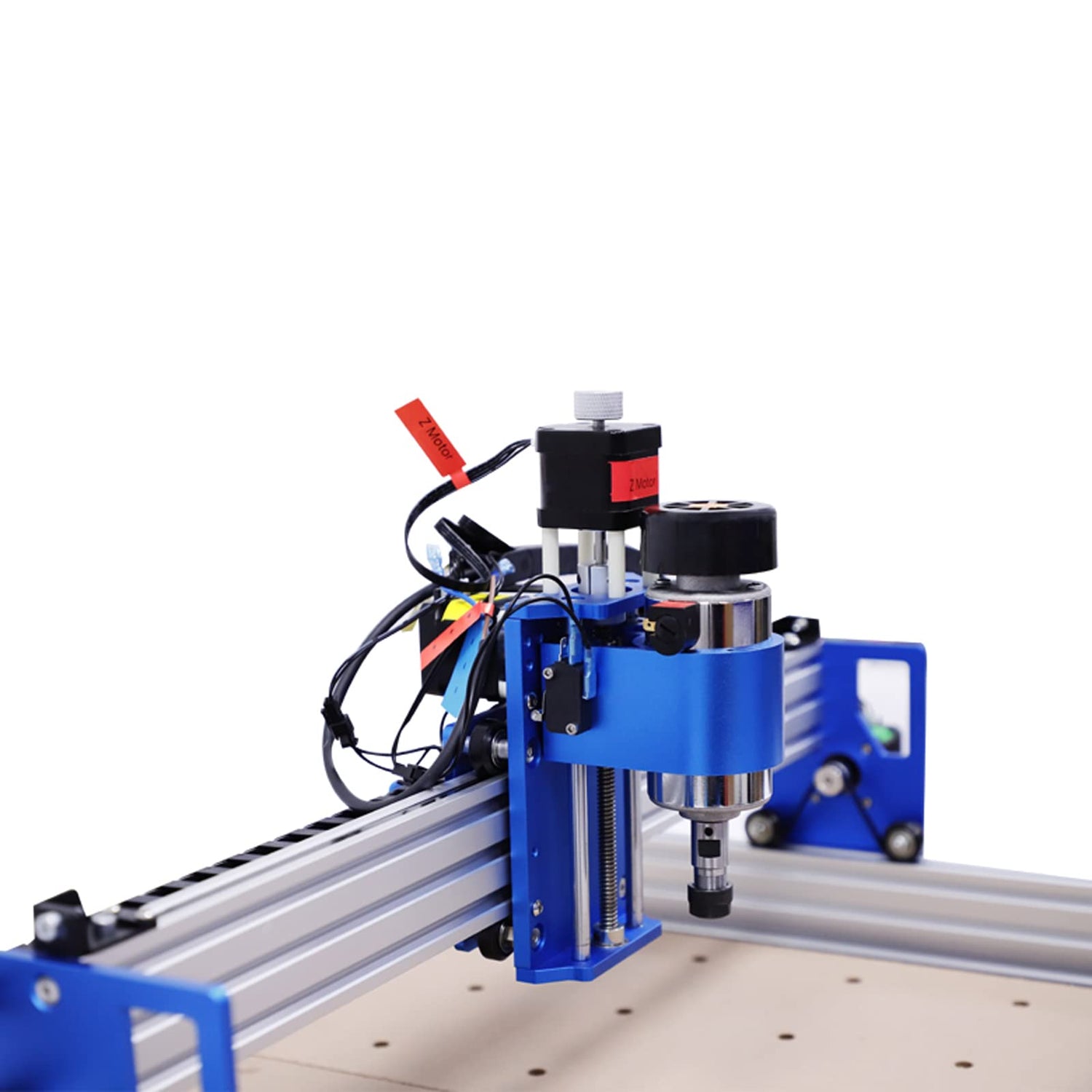

Standard Spindle: 42mm High-Speed Spindle / ER11 Chuck / 3.175mm Clamping Centre
Workbench Size: 60*52cm/23.62*20.47inch

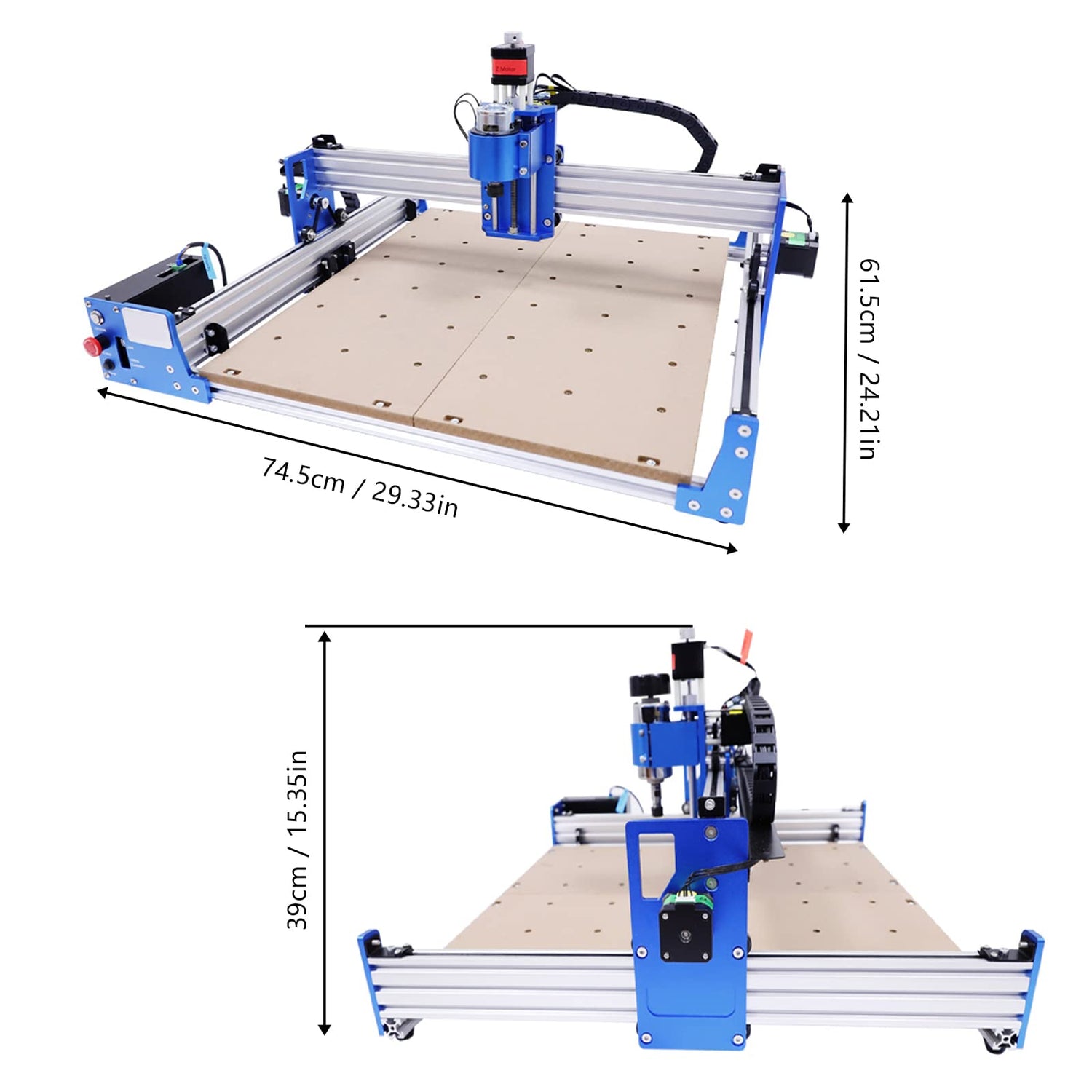

Product Size: 74.5*61.5*39cm/29.33*24.21*15.35inch
Package Size: 67*39*29cm/26.38*15.35*11.42inch

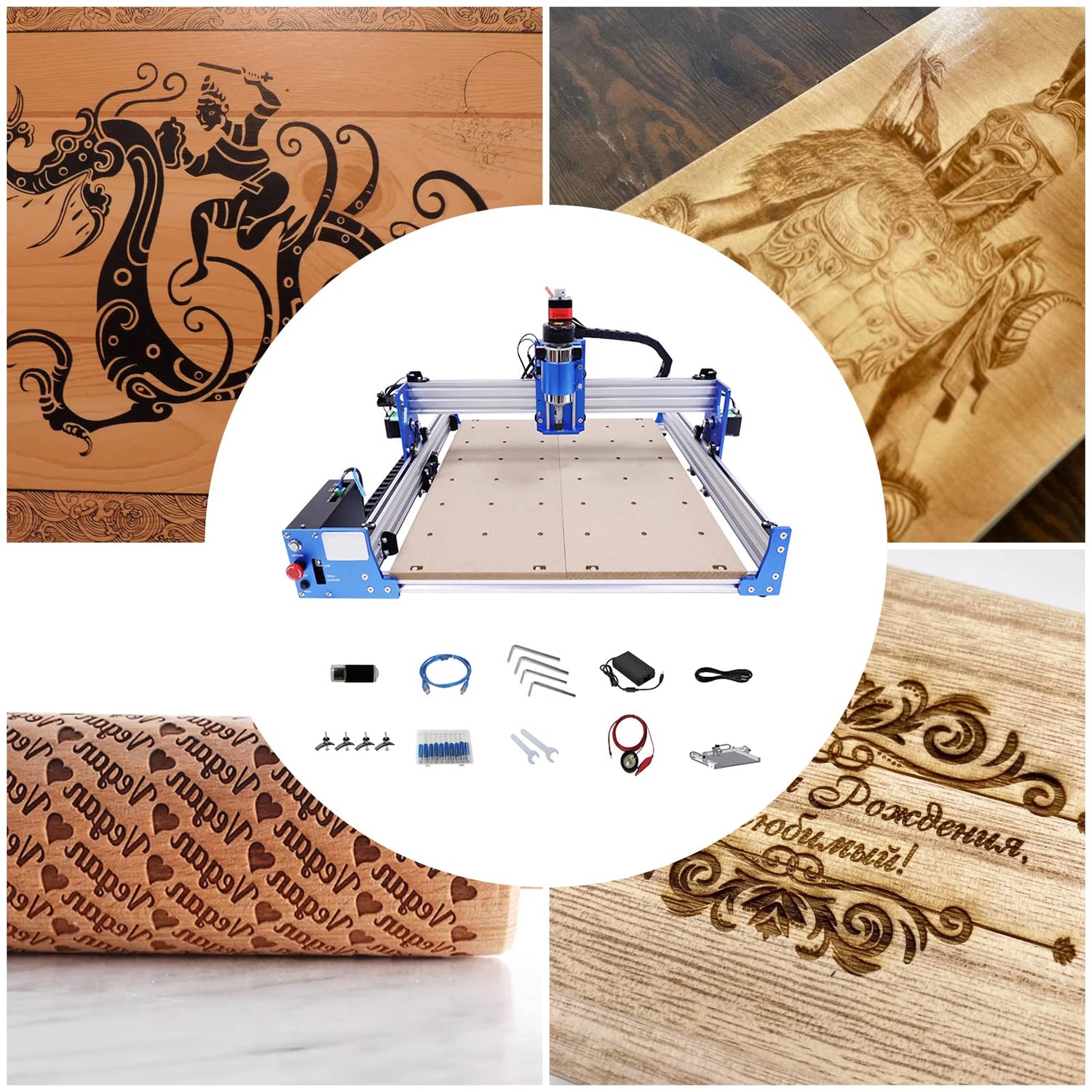

Package Included
1 Set* Carving Bit
1* Z Probe
1* Right-Y-axis
1* U Disk
1* USB
1* Power Supply
1*Power Cable
4* Clamps
1*Manual
Other Accessories for Installation
Notes
1. Please read the manual completely before installation and use. And pay particular attention to the safety instructions included.
2. It can't be used to carve hard metals, jade, or other hard objects.
3. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
