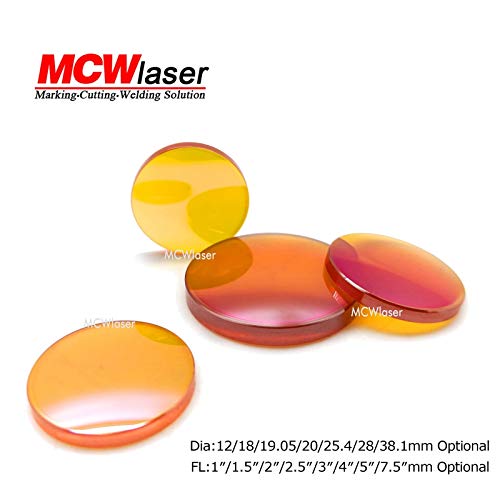

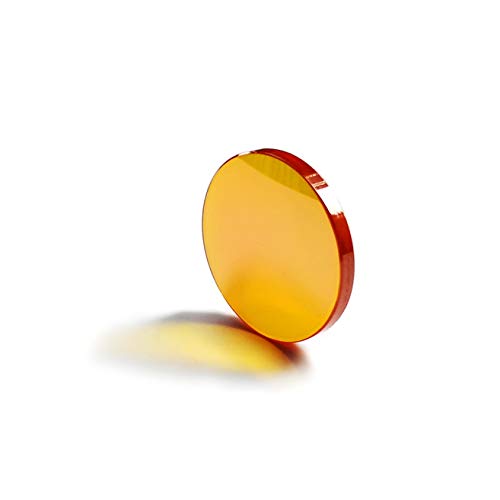

CNCOLETECH 19mm Znse Focus Lens for 10.6um Co2 Laser Engraving Cutting Engraver 40W-150W (Dia:19mm, FL:2" / 50.8mm)
CNCOLETECH 19mm Znse Focus Lens for 10.6um Co2 Laser Engraving Cutting Engraver 40W-150W (Dia:19mm, FL:2" / 50.8mm)
- Hand Chosen Products
- All Items are Highly Rated
- Top Quality is Assured!
Couldn't load pickup availability
Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Brand: CNCOLETECH
Features:
- Work well with 30W-100W 10600nm CO2 laser Engraver Cutter
- High quality & Extra lifespan
- ET:2.2mm
- AR@10.6um
Part Number: LM-ZNSE-19508

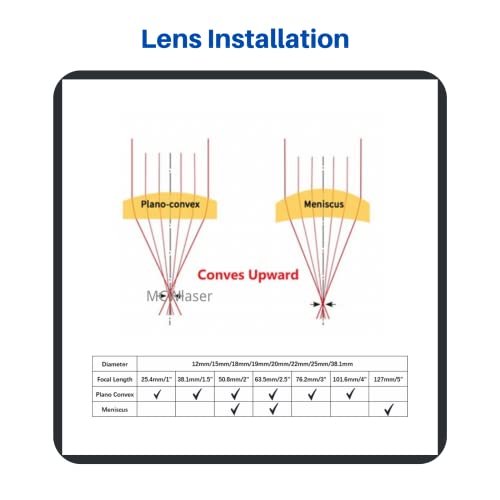

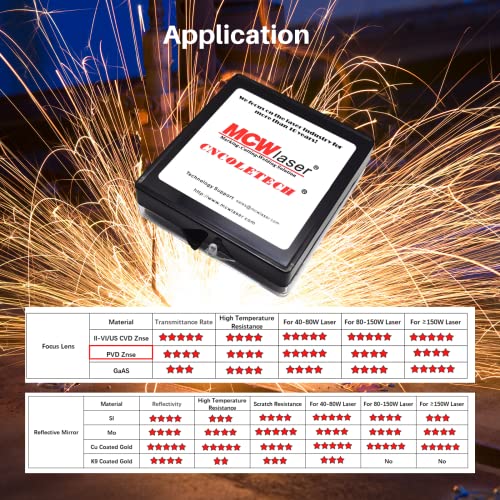

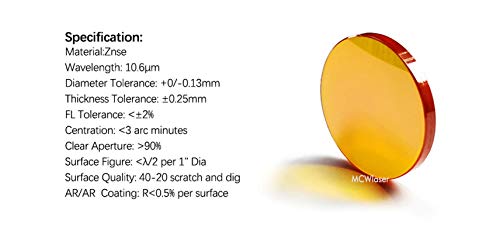

Details: Features: Material: Znse Lens Type: plano-convex (3'' and 4'') or meniscus (1'', 2'', 2.5'' and 5'') Edge Thickness: approximate 2.3mm for diameter 12mm/15mm/18mm/19mm/20mm; approximate 3mm for diameter 25.4mm Tolerance of Thickness: 0.010'' Edge thickness variation (ETV): <= 0.002'' Transmittance: 99.5% AR Coating Reflectivity < 0.3% Wavelength: 10.6 um Aperture: 90% of the Diameter Focal Length Tolerance: +2% / -2% Clear Aperture (Polished) > 90% Face accuracy (radial deviation / irregularity) at 0.63um: <= 0.20% AR Coating Reflectivity Per surface at 10.6 microns :<= 0.20% Be suitable for CO2 laser engraving cutting machine engraver/cutter(40W,50W,60W,80W 100W,130W,150W) Application: Please check the listing pic Packages List: Znse focus lens x 1pcs Shipping Time: standard shipping is 7-12 working days Expedited Shipping 4-5 working days
EAN: 0642337973178
Package Dimensions: 9.1 x 7.5 x 1.2 inches
