CNCTOPBAOS 1610 PRO CNC Milling Machine,with GRBL Offline Controller,3 Axis Desktop DIY Mini CNC Router Kit Engrave Carving PVC,PCB,Acrylic,Wood

Brand: CNCTOPBAOS

Features:

• 【Upgrade Version 1610 Pro with Offline controller】Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;The CNC1610 PRO machine is very easy to install,stable structure,our parcel also include english user manual.
• 【Working area】18x10x4.5cm;Frame size: 30x26x25cm;Type:USB port Desktop cnc router【System requirements】 Windows XP, win7,win8,win10; Supporting files:G-code (.nc/.txt/.tape/.gcode)
• 【Spindle&Stepper Motor】Diameter 45mm 10000 rpm maximum power 120W; ER11-3.175mm ( can be replaced 0-7mm ); Nema17 42 stepper motor 1.3A/0.3N.m
• 【Main application】Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.
• 【GRBL Software】GRBL control (candle); Parcel include 1pcs 4G USB flash drive which contains user manual & GRBL software

Binding: Tools & Home Improvement

model number: 3018

Part Number: 3018

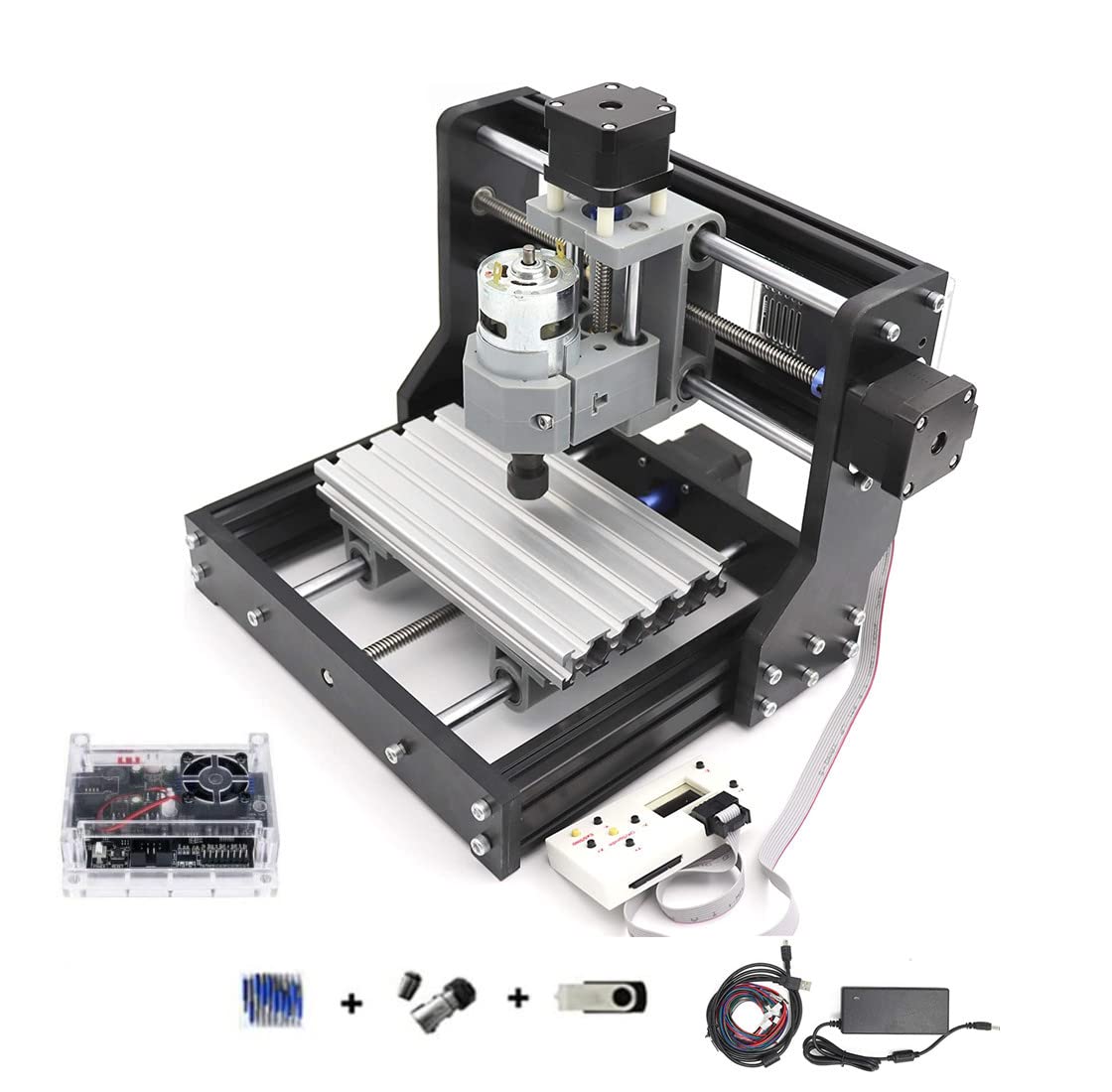

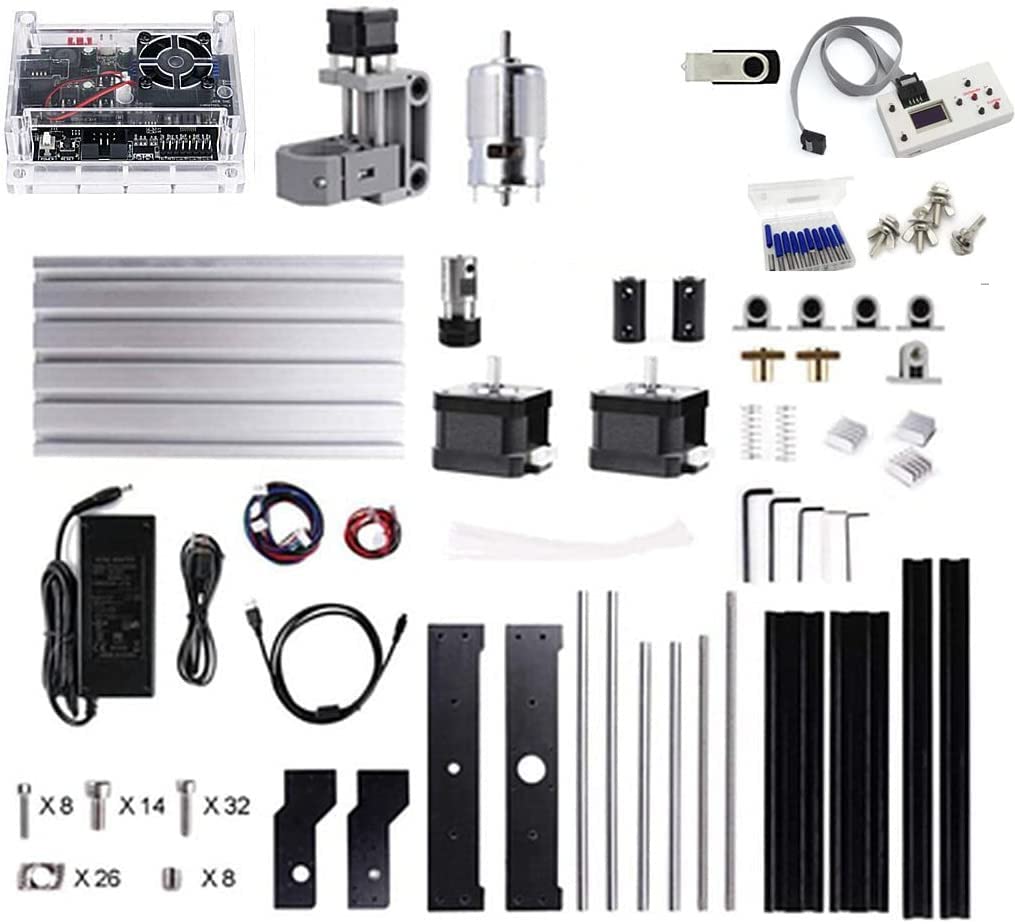

Details: Parcel include:
1 set 1610 Pro CNC Router with ER11 collet

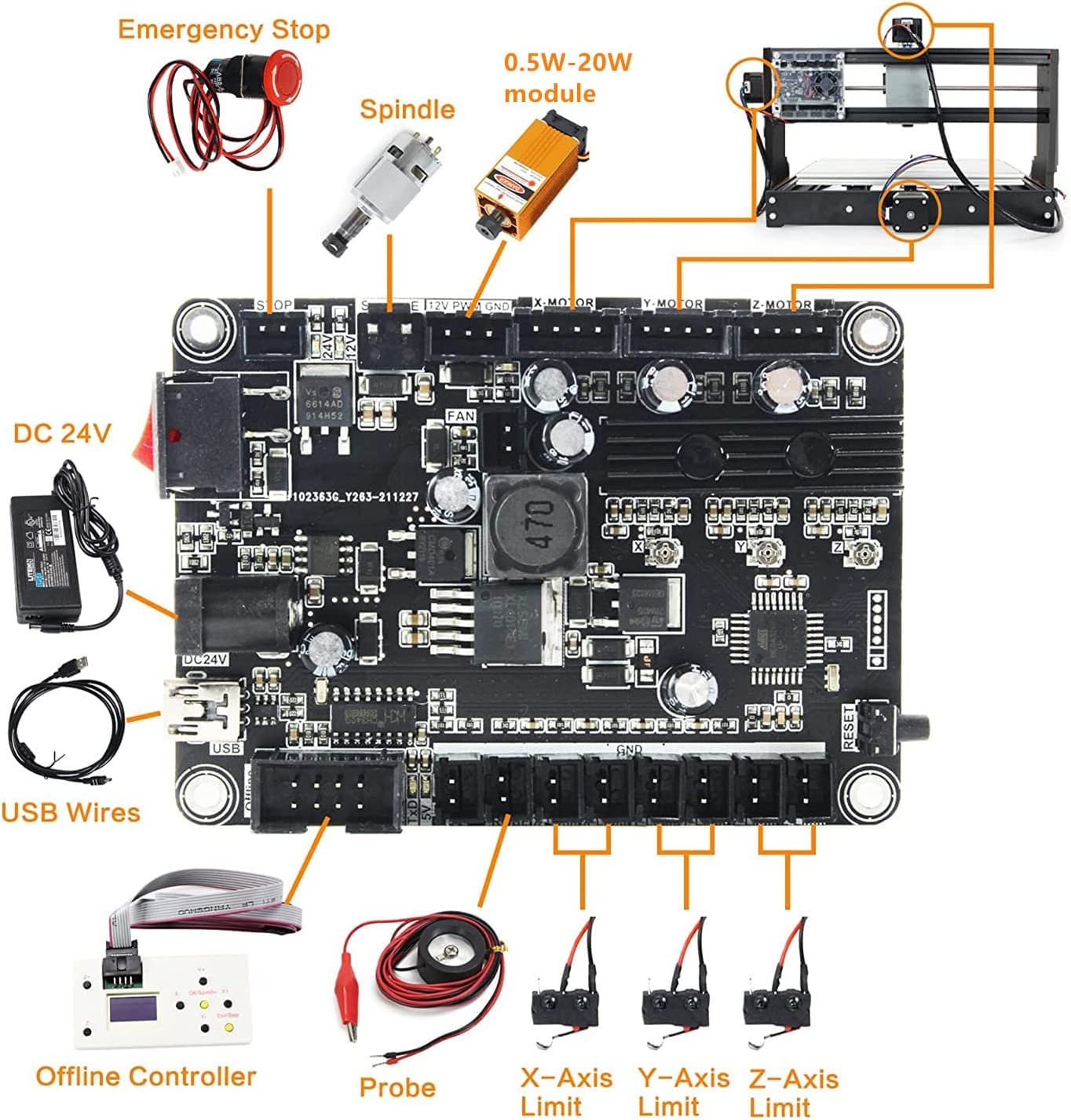

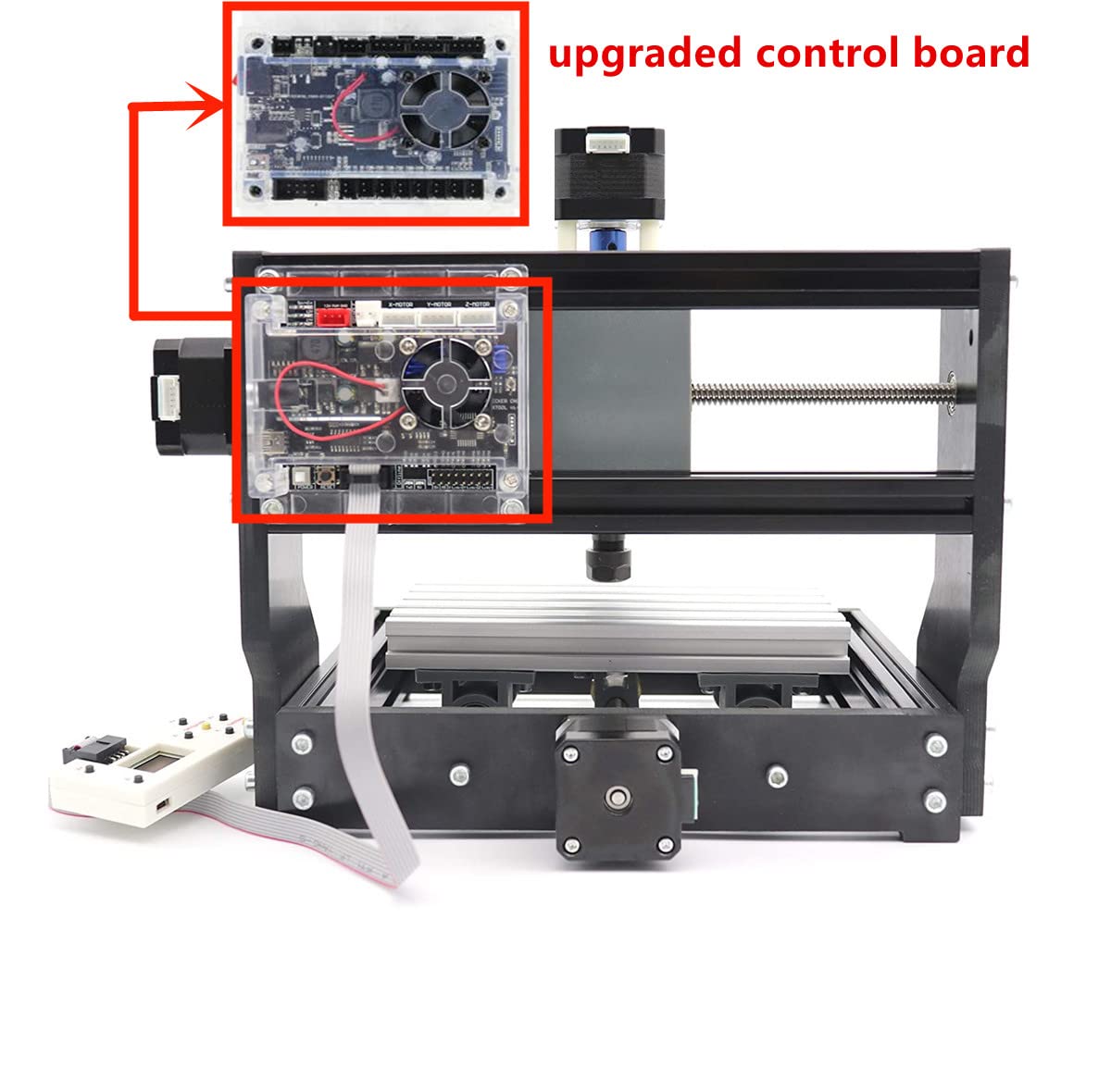

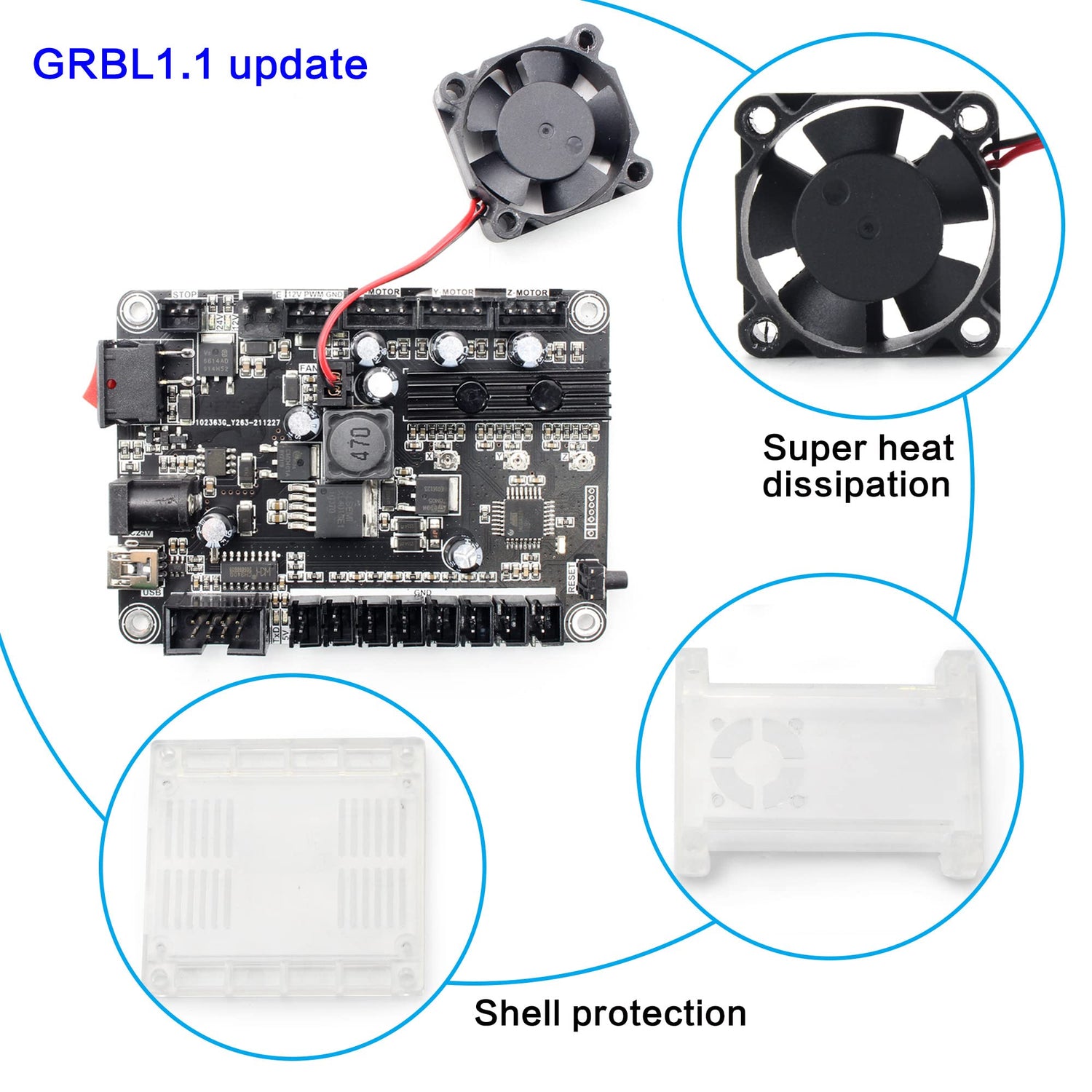

1x GRBL 1.1 Control Board
1x Offline hand controller
1x Power Supply
10x 20°0.1mm Drill Bits
1Set Allen Wrench
1x 4G USB flash drive include english user manual & GRBL software






Specification:
Max Working area: 18*10*4.5cm
Frame size:30*26*25cm
Material: Aluminum Alloy
Control software: Grbl Controller(candle)
Interface: USB
Stepper motor: 42 stepper motor 1.3A/0.3N.m
Spindle:Diameter 45mm 10000 rpm maximum power 120W
Power: 24V 5.6A power adapter (input voltage 110-240V)
System requirements: windows XP, win7,win8,win10 (32/64 can be)
Main application:Can be engraved plastic, wood, acrylic, pvc, pcb,carbon fiber, wood,density board and the like material.

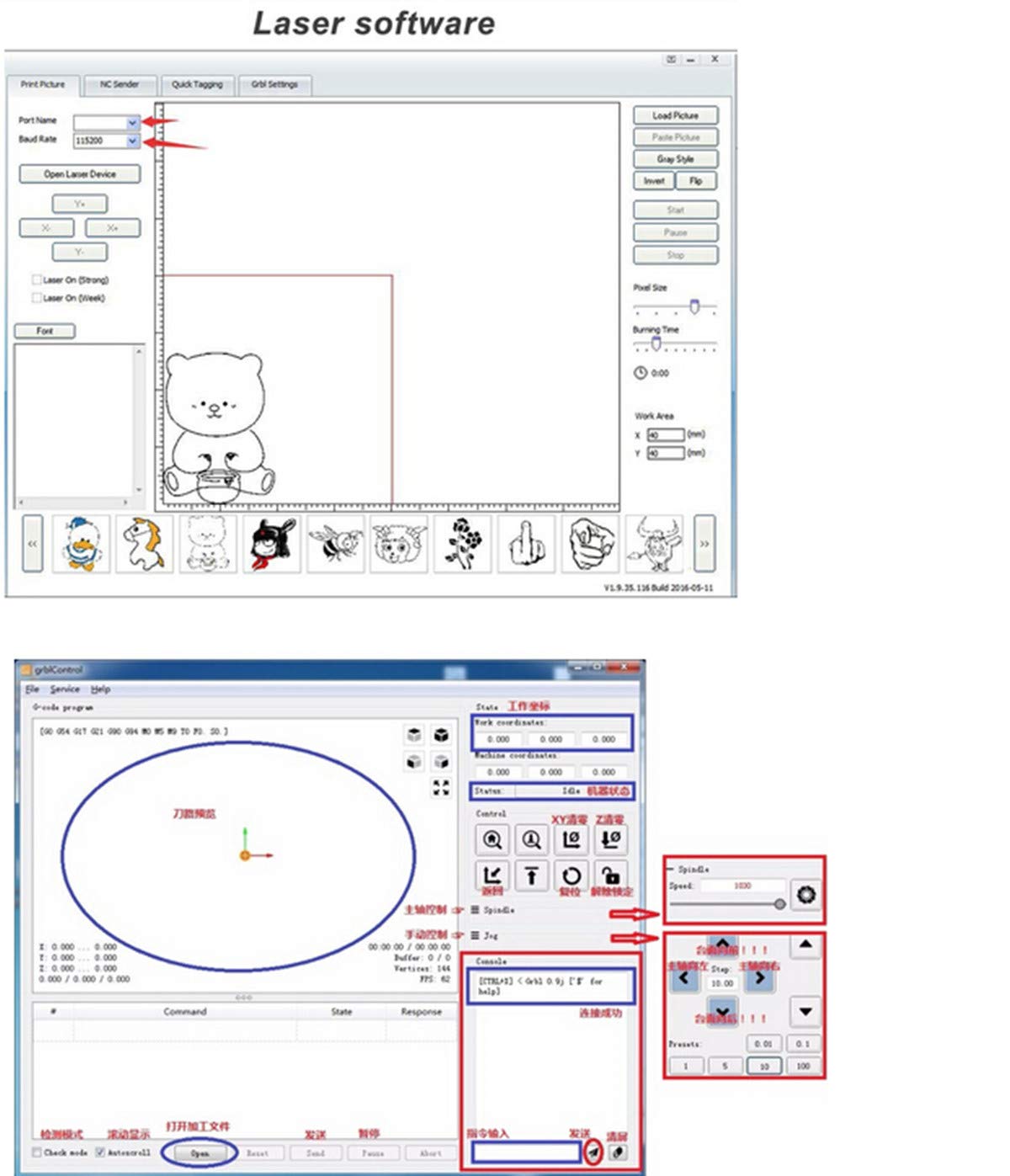

Software: GRBL controller, UniversalGcodeSender
Spindle PWM speed: Support
Supporting file:G-code (.nc/.txt/.tape/.gcode)
Processing accuracy:About 0.2mm
Support 12V 3 pin Ls, support P W  M / T  T L signal control,power 0-100% adjustable
The spindle supports 0-100% adjustable PWM power.

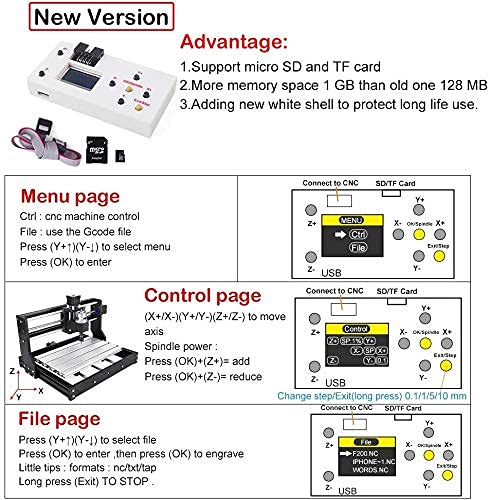

offline control:
1. Manually control: manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle, manully open or close cooling fan
2. File engraving: after off-line controller save file, it can connect the GRBL control board and process engraving, no need to connect PC computer
3. Save file: after the off-line controller connect PC, it will be recognized as USB,large capacity storage device, can access engraving file directly.
SD shows it is SD card condition,turn on power supply after insert SD card, otherwise,it won't work.SD card capacity 4G could be recognized.&n

EAN: 0619191628292

Package Dimensions: 14.5 x 9.1 x 7.1 inches
