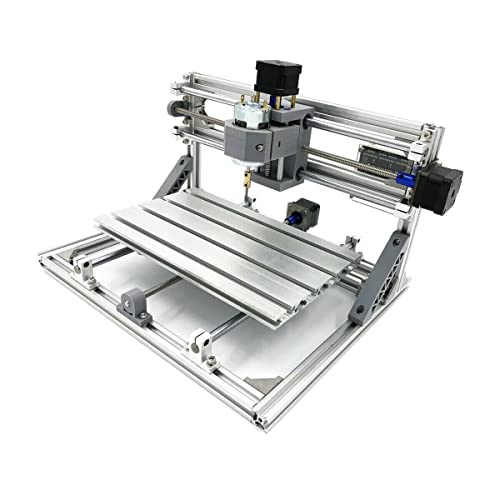

CNCTOPBAOS 3 Axis 3018 CNC Router with GRBL Offline Controller,DIY Mini Desktop Engraver Machine,Carving Aluminum Acrylic PCB PVC Milling Cutting

Brand: CNCTOPBAOS

Features:

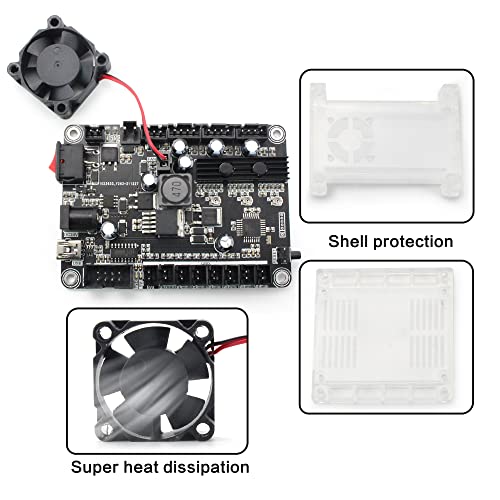

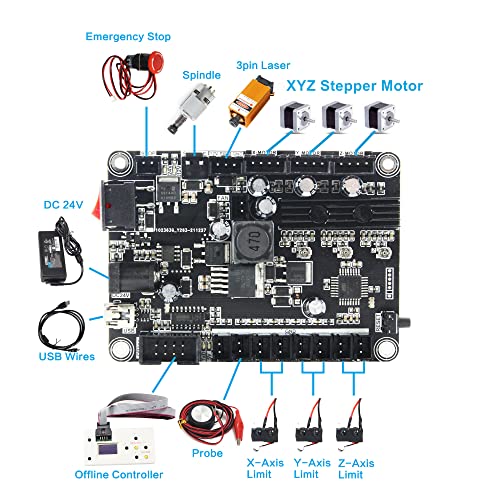

• ♞【Upgraded GRBL1.1 Control Board】Added the outer casing,emergency stop button port,tool setting (probe) port,X/Y/Z axis limit port and add the power button switch,and come with the fan port to force heat dissipation,with enhanced spindle drive,can support maximum 20000rpm spindle,and also can support 0.5W-20W module.【Working area】30x18x4.5cm;Frame size: 42x35x27cm;Type:USB port Desktop cnc router【System requirements】Windows XP / Win 7 / Win 8 / Win 10 / Linux; Can't support MAC os system.
• ♞【Working area】 30x18x4.5cm ; Frame size: 40x33x24cm ; Type:USB Port Desktop cnc router;According to the instructions,the machine is easy to assemble.Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;3018 machine is very easy to install,stable structure,4G USB flash drive include english user manual & GRBL software.Supporting files:G-code (.nc/.txt/.tape/.gcode)
• ♞【Spindle&Stepper Motor】775 spindle motor (12-36V) 24V:10000r / min; Collet: ER11 3.175mm (Can be equipped with 0-7mm); Nema17 stepper motor 1.3A/0.25N.m/42x42x34mm
• ♞【Main application】Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items. if you have the module,you also can change the spindle to a 3pins module,also can carve the kraft paper, wood, leather(wallet), bamboo.

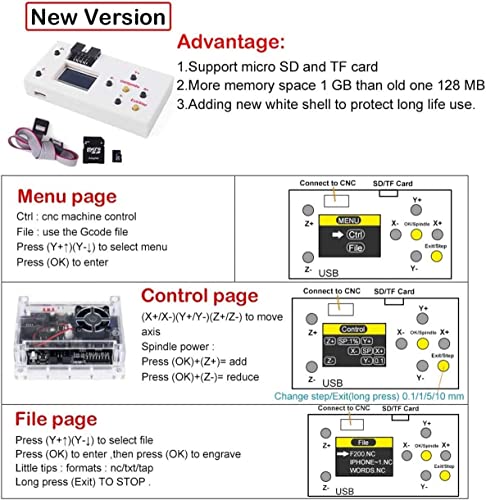

• ♞【With GRBL Offline Controller】Support SD card and TF card at the same time, standard capacity 1G.With this offline controller module, you can directly control the CNC router without connecting it to your computer.

model number: 3018ER11

Part Number: 3018

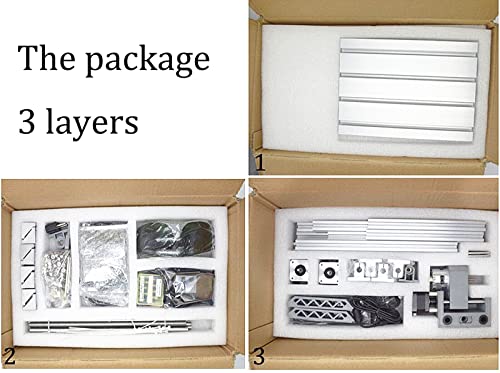

Details: Package include:

1 x 3018 GRBL Control CNC machine kit
1 x ER11 Collet
10 x 20°0.1mm drill bits

1 x Set of allen wrench
1 x Power Supply
1 x U disk include User manual & GRBL Software


Introduction
Body used profiles and plastic, small size, light weight, USB interface, GRBL control system, learning, entry preferred. Can use carving knife,
.Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.

Specification:
Working area : 30x18x4.5cm
Frame size : 40x33x24cm
Spindle : 775 spindle motor (12-36V) 24V: 10000r/min
Spindle Chuck: normal
Step motor : Fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M
Power supply : 24V 5.6A
Software : GRBL controller
Support System: Windows XP / Win 7 / Win 8 / Win 10 / Linux
Drill bits: tip 0.1mm ,20 degree , diameter3.175mm.the package include 10pcs

ER11 Collet

GRBL 1.1f,USB port cnc engraving machine control board, 3 axis control
Specification:
Connection: USB (USB-CH340)
Software: GRBL controller, UniversalGcodeSender
Input voltage: 12-36V
Master chip: atmel 328P (arduino nano)
Stepper motor driver: A4988
Spindle drive chip: MOSFET (recommendation 12~36V, current : within 10A )
Spindle PWM speed: Support
Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
Power Interface: 5.5-2.5mm DC interface

EAN: 0681385630947

Package Dimensions: 17.5 x 9.8 x 6.7 inches
