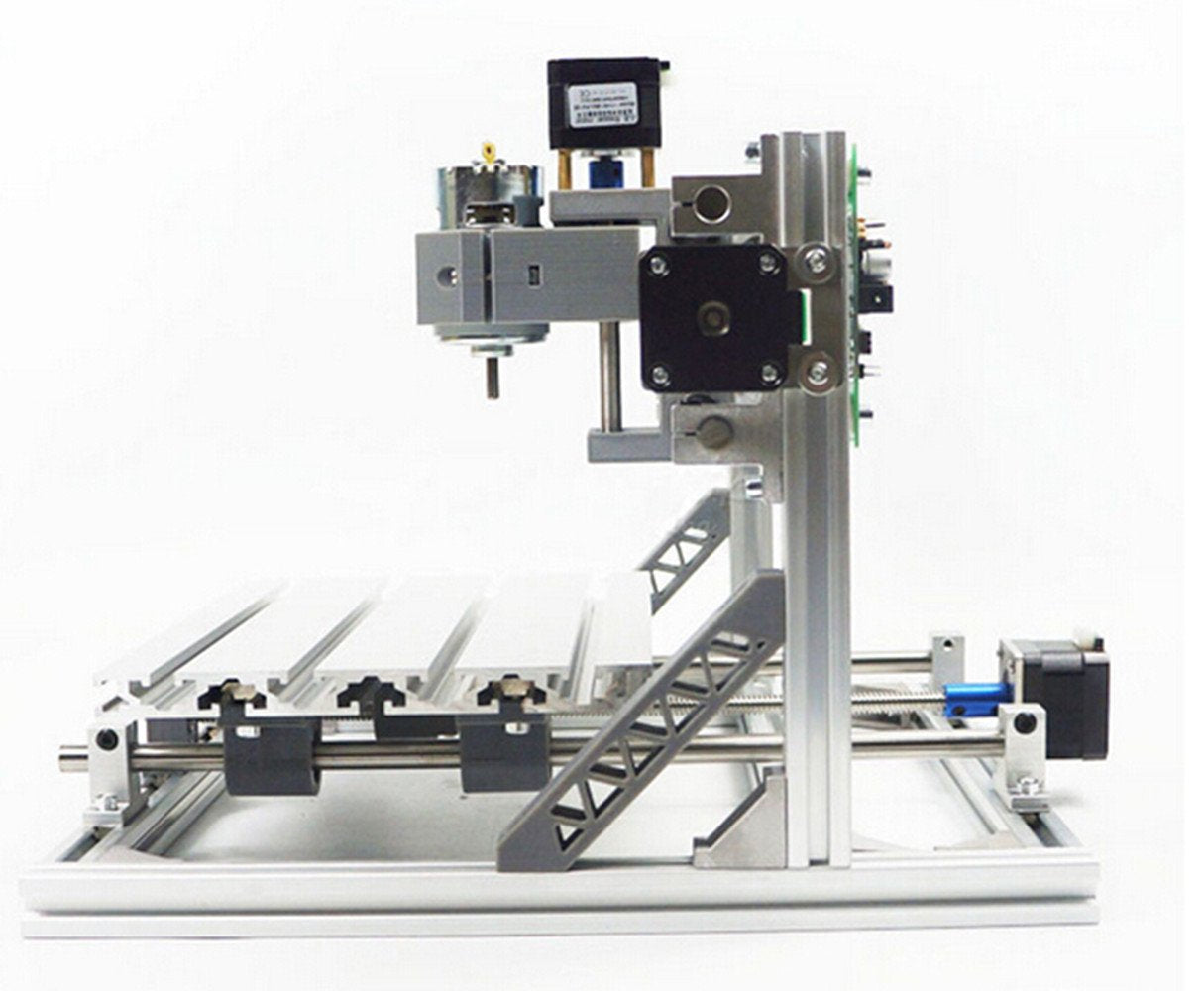

CNCTOPBAOS 3 Axis Desktop DIY Mini CNC 3018 Router Kit GRBL Control Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine Working Area

Brand: CNCTOPBAOS

Features:

• ♞【Working area】 30x18x4.5cm ; Frame size: 40x33x24cm ; Type:USB Port Desktop cnc router;According to the instructions,the machine is easy to assemble.
• ♞【Spindle&Stepper Motor】775 spindle motor (12-36V) 24V:10000r / min; Collet: ER11 3.175mm (Can be equipped with 0-7mm); Nema17 stepper motor 1.3A/0.25N.m/42x42x34mm

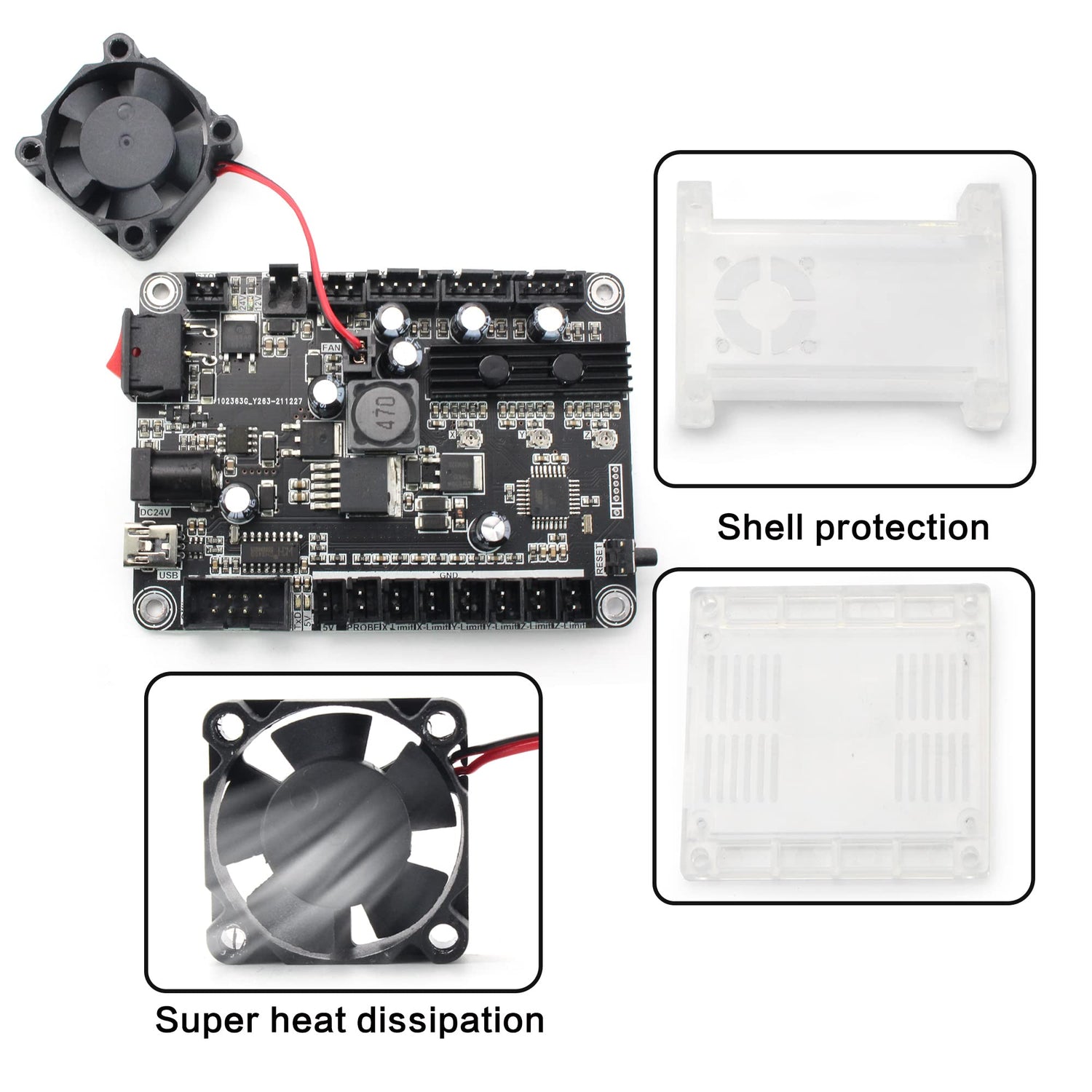

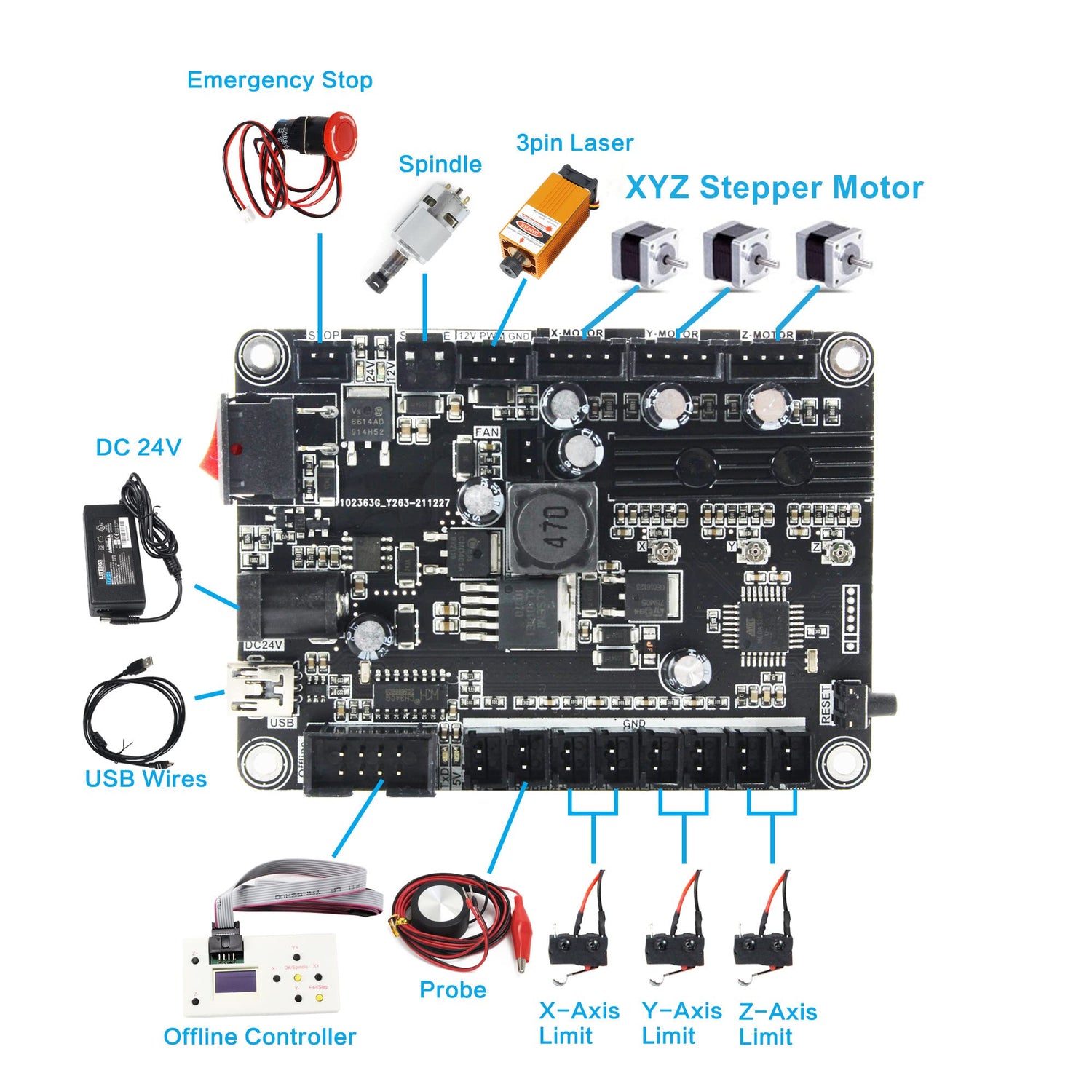

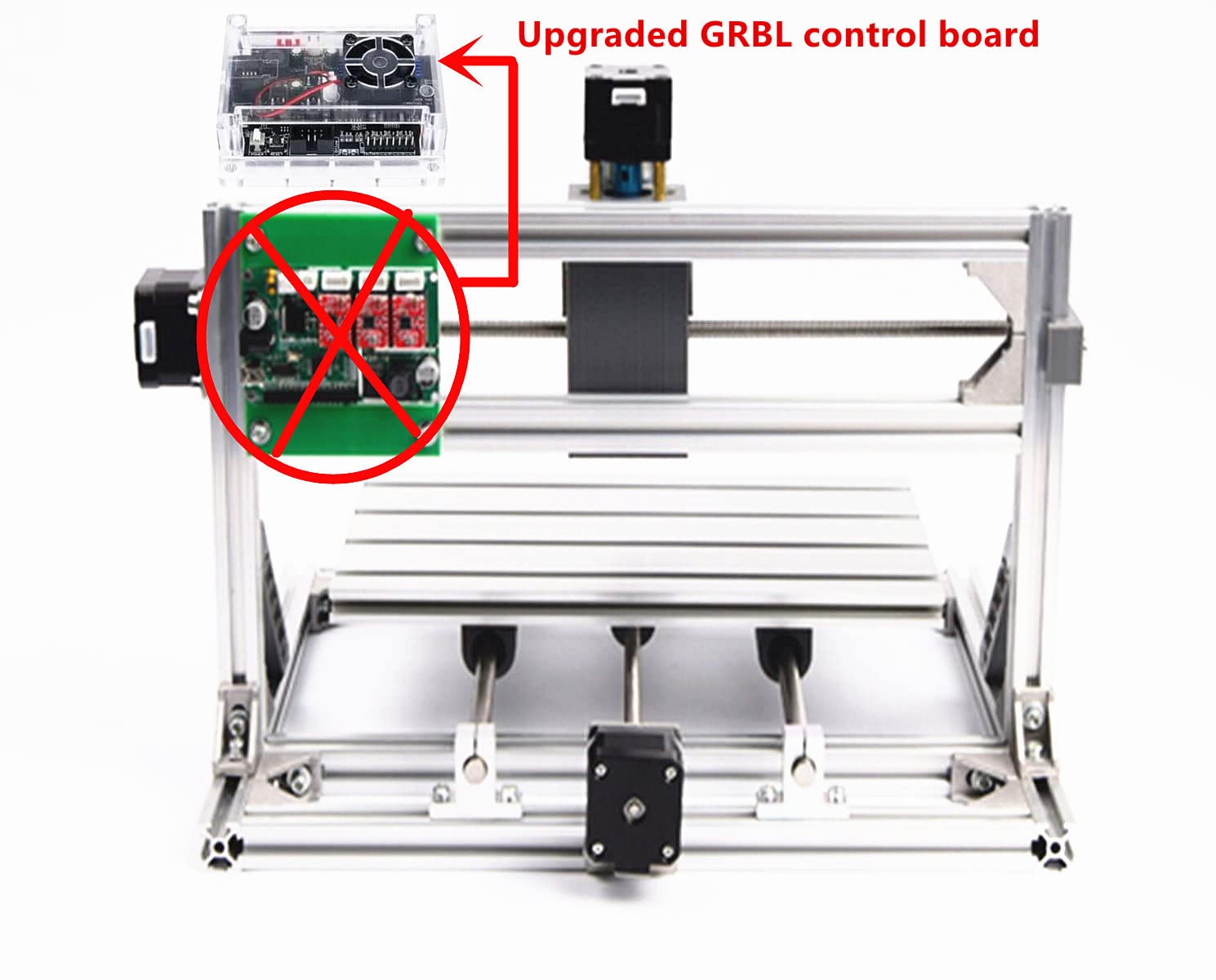

• ♞【Upgraded GRBL1.1 Control Board】Added the outer casing,emergency stop button port,tool setting (probe) port,X/Y/Z axis limit port and add the power button switch,and come with the fan port to force heat dissipation,with enhanced spindle drive,can support maximum 20000rpm spindle,and also can support 0.5W-20W module.【Working area】30x18x4.5cm;Frame size: 42x35x27cm;Type:USB port Desktop cnc router【System requirements】Windows XP / Win 7 / Win 8 / Win 10 / Linux; Can't support MAC os system.
• ♞【Main application】Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items. if you have the module,you also can change the spindle to a 3pins module,also can carve the kraft paper, wood, leather(wallet), bamboo.
• ♞【User Manual&Software】Our parcel include a 4G USB flash drive include english user manual & GRBL software

Binding: Tools & Home Improvement

model number: 3018

Part Number: 3018

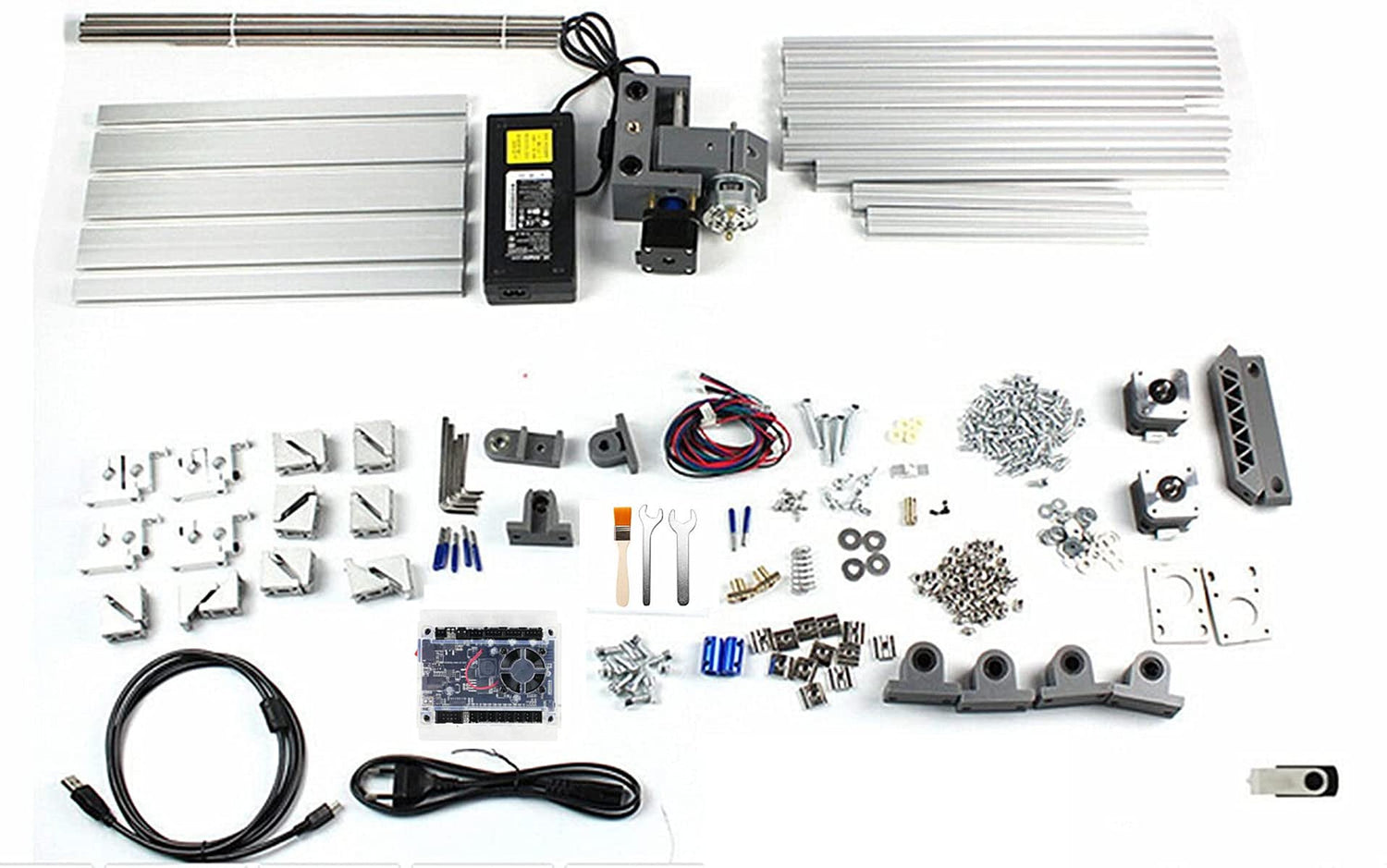

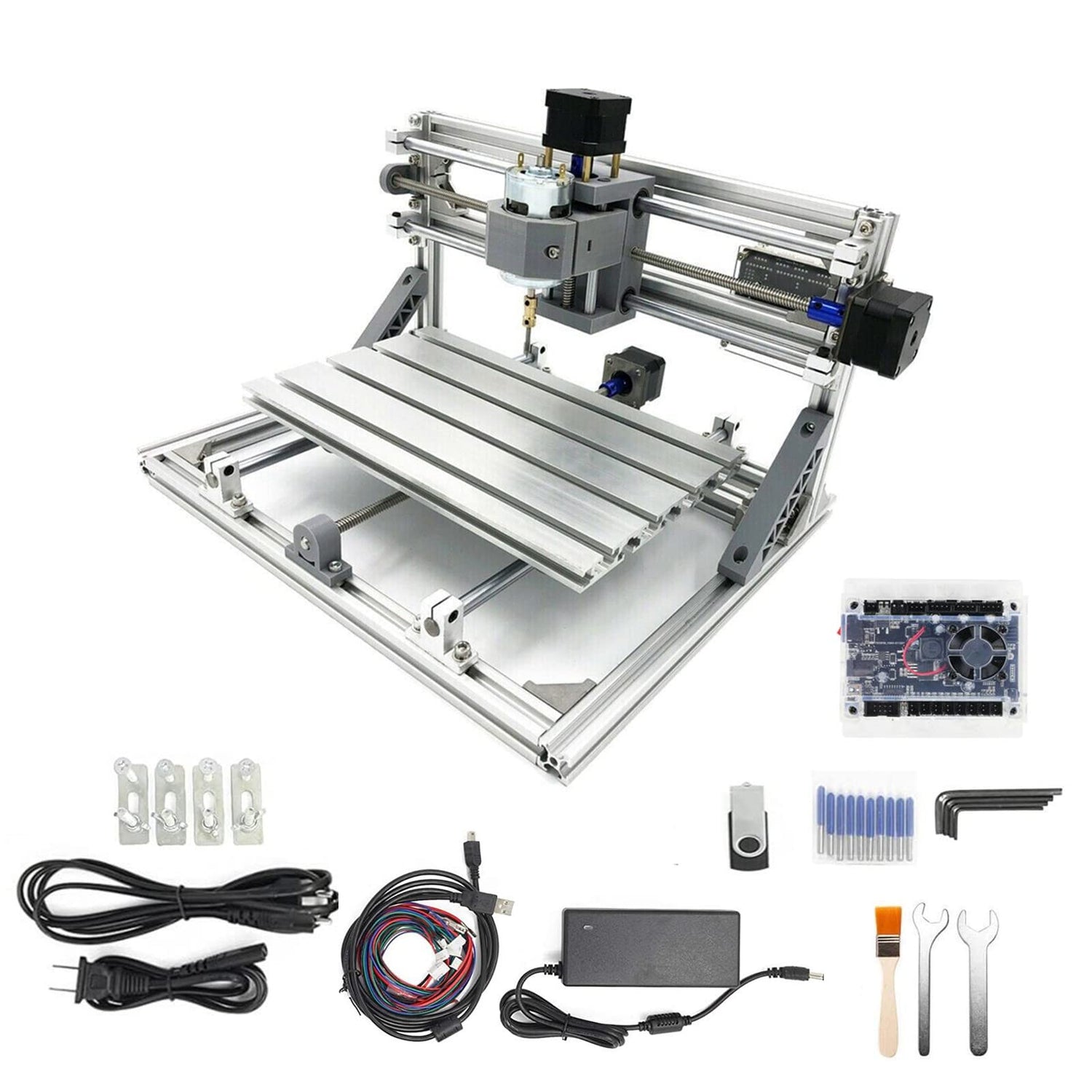

Details: Package include:
1 x 3018 GRBL CNC Engraving machine kit w/ ER11 Collet

10 x 20°0.1mm drill bits
1 x GRBL 1.1F Control Board



1 x Set of allen wrench

1 x Power Supply

1 x 4G U disk include GRBL software and user manual

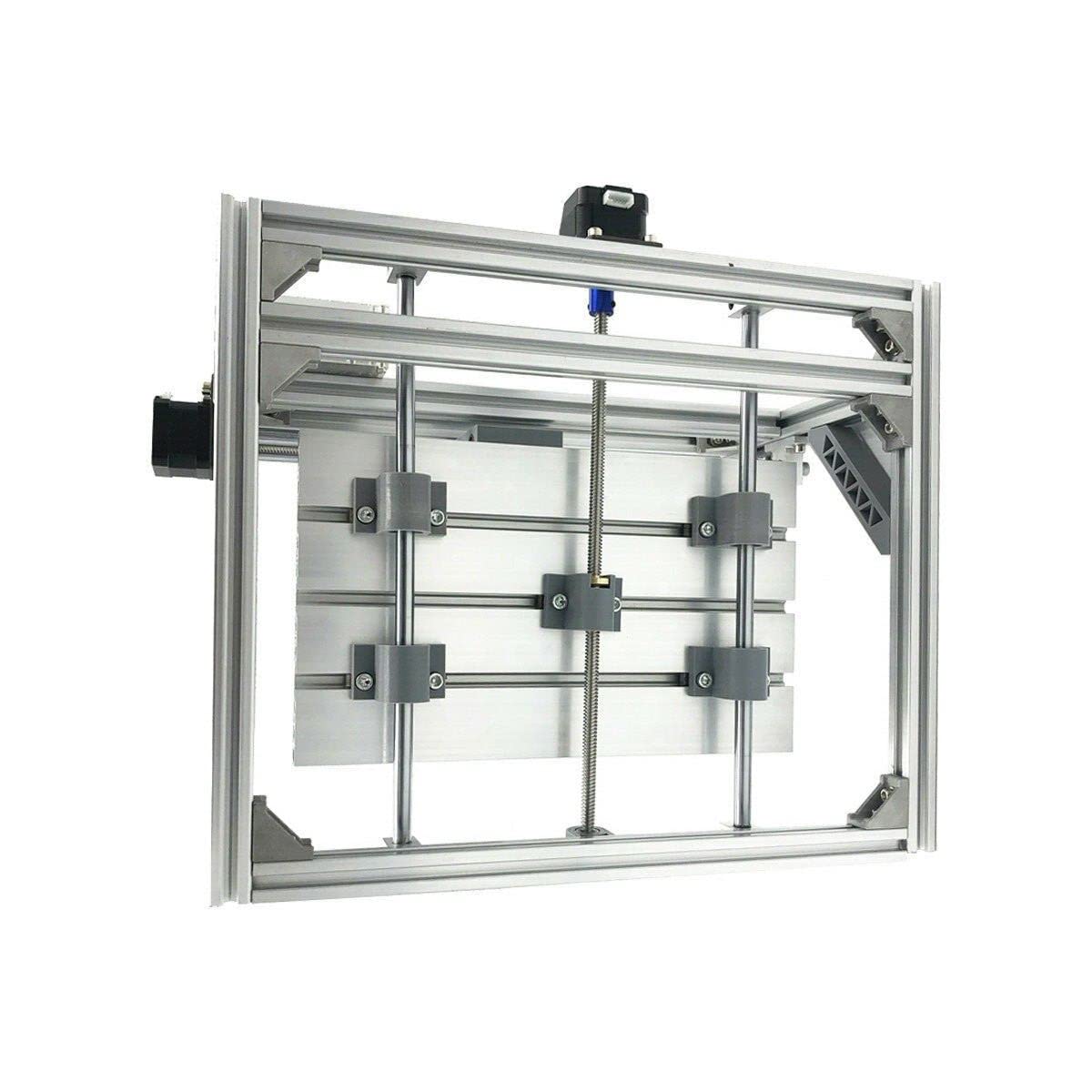

Body used profiles and plastic, small size, light weight, USB interface, GRBL control system, learning, entry preferred.

Main application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material,also can engraver on soft metal like copper,aluminum and other materials.










Specification:

Working area: 30x18x4.5cm

Frame size: 40x33x24cm

Spindle: 775 spindle motor (12-36V) 24V: 10000r/min

Chuck: ER11

Step motor: Fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M

Power supply: 24V 5.6A


Software: GRBL Controller

Support System: Windows XP / Win 7 / Win 8 / Win 10 / Linux

Drill bits: 10pcs tip 0.1mm ,20 degree,diameter 3.175mm







GRBL 1.1F Board Specification:
Connection:USB (USB-CH340)
Software:GRBL controller, UniversalGcodeSender
Input voltage:12-24VDC
Master chip:atmel 328P (arduino nano)
Spindle drive chip:MOSFET
Spindle PWM speed:Support
Support stepper motor:12V,maximum current of 2A (any stepper motor Nema17/23)
Power Interface:5.5-2.5mm DC interface

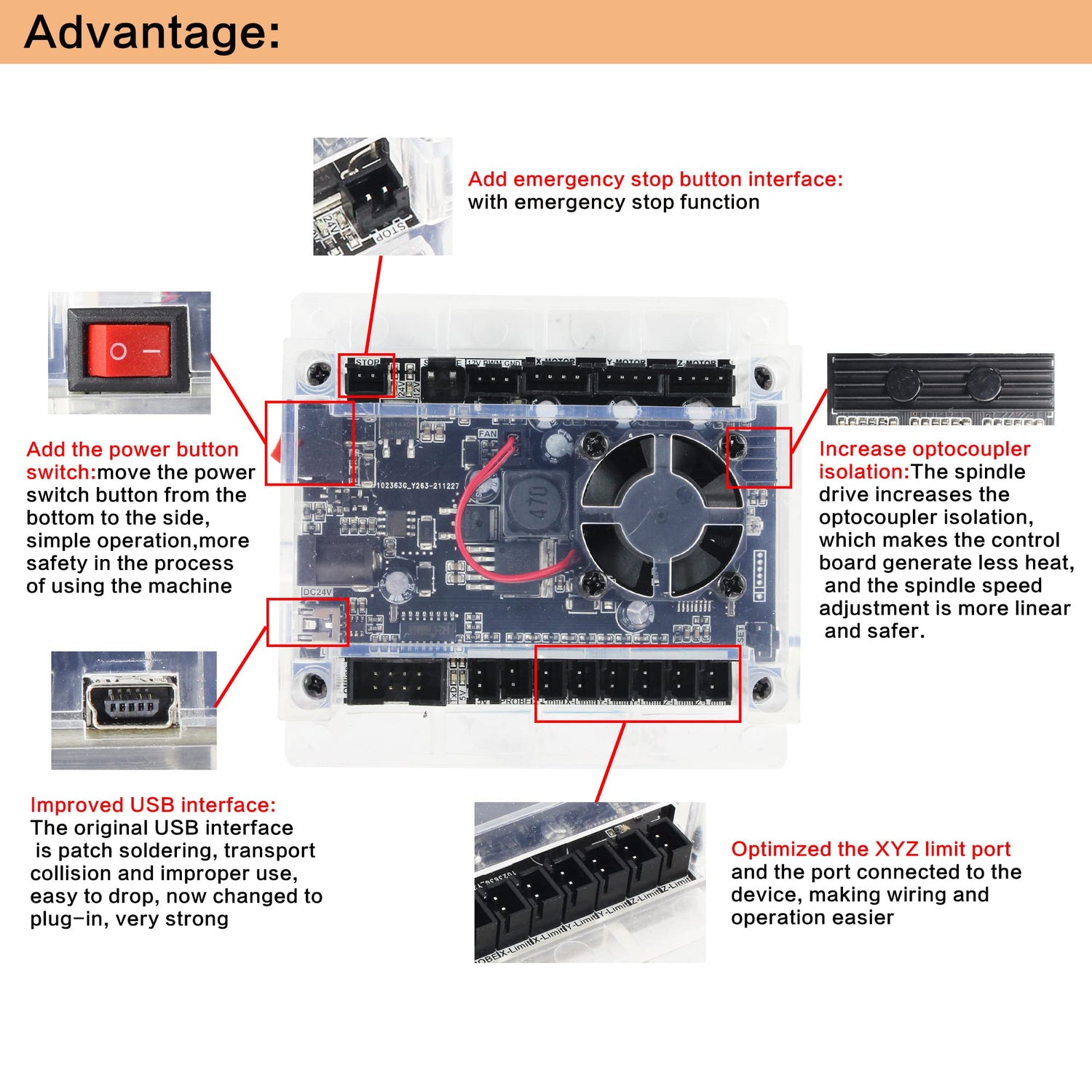

Advantage:add the outer casing,the power button switch and the fan;can insert offline modules;improved USB interface;increases the optocoupler isolation of spindle drive.

EAN: 0681385630954

Package Dimensions: 17.0 x 9.5 x 7.0 inches
