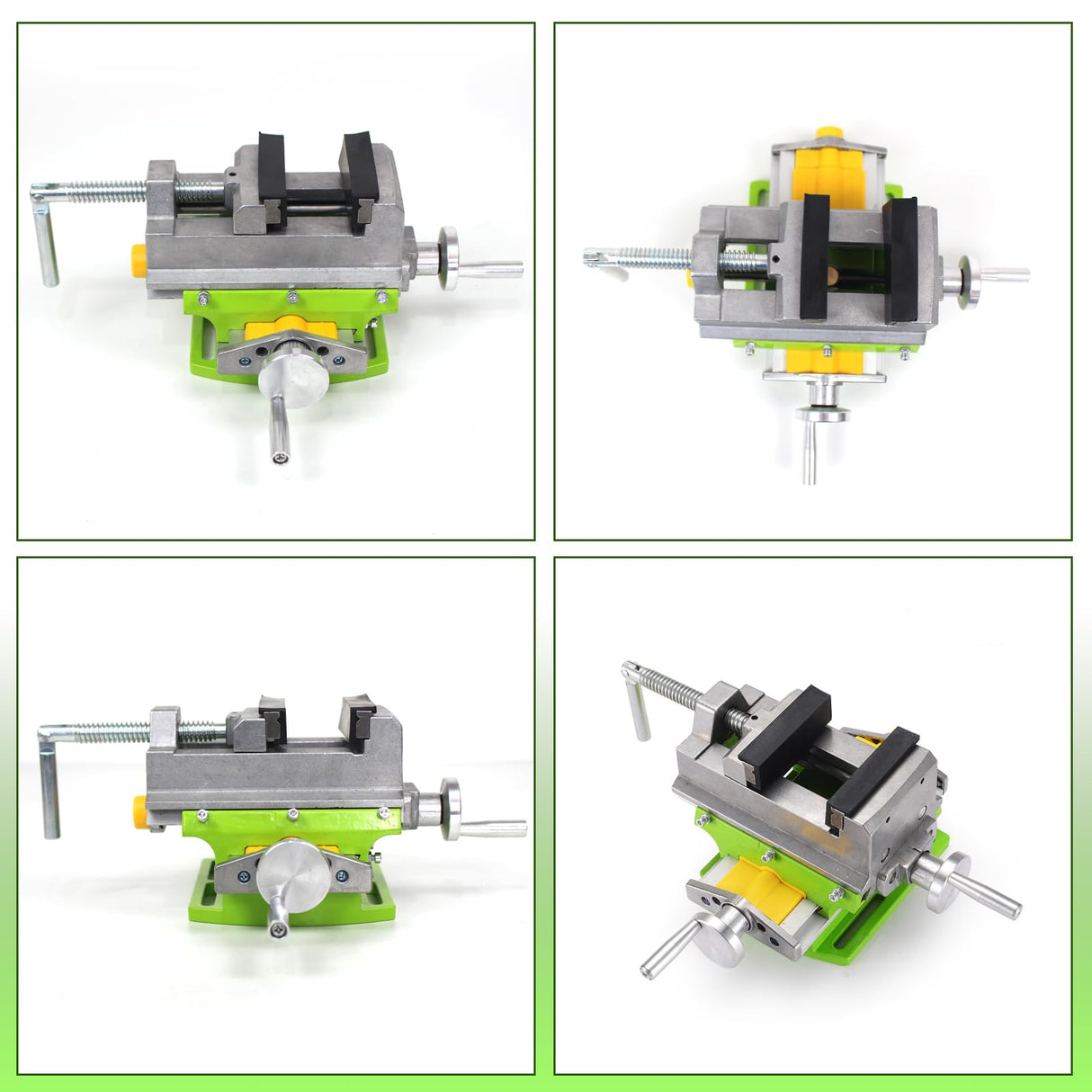

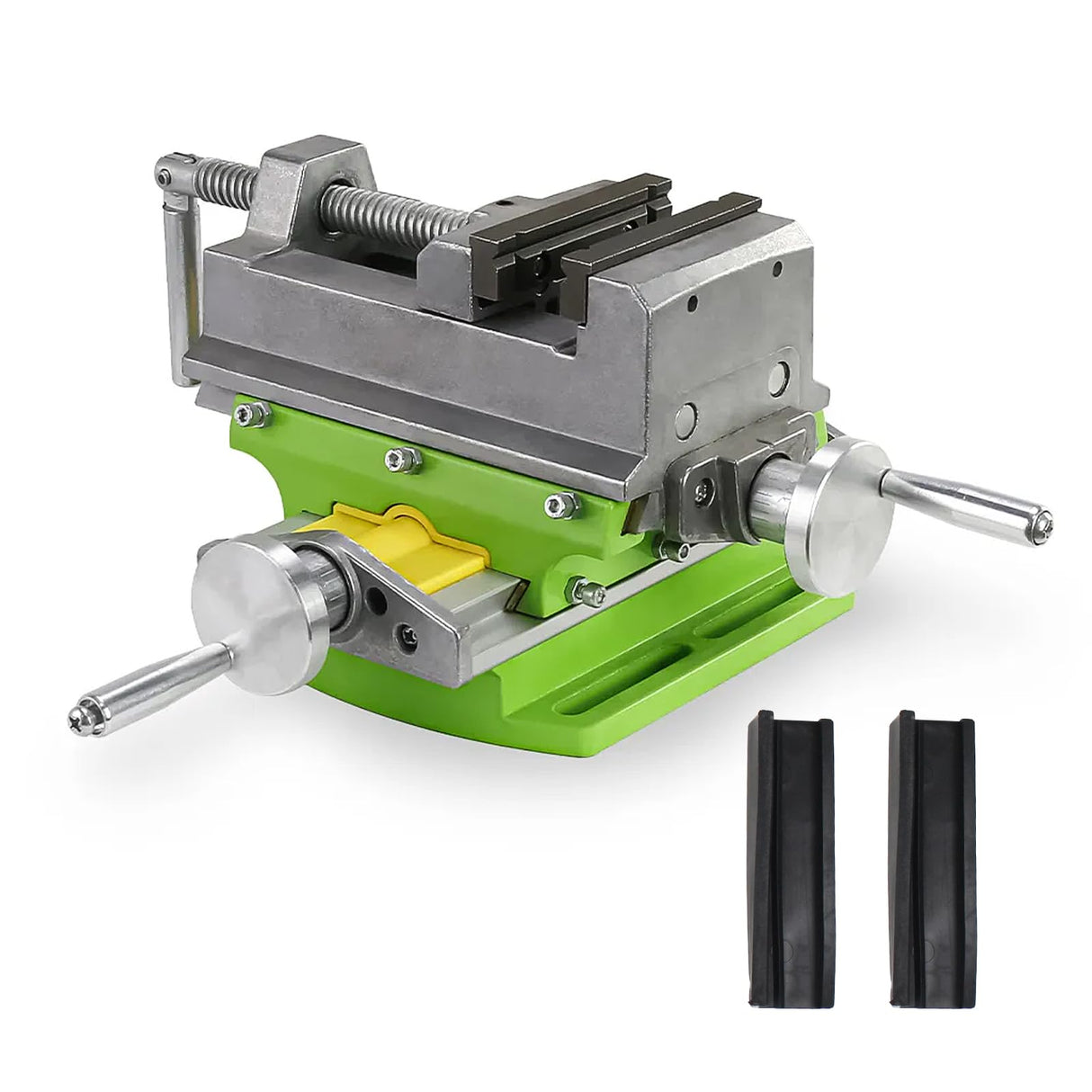

CNCTOPBAOS 3" Cross Slide Vise for Mill and Drill Press,3 Inch Cross Sliding Flat Vise,Aluminum Alloy 2 Way Movement X-Y Compound Bench Top
Regular price
$53.00
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: CNCTOPBAOS
Features:

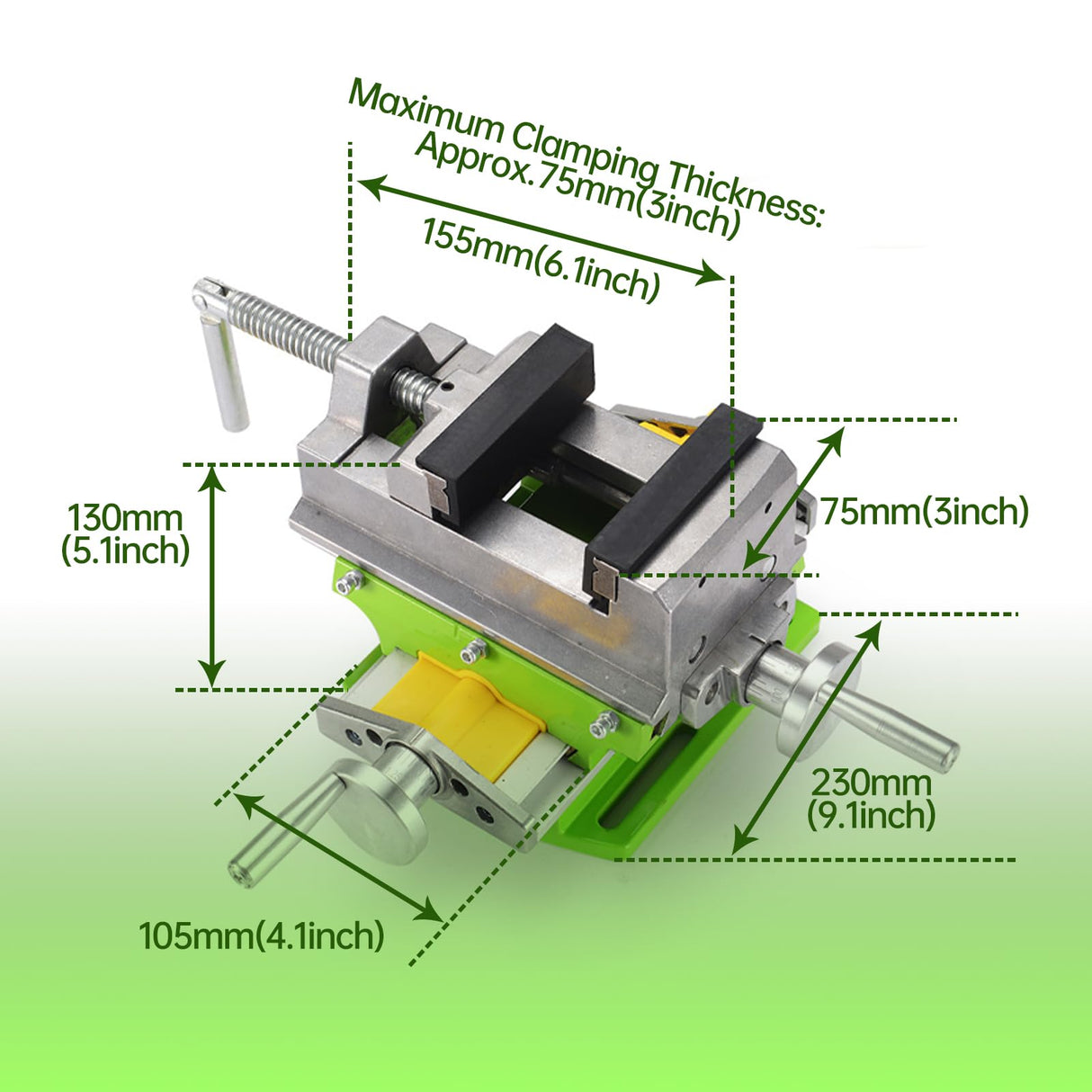

- ♞【Size&Travel】Table length,width,and height: 6.1"x9.05"x5.11"=155x230x130mm; Travel X-axis: 3.14"=80mm; Travel Y-axis: 2.63"=67mm; Base hole spacing: 4.13"=105mm.
- ♞【Max jaw opening】Max jaw opening: 2.95"=75mm; One Round scale:1.5mm; Gross weight of the vise: 6.3LBS=2.9KG

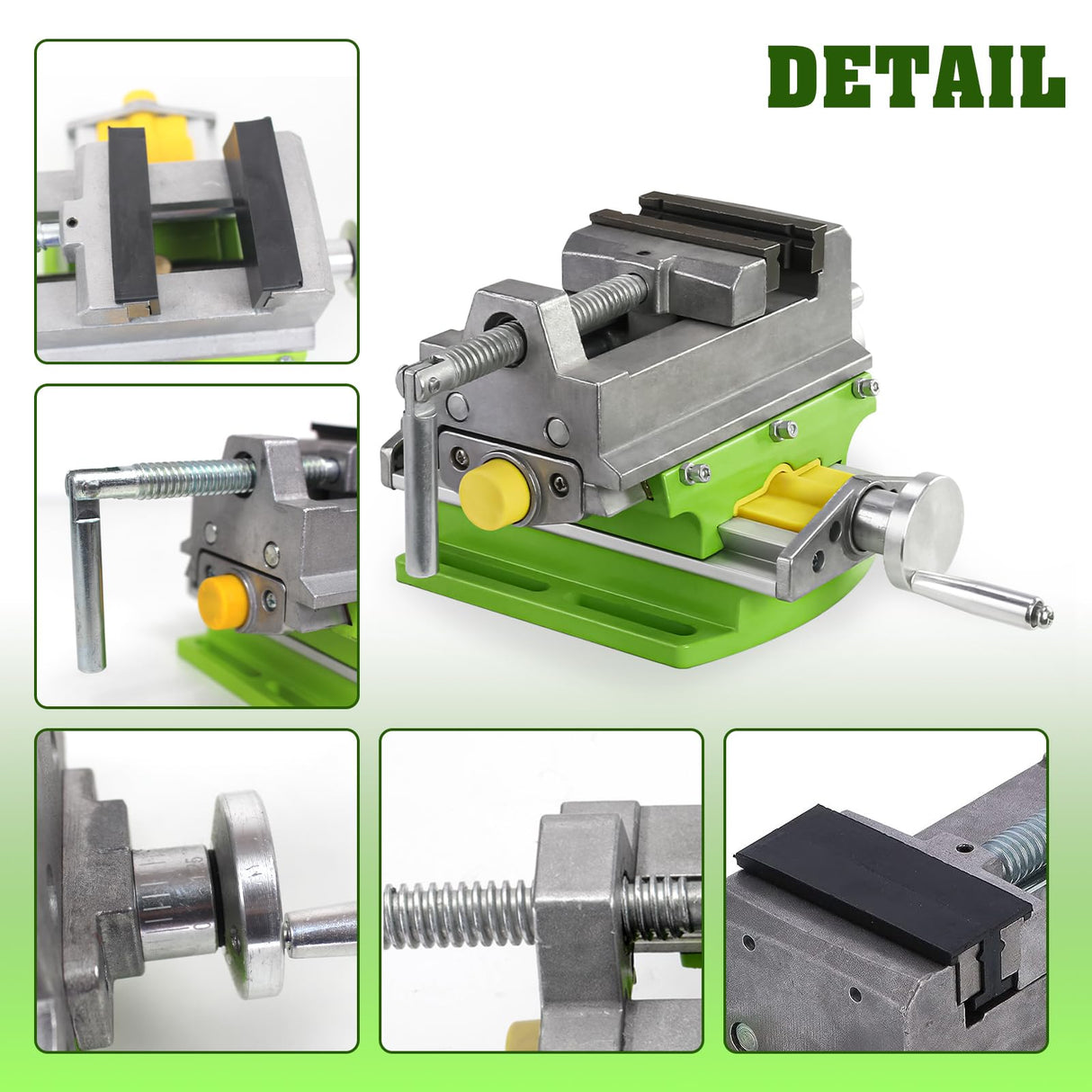

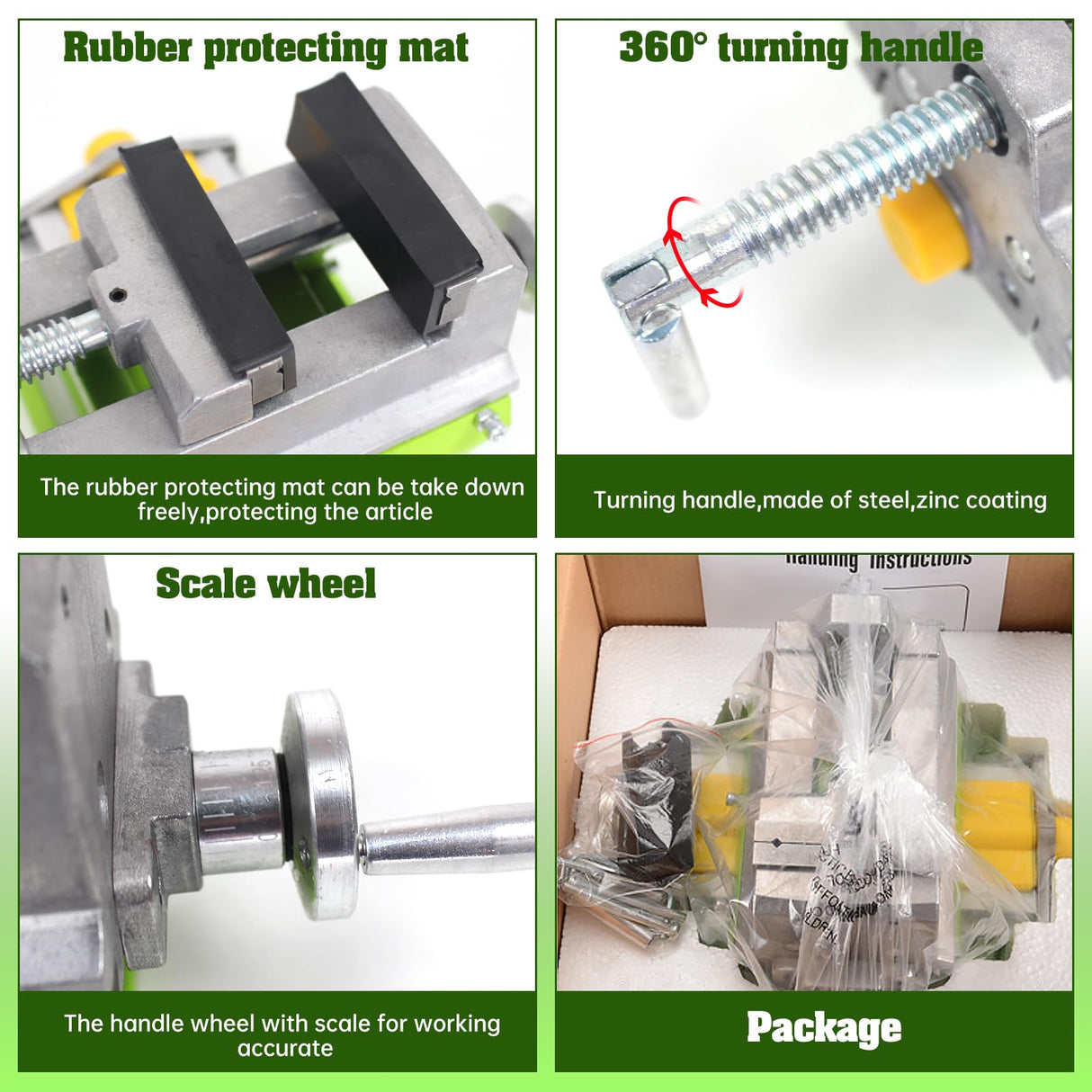

- ♞【Material】Equipped with detachable rubber jaw protective sleeve,clamping is more stable,tight,and anti-skid; Thickened aluminum alloy base,with thick and wear-resistant screw rods,ensuring high accuracy and high hardness in the smallest space.
- ♞【Hand wheel】The force bar can rotate 360 degrees to adjust the width of the vise clamp,and the handwheel has a marked 0.05mm increment to achieve maximum accuracy,the stroke for one revolution is 1.5mm,A ring=1.5mm; Equipped with 2 rotating crank handles for adjusting the vise from front to back and from left to right, with bolt fixing slots for fixing.
- ♞【Application】This cross slide vise is mainly suitable for small mills and drilling machines, and can also be applied to other suitable machine tools, such as drilling machine brackets,desktop drilling machines,woodworking and metal processing etc.
Package Dimensions: 9.9 x 9.4 x 5.9 inches
