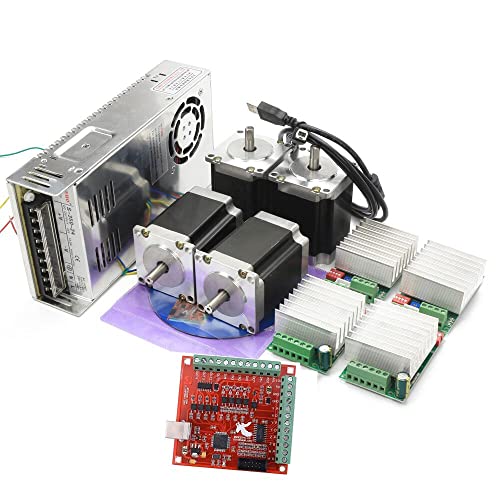

CNCTOPBAOS 4 Axis Nema23 Stepper Motor USB Mach3 CNC Kit,270oz-in 76mm 3A,USB Controller Board Motion Control Card,TB6600 Driver 4.5A 24V for CNC
12% off
12% off
Sale price
$135.00
Regular price
$154.00
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: CNCTOPBAOS
Features:

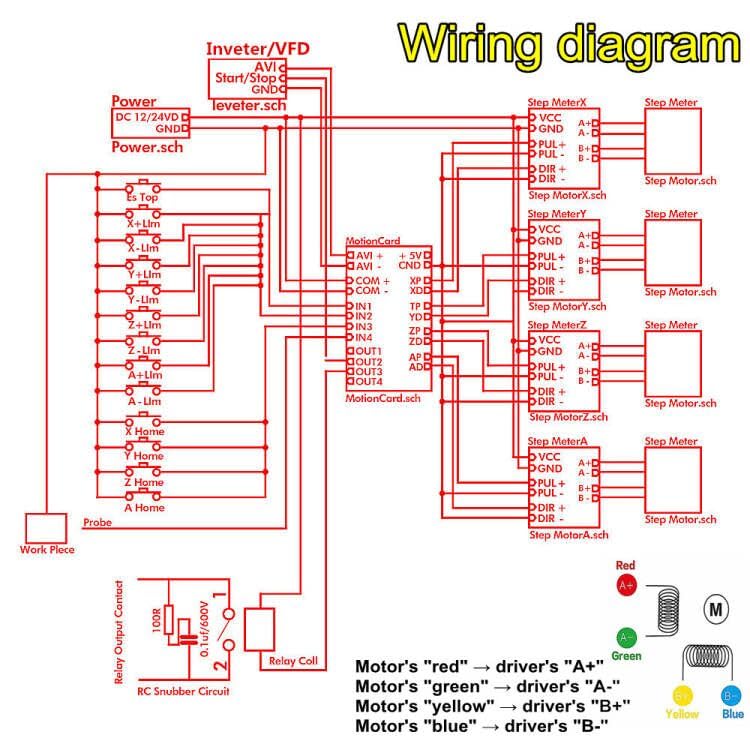

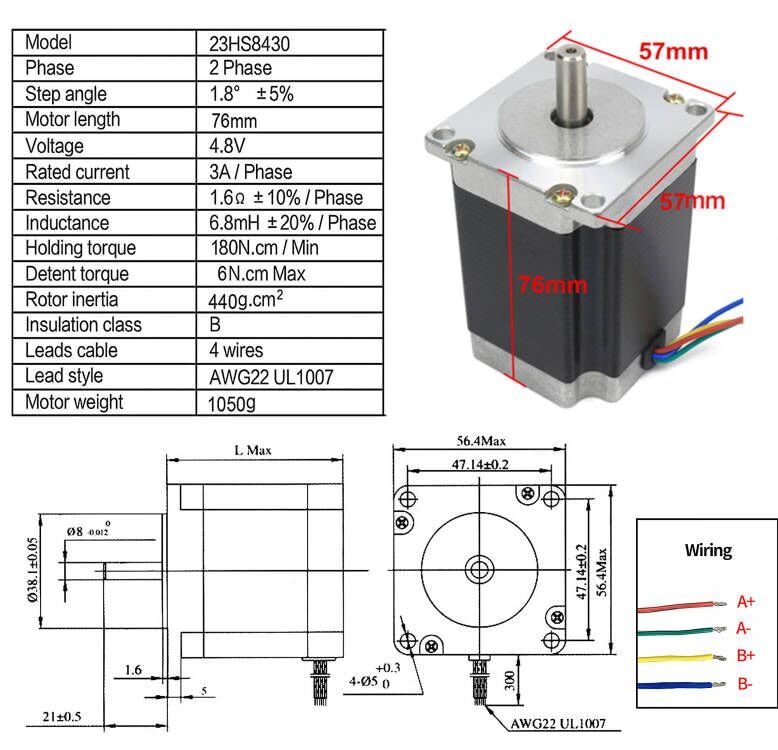

- ♞【23HS8430 Nema23 Stepper Motor】Nema23 57 type;Step Angle: 1.8°; Current: 3.0A; Holding torque: 180N.cm/18kg-cm 270 oz-in; Shaft : single shaft,8mm diameter; Wiring:A+ : Red; A- : Green; B+ : Yellow; B- : Blue

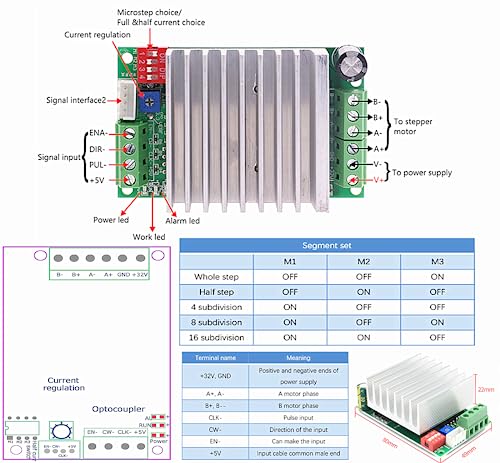

- ♞【Driver】TB6600 driver Voltage: DC 10V-45V; Current: rated maximum output reaches: ±4.5A ; Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, maximum 16 subdivisions.

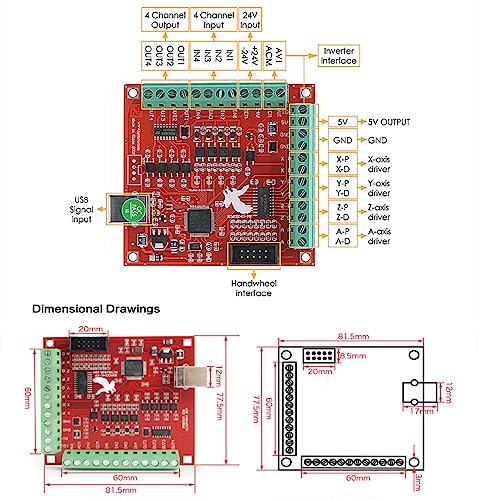

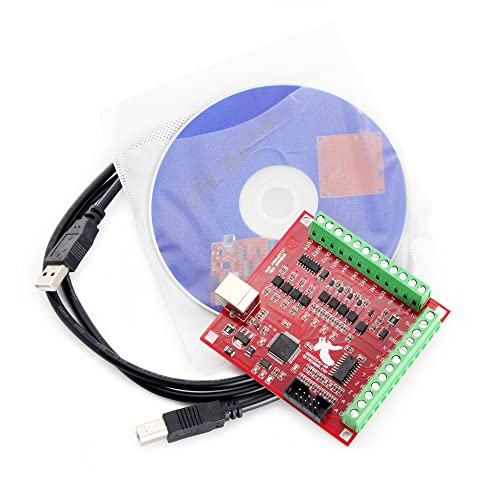

- ♞【4 Axis USB Mach3 Control Board】USB interface is applicable to any netbook, notebook, desktop, tablet and other PC compatible computers with USB interface. This control board does not require any drivers to be installed. As long as Mach3 can run, the control card can be used; Support computer system:Windows 2000/ XP / Windows 7/8.

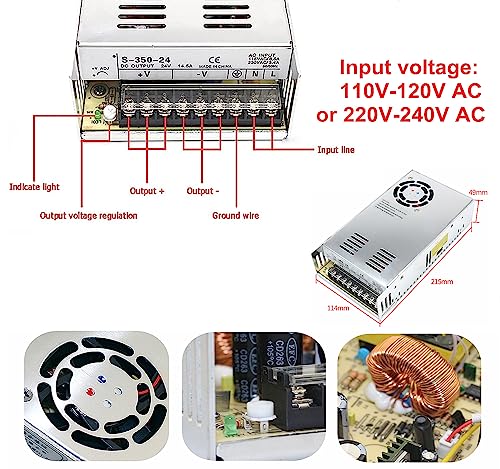

- ♞【350W 24V DC Switching Power Supply】AC input voltage range: 110V-120V AC or 220V-240V AC; selected by switch to choose input voltage.

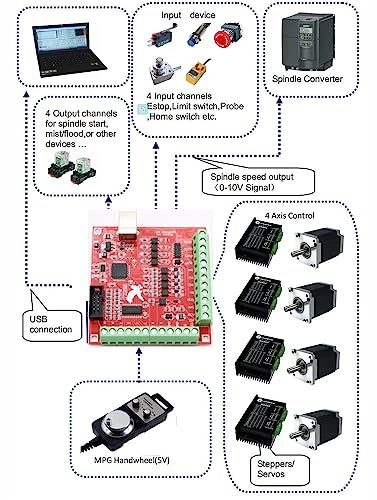

- ♞【Functions of the Control Board】It supports 4-axis linkage control at most; Maximum step-pulse frequency is 100KHz; Support probe tool; Support e-stop input; Support for limit switches; Support for electronic handwheel; Support spindle control(PWM and relay mode)
model number: 4AXISTB660
Part Number: 4AXISTB660
EAN: 0619191730254
Package Dimensions: 17.6 x 10.0 x 7.0 inches
