Description
Description
Brand: CNCTOPBAOS
Features:

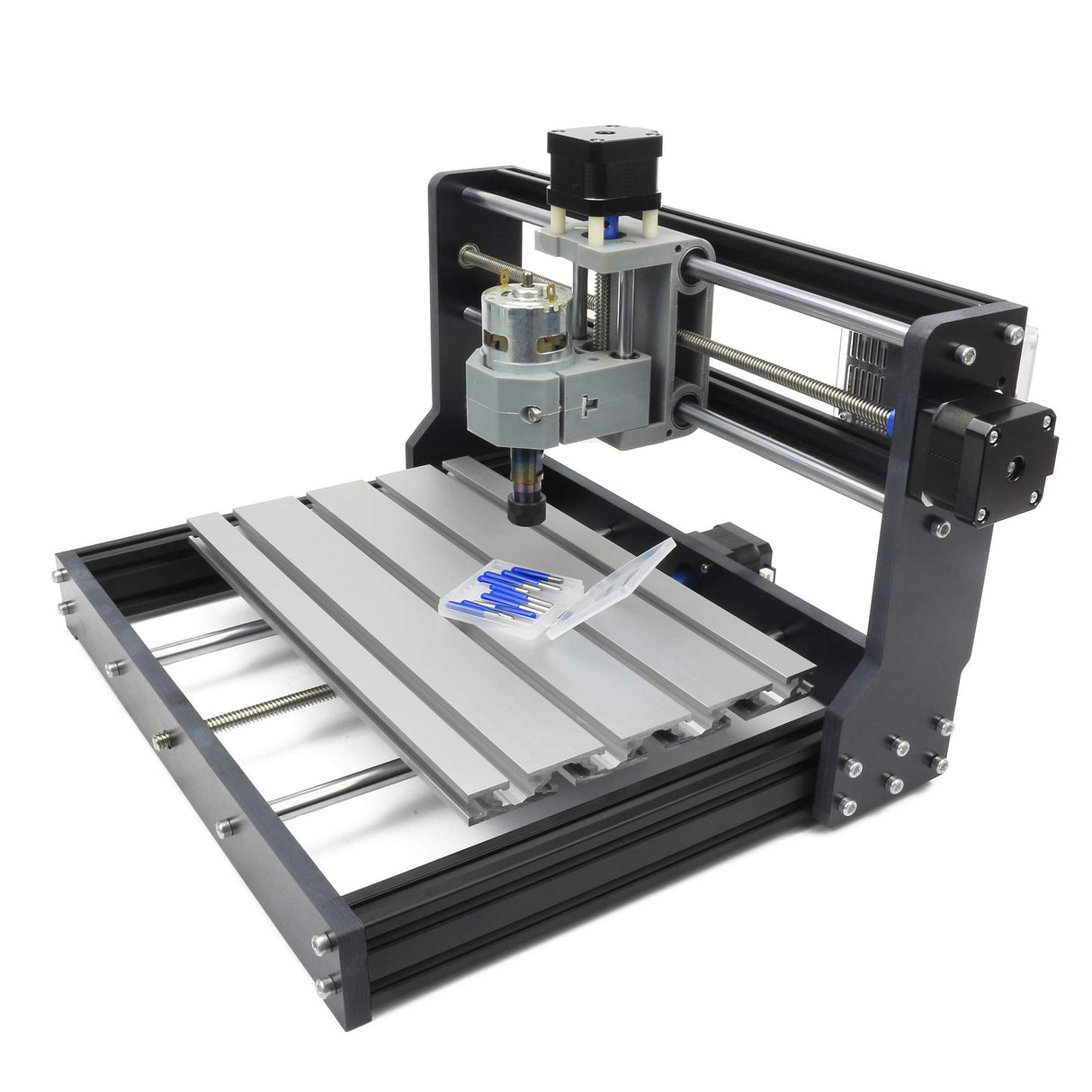

- ♞【Upgrade Version 3018 Pro】Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers; The CNC3018 PRO machine is very easy to install,stable structure.
- ♞【Working area】30x18x4.5cm (11.8 x 7.1 x 1.8”);Frame size: 42x35x27cm (16.53 x 13.78 x 10.63”);Type:USB Port mini desktop cnc router【Spindle】775 spindle motor 100W (12-36V) DC24V:10000r/min【Stepper Motor】Nema17 stepper motor 42x42x34mm,1.33A,0.3N.m，43oz-in

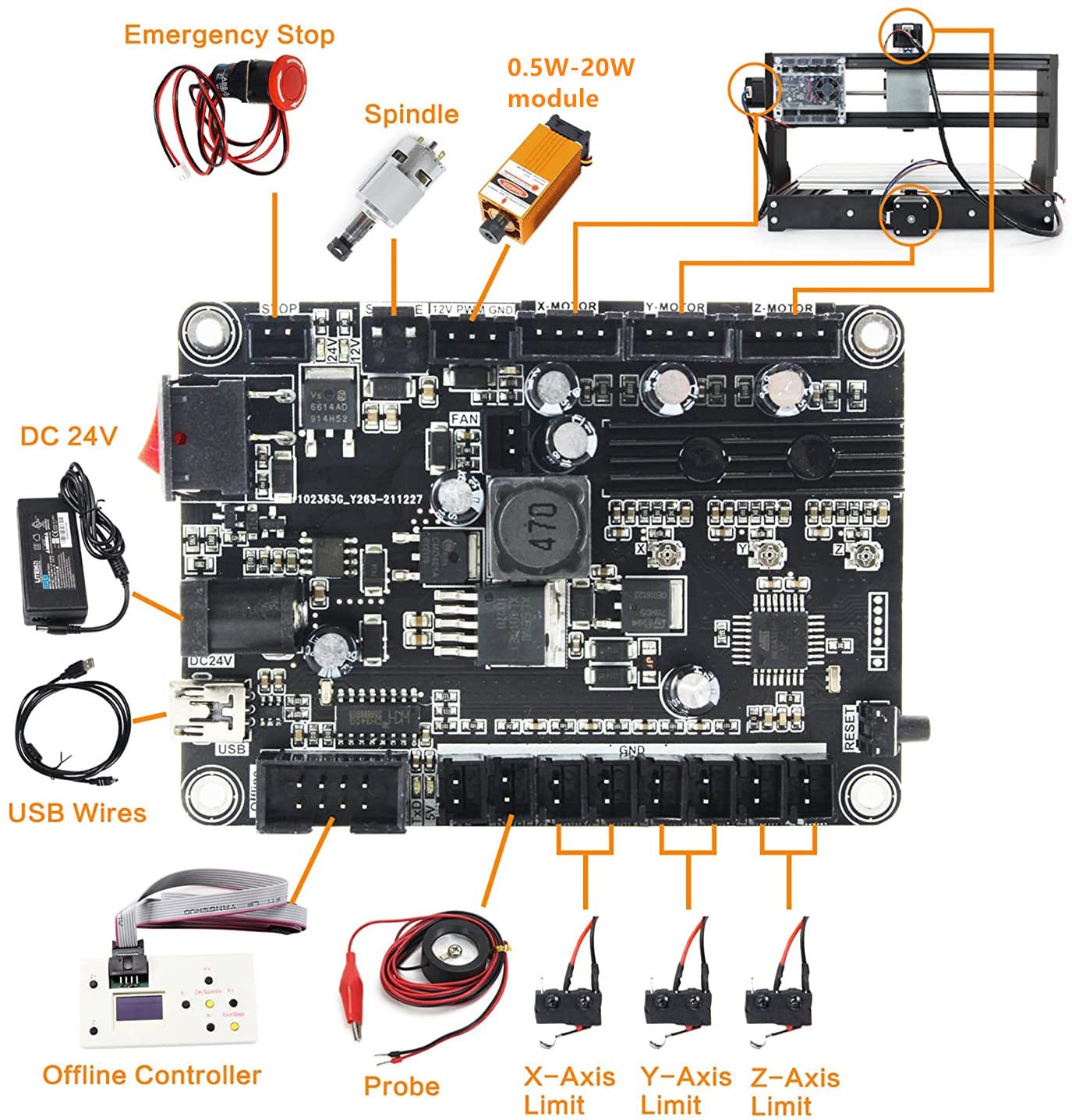

- ♞【Upgraded GRBL1.1 Control Board】Added the outer casing,emergency stop button port,tool setting (probe) port,X/Y/Z axis limit port and add the power button switch,and come with the fan port to force heat dissipation,with enhanced spindle drive,can support maximum 20000rpm spindle,and also can support 0.5W-20W module.
- ♞【Main application】Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material,also can work on soft metal like copper,brass,aluminum and other similar metal materials, but can not carve hard metal, jade or other very hard texture of the items.
- ♞【GRBL Software】Our parcel include a 4G USB flash drive,it include the installation instructions,user manual and GRBL software;♞【System requirements】 Windows XP SP3,Win 7,Win 8,Win 10 (32/64 can be) Linux; Can't support Apple/Mac product.
Binding: Tools & Home Improvement
model number: 3018
Part Number: 3018

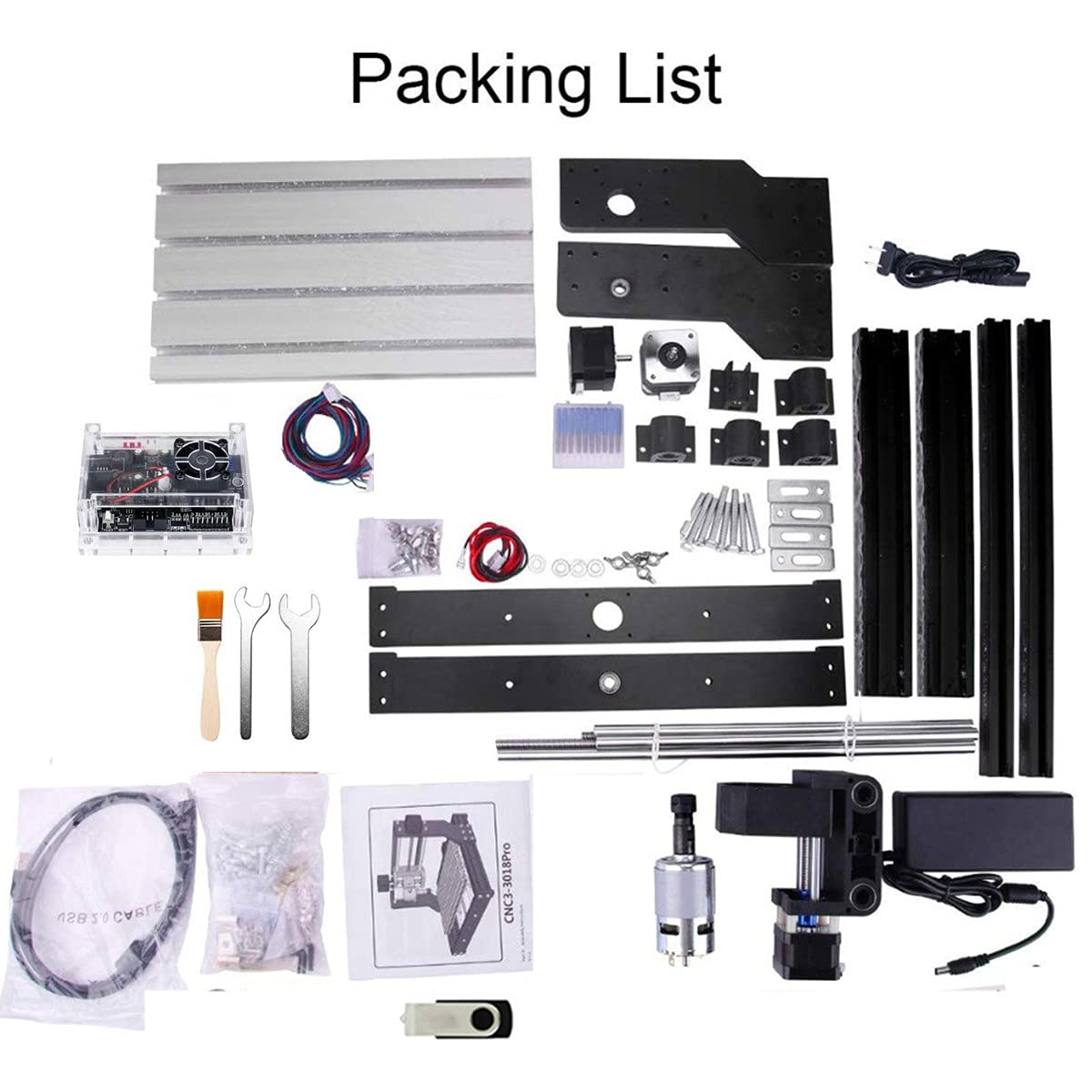

Details: Package include:

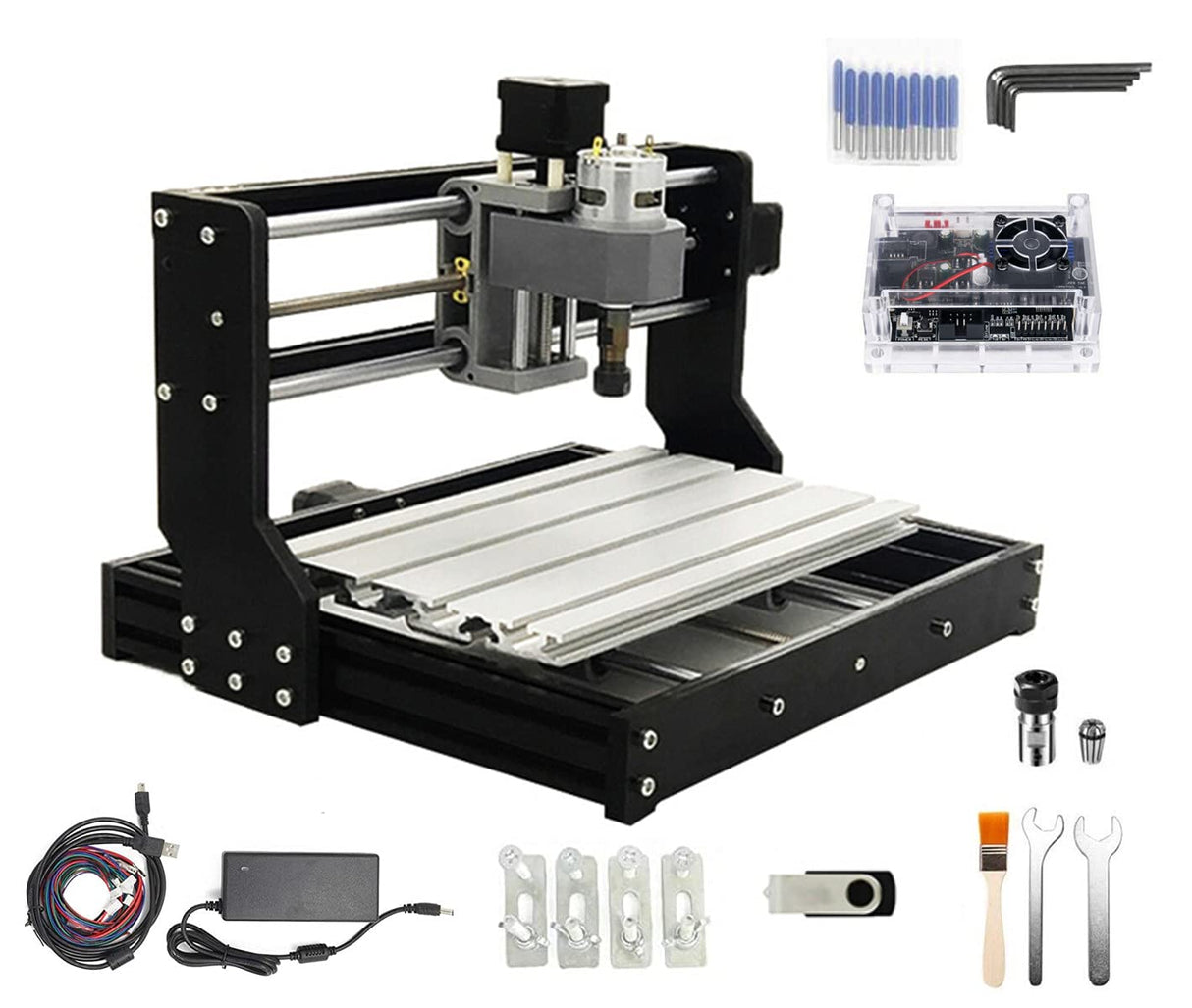

1 set 3018 Pro CNC Router Engraving Machine Kit
1x GRBL 1.1 Control Board
1x ER11 Collet
1x Power Supply
10x 20°0.1mm Drill Bits
1Set Allen Wrench
1x 4G USB flash drive include english user manual & GRBL software
Specification:

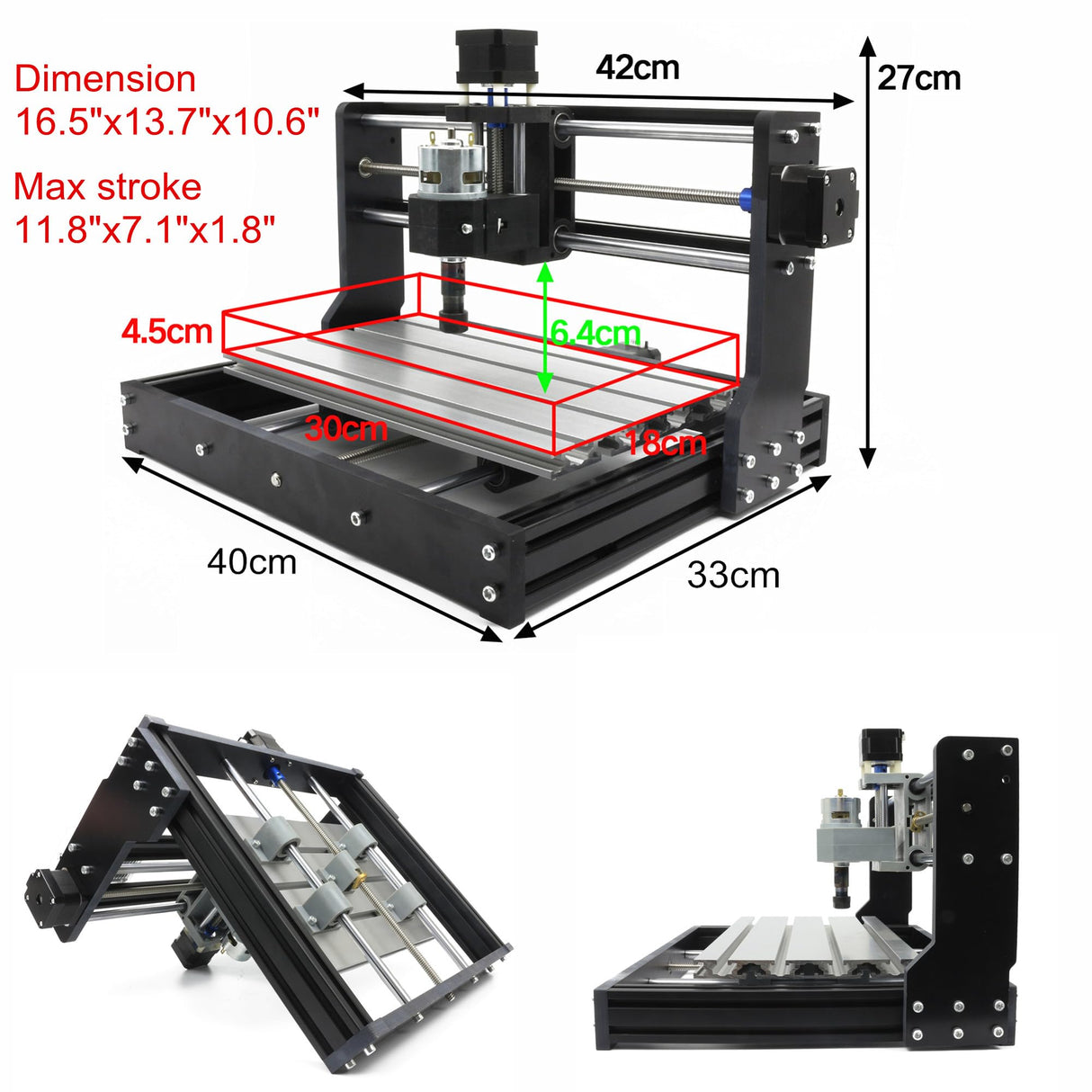

Working area: 30x18x4.5cm
Frame size: 40x33x24cm
Material: Aluminum Alloy
Processing thickness:4.5cm
Chuck specification: ER11 Collet
Control software: Grbl Controller
Interface: USB
Stepper motor: 42 stepper motor
Voltage: 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.25N.m
Spindle: 775 spindle motor (12-36V) 24V:10000r/min
Power: 24V 5.6A power adapter (input voltage 110-240V), simple and convenient
System requirements: windows XP SP3, win7. (32/64 can be). Linux; Can't support Apple product
Main application:Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.
Specification:
Connection: USB (USB-CH340)

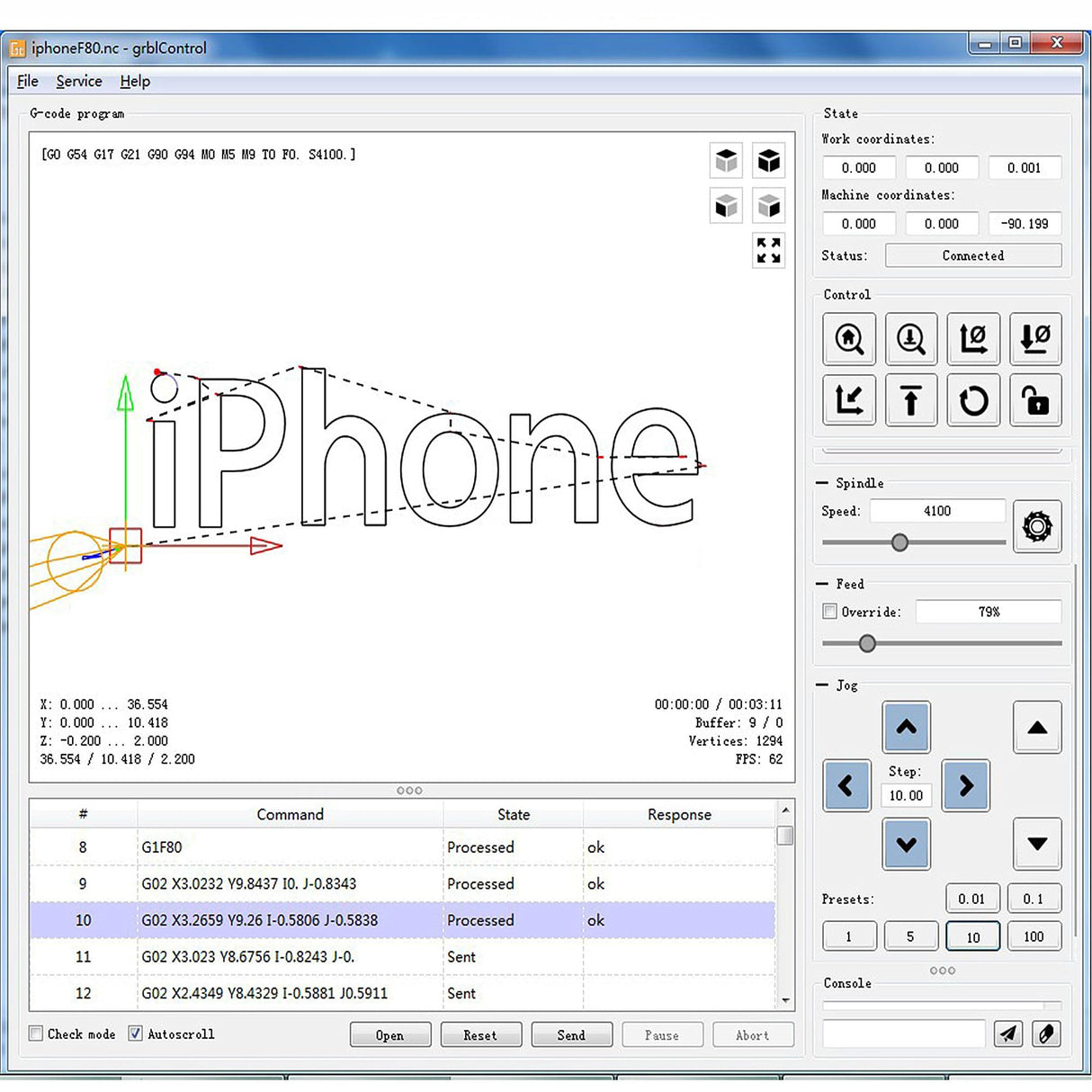

Software: GRBL controller, UniversalGcodeSender
Input voltage: 12-24V
Master chip: atmel 328P (arduino nano)
Spindle drive chip: MOSFET (recommendation 24V, current : within 10A
Spindle PWM speed: Support
Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
Power Interface: 5.5-2.5mm DC interface

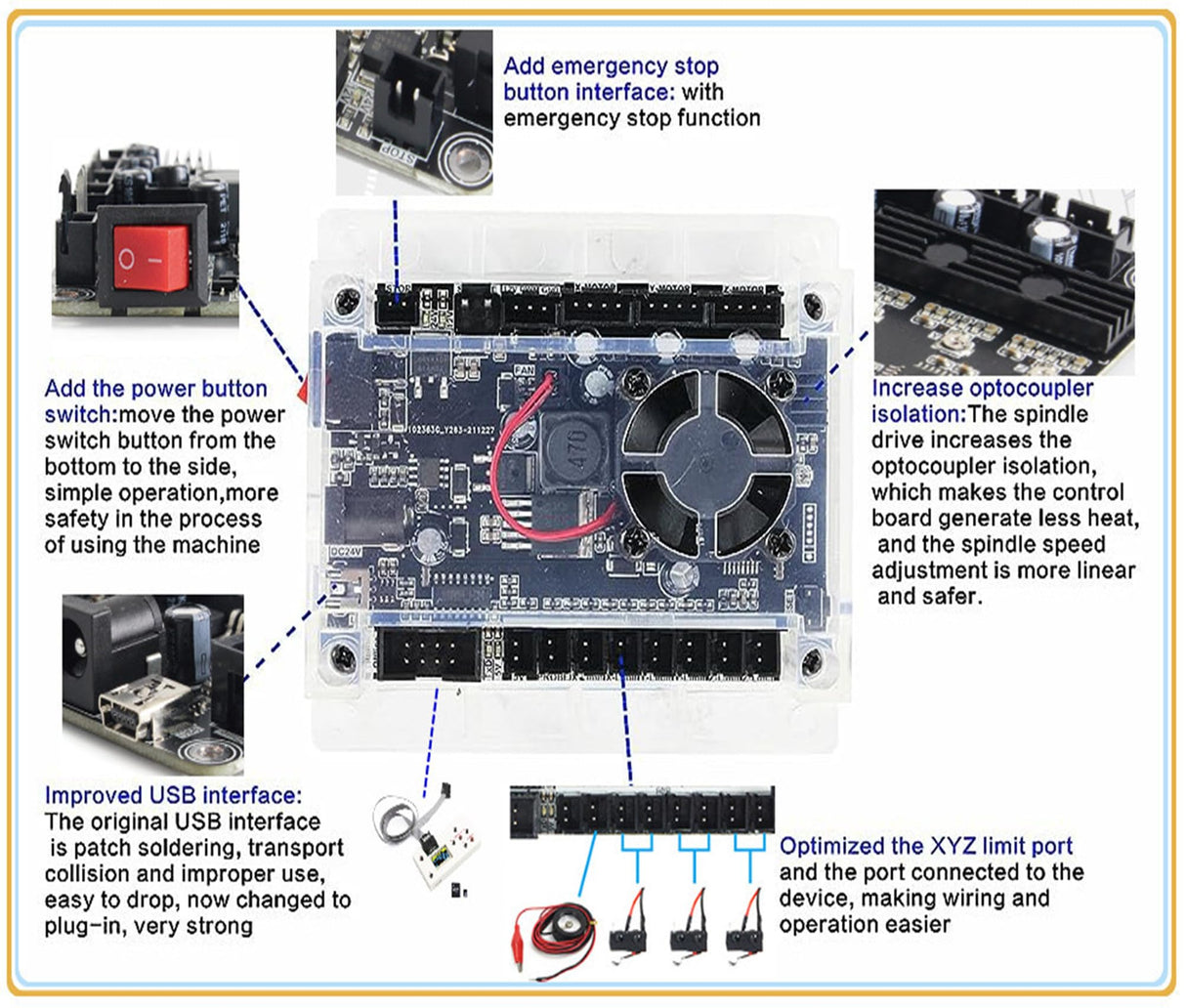

Advantage of this board
1.add the outer casing: protect control board in transit,to avoid short circuit problem during use;
2.add the power button switch
4.Add the fan port to force heat dissipation;
5.add offline recognition
EAN: 0619191628223
Package Dimensions: 17.6 x 9.7 x 7.2 inches
