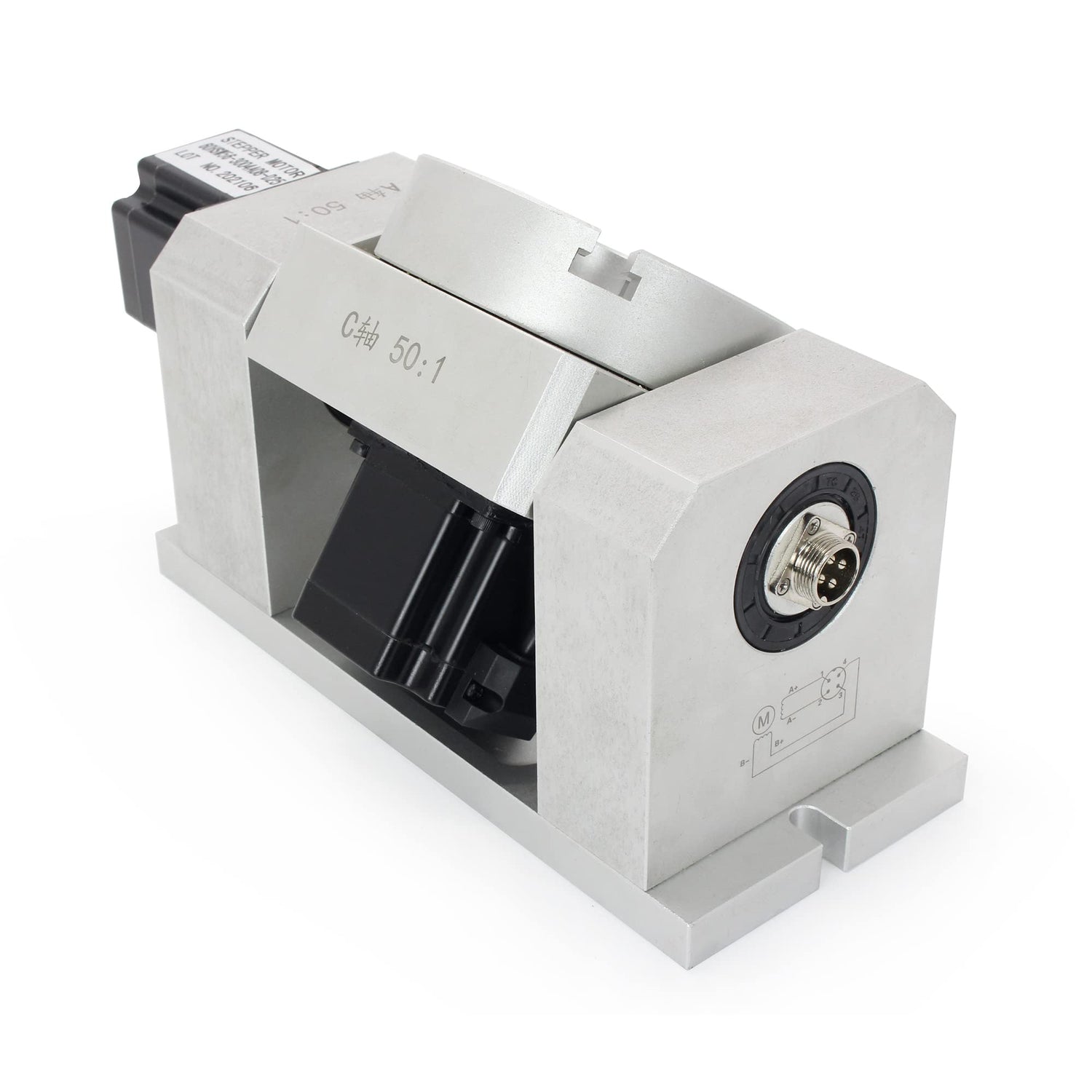

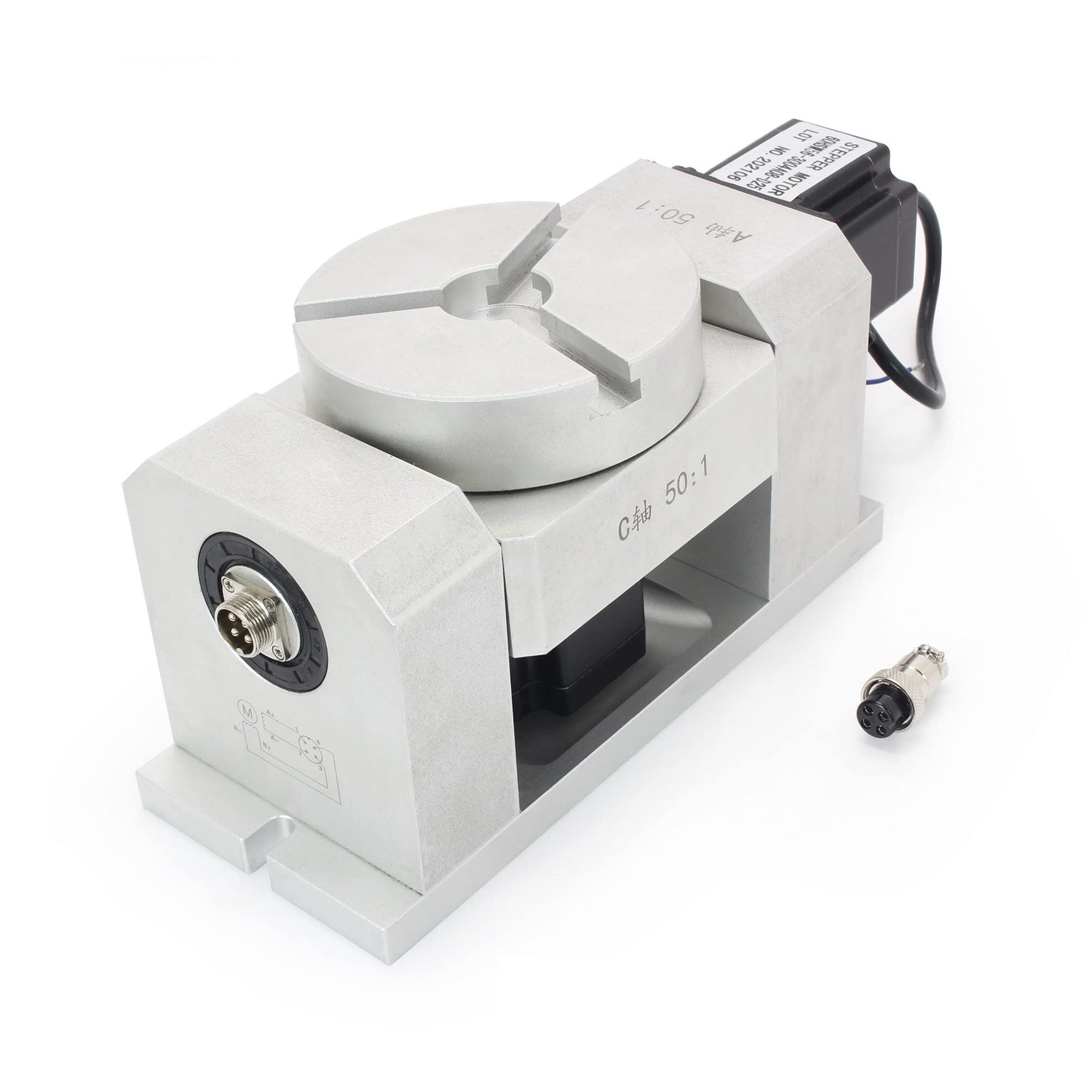

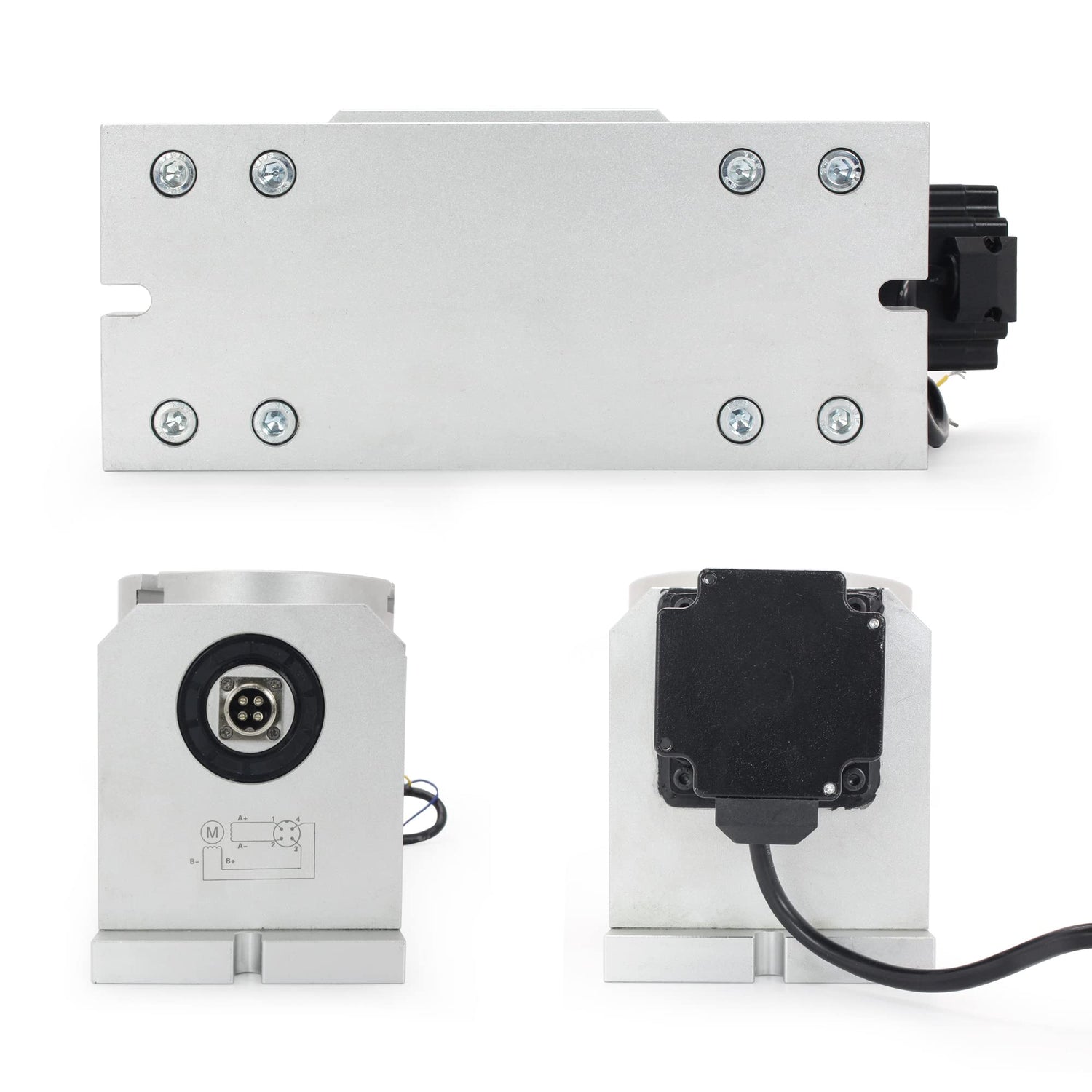

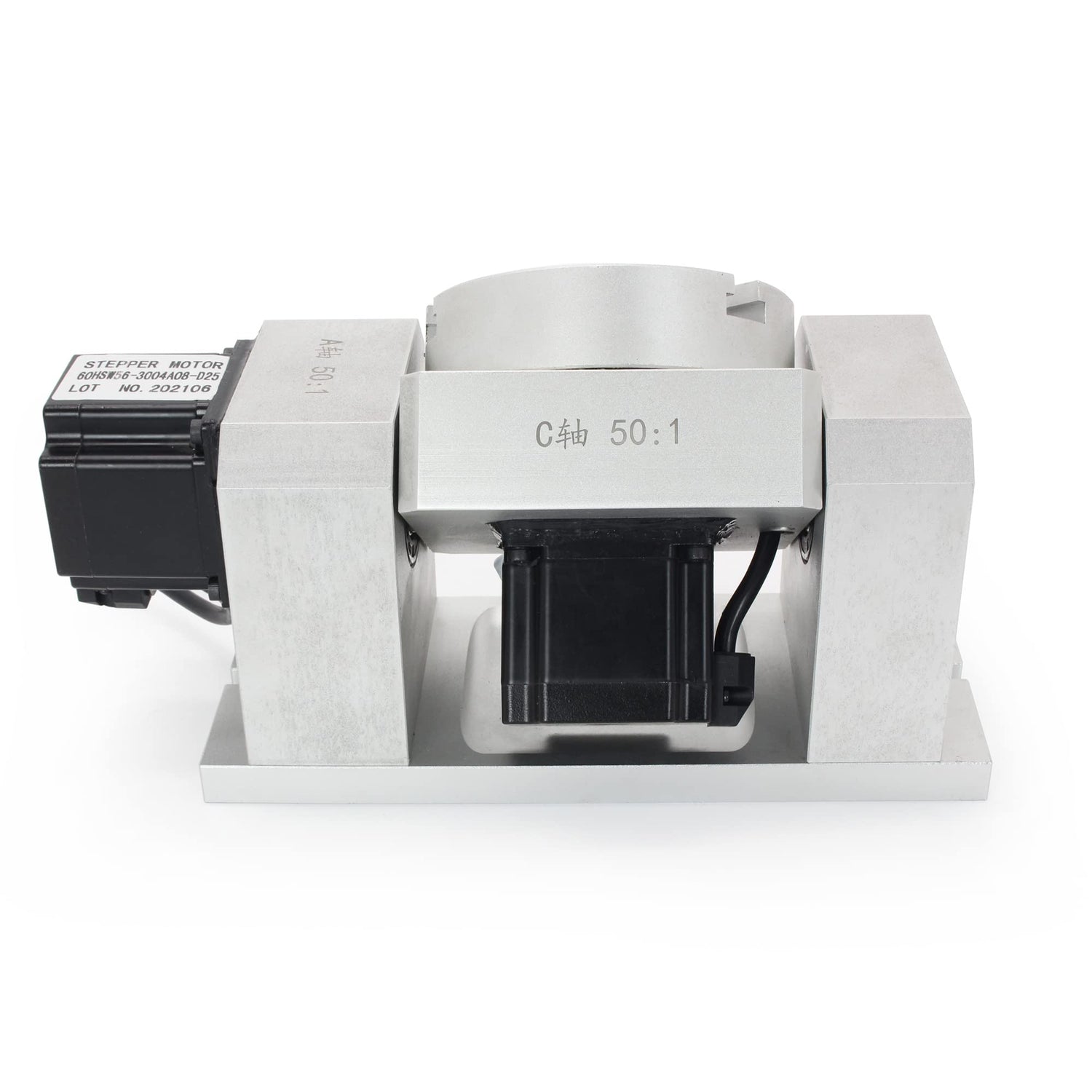

CNCTOPBAOS CNC 5th Axis 4th Rotary Indexer Table,Rotational A C Axis Dividing Head 5.5N.m,Dual Support Harmonic Gearbox Reducing Ratio 50:1+Nema23 Motor for CNC Router Engraver Lathe Milling Machine
Sold out
Regular price
$779.00
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: CNCTOPBAOS
Features:
- ♞【Model】RTM17-A50-C50【Reducing ratio】4th Speed reducing ratio: 50:1 ; 5th Speed reducing ratio: 50:1【Material】Aluminum alloy

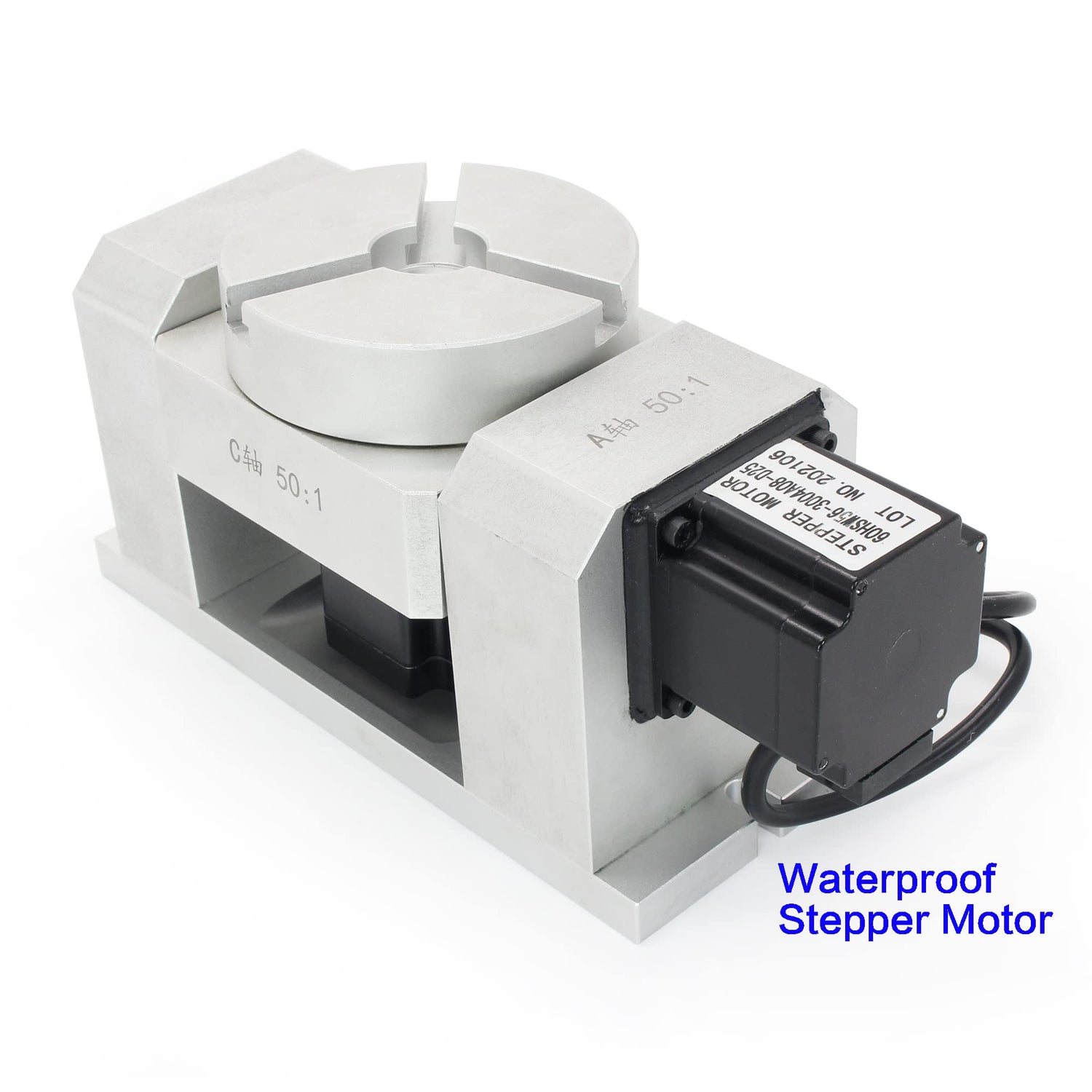

- ♞【Stepper motor】 Two-phase stepper motor Nema23 waterproof,57x57x56mm,3A,1.8 degree,4 wires

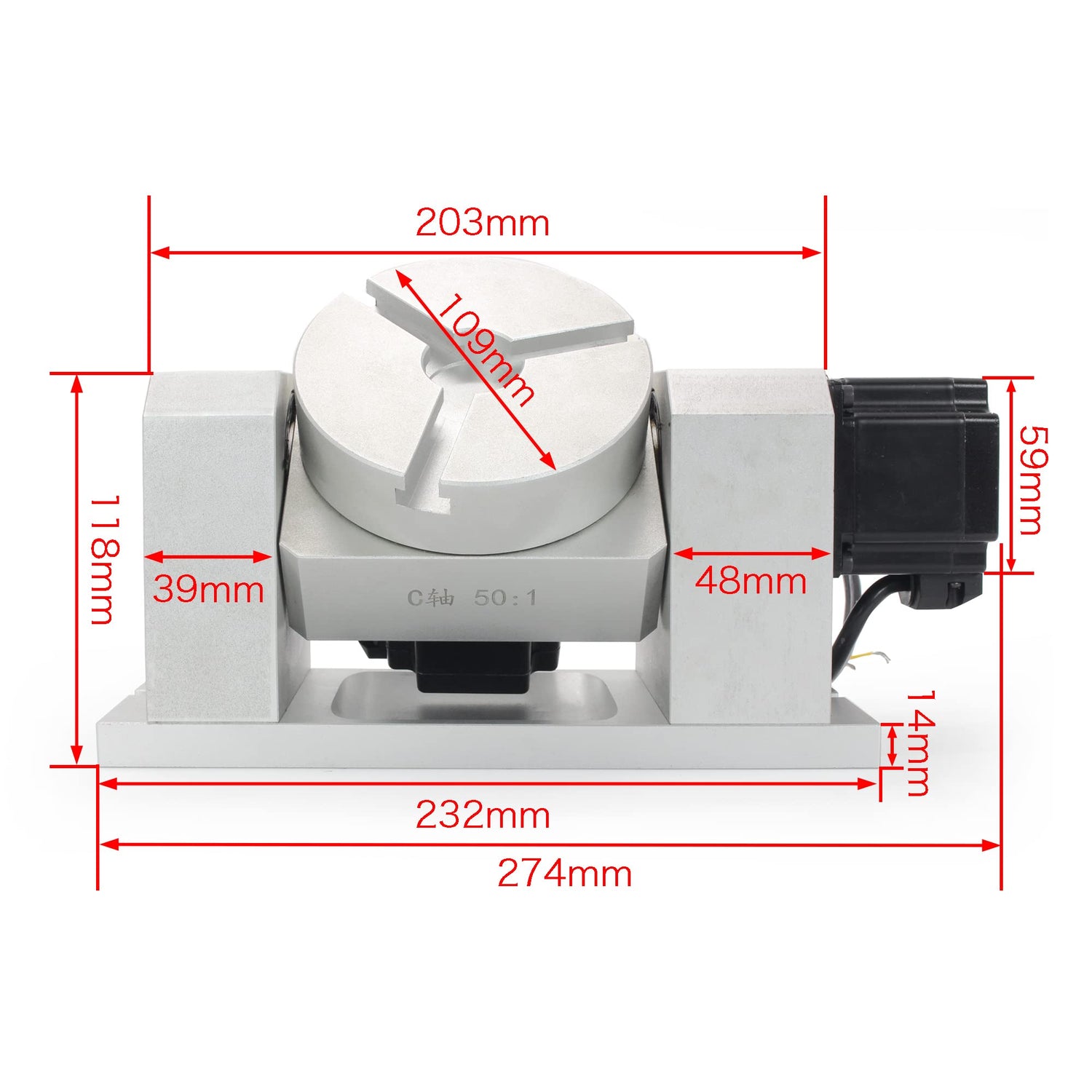

- ♞【Center height】85mm【Bench Diameter】 109mm
- ♞【Torque】5.5Nm【Size】10.7*3.85*5.2 inch【Weight】15 LB
- ♞【Wirings】Red A+, Green A-, Yellow B+, Blue B-
Binding: Tools & Home Improvement
model number: RTM17-A50-C50
Part Number: RTM17-A50-C50
Package Dimensions: 13.5 x 11.0 x 6.5 inches
