CNCTOPBAOS Engraving Machine Rotary 4th Axis,CNC Router Rotational Fourth A Axis,K12-100mm 4 Jaw Chuck Dividing Head,No Backlash Gapless Harmonic
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: CNCTOPBAOS
Features:

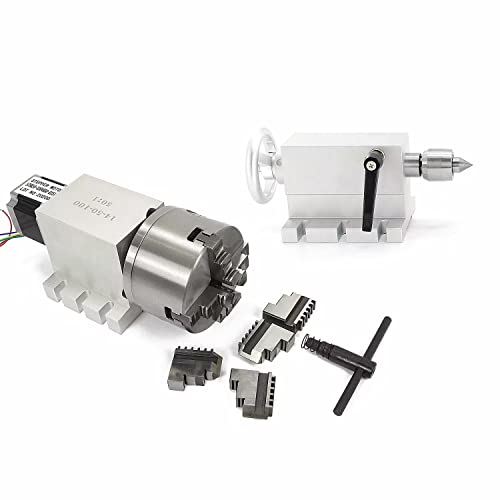

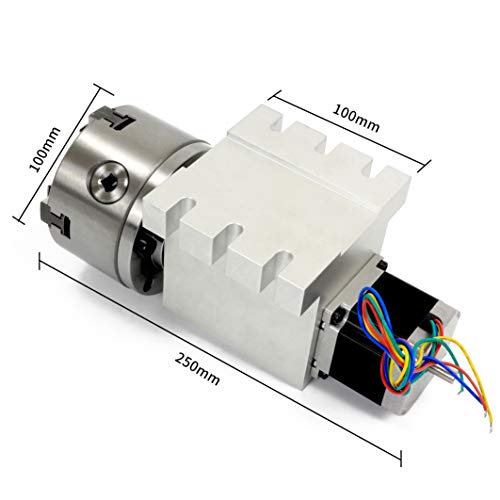

- 【Chuck Type】K12-100mm 4 Jaw Chuck
- 【Stepper motor】Nema23 2-phase 57x57x56mm stepper motor 3A 1.2Nm 4-Lead

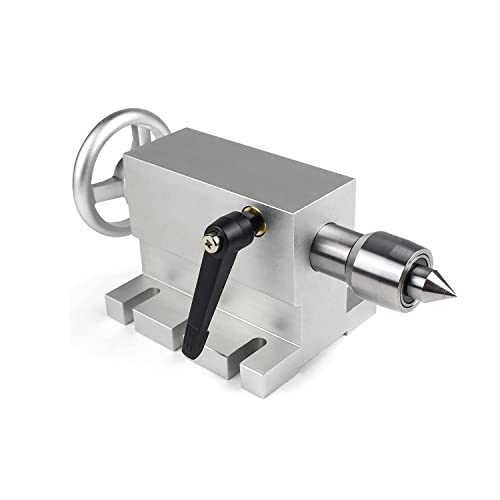

- 【MT2 Tailstock】Center height: 65mm;Total height: 115mm
- 【Reducing ratio】50:1
- 【Accessories】Set of Anti-claw and wrenches
Binding: Tools & Home Improvement
model number: K12-100mm 50:1
Part Number: S23
Details: Package include:

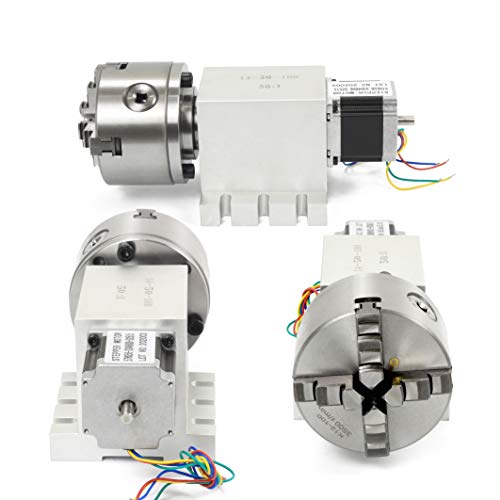

1Set Rotary 4th Axis Gapless Harmonic K12-100mm with Nema23 stepper motor with 4 jaw chuck
1Pcs 65mm Tailstock
1Set of Anti-claw and wrenches
Reducing Ratio 50:1
Descriptions:

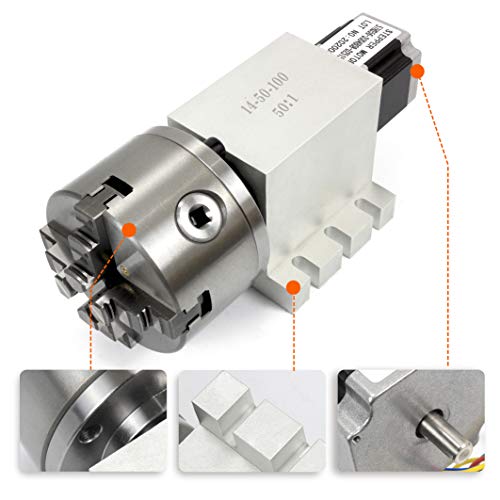

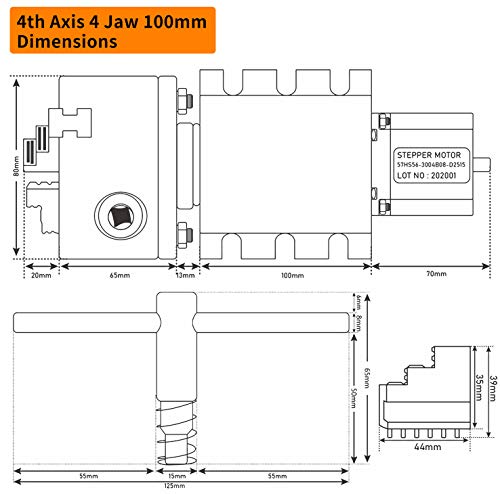

Fourth axis (A axis, Rotational Axis,CNC dividing head) gapless harmonic reducer gearbox
Chuck type: K12 100mm 4 jaw centering chuck
Center height: 65mm
Total height: 115mm
Angle: 0.018°/ step
Gear box output shaft diameter: 25mm
Weight: 6.8KG
The fourth axis parameter settings:
Mach3 system settings: the pulses required for 1°
(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°
For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1
(200 x 16 x 100) / 360=888.88888888)
Weihong system settings: 1 pulse along the angle
360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)
For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1
360 / (200 x 16 x 100) =0.001125

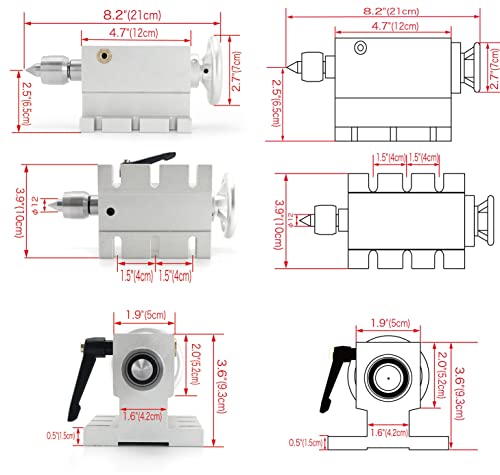

Tailstock:
Center Height: 65mm
Stretch distance: 50mm
Top tip: Activity type

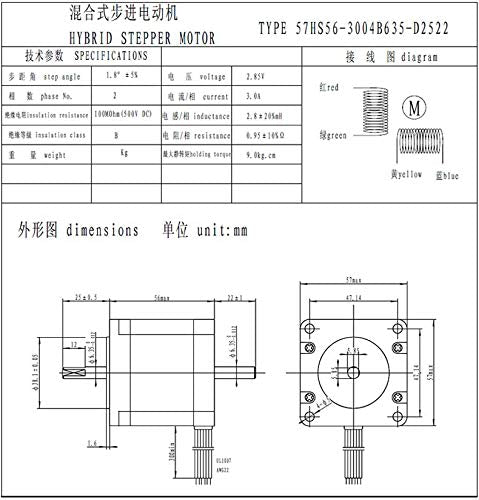

Nema23 steppper motor
Step Angle: 1.8 deg.
Holding Torque: 1.2Nm
Phase Resistance: 1ohms
Current:3A
Inductance:2.8mH+/-20%
Frame Size: 57x57x56 mm
Body Length: 56mm
Lead: Red: A+,Green: A-,Yellow: B+, Blue: B-
EAN: 0619191730186
Package Dimensions: 20.5 x 11.6 x 7.9 inches
