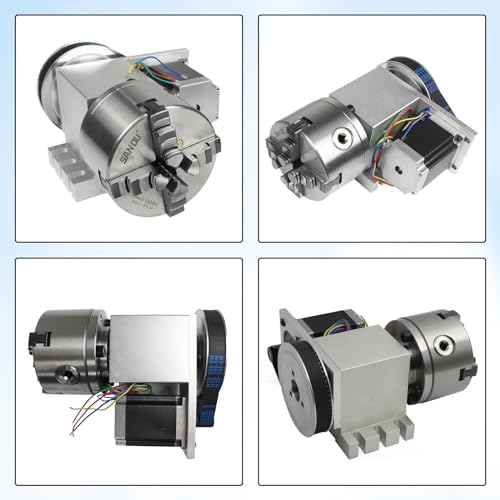

CNCTOPBAOS K12-100mm CNC Router Milling Machine Rotational Axis 4th Axis A axis Rotary Table A axis 100mm 4 jaw chuck dividing head,MT2 65mm
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: CNCTOPBAOS
Features:
- ♞【Rotation 4th Axis】Model:K12-100mm; Chuck Type:K12-100mm 4 Jaw Chuck;Inner through hole diameter/shaft hollow diameter is 22mm; with accessories:1 Set of Anti-claw and wrenches
- ♞【Stepper motor】Nema23 2-phase 3A stepper motor 57x57x76mm 4-lead wires: Red wire=A+;Green wire=A-;Yellow wire=B+;Blue wire=B- port.
- ♞【MT2 Tailstock】Center height: 65mm;Total height: 115mm 【Reducing ratio】6:1 (belt deceleration mode) ; Angle: 0.3 ° / step

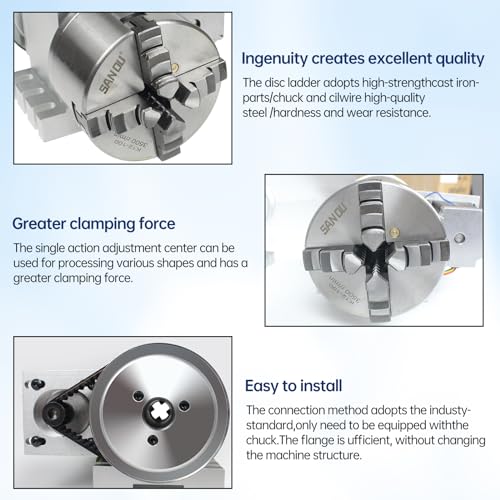

- ♞【Advantages】Rust proof coating process,stable 4 jaw chuck structure,fine workmanship,solid and practical jaw, excellent process to maximize service life.
- ♞【Application】 The fourth axis can be used for three-dimensional processing of cylinders, bends and circles. The fourth axis engraving machine can be used for engraving spirals, scars, bamboo joints, etc.
Part Number: S23

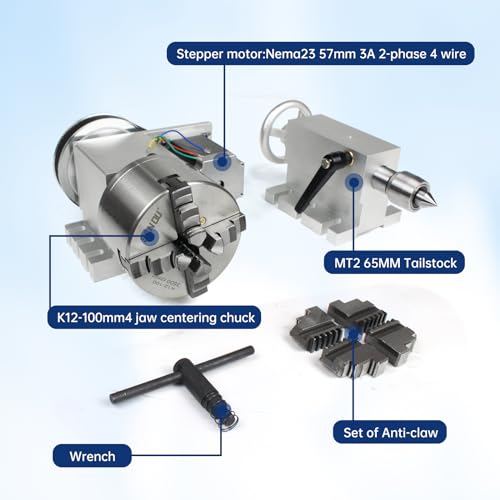

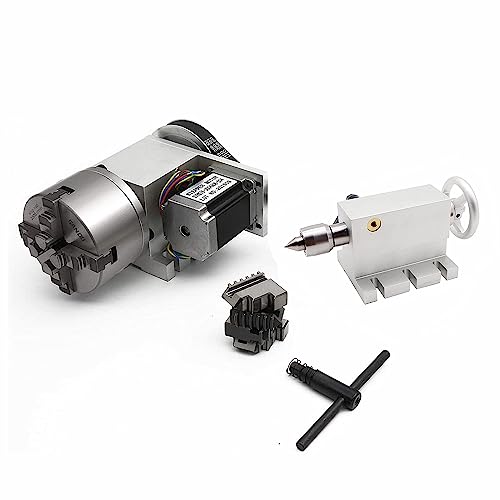

Details: Package include:
1set 4th axis K12 100mm ( Includes stepper motor and 4 jaw chuck) Ratio 6:1
1 x 65mm Tailstock

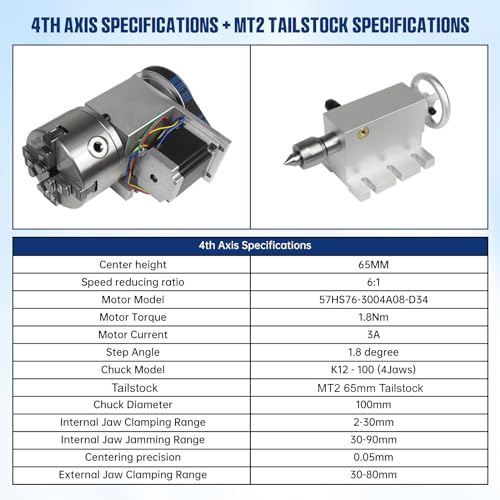

Descriptions:

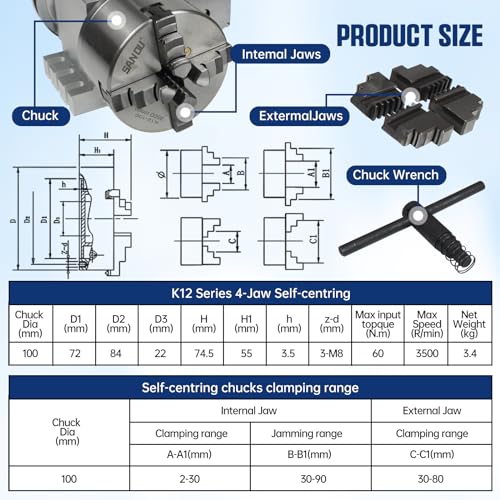

Chuck type: K12 100mm 4 jaw centering chuck
Center height: 65mm
Total height: 115mm
Angle: 0.3°/ step
Gear box output shaft diameter: 25mm
Reducing ratio: 6:1(belt deceleration mode)
Stepper motor: Nema23 57mm 3A 2-phase 4 wire
Accessories: Set of Anti-claw and wrenches
The fourth axis parameter settings:
Mach3 system settings: the pulses required for 1°
(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°
For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1
(200 x 16 x 100) / 360=888.88888888)
Weihong system settings: 1 pulse along the angle
360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)
For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1
360 / (200 x 16 x 100) =0.001125

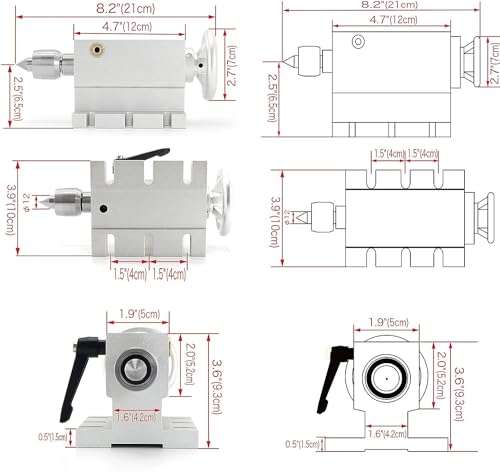

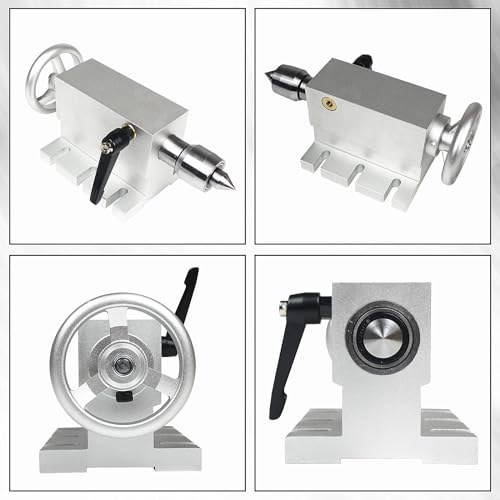

Tailstock type:
Center Height: 65mm
Stretch distance: 50mm
Top tip: Activity type
Axial locking wrench for tailstock

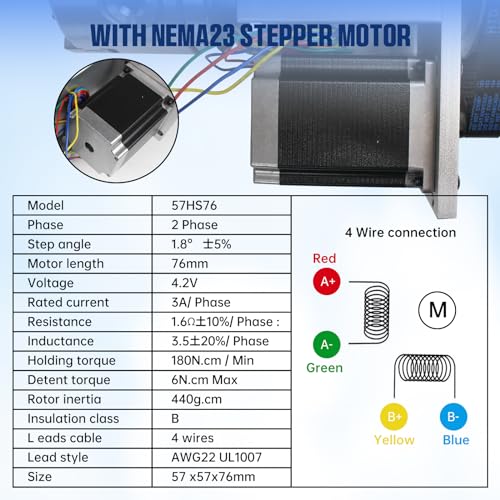

Stepper Motor:
Nema23 stepper motor 76mm
Shaft Diameter: 8 mm
Shaft length: 25.5mm
Step Angle:1.8
Current: 3A
Voltage: 4.2V
Temperature Rise: 80 c max
Insulation Resistance: 100MOhm(500V DC)
Holding Torque: 18kg.cm
EAN: 0785004502711
Package Dimensions: 17.0 x 12.0 x 9.0 inches
