CNCTOPBAOS Rotational 4th Axis A axis Rotary Table,K11-100mm 3 Jaw Chuck Dividing Head,Gapless Harmonic Gearbox Reducer Ratio 50:1 w/ 65mm Tailstock
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: CNCTOPBAOS
Color: K11-100mm-50:1
Features:

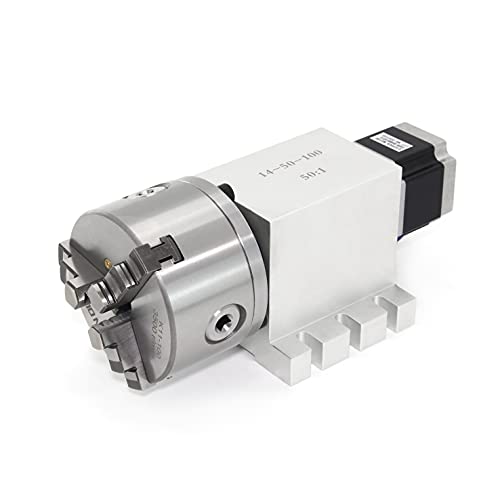

- 【Chuck Type】 K11-100mm 3 Jaw Chuck Zero Backlash with Gapless harmonic gearbox reducer

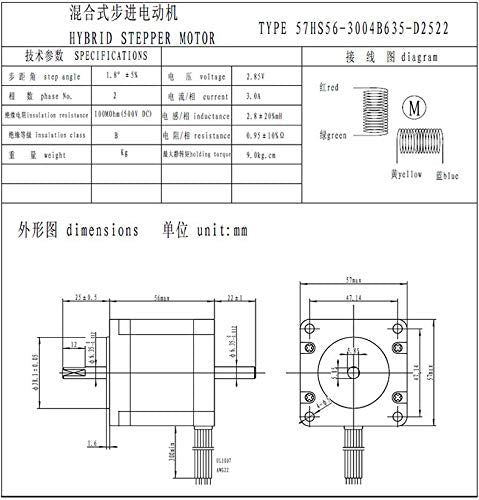

- 【Stepper motor】 Nema23 2-phase 57x57x56mm stepper motor 3A 1.2Nm 4 Lead
- 【MT2 Tailstock】 Center height: 65mm;Total height: 115mm
- 【Reducing ratio】50:1
- 【Accessories】Set of Anti-claw and wrenches
model number: K11-100mm 50:1
Part Number: S23
Details: Package include:

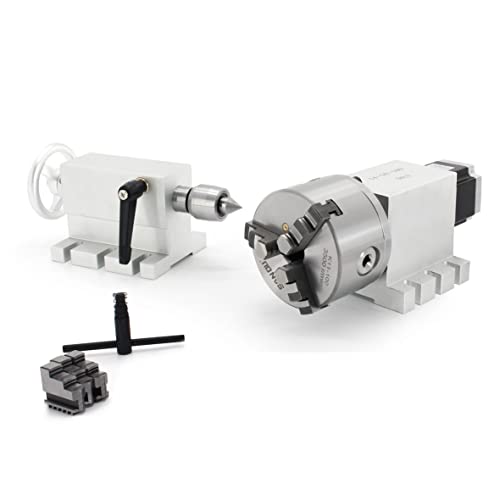

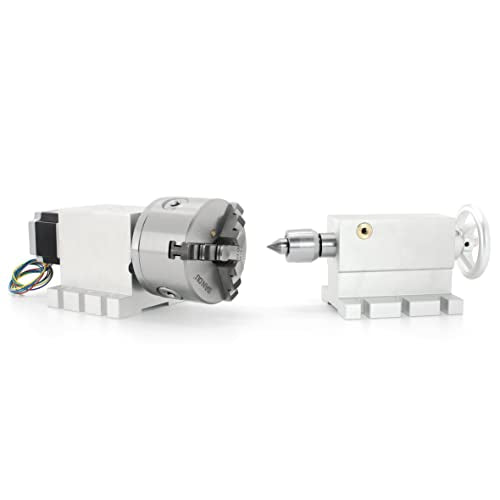

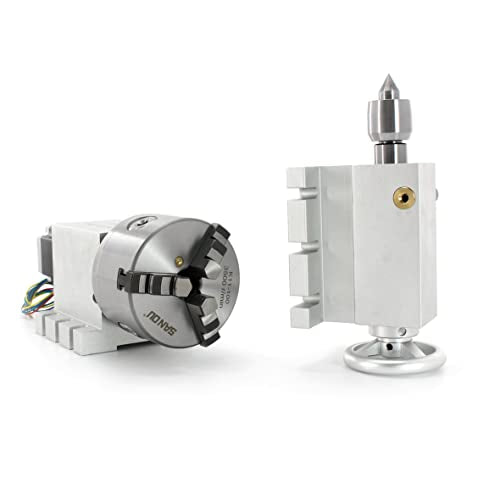

1Set 4th axis Gapless harmonic K11-100mm Ratio 50:1 (Includes stepper motor and 3 jaw chuck)
1Pcs 65mm Tailstock
Descriptions:

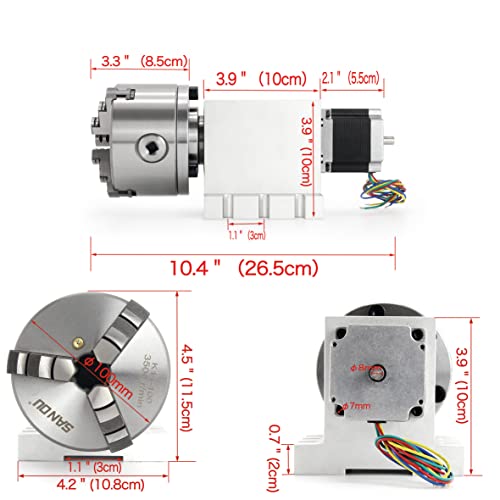

Engraving machine fourth axis (A axis, Rotational Axis, CNC dividing head) gapless harmonic reducer gearbox
Chuck type: K11 100mm three jaw centering chuck
Center height: 65mm
Total height: 115mm
Angle: 0.018°/ step
Gear box output shaft diameter: 25mm
Reducing ratio: 50:1
Stepper motor: Nema23 57mm 3A 2-phase 4 wire
Accessories: Set of Anti-claw and wrenches
Weight: 6.5KG
The fourth axis parameter settings:
Mach3 system settings: the pulses required for 1°
(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°
For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1
(200 x 16 x 100) / 360=888.88888888)
Weihong system settings: 1 pulse along the angle
360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)
For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1
360 / (200 x 16 x 100) =0.001125

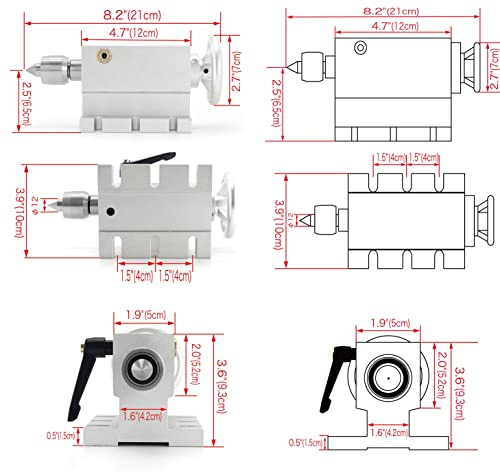

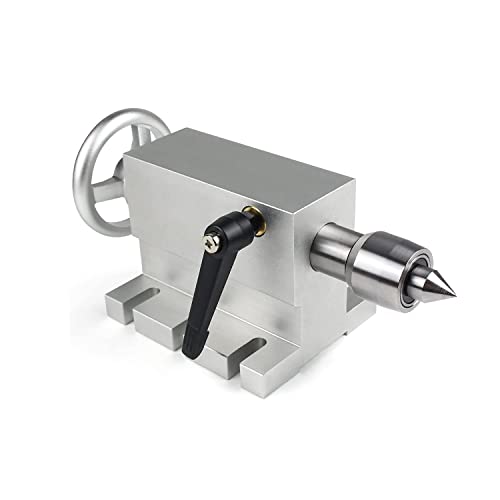

Tailstock type:
Center Height: 65mm
Stretch distance: 50mm
Top tip: Activity type
Axial locking wrench for tailstock
EAN: 0785004502735
Package Dimensions: 20.5 x 11.5 x 7.9 inches
