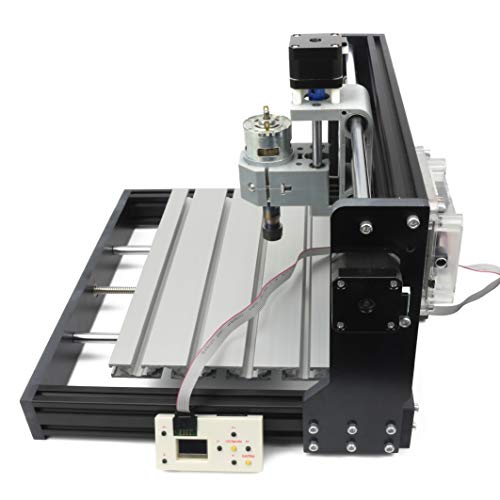

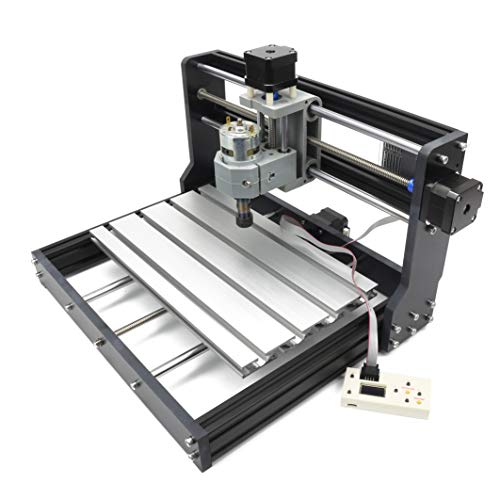

CNCTOPBAOS Upgrade CNC 3018 Pro 3 Axis DIY Mini CNC Router Kit with GRBL Remote Control Offline Controller PVC PCB Acrylic Plastic Wood Cutting
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: CNCTOPBAOS
Features:
- ♞【Upgrade Version 3018 Pro with Offline Controller】Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;you can operate this machine without connect the computer; offline controller included a SD card reader to write into the root directory G-code files or NC file; Support manually adjust X, Y, Z axis location as engraving starting point,manually open or close spindle.

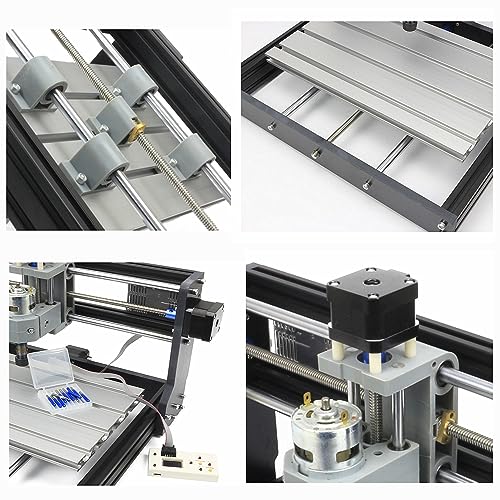

- ♞【Main Feature】 Working area:300x180x45 mm (11.8 x 7.1 x 1.8");Frame size: 420x350x270mm (16.53x13.78x10.63");Type: USB Port Desktop cnc router ; Spindle: 775 spindle motor 100W (12-36V) 24V:10000rpm ; Stepper Motor: Nema17 stepper motor 1.33A,42x42x34mm,torque 0.3N.m,43oz-in.

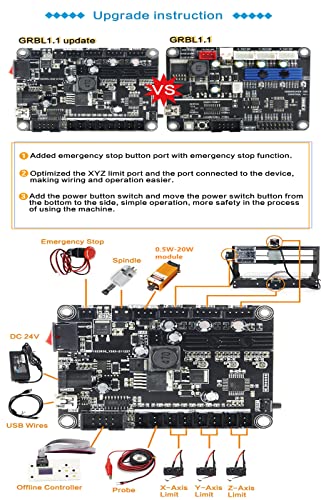

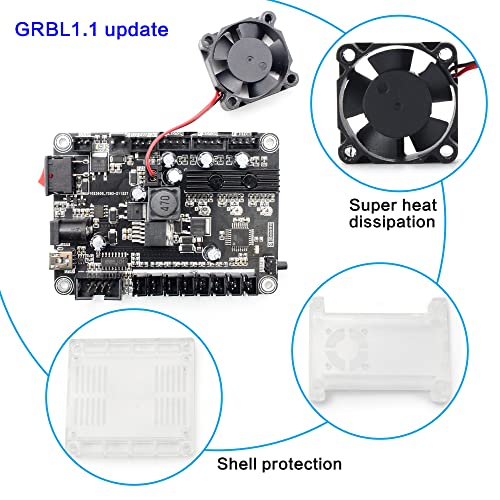

- ♞【Upgraded GRBL1.1f Control Board】Added the outer casing,emergency stop button port,tool setting (probe) port,X/Y/Z axis limit port and add the power button switch,and come with the fan port to force heat dissipation,with enhanced spindle drive,can support maximum 20000rpm spindle,and also can support 0.5W-20W module.
- ♞【Main application】Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.
- ♞【GRBL Software】Our parcel include 4G USB flash drive,pls download the installation instructions,user manual and GRBL software from the USB flash drive.♞【System requirements】 Windows XP SP3,Win 7,Win 8,Win 10 (32/64 can be). Linux; Can't support Apple product
Part Number: 3018

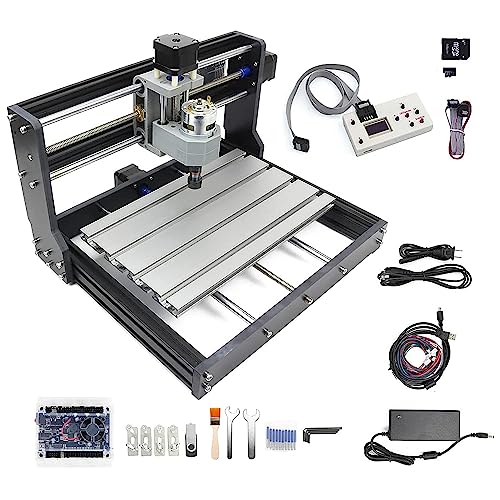

Details: Package include:
1 set 3018 Pro CNC Router Kit w/ ER11 collet
1x GRBL 1.1f Control Board
1x Offline controller
1x Power Supply
10x 20°0.1mm Drill Bits
1Set Allen Wrench
1x 4G USB flash drive include english user manual & GRBL software
Specification:
Working area: 30x18x4.5cm
Frame size: 40x33x24cm
Material: Aluminum Alloy
Processing thickness:4.5cm
Chuck specification: ER11 Collet
Control software: Grbl Controller
Interface: USB
Stepper motor: 42 stepper motor
Voltage: 12V,1.3A,2.1 ohms, 0.25N.m
Spindle: 775 spindle motor (12-36V) 24V:10000r/min
Power: 24V 5.6A power adapter (input voltage 110-240V), simple and convenient
System requirements: windows XP SP3,win7. (32/64 can be). Linux; Can't support Apple product
Main application:Can be engraved plastic,wood,acrylic,pvc,pcb,wood and the like material.

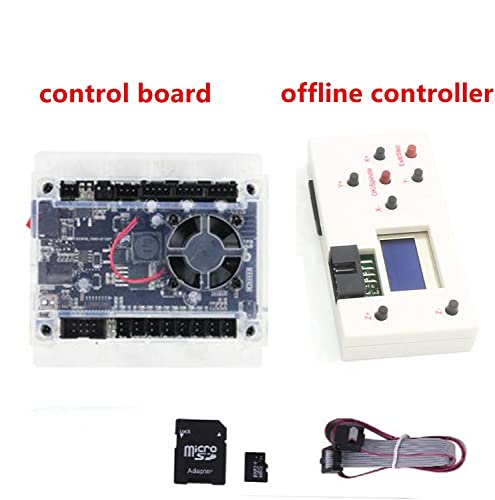

GRBL Board:

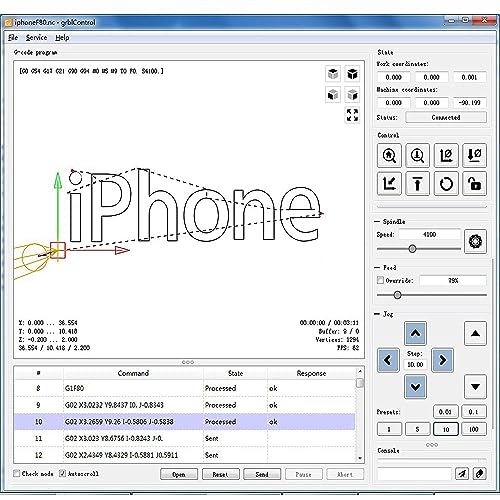

Software: GRBL controller,UniversalGcodeSender
Input voltage: 12-24V (24VDC)
Master chip: atmel 328P
Spindle drive chip: MOSFET
Spindle PWM speed: Support
Power Interface: 5.5-2.5mm DC interface
offline controller:
1. Manually control: manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle, manully open or close cooling fan
2. File engraving: after off-line controller save file, it can connect the GRBL control board and process engraving, no need to connect PC computer
3. Save file: after the off-line controller connect PC, it will be recognized as USB,large capacity storage device, can access engraving file directly.
SD shows it is SD card condition,turn on power supply after insert SD card, otherwise,it won't work.SD card capacity 4G could be recogni
EAN: 0619191628230
Package Dimensions: 17.4 x 9.7 x 6.8 inches
