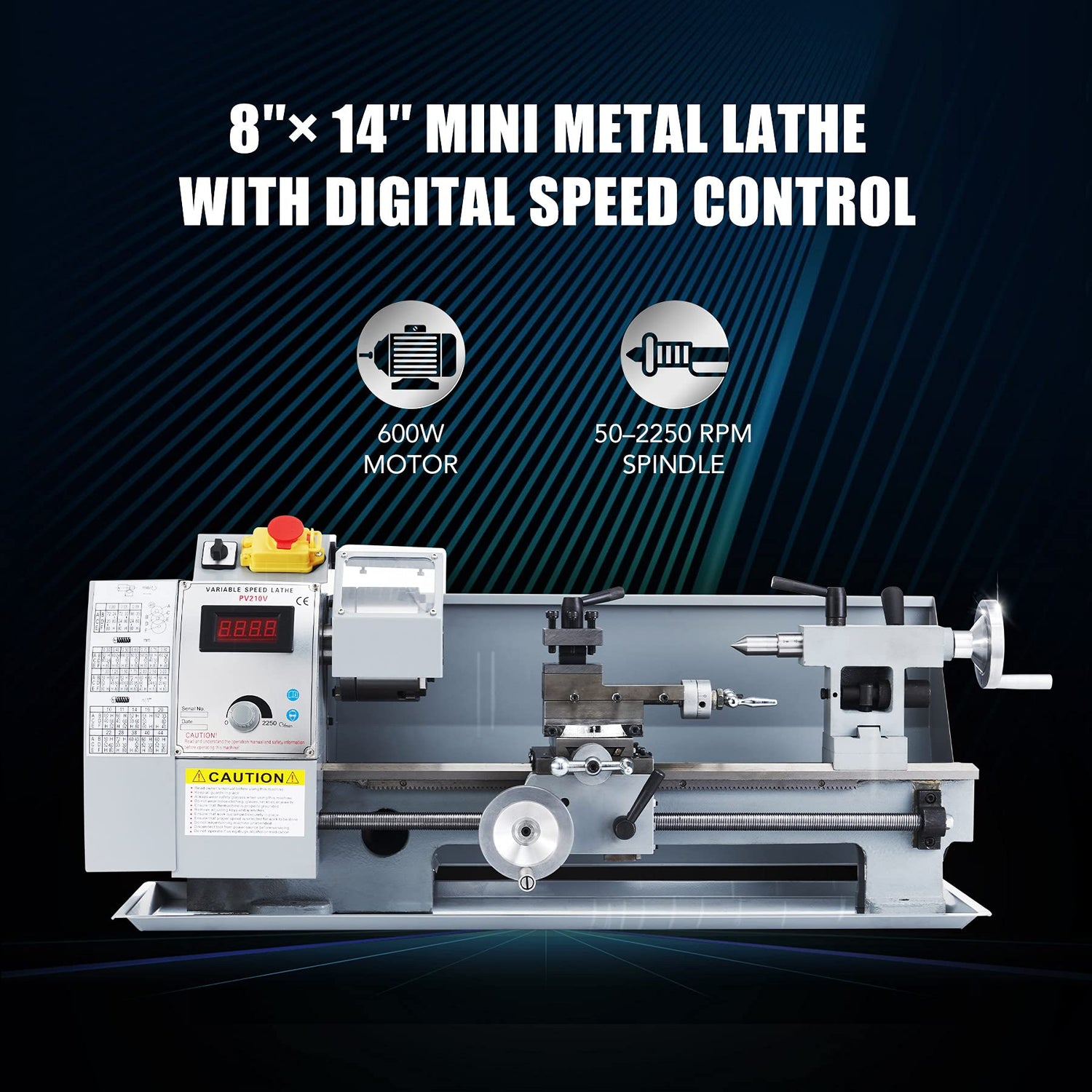

CO-Z 8"x14" Mini Lathe Machine with 600W Brushed Motor | 50-2250 rpm Wood Metal Turning Cutting Drilling Benchtop Metal Lathe with Accessories for

Brand: CO-Z

Features:

• MINI YET MIGHTY: Only 30x12 inches, this CO-Z mini metal lathe still cranks out 600W (0.8 hp) and is great for handling small to medium projects; it provides an 8.3 inch (21 cm) swing over bed and 13.8 inch (35 cm) distance between its centers with a 0.8 inch (21 mm) spindle bore

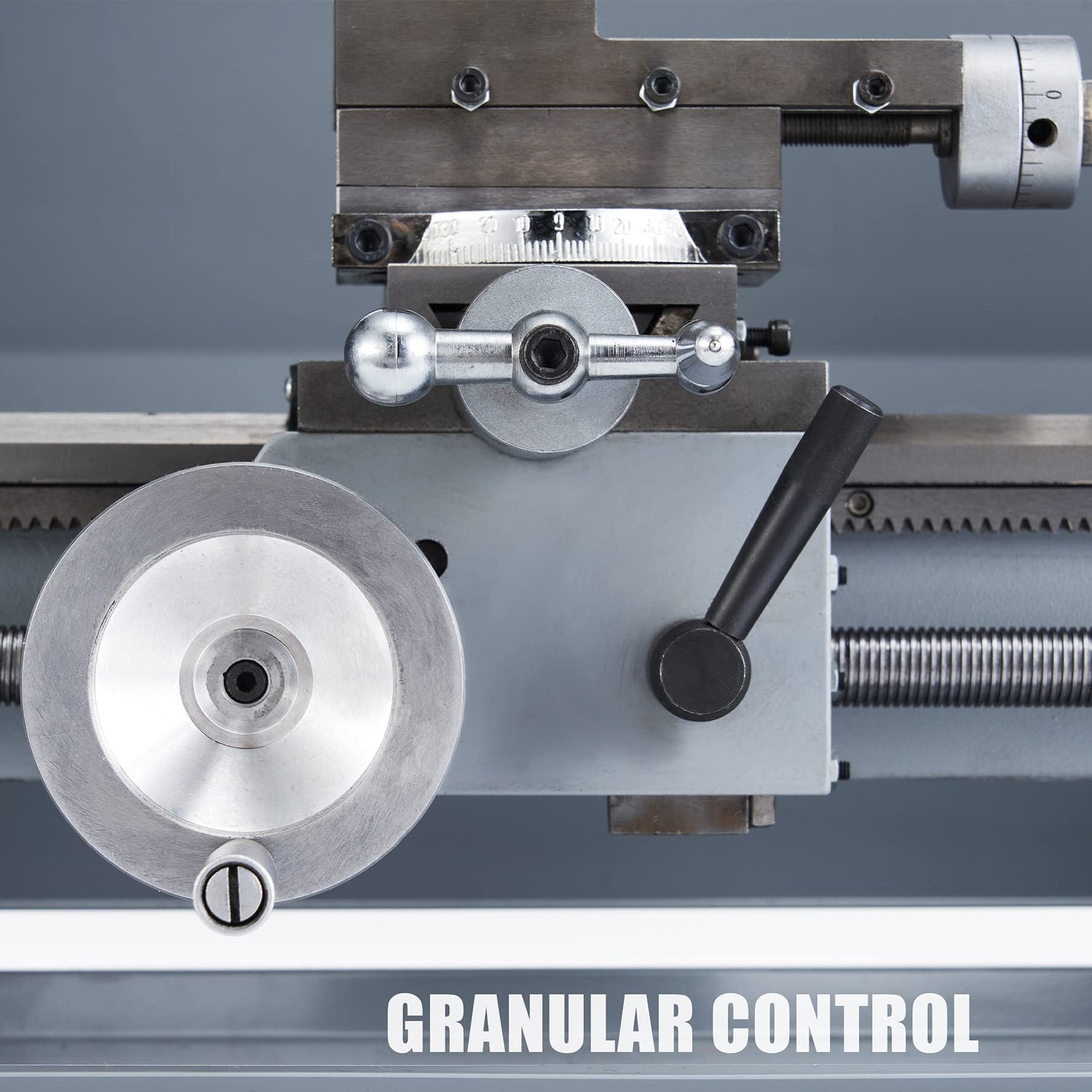

• PRECISE ENGINEERING: Ideal for professionals, this mini metal lathe's high-precision 4-inch 3-jaw chuck handles both square and round objects with equal aplomb; its granular precision is especially useful for jobs requiring high accuracy such as threading

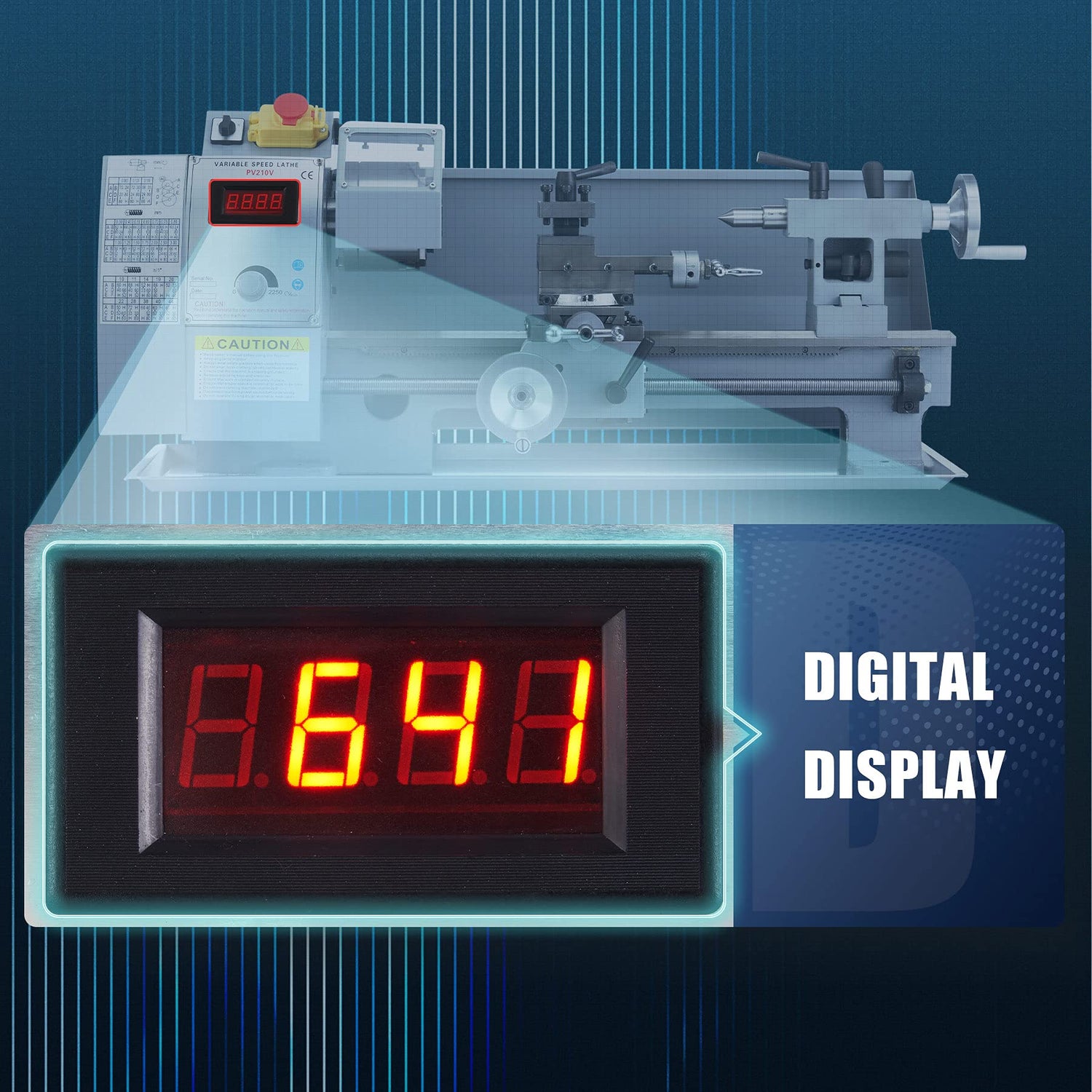

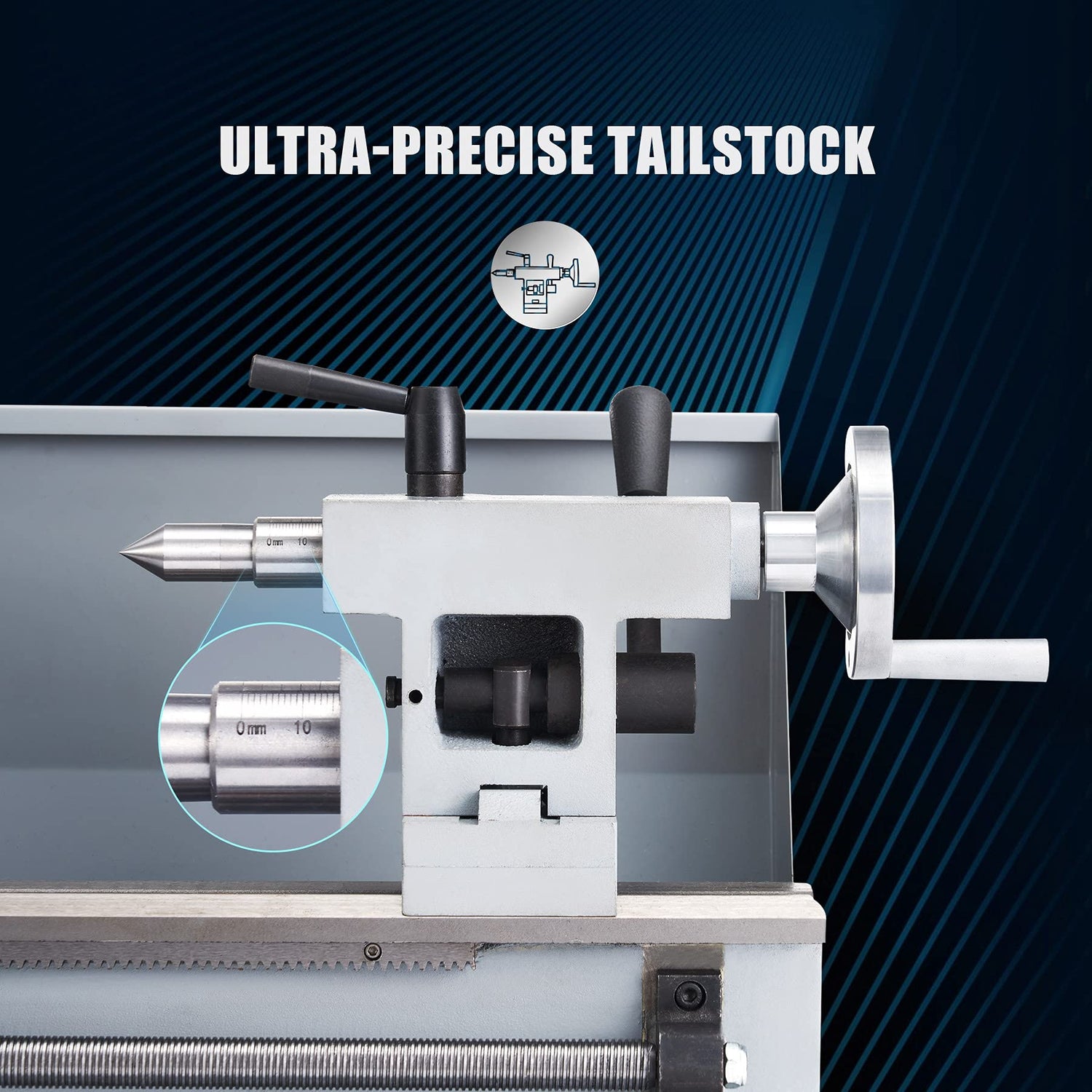

• COMPLETE CONTROL: The lathe's rotational speed can be set from 50 to 2250 rpm and monitored through the digital display; the well-crafted head and tailstocks, large through-hole, and 4-way tool post also contribute to providing greater control of your work
• ULTRA-STURDY & SAFE: The all metal construction assures you of a long service life; the transparent chuck guard protects you from swarf or broken tools while also permitting visibility into the point of operation

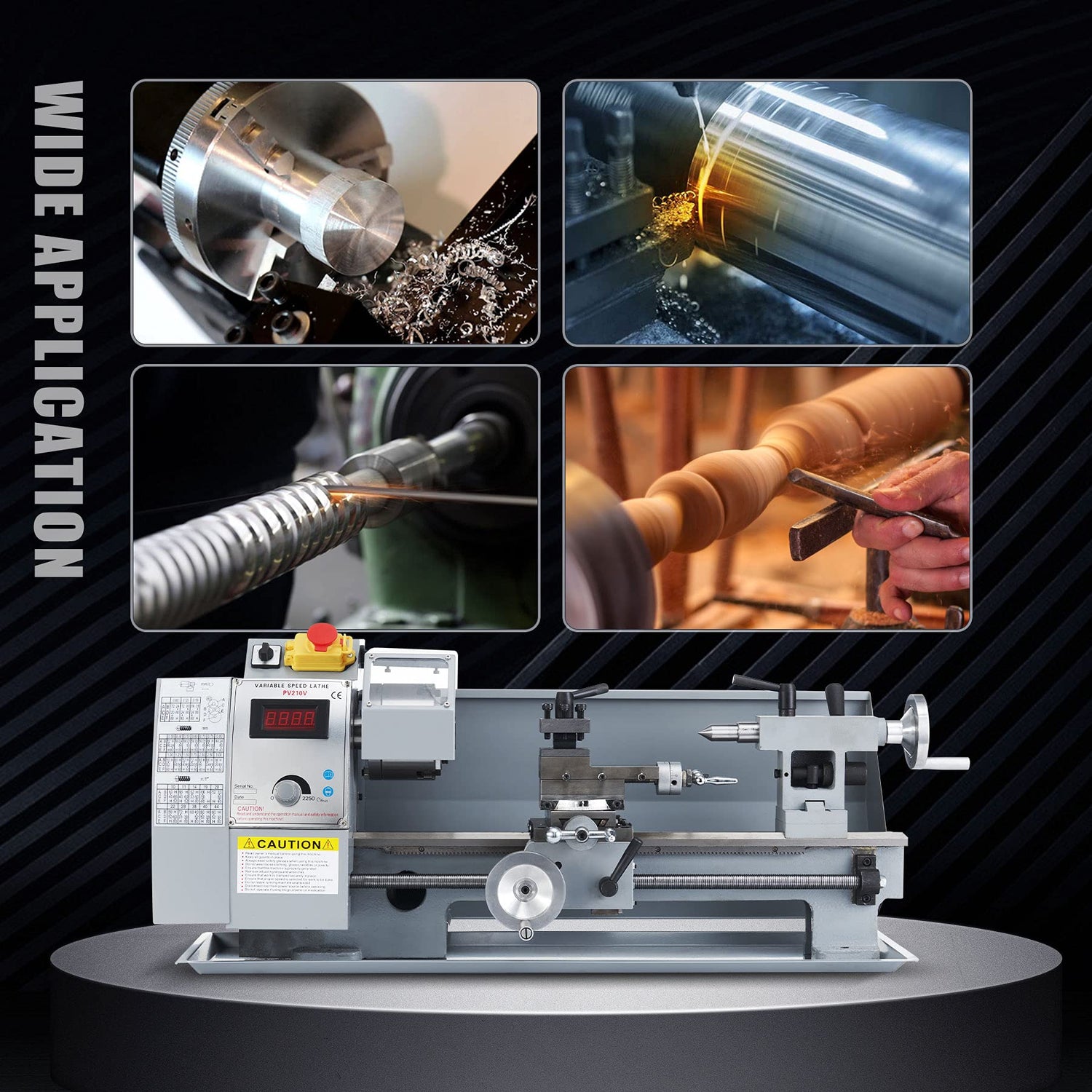

• WIDE APPLICATION: This mini woodworking lathe from CO-Z comes suitable for many processing tasks needing extreme precision, including turning, drilling, threading, and cutting

Part Number: BN-MLM0814-GY

Details: This miniature metal lathe is powered by a DC motor and is designed for high quality precision craftmanship with spindle accuracy within 0.0004"(0.01mm). The aluminum metal construction provides a sturdy base for a more accurate rotation and a strong foundation for long-lasting wear resistant operation. For high quality expertise, this 600W metal lathe can be operated manually or automatically and has spindle speeds ranging from 50-2500 Rpm. The 3-Jaw self-centering chuck ensures perfect setting placement so you can achieve a symmetrical shape without excess trimming every time! With a wide range of application, this mini benchtop metal lathe can be used for mini parts processing, sample processing and modeling works. Compact easy to use machine meets powerful precise lathe. It’s the perfect addition to your workbench!


Features
▶Compact 8”x14” Construction
▶DC Motor
▶50-2500 Rpm Settings
▶3-Jaw Chuck

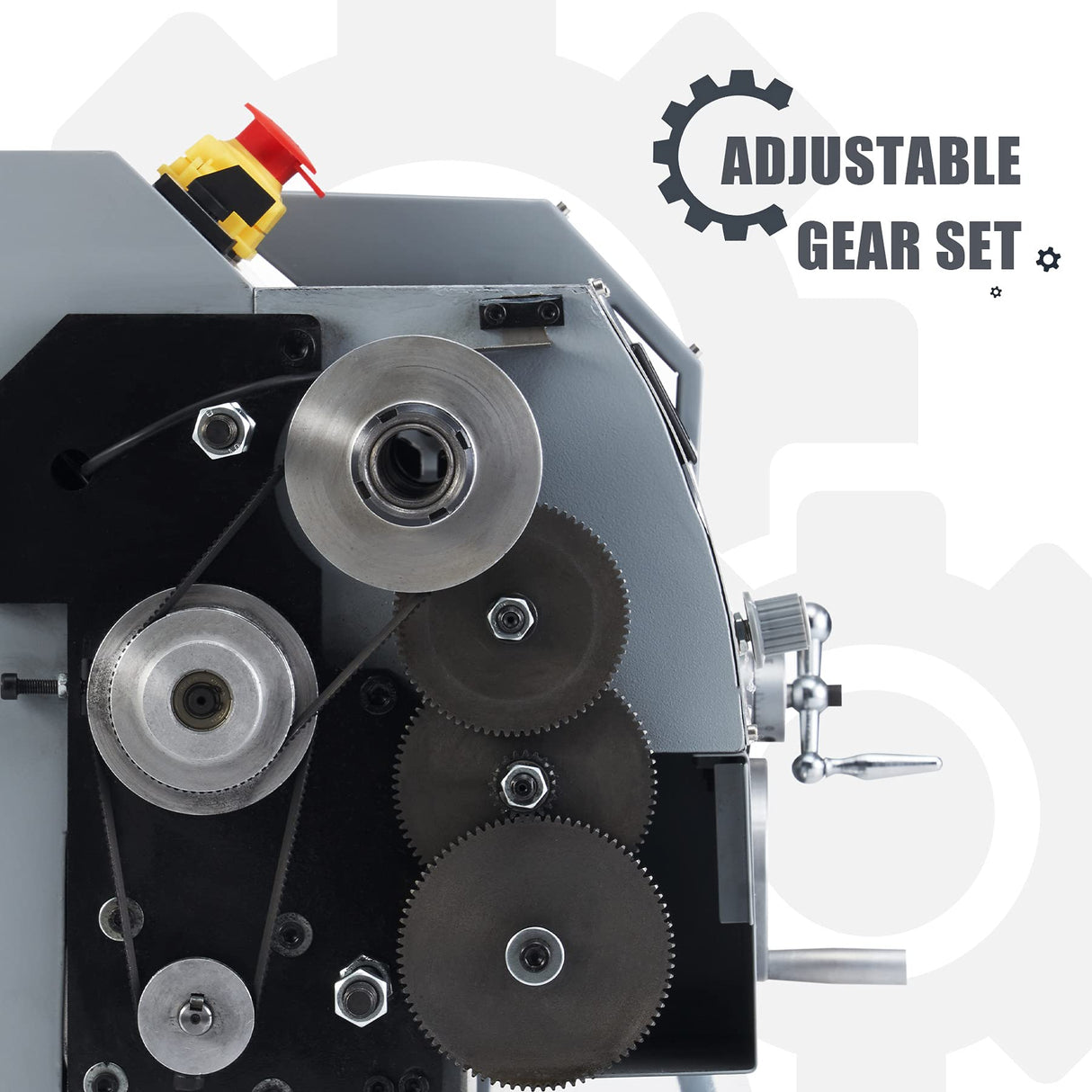

▶Metal Gears
▶Splashguard
▶Prism Bed Guides
▶Manual or Automatic Settings
▶Wear Resistant
▶Precise Craftsmanship


Specifications
Power: 600W
Distance Between Centers: 13.8" (350mm)
Swing Over Bed: 8.3" (210mm)
Swing Over Cross Slide: 4.7" (120mm)
Taper of Spindle Bore: MT3
Spindle Bore: 20mm
Range of Spindle Speeds: 50-1250RPM(LOW)/100-2500(HIGH)
Range of Longitudinal Feeds: 0.08-0.16mm
Range of Threads: 10-44T.P.I (0.5-3mm)
Top Slide Travel: 2" (55mm)
Cross Slide Travel: 3" (75mm)
Tailstock Quill Travel: 2.5" (60mm)
Taper of Tailstock Quill: MT2
Gross Weight: 52kg (149.6lbs)

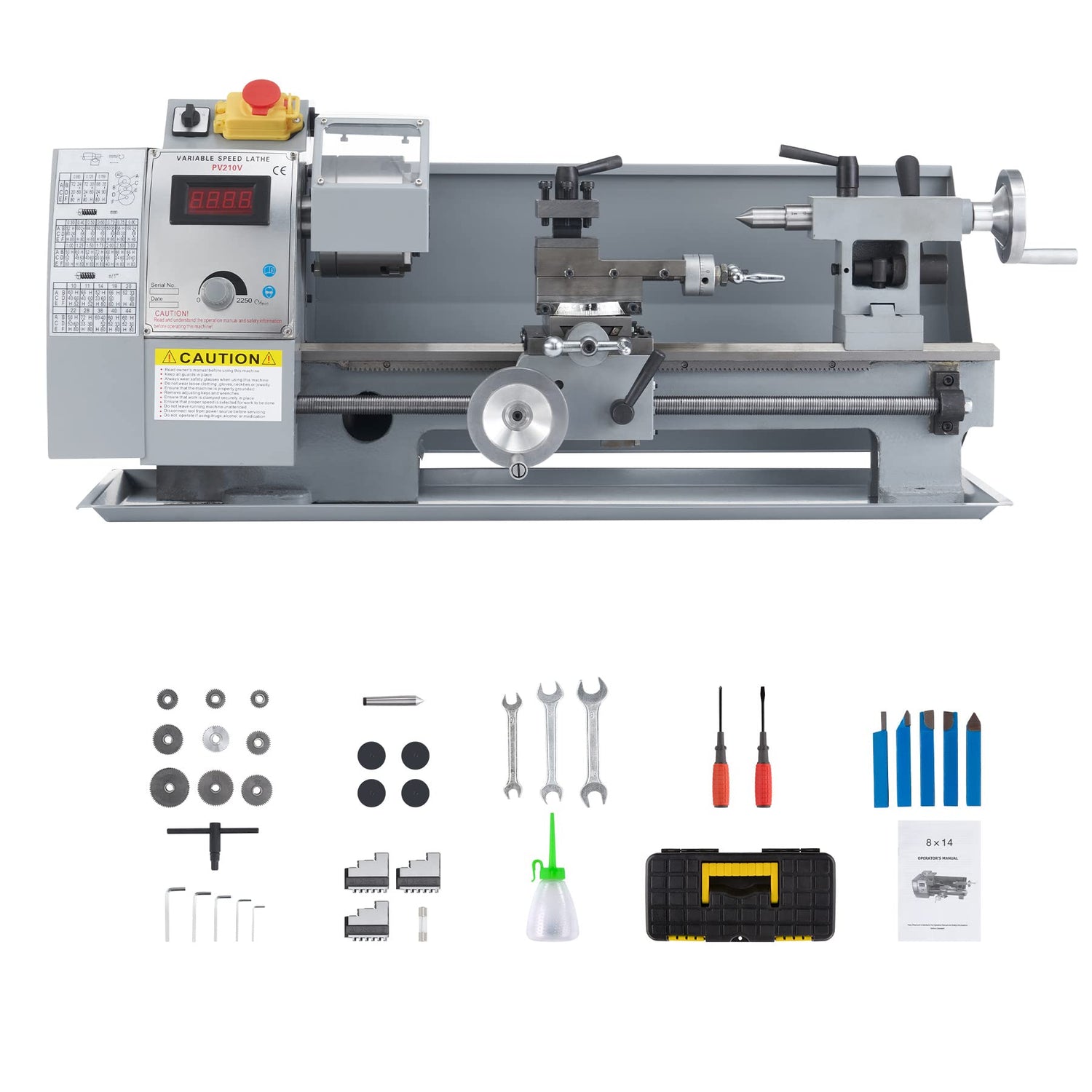

Package Includes
1 x Lathe
1 x Tray
11 x POM Gears
1 x Wrench
1 x Tip
1 x Open Spanner
1 x Oiler
4 x Rubber Gaskets
1 x Handwheel
1 x Protection Cover
6 x Socket Head Wrench
1 x Belt (spare)
5 x Turning Tools
