Description
Description
Brand: DAOKI
Color: V3
Features:
- Latest CNC Shield Version 3.0 for Arduino
- 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)

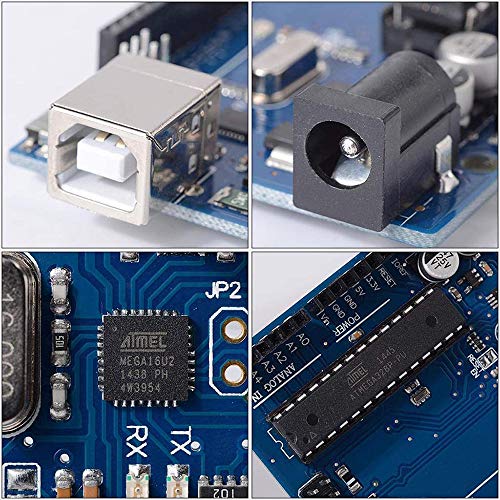

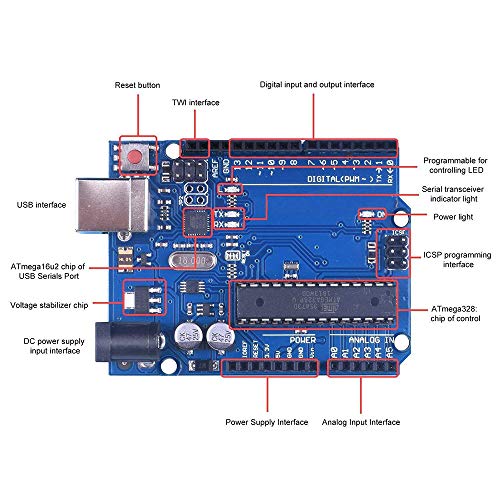

- Board for Arduino: Operating Voltage: 5V; Digital I/O Pins: 14 (of which 6 provide PWM output)
- DRV8825 features an adjustable current limit, overcurrent and overtemperature protection, six micro-resolution (down 1/32-step);Intelligent chopping control automatically selects the correct current decay mode (fast decay or slow decay)
- Package Content:1 x CNC shield V3.0 Board, 4 x DRV8825 Stepper Motor Driver, 4 x Heatsink, 1 x Board for Arduino, 1 x USB cable, 1 x DC Power Cable, 10 x Jumper Cap
Binding: Personal Computers
model number: DR-US-341
Part Number: DR-US-341
Details: Description:

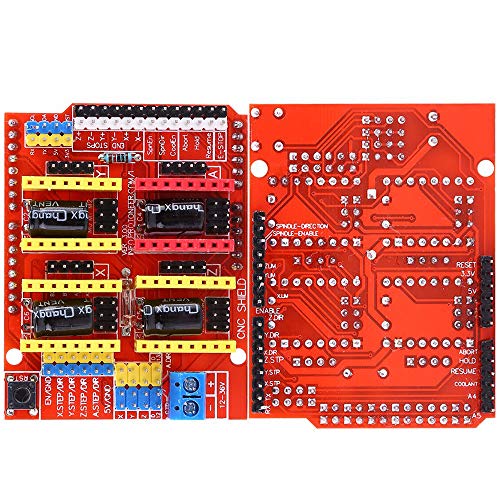

CNC Shield Board:
Latest Arduino CNC Shield Version 3.0
GRBL 0.9 compatible
4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )

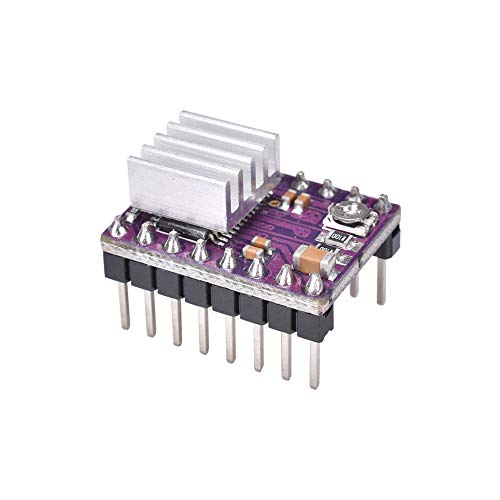

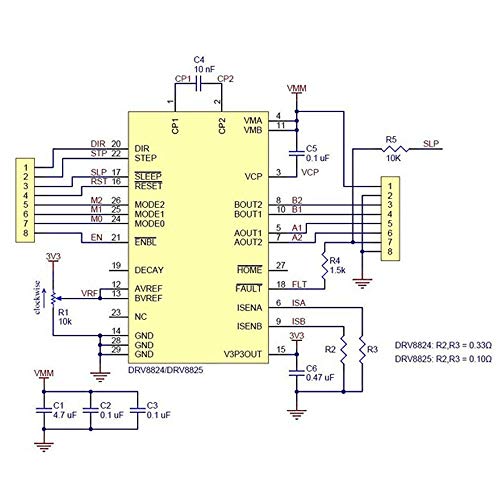

DRV8825 Stepper Motor Driver Module:
1.A simple steps and direction control interface
2.Six different steps resolutions: full step, half step, 1/4-step1/8-step1/16-step, 1/32-step
3.CAN interface directly with 3.3 V and 5 V systems
4.Over-temperature thermal shutdown, overcurrent shutdown, undervoltage lockout
5.Short to ground short circuit load protection
6.4 Layer 2 oz copper PCB, in order to improve heat dissipation
7.Exposed solder ground below the bottom of the driver IC on the printed circuit board pad
8.Module size, pin and interface matching A4988 stepper motor driver operators in many ways
9.Adjustable current control lets you set a potentiometer, which lets you use the stepper motor's rated voltage or more, in order to achieve a higher rate of maximum output current step
10.Maximum 45 V supply voltage

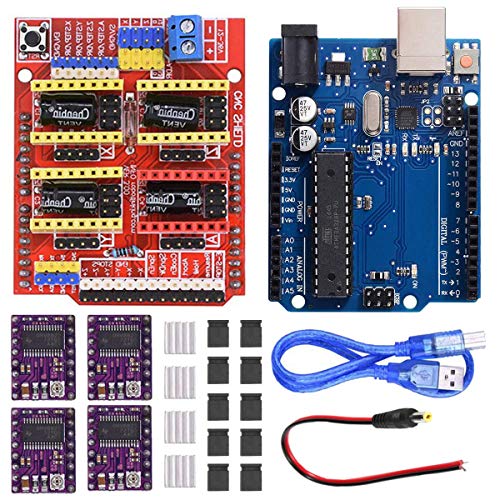

Package Included:
1 x CNC shield V3
4 x DRV8825 Stepper Motor Driver
4 x Heatsink
1 x Board for Arduino
1 x USB cable
1 x DC Power Cable
10 x Jumper Cap
EAN: 3494370802970
Package Dimensions: 7.2 x 4.1 x 1.7 inches
