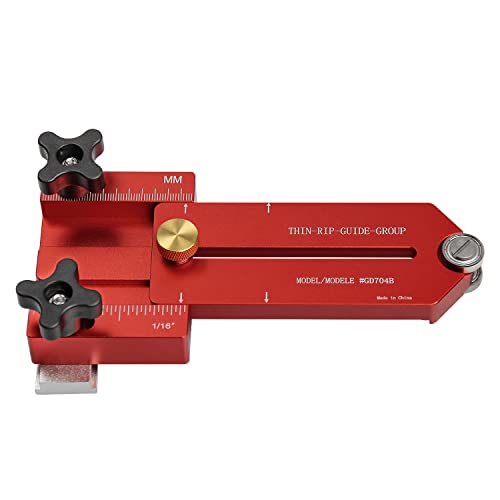

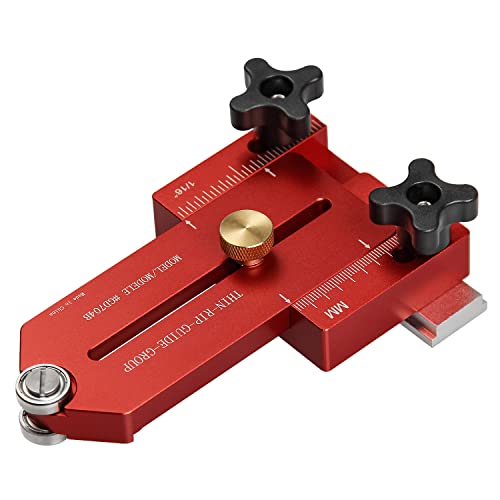

DDWT Extended Thin Rip Jig Table Saw Jig Guide for Repeat Narrow Strip Cuts Works with Saw Router Table Band Saw - Extended Version

Brand: DDWT

Color: Red 1

Features:

• Upgrade lengthen size meets different machine needs,except Dewalt saw
• The thin rip guide is machined from a solid piece of aluminum alloy,anodized surface,metal rigid structure,strong and stable,long service life
• Sliding tenon design,adjustable inward and outward,locks down solid without swaying from side to side,this would help avoid the rips drift,specifically designed for precision cutting
• The thin rip jig has 2 guide bearing on the tip play the role of driving the stock forward,to make feeding your stock through an easy and smooth moving process

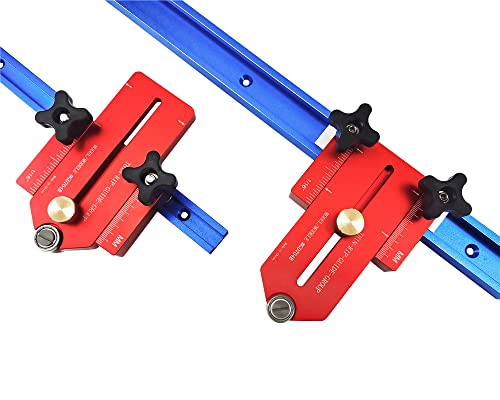

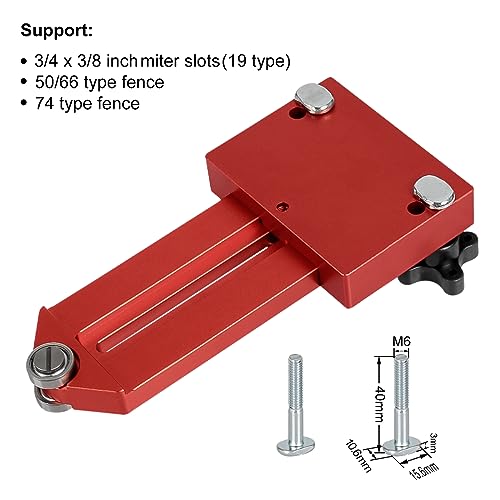

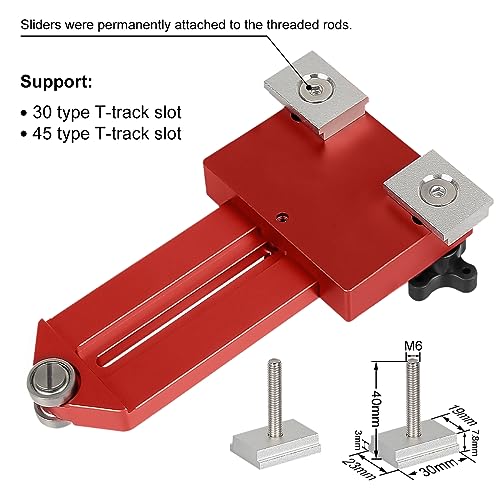

• Equipped with sliders and T-slot bolts, fit 3/4 x 3/8 inch standard miter slots and 30mm T-Slot Track, can work with most standard table saw, router table and band saw

Binding: Tools & Home Improvement

model number: GD704B

Part Number: DD221111

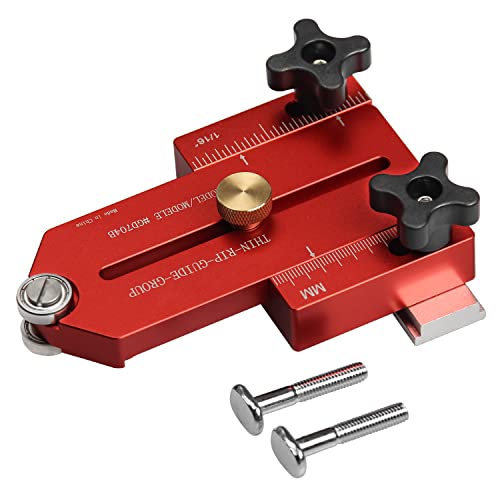

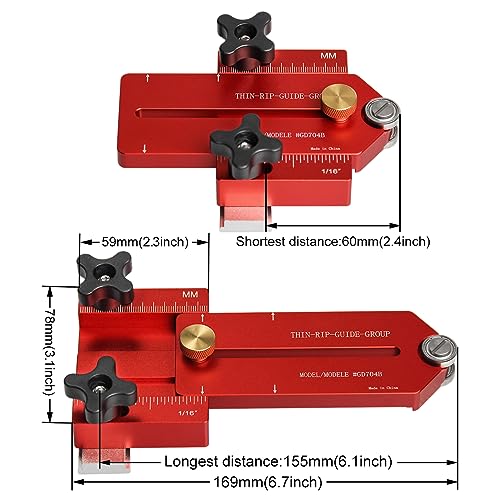

Details: Using the thin rip guide is very easy. Jut slide the guide into the T-track slot of your table saw and lock it a few inches in front of the saw blade. Set the dimension you want on the laser-engraved scale, lock your fence so your stock is just touching the bearings and make the cut. Repeat as needed with each strip the same size as the first. Calibrating the scale to your saw couldn't be simpler.Just extend the bearings until they touch the tooth of the saw blade and adjust the scale indrcator to the nearest mark. Now you can set the dimension of your strips without having to compensate for the thickness of you saw blade.Scales for both millimeter and inch are laser engraved on the anodized aluminum body to the same tolerance. Specification: Material: Aluminum alloy Adjustable range: 59-146mm Application: For 3/4 x 3/8 inch standard miter slots (19x9.5mm T-Slot) and #30mm T-Slot Track Package Included: 1 x Thin Rip Tablesaw Jig 2 x T-slot Bolts

EAN: 0610825041654

Package Dimensions: 6.2 x 5.0 x 2.2 inches
