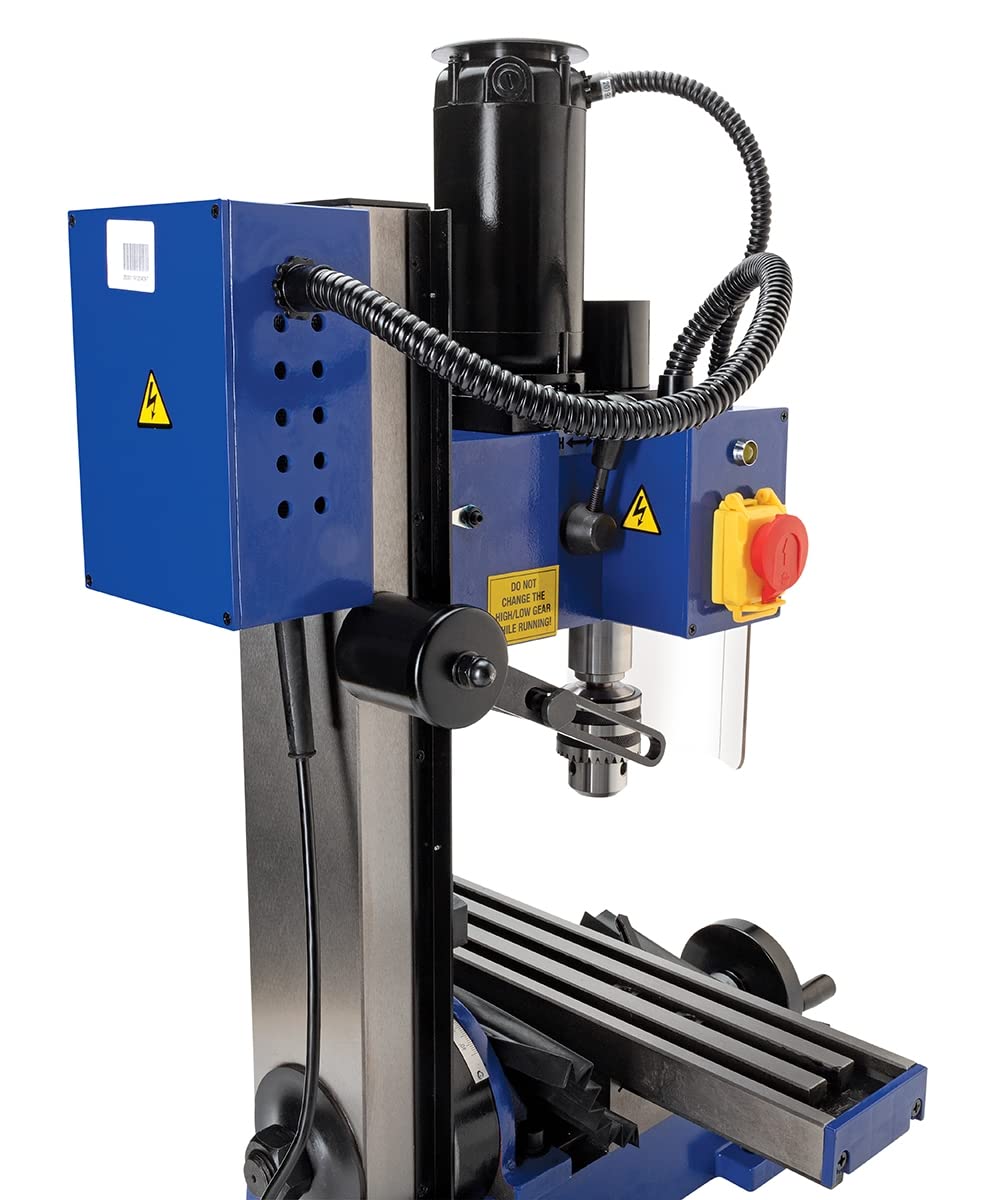

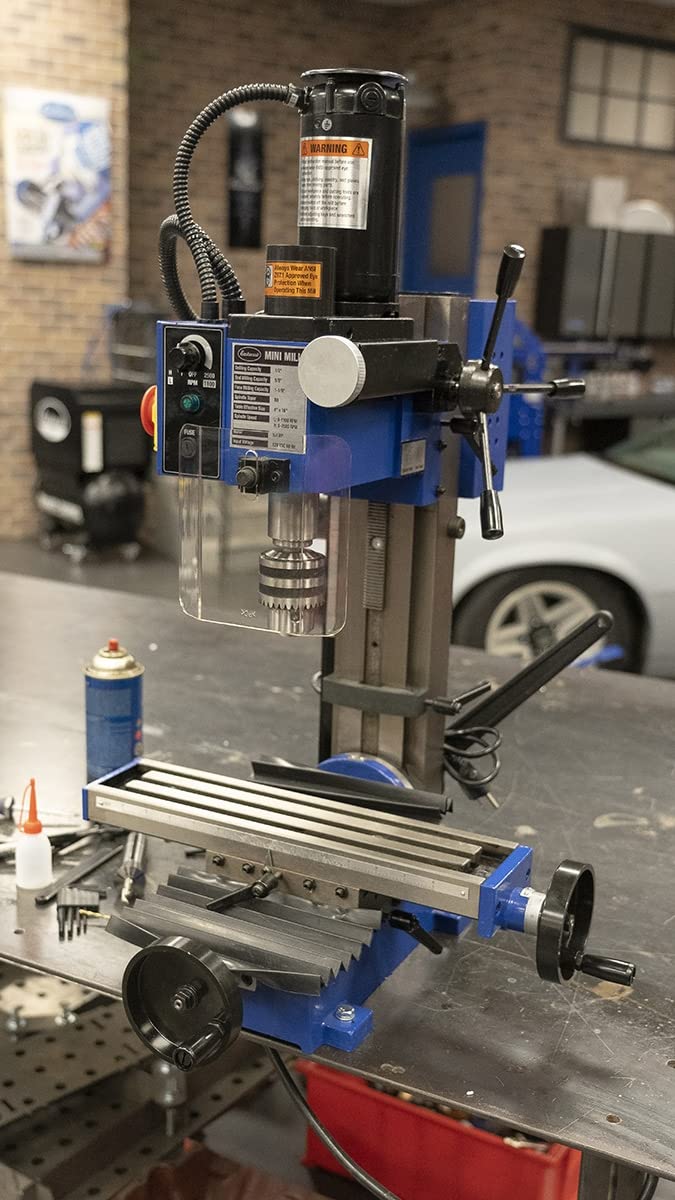

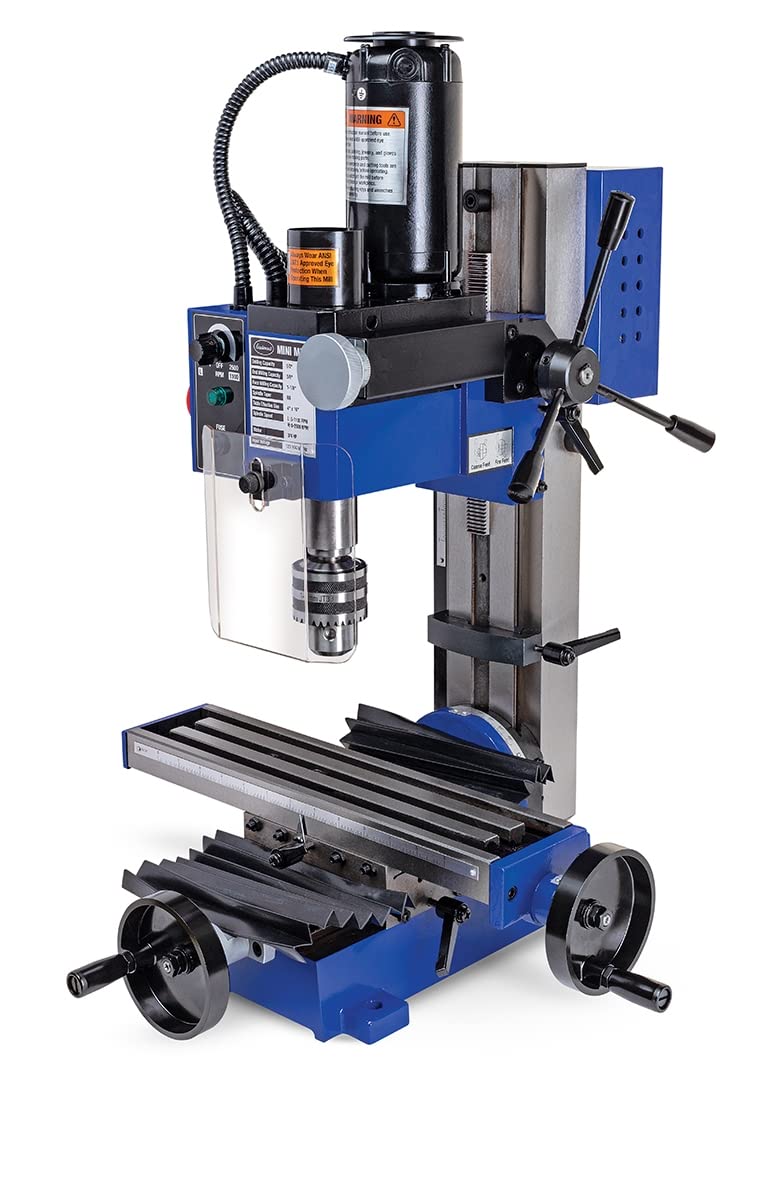

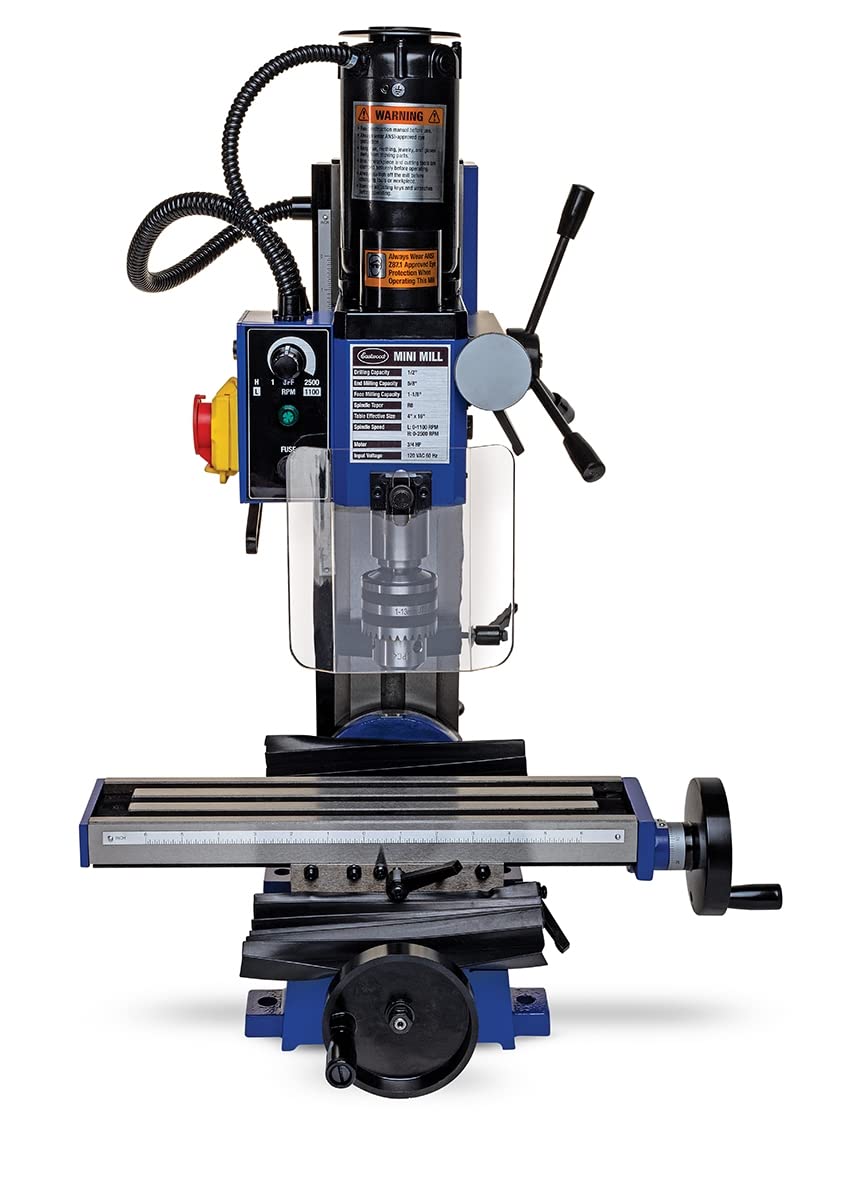

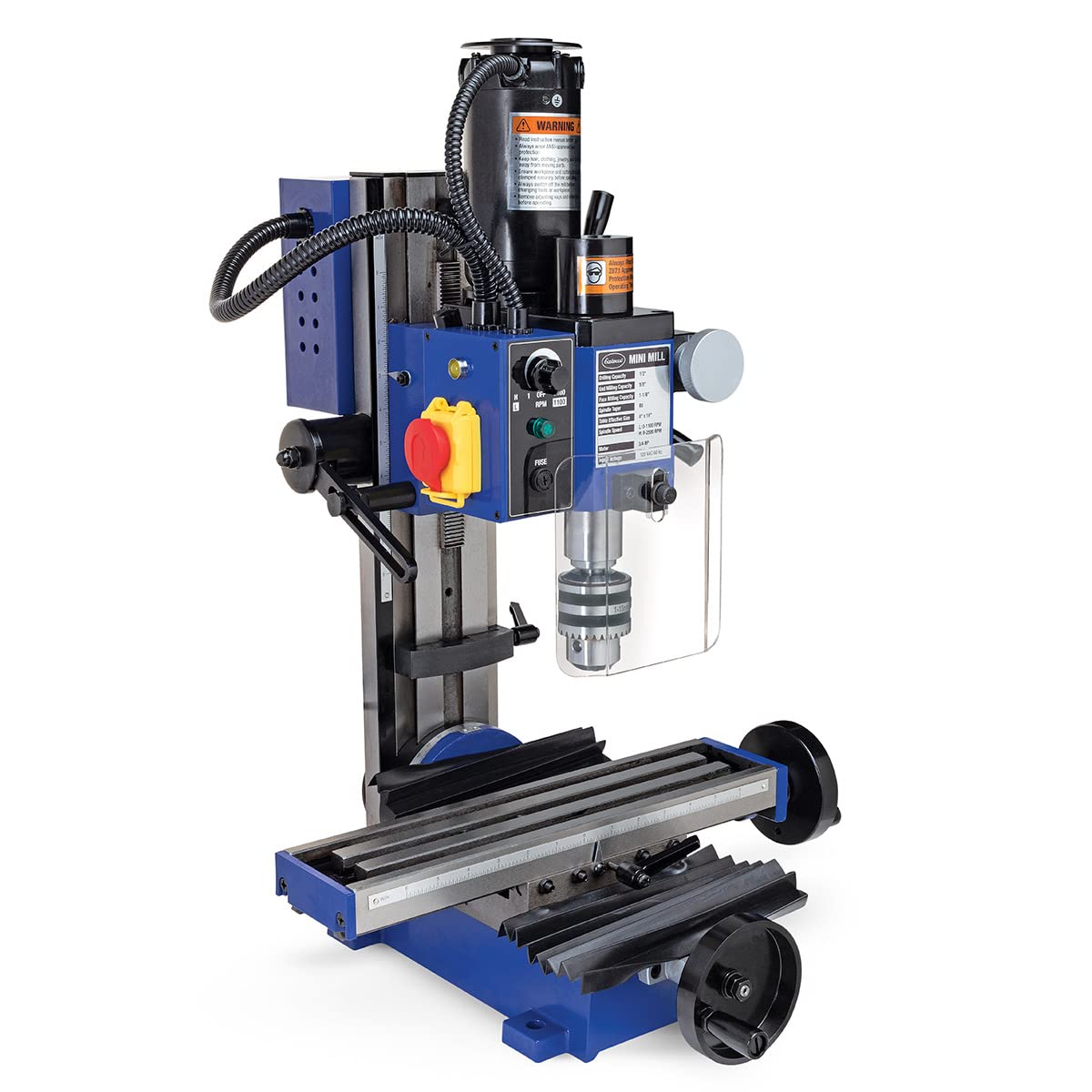

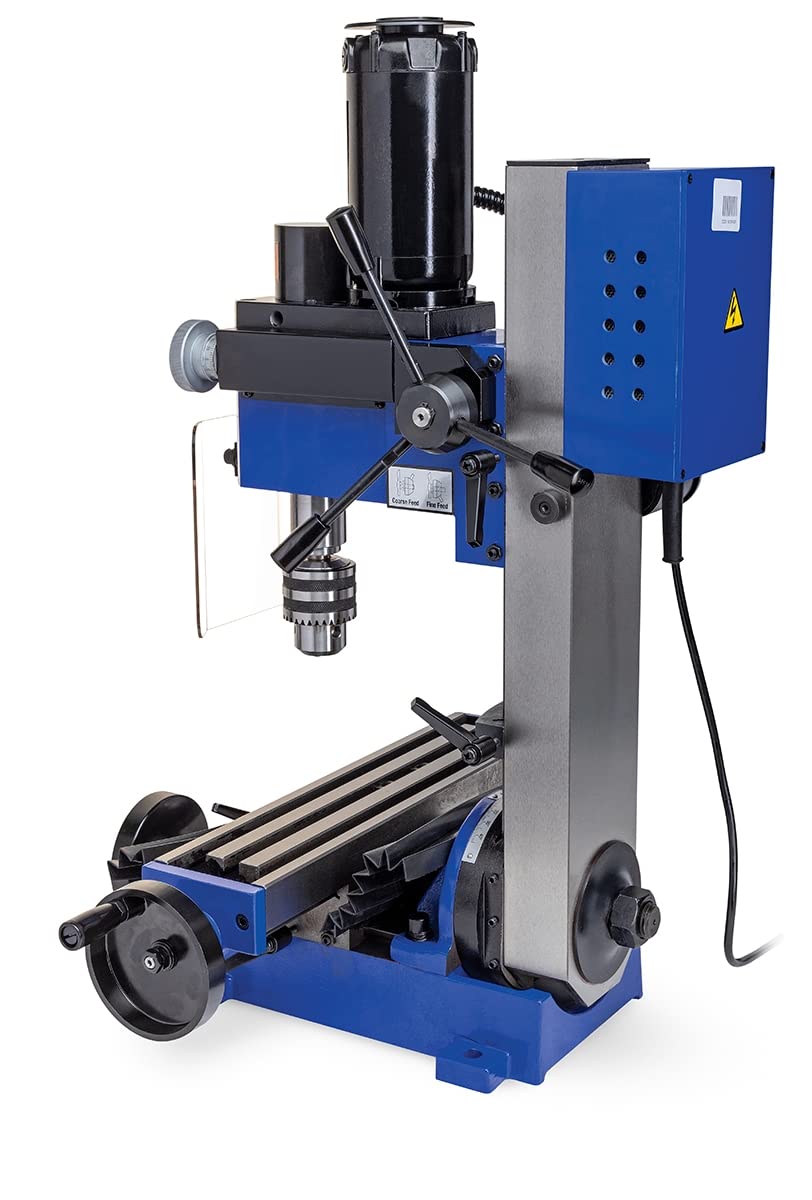

Eastwood Benchtop Mini Fabrication Metal Milling Machine 4 Inch x 16 Inch, 3/4 HP
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Eastwood
Features:
- Home Workshop Friendly Size
- Accurately, Slot, Drill, Chamfer, Bevel, Face and Plunge Cut
- Tilting Column Allows for Accurate Angle Work
- Large R8 Taper Accommodates Common Tooling

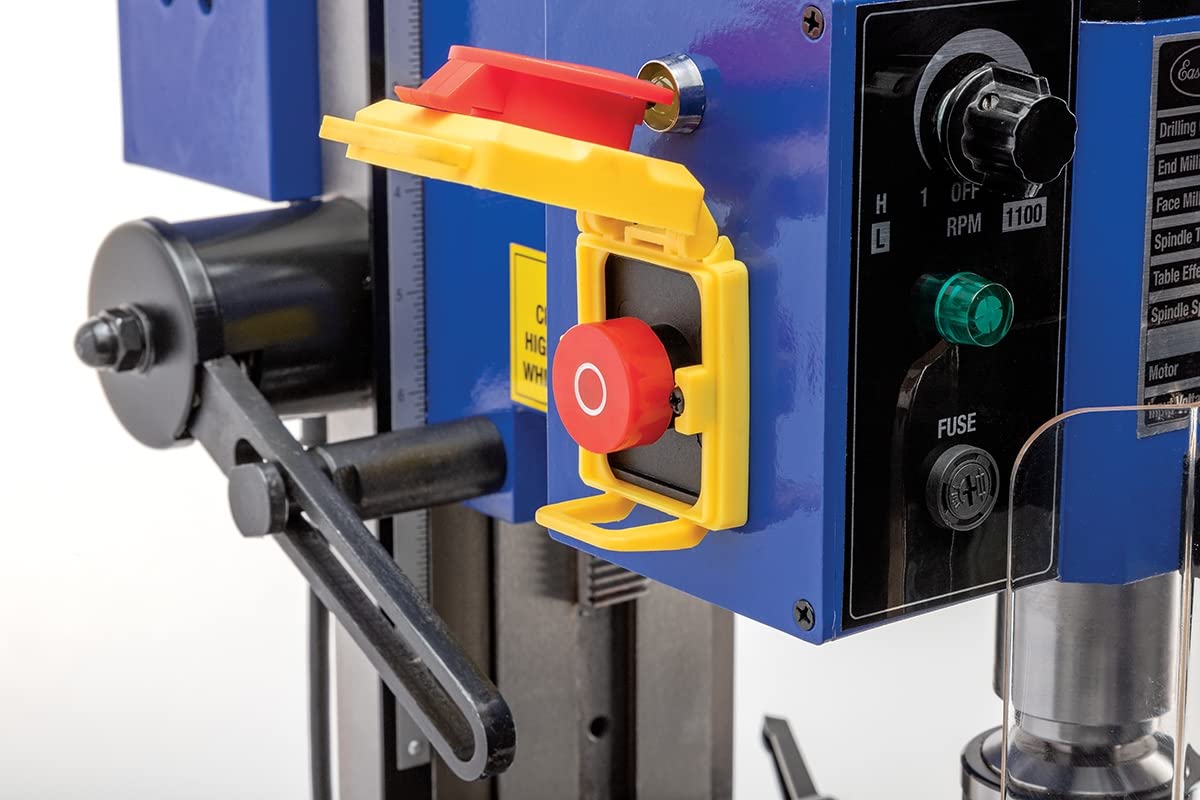

- 3/4 Horsepower Motor - 0-2500 RPM Motor Control with a 2 Speed Gearbox
Part Number: 32498

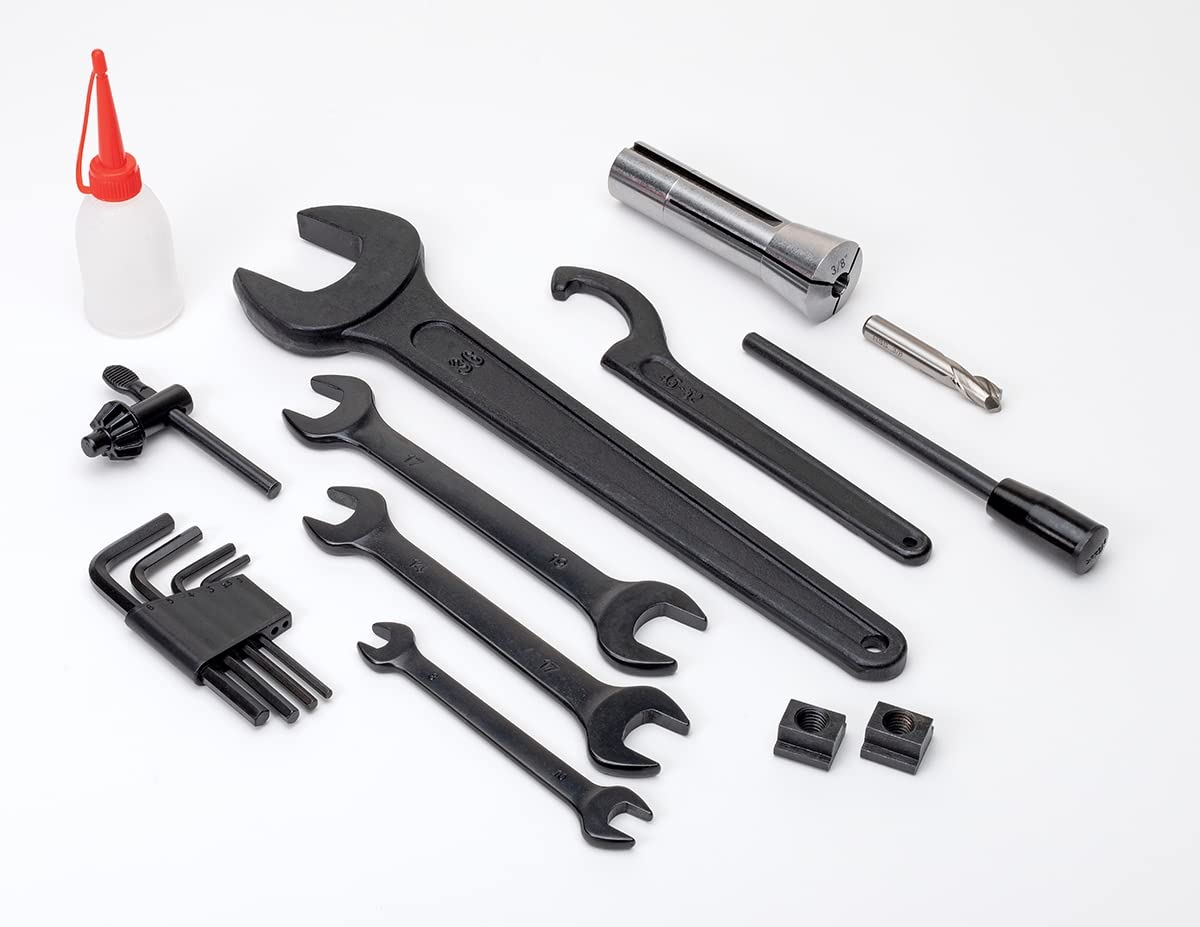

Details: With The Eastwood 4" X 16" Mini Mill You will be able to accomplish projects that simply are not possible without a milling machine. Now you can accurately Slot, Drill, Chamfer, Bevel, Face and Plunge Cut with this one machine. The tilting column allows for accurate angle work to be done and the Large R8 Taper accommodates common tooling. We've even included an 3/8" Collet and end mill so you can begin machining right out of the box!

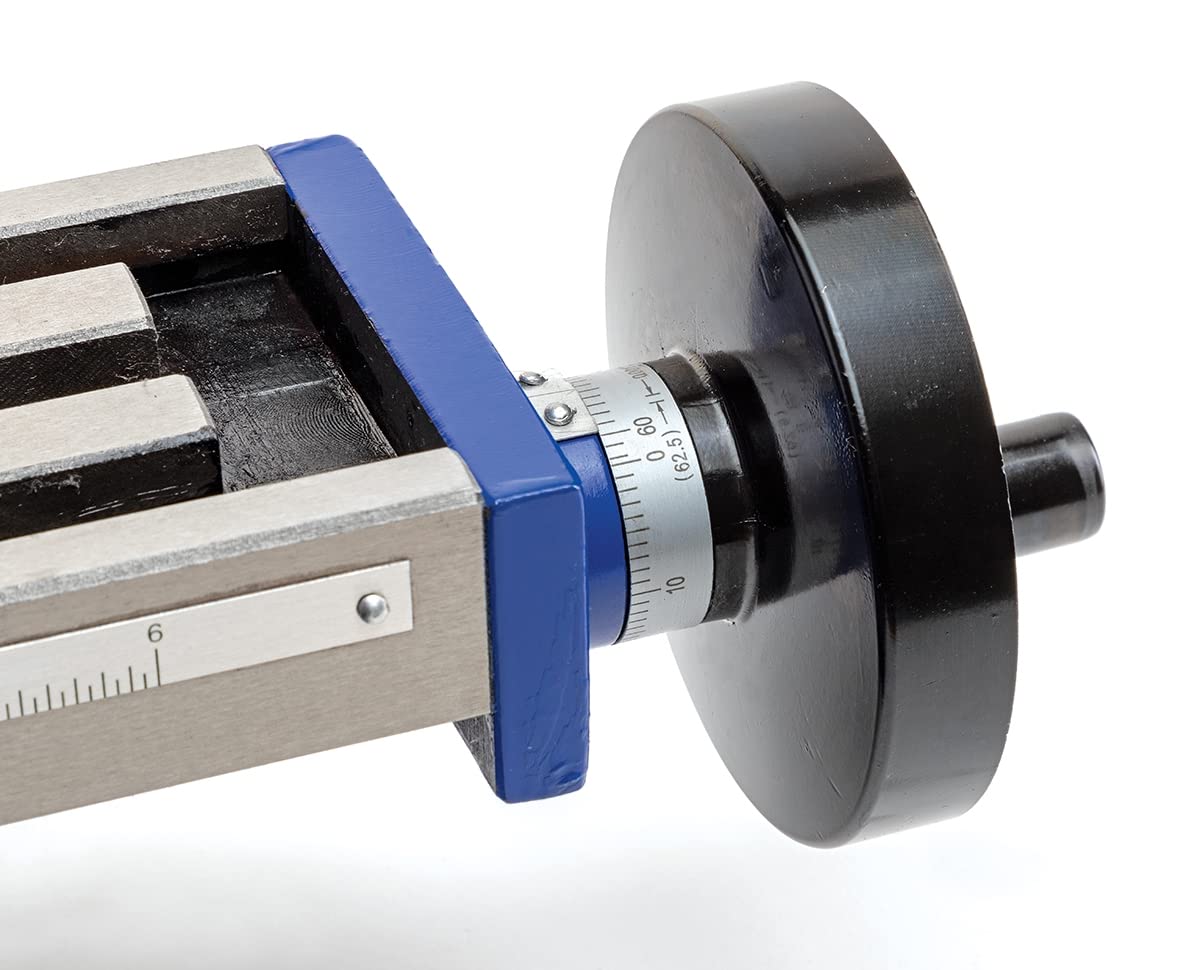

The Eastwood 4” X 16” Mini Mill is a highly capable machine able to perform as a Drill Press with up to 1/2” [13mm] drill shank capacity and as a fully functional manual Milling Machine with up to 5/8” end mill capacity (3/8” included). The 2 axis Table, along with a 45° left or right tilting column design, allows drilling or milling virtually any surface. A 0-2500 RPM Motor Control with a 2 Speed gearbox provides the versatility to accommodate most materials. The standard R8 Taper arbor will accept a wide variety of Collets, Drills and other accessories.
Specifications
Spindle Travel: 5 inches
Swing: 12-3/4 inches
Longitudinal Table Travel: 7-5/16 inches
Cross Table Travel: 4 inches
Head Travel: 7-1/2 inches
Head Tilt: Left and Right 45 deg
Maximum Distance Spindle to Column: 6-3/8 inches
Maximum Distance Spindle to Table: 11-1/2 inches
Drilling Cap for Steel: 5/8 inch
Range of Vertical Spindle Speeds: 0 – 1100, 0 – 2500 RPM
Quill Dial: 1.580 inch
Table Length: 15-3/4 inches
Table Width: 3-5/8 inches
Number Of T Slots: 3
T Slots Width: 0.465 inch
T Slots Height: 5/8"
T Slots Centers: 1-1/8 inches
Stud Size: 5/8 inch
Spindle Taper: R8
End Milling Cap: 1/2 inch
Face Milling Cap: 1-1/8 inches
Draw Bar Diameter: 12 mm
Draw Bar TPI: 7/16" x 20
Draw Bar Length: 4 inches
Spindle Bearings: Permanently Sealed Ball Bearings
EAN: 0607174145317
