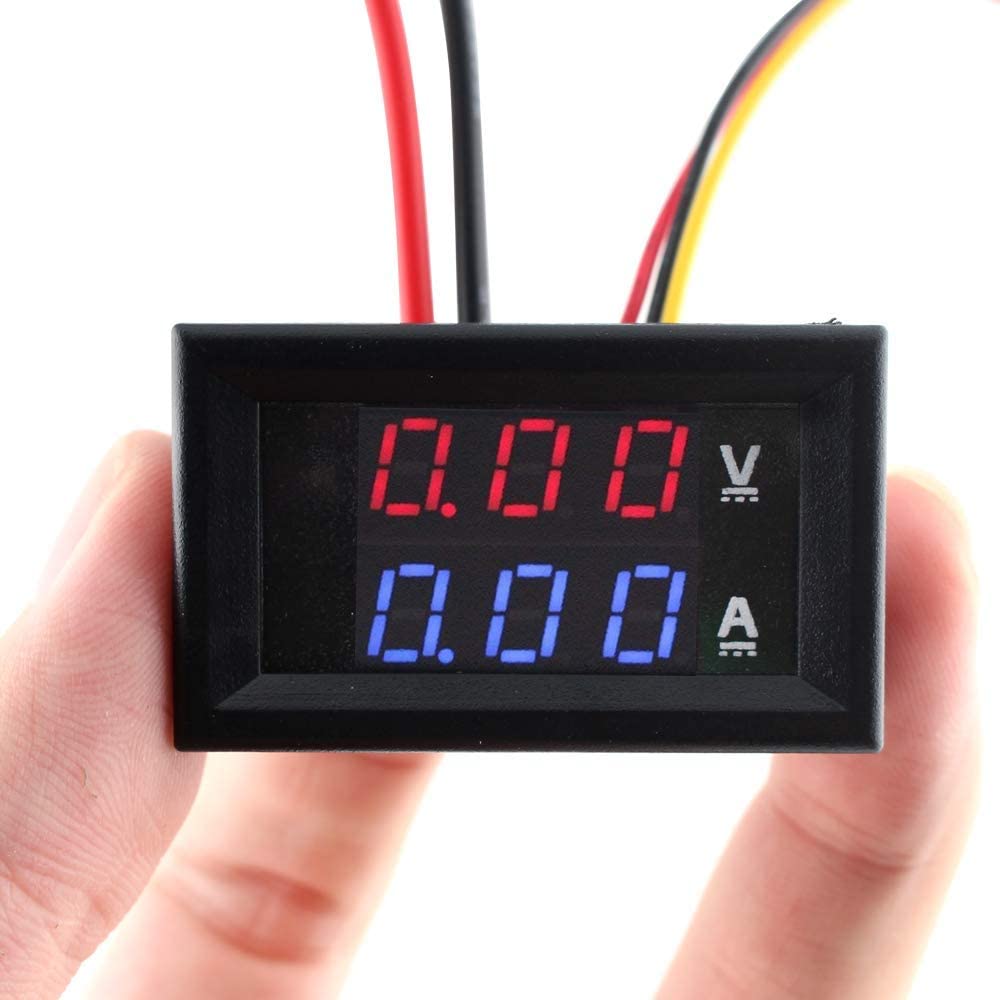

Eiechip LED Digital Voltmeter Ammeter, Mini DC Digital Multimeter 100V 10A, Blue Red LED Amp Dual Digital Display Volt Meter Gauge, Car Current
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: WOWOONE
Color: Ammeter-1pcs
Features:

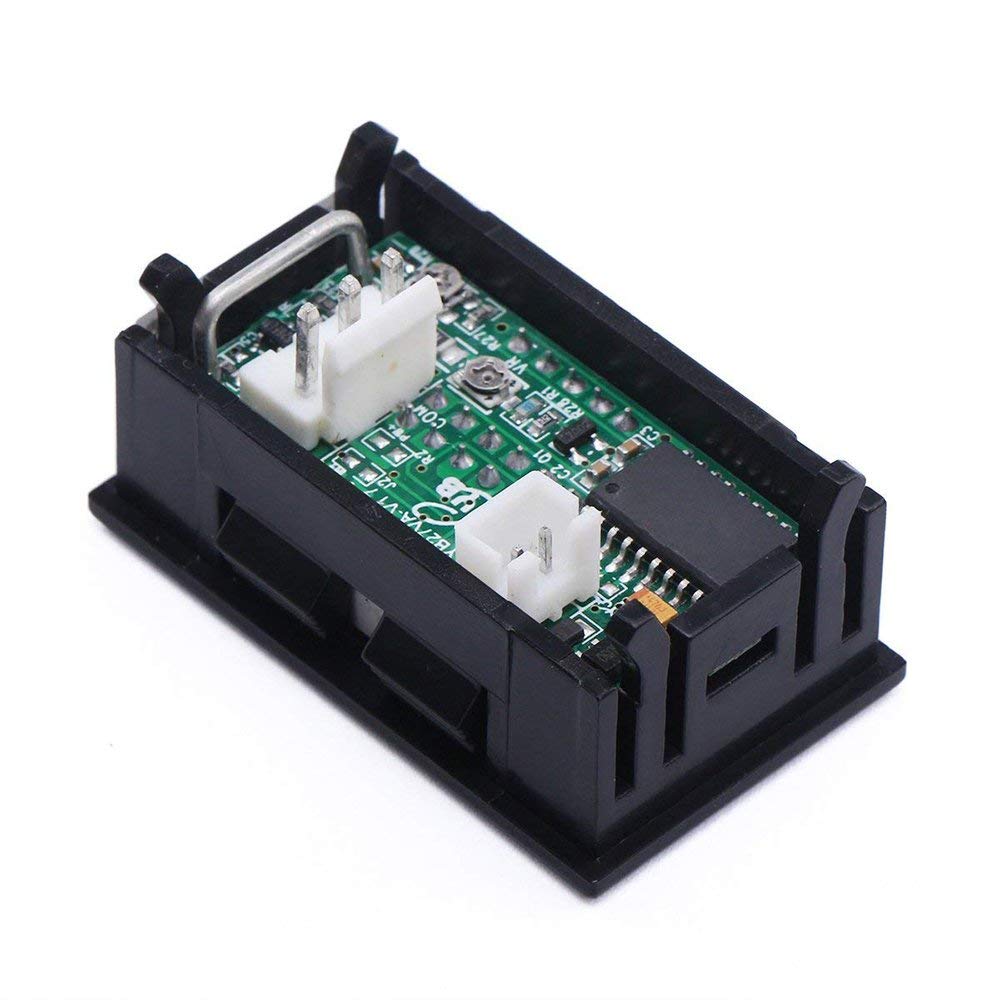

- ❥【CHARACTERISTIC】1 Display Voltage and current simultaneously in different colors, red for Voltage, Blue for current (the current is Measured in the negative rail). 2 Require external power supply; with reversed connection protection. 3 Ground wire of testing end and power supply terminal is the same wire; quick refresh of about 500 MS/time. 4 With built-in shunt, has Voltage and current calibration potentiometers.
- ❥【WITH MINI SIZED】48 x 29 x 21 mm, wide measuring range(dc 0-100v; 0-10A) and high accuracy percent (± 1 digit).
- ❥【WIDE APPLICATION】 Eiechip dc voltmeter ammeter has handy connection and wide application, for example, it can be applied to monitoring storage battery, DC adjustable power supply, or voltage and current changing state of other device.
- ❥【PACKAGE INCLUDE】1x Digital Volt Ampere Meter.2Pcs x Cable.
- ❥【About us 】 Professional factory, welcome to our store for more choices with best price. What we pursue is your satisfication of our service, not just for our goods.For any reason you are unsatisfied with our product at any time, simply contact support for exchange or refund. we will reply you about any question you ask within 24 hours.
model number: Digital display Volt Meter
Part Number: DIGI-100V-10A-1
Details: Features:
Operating voltage:DC 4.5 ~ 30V
Measure voltage: DC 0 ~ 100V
Minimum resolution(V): 0.1V
Minimum resolution(A): 0.01A
Operating current: <20mA
Display: three 0.28" LED digital tube
Display color: Red and Blue (two-color display)

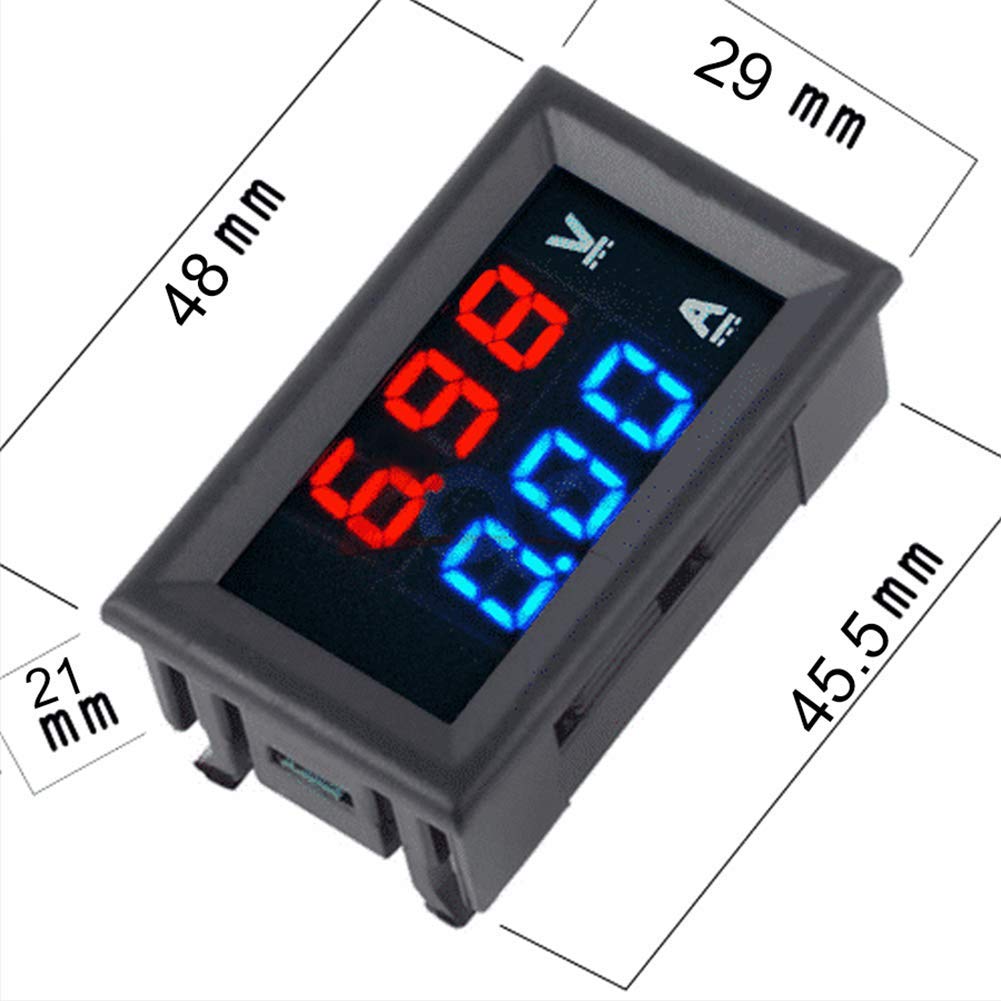

Dimensions: 48 x 29 x 21mm
Mounting cutout: 45.5 x 26.5mm
Refresh rate: about 500mS / times
Measure accuracy: 1%
Operating temperature: -10 to 65ºc
Operating Humidity: 10 to 80% (non-condensing)
Working pressure: 80 to 106 kPa
Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

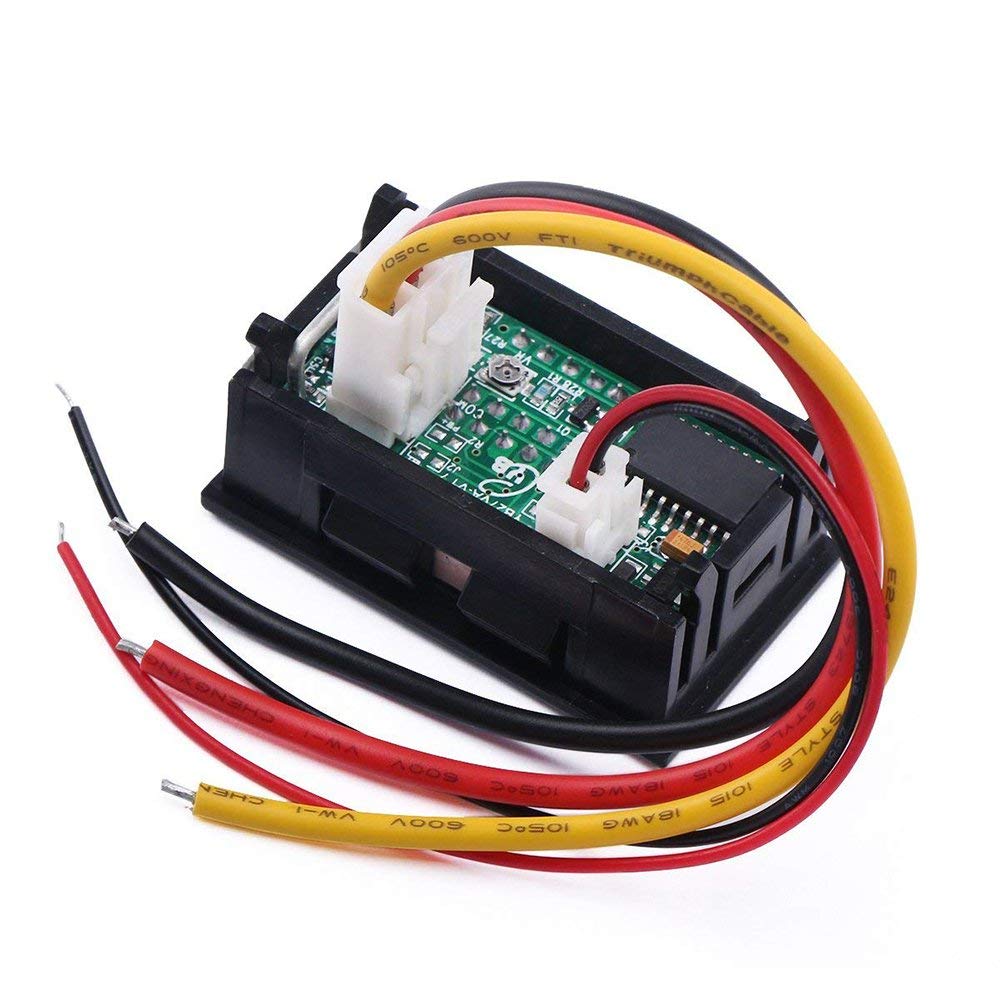

Wiring:
Black line (thin): vacant or buck circuit (module) negative
Red line (thin): power supply+
Black line (thick): COM, common measuring
Red line (thick): PW+, measuring terminal voltage input positive
Yellow line (thick): IN+, current input+

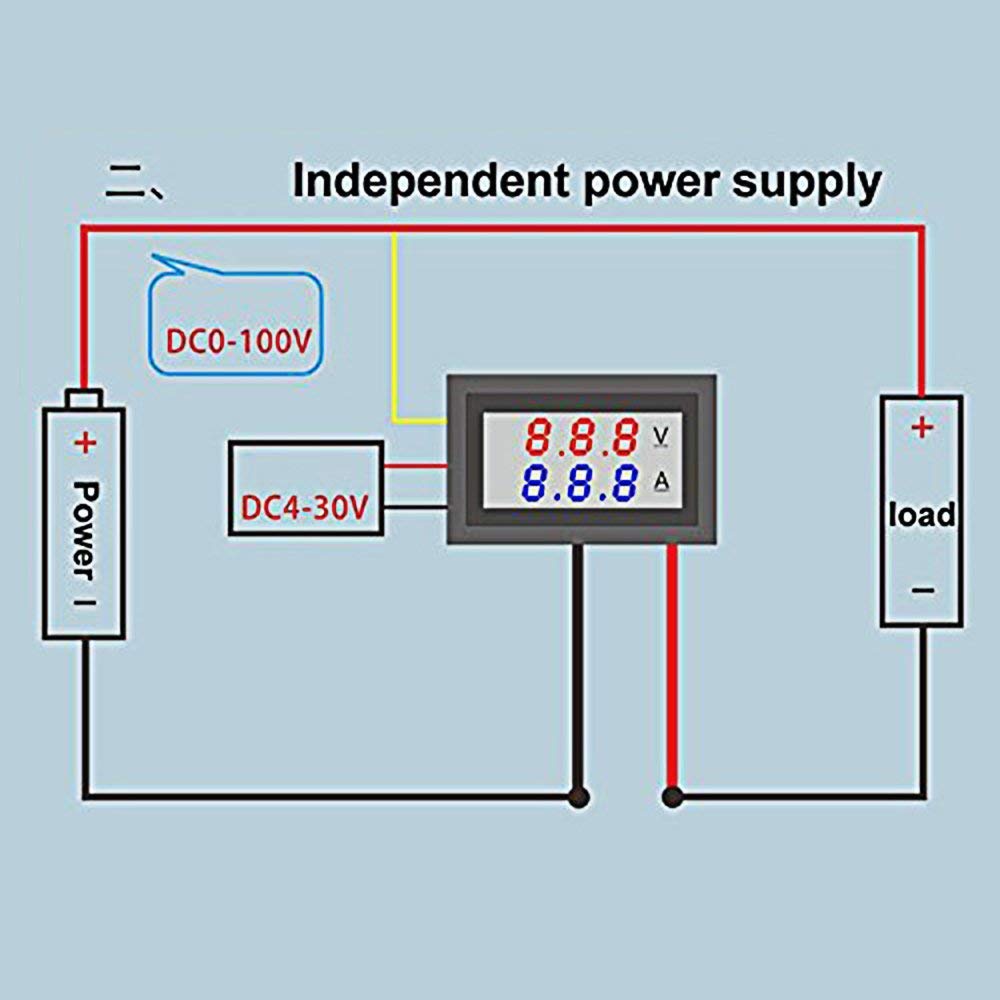

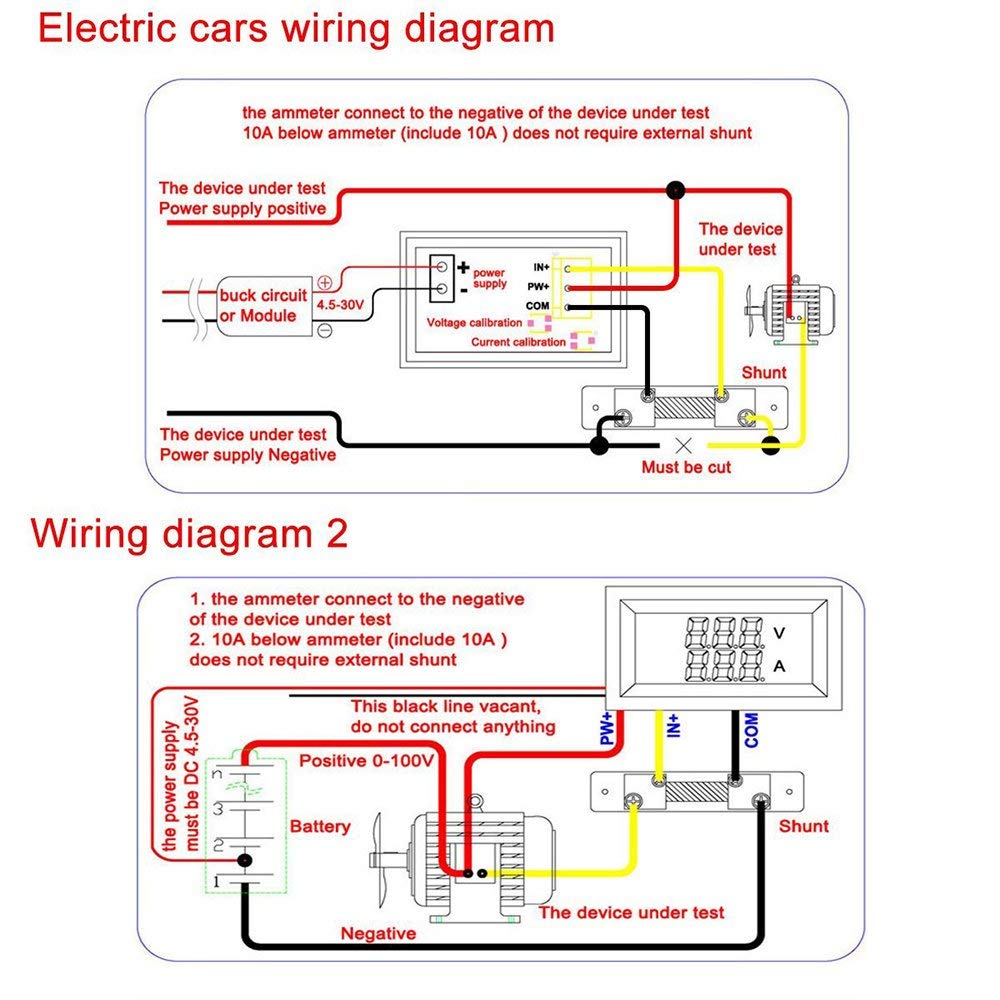

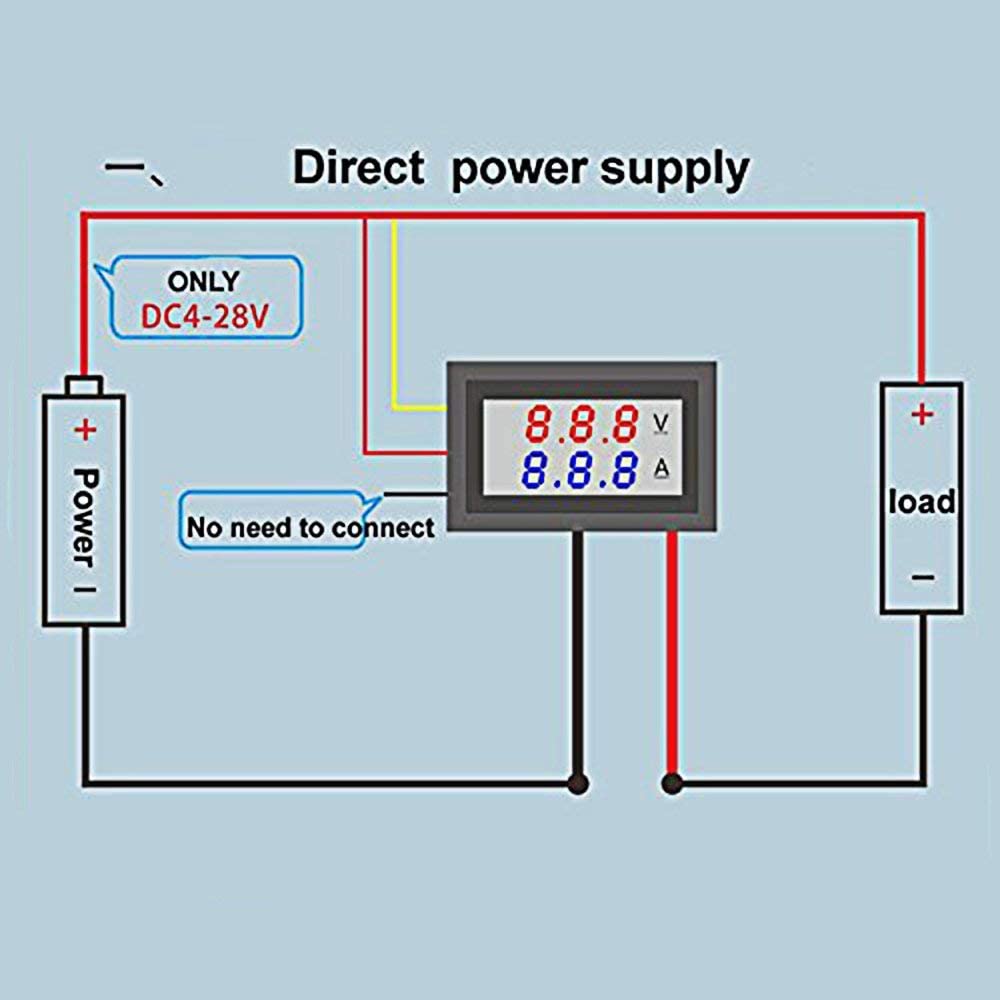

(Please refer to the wiring diagrams for more details)
Notice:
The voltage between the thin red and thin black
lines must be within DC 4.5-30V
The ammeter can only be connected to the negative of the device under test
10A below ammeter (include 10A), built-in shunt, does not require external shunt
When the black thin line vacant, it is better to use insulating tape around the exposed part of the wire, to prevent short circuits
If just be used as a voltmeter, it is recommended that the yellow line and the black line were connected together, to prevent the ammeter digital flashing
Package include:
1x Digital Volt Ampere Meter
2Pcs x Cable
EAN: 0669591129264
Package Dimensions: 3.5 x 2.8 x 1.2 inches
