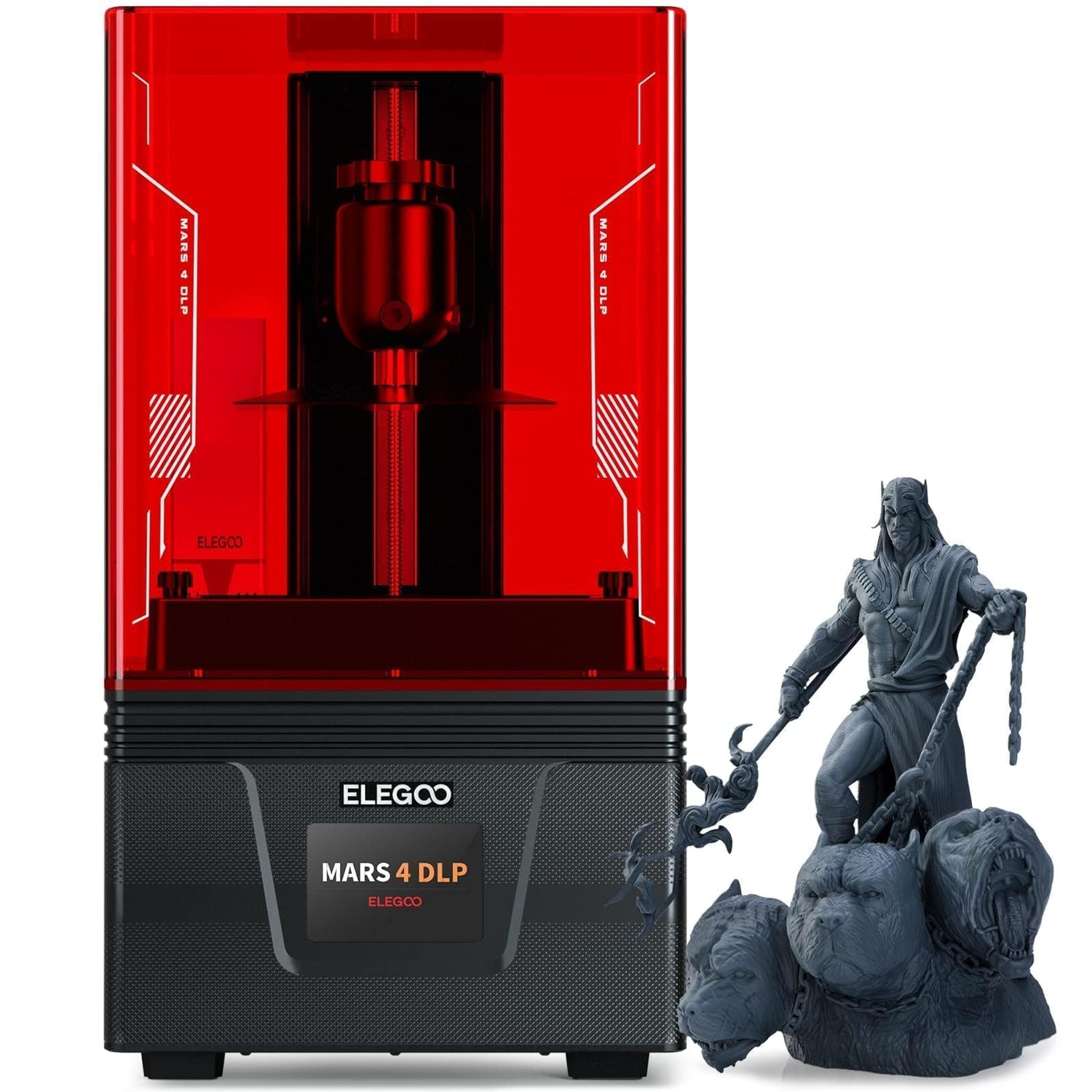

ELEGOO Mars 4 DLP 3D Printer, Desktop Resin 3D Printer with Ultra-Quiet Printing, 20000+ Hours Service Life, and Ultra-Low Operating Power, Printing Size of 5.22 x 2.94 x 5.9 inches

Brand: ELEGOO

Color: Red

Features:

• 【Brand New DLP 3D Printer】ELEGOO MARS 4 DLP 3D printer adopts TI (Texas Instruments) DLP technology to project the 405nm beam directly and concentratedly onto the bottom of the resin tank with up to 95% light uniformity. Tempered glass replaces traditional LCD screens with up to 95% light transmittance, effectively reducing light diffusion and stray light interference.

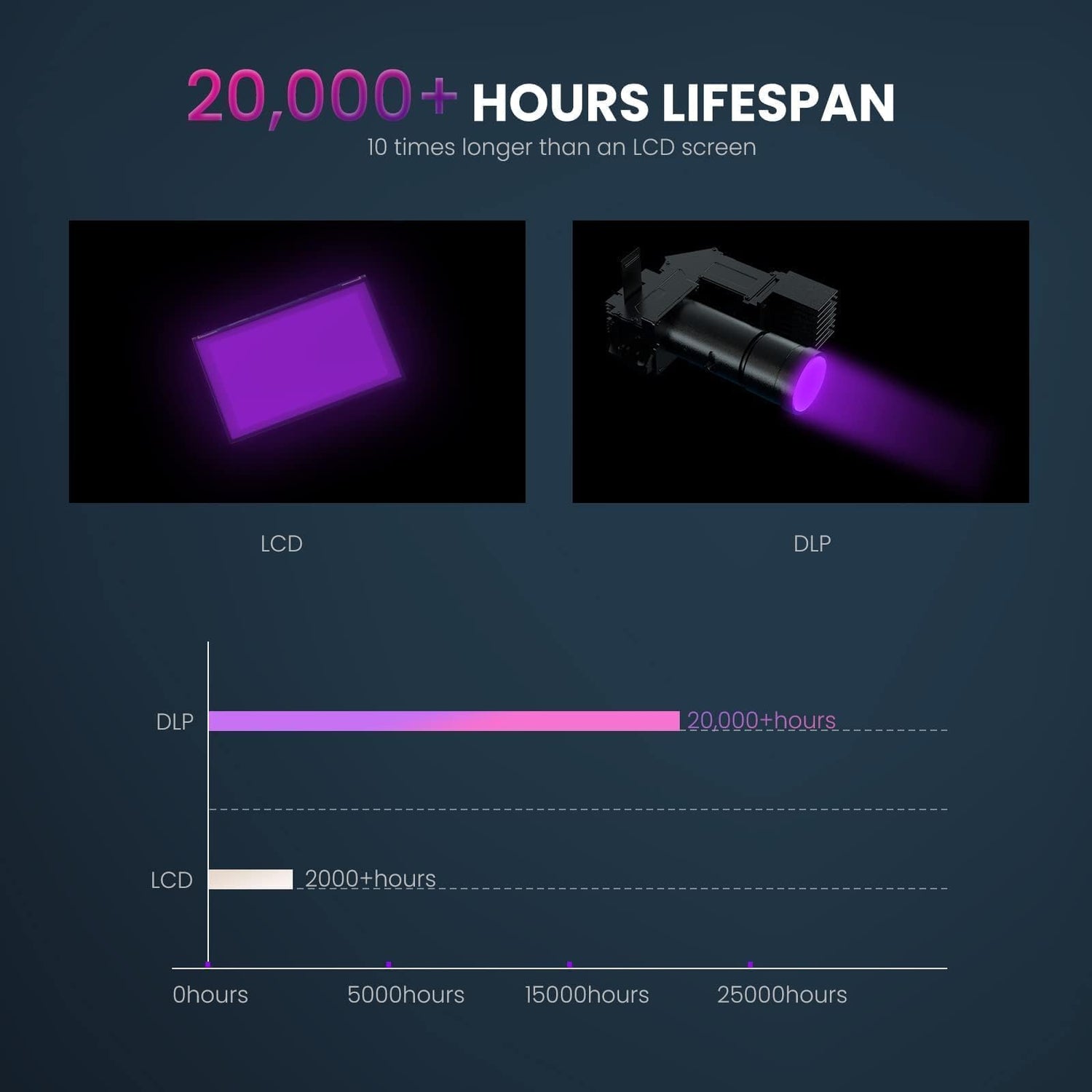

• 【2W+ Hours Lifespan】The service life of the DLP projector is as long as 20,000+ hours, 10 times longer than the 2,000 hours lifespan of an LCD screen, which means you will save a lot of maintenance costs for replacing your LCD printer's screen.

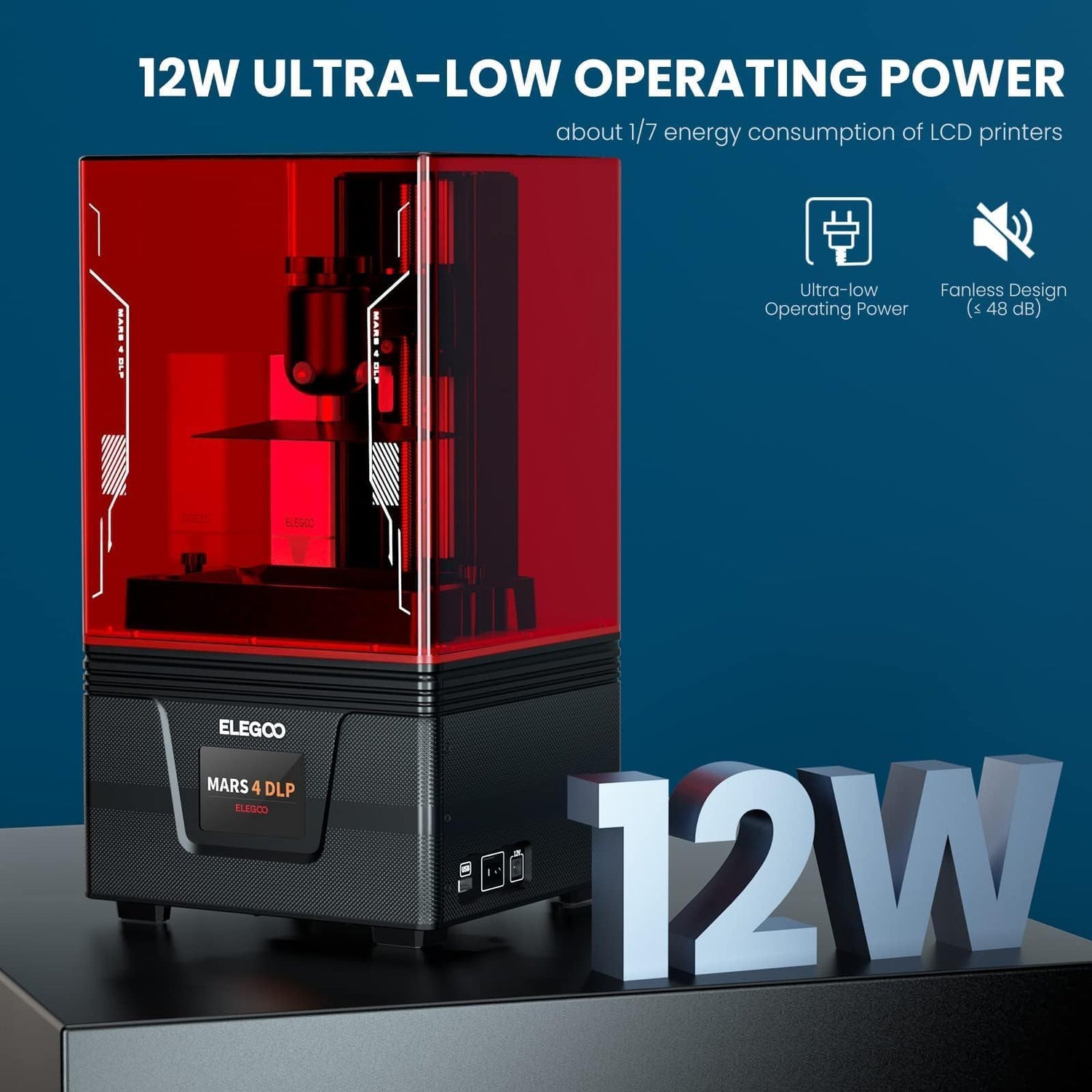

• 【Low Power & Ultra-quiet Printing】12W ultra-low operating power is energy-saving and eco-friendly, with about 1/7 energy consumption of LCD printers. Since lower power consumption generates less heat, there is no need for a cooling fan to dissipate heat, reducing print noise below 48 dB.

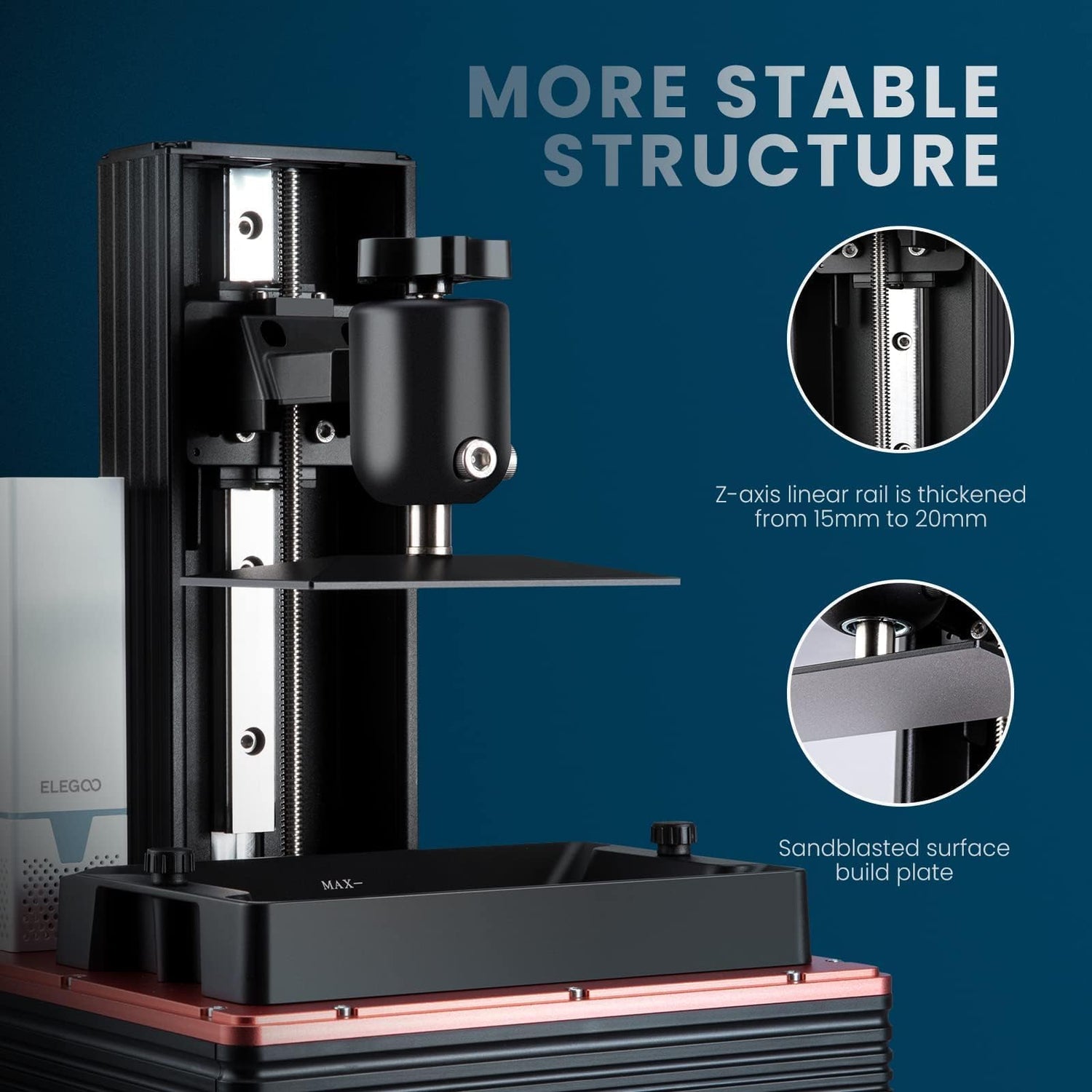

• 【More Stable Structure】The Z-axis linear rail is thickened from 15mm to 20mm, which effectively reduces the vibration amplitude during Z-axis movement and the layer pattern of printed models for better final print results. Sandblasted surface build plate with strong adhesion to improve the printing success rate.

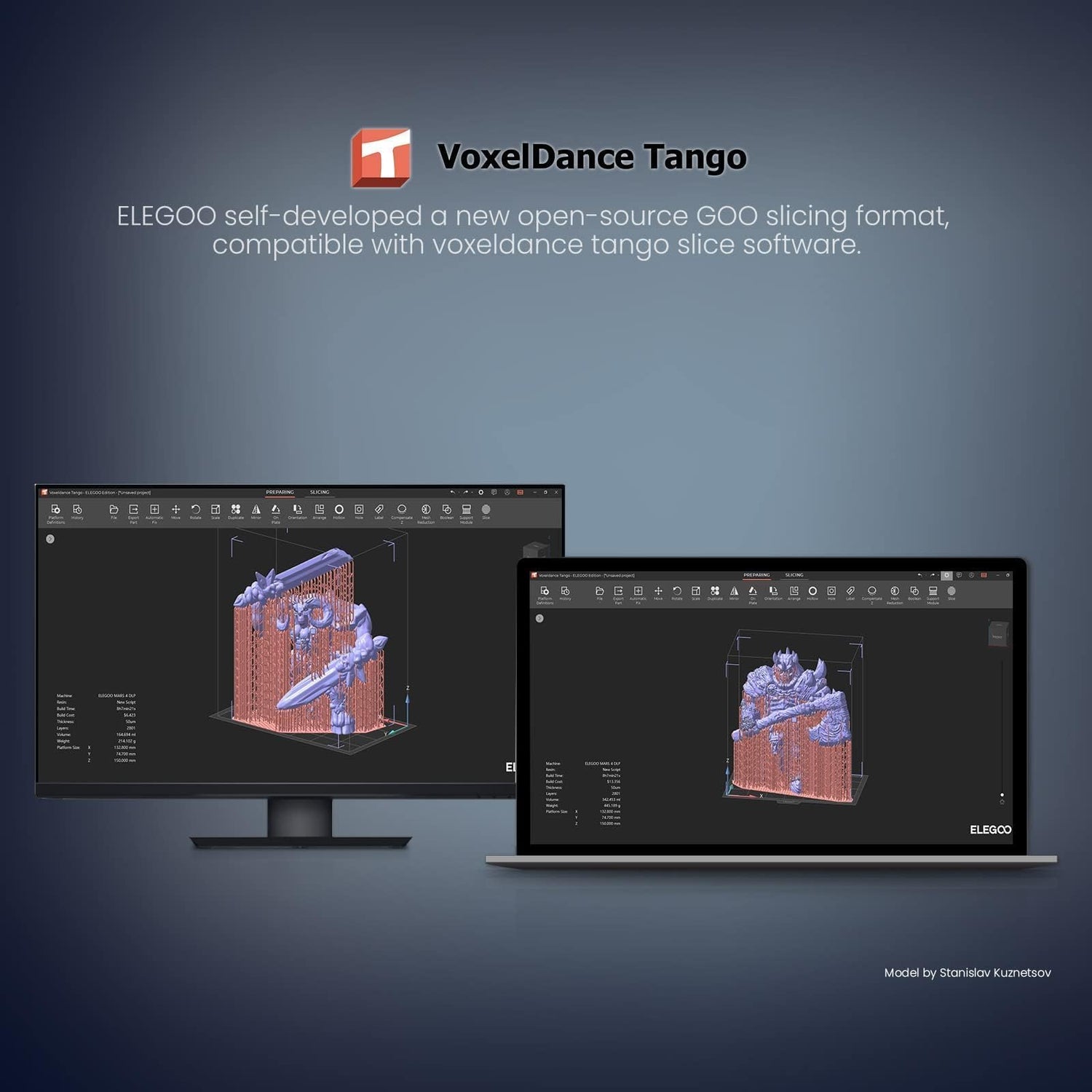

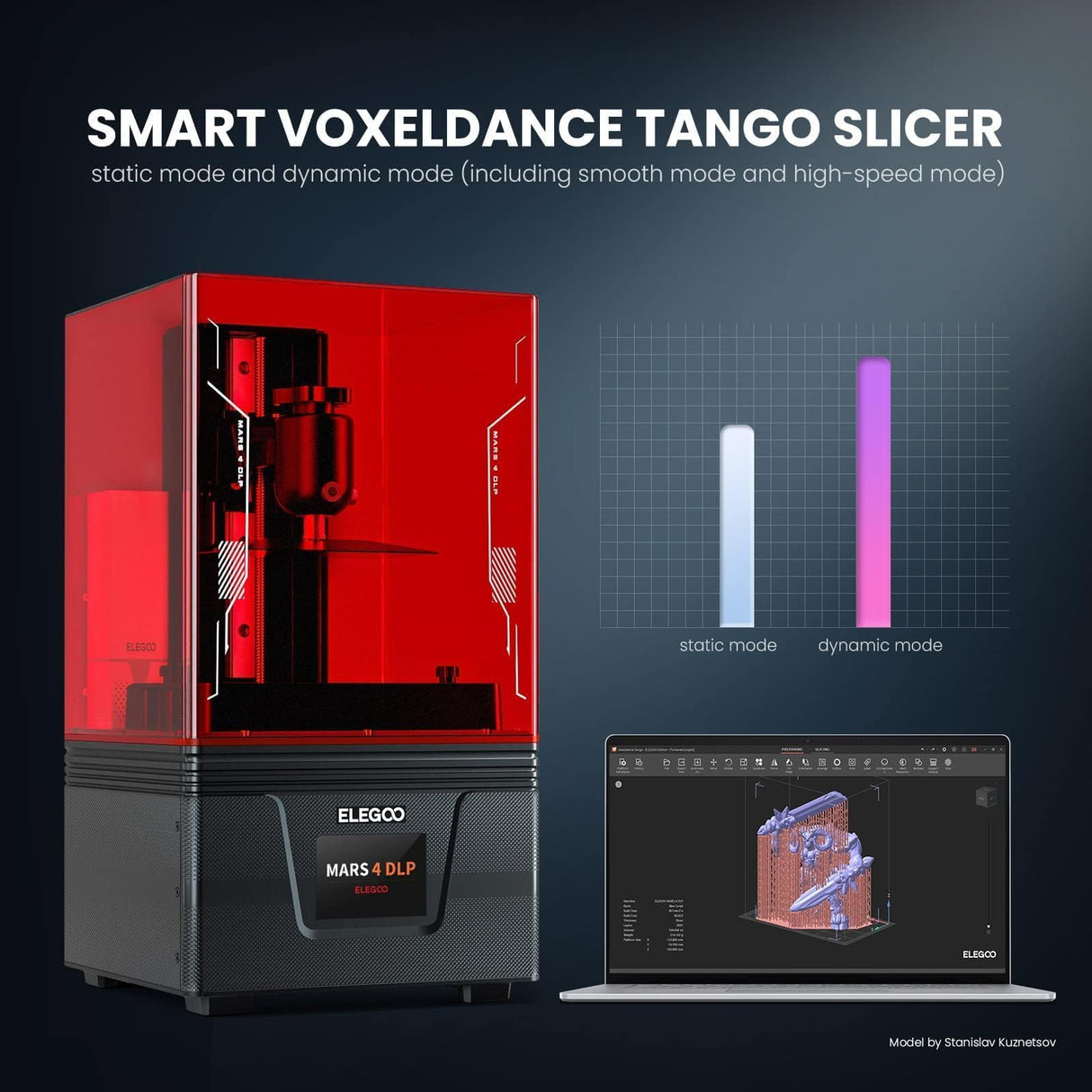

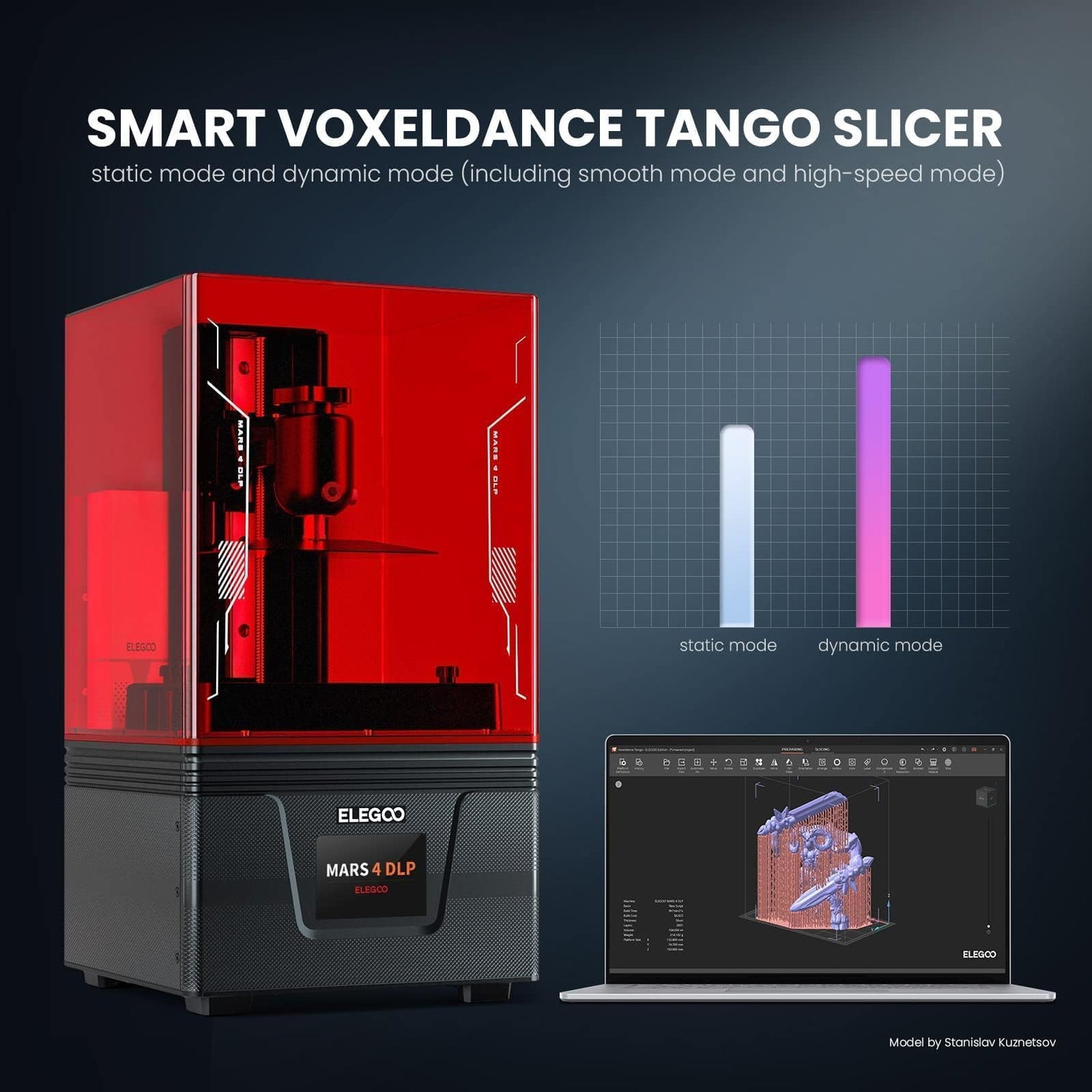

• 【Smart Voxeldance Tango Slicer】Three printing modes are optional: static mode and dynamic mode (including smooth and high-speed mode). In dynamic mode, the slicing software will dynamically adjust the printing speed by the cross-sectional size of the printed model to reduce the impact of the release force, thereby improving the printing efficiency. In addition, ELEGOO self-developed a new open-source GOO slicing format, which is compatible with multiple slicing software without restriction.

Details: DLP 3D Technology

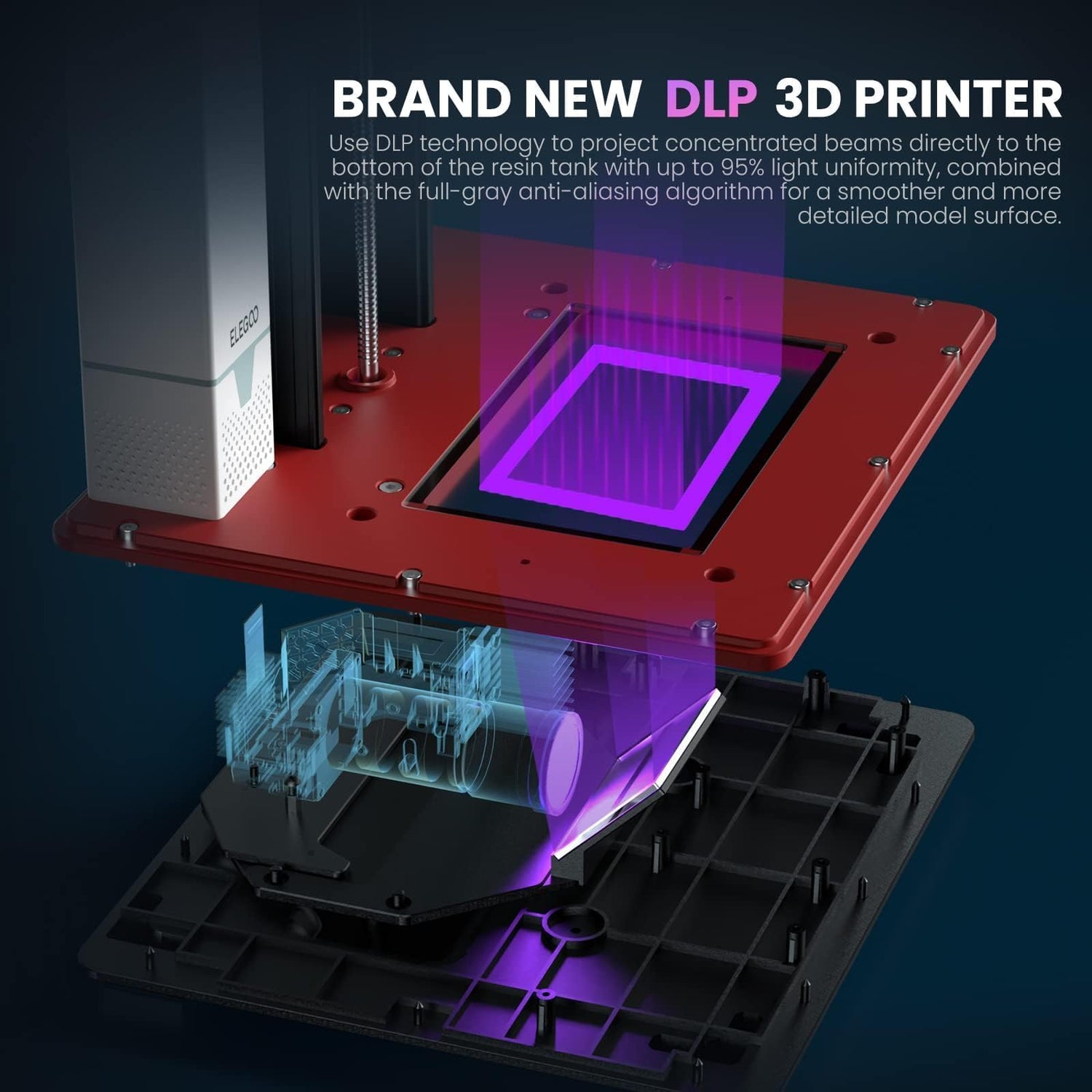

Digital Light Processing (DLP) uses a digital light projector to directly project the entire layer image to the bottom of the resin tank, with the UV beam selectively projected by a digital micromirror device (DMD) onto the given position to be cured.
ELEGOO DLP projector adopts the LG high-performance LED light source + 13-layer lens set design, with light intensity up to 4mw/cm2 and light uniformity up to 95%, coupled with 95% light transmittance tempered glass, which minimizes light scattering and light bleed. The result is greater print accuracy than LCD 3D printers with the same resolution.

High Precision Printing

Using a 2K projector with 2560 x 1440 voxels and an XY resolution of 50 microns, the printing speed can reach 70mm/H, and the dimensional accuracy is ±0.05mm.

Part Number: Mars 4 DLP

model number: MARS 4 DLP
