ELEGOO Mercury Plus 2 in 1 3D Printing Wash and Cure Station V2 for Mars Photon S Photon Mono LCD SLA DLP 3D Printer Models, Washing Size of 131mm(L)

Brand: ELEGOO

Color: Yellow

Features:

• 【Upgrade Protection Function】Sealed washing to prevent the volatilization of alcohol during the cleaning process . Fan-less curing mode makes it quieter to use. The anti-UV lid can block 99.95% of ultraviolet rays to protect your eyes.

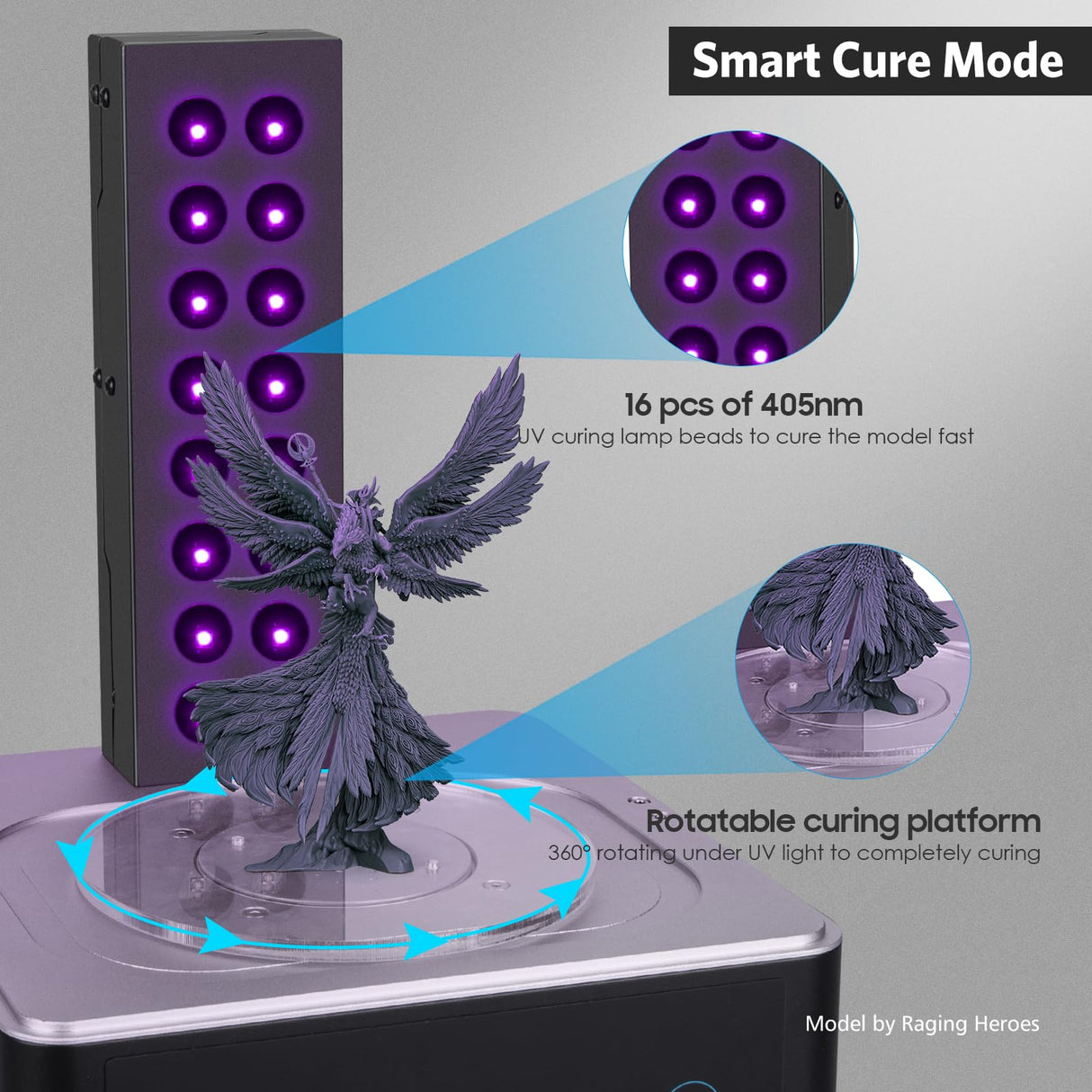

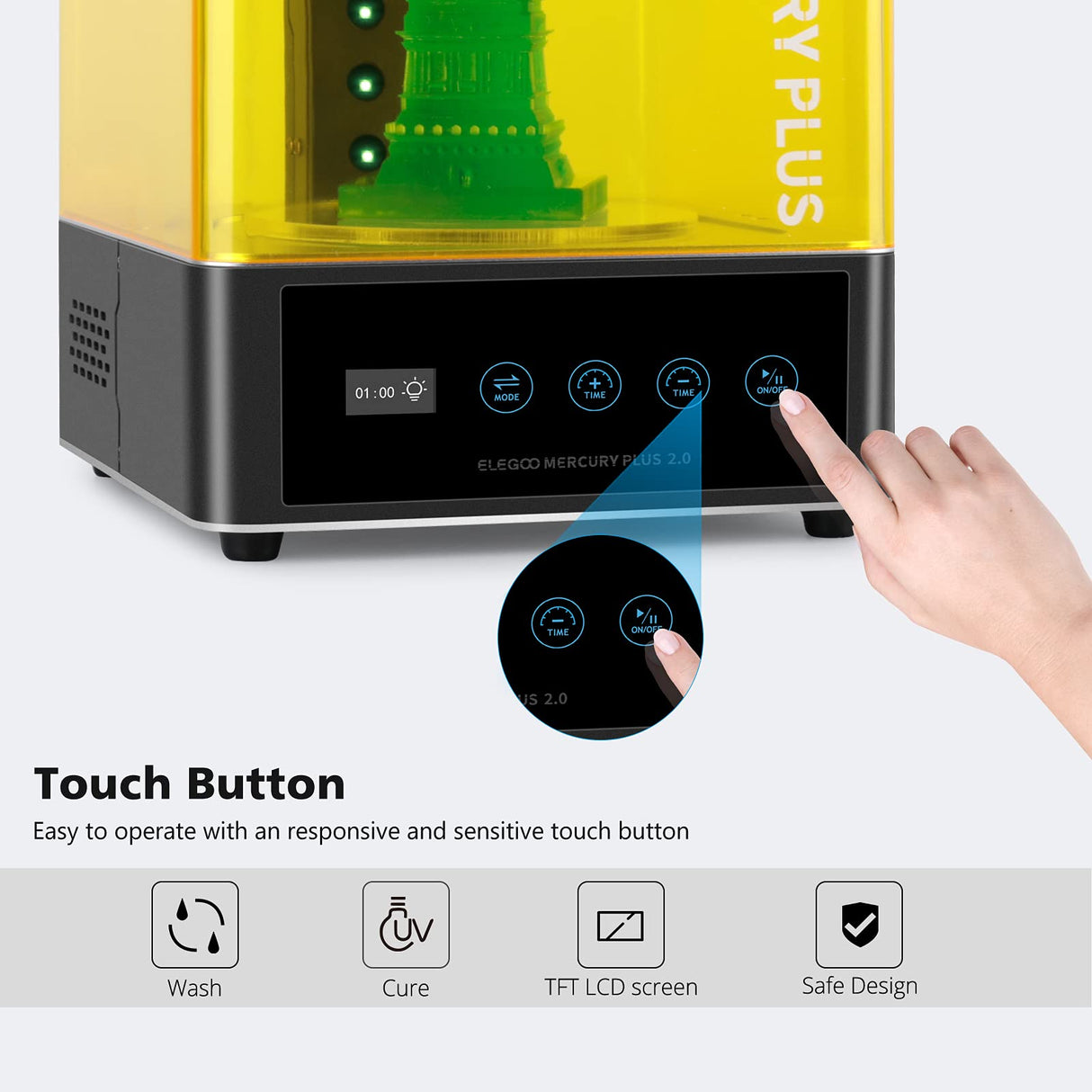

• 【Intelligent Curing and Washing】The front TFT screen can directly display the setting time and remaining time, and the operation is simple and intuitive. With built-in 16 pcs of 405nm UV LED and a 360-degree rotating turntable, you can uniformly cure the model.

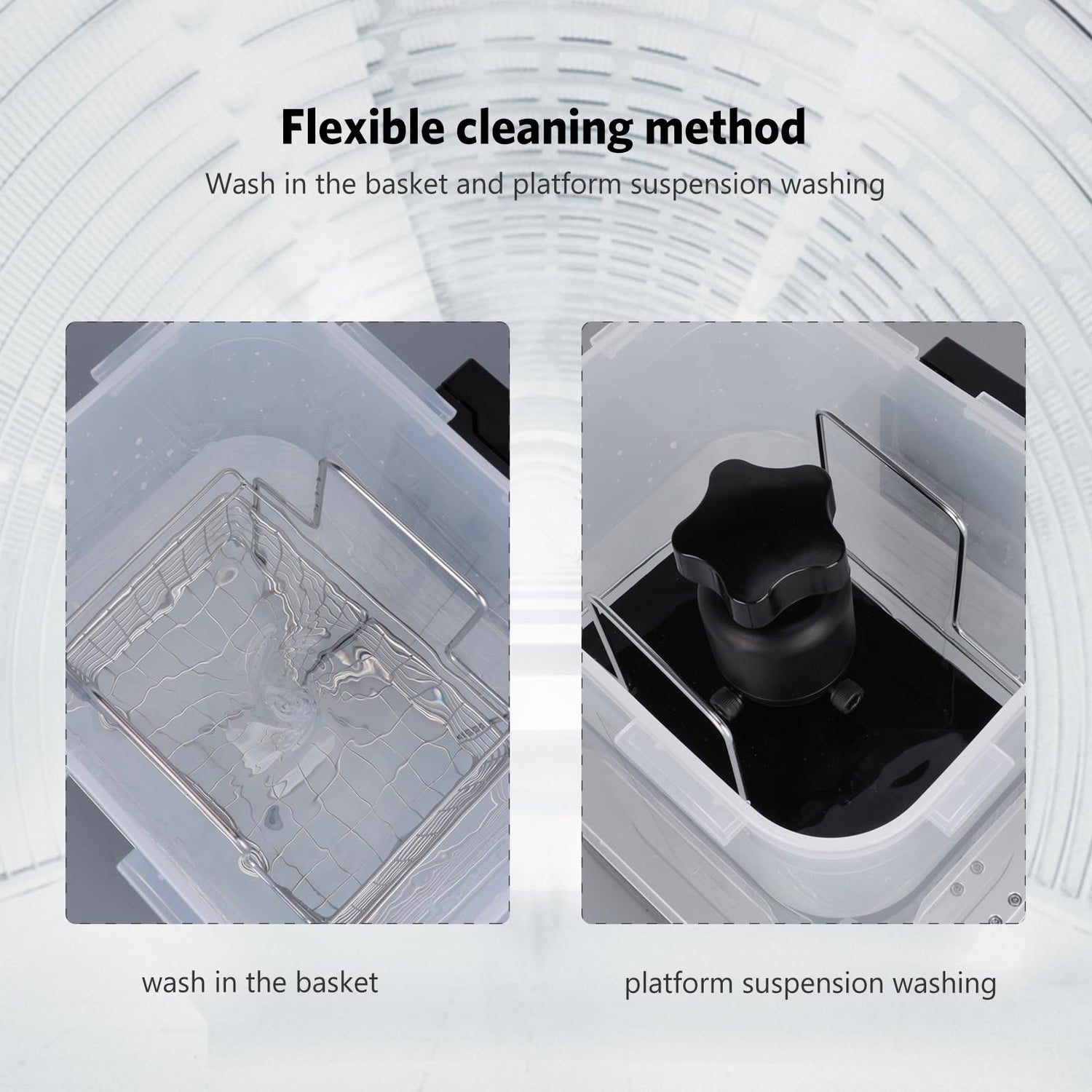

• 【Flexible Washing Mode】The models can be placed in a cleaning basket to be cleaned separately, or mount the build plate with models on it and wash them together, which can avoid direct contact with the uncured resin. The height of the platform bracket can be adjusted to fit the liquid level in the bucket.
• 【Ideal Compatibility】Compatible with most of the LCD/DLP/SLA 3D printers like ELEGOO Mars, Mars Pro, Mars C, Photon, Photon s etc, which provides you an ideal support for washing and curing your 3D resin prints.
• 【Special Notes】The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.

model number: US-EL-3D-090

Part Number: US-EL-3D-090

Details: Technical Specification: Machine Name: ELEGOO Wash & Cure Machine Control Method: Touch button Rated Power: 48W Input Voltage: 110V/220V 50/60H UV Light: 385nm+405nm（8+8） Time Setting: 0-15mins Machine Size: 200mm*200mm*352mm Maximum Wash Volume: 125mm*85mm*160mm Maximum Curing Size: φ140*165mm Machine Net Weight: 4.8kg Curing Time Setting: For model with diameter less than 30 mm, the curing time is recommended to be 2 minutes. If the surface structure of the model is complex, it is recommended to increase the curing time properly. Operation Instructions: 1. After the model is printed, please clean and blow-dry the model before putting it into the machine, otherwise the surface of the model would be sticky, cracked or covered with white residues. 2. If the model become yellow after curing, please adjust the curing time. Over curing will lead to a yellowing model. 3. The recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20%-50%. 4. To avoid overheating of the curing cabinet, please do not use it for more than 40 minutes at a time. 【Special Notes 】The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.

Package Dimensions: 16.5 x 11.1 x 10.6 inches
