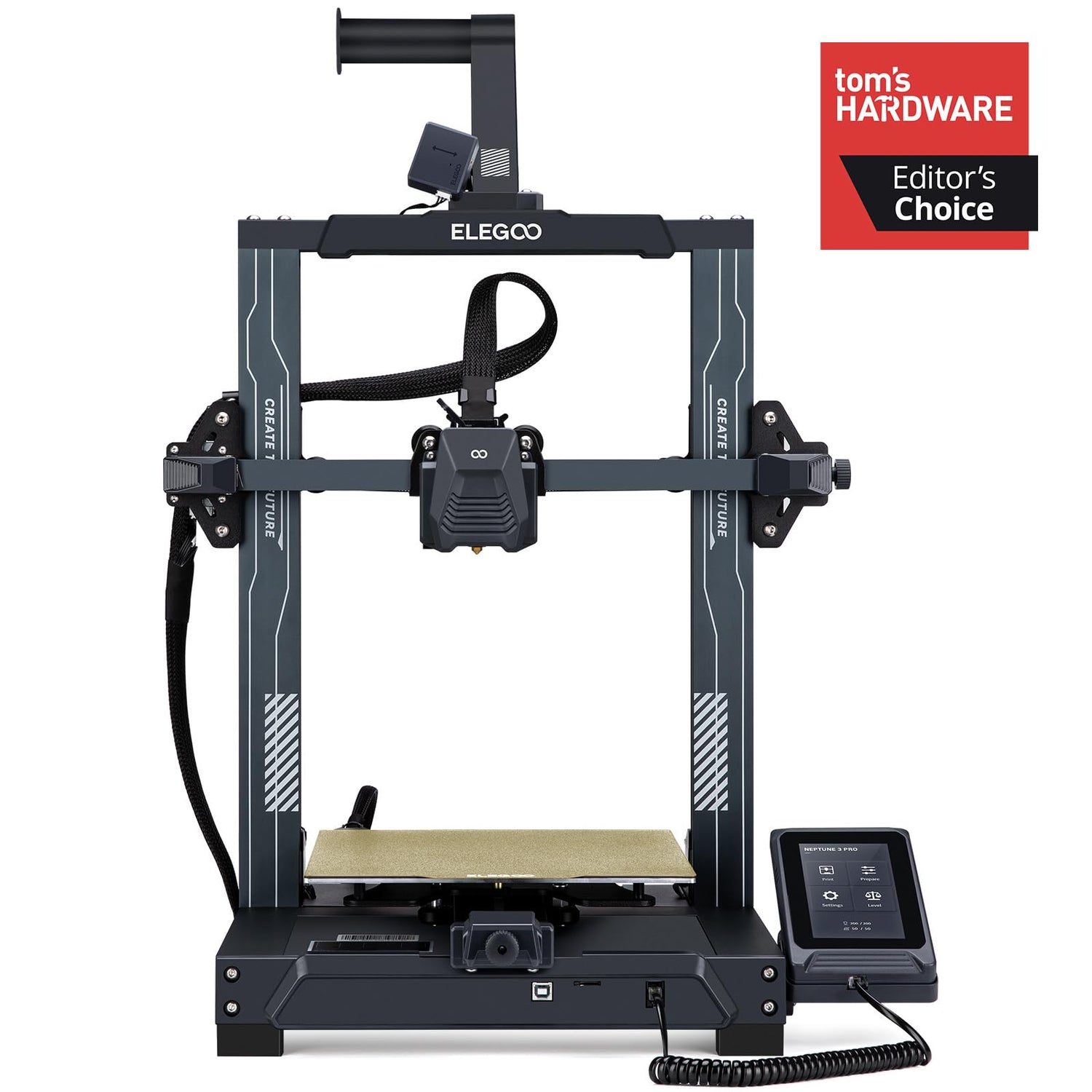

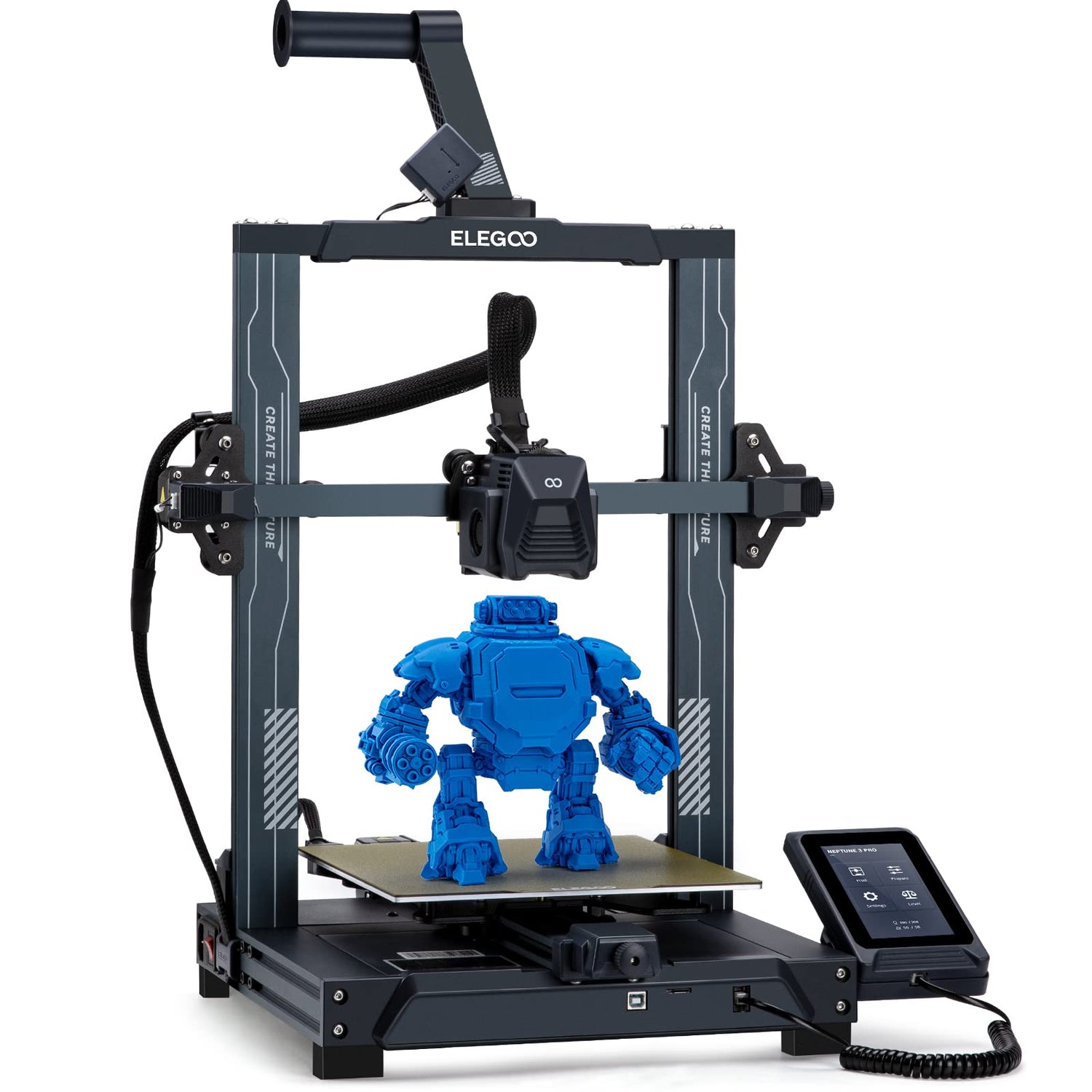

ELEGOO Neptune 3 Pro FDM 3D Printer with Auto Bed Leveling, Dual-Gear Direct Extruder, Dual Lead Screw Drive, Removable Capacitive Screen, 8.85x8.85x11in Large Printing Size

Brand: ELEGOO

Color: Black

Features:

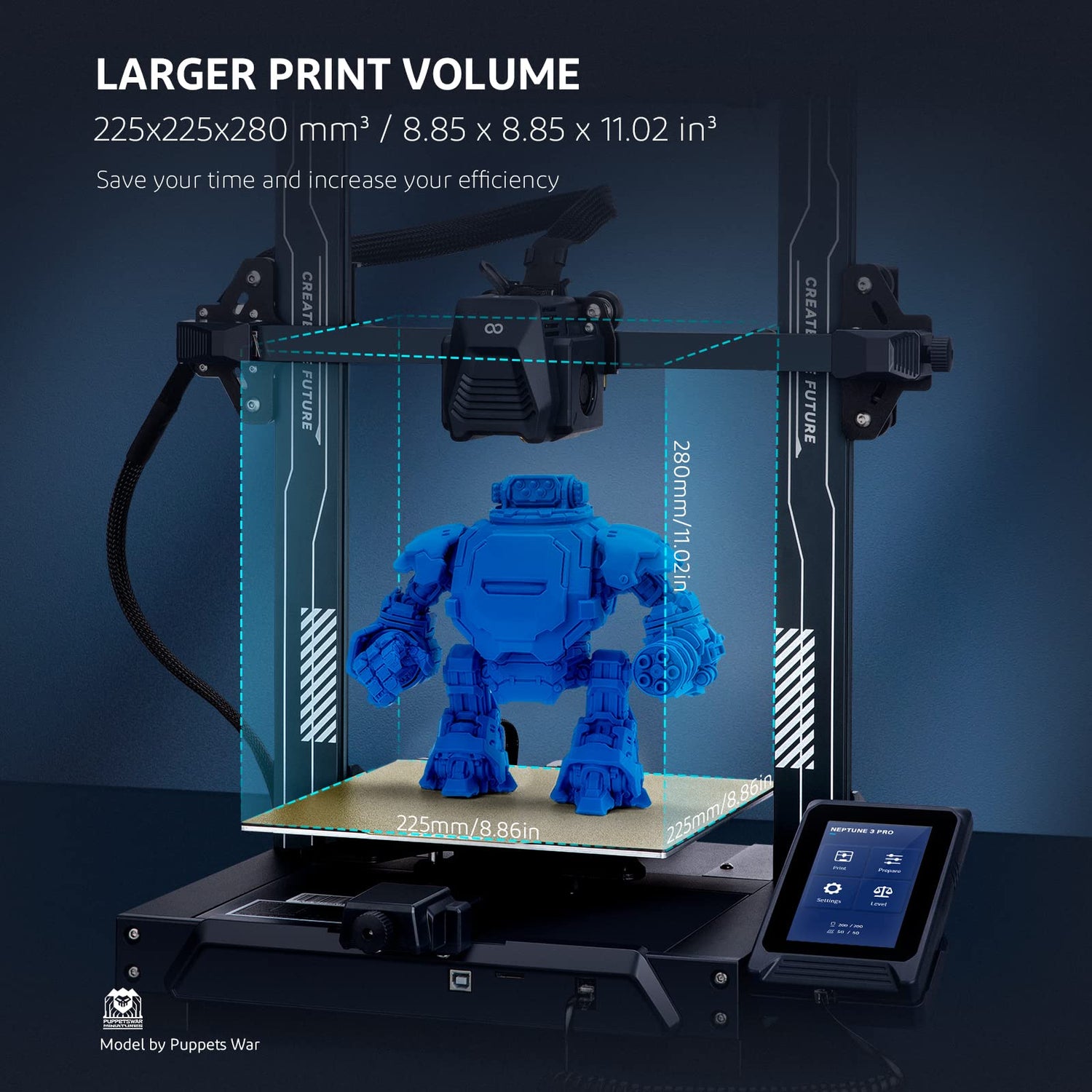

• OVERVIEW OF NEPTUNE 3 PRO: 225x225x280mm/8.85x8.85x11 inch printing size can meet the needs of most users. With an STM32 motherboard, all axes of ELEGOO Neptune 3 Pro are driven by silent stepper motors for quieter and more precise movement during printing, which reduces the noise as low as 47-48dB. The easy-to-setup printer comes with the main components pre-assembled, as well as a complete tool kit for quick installation

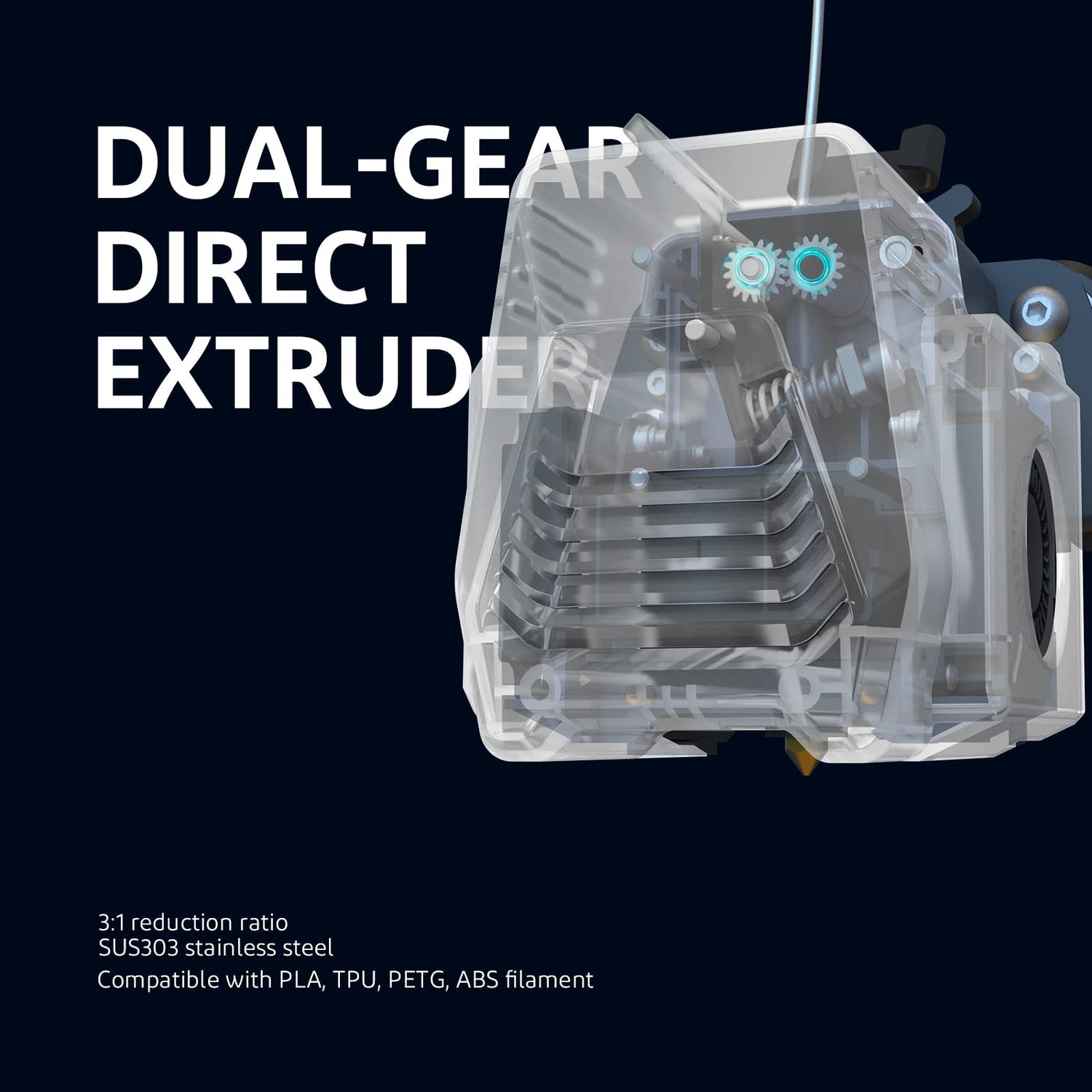

• DUAL-GEAR DIRECT EXTRUDER: The new direct drive extruder is made of SUS303 high-quality stainless steel with a 3:1 reduction ratio and stronger extrusion force for smoother filament feeding and more stable & accurate printing, which greatly reduces nozzle clogging and under-extrusion issues, printing effect is better than Bowden extruder. Compatible with multiple filaments such as PLA, TPU, PETG, and ABS

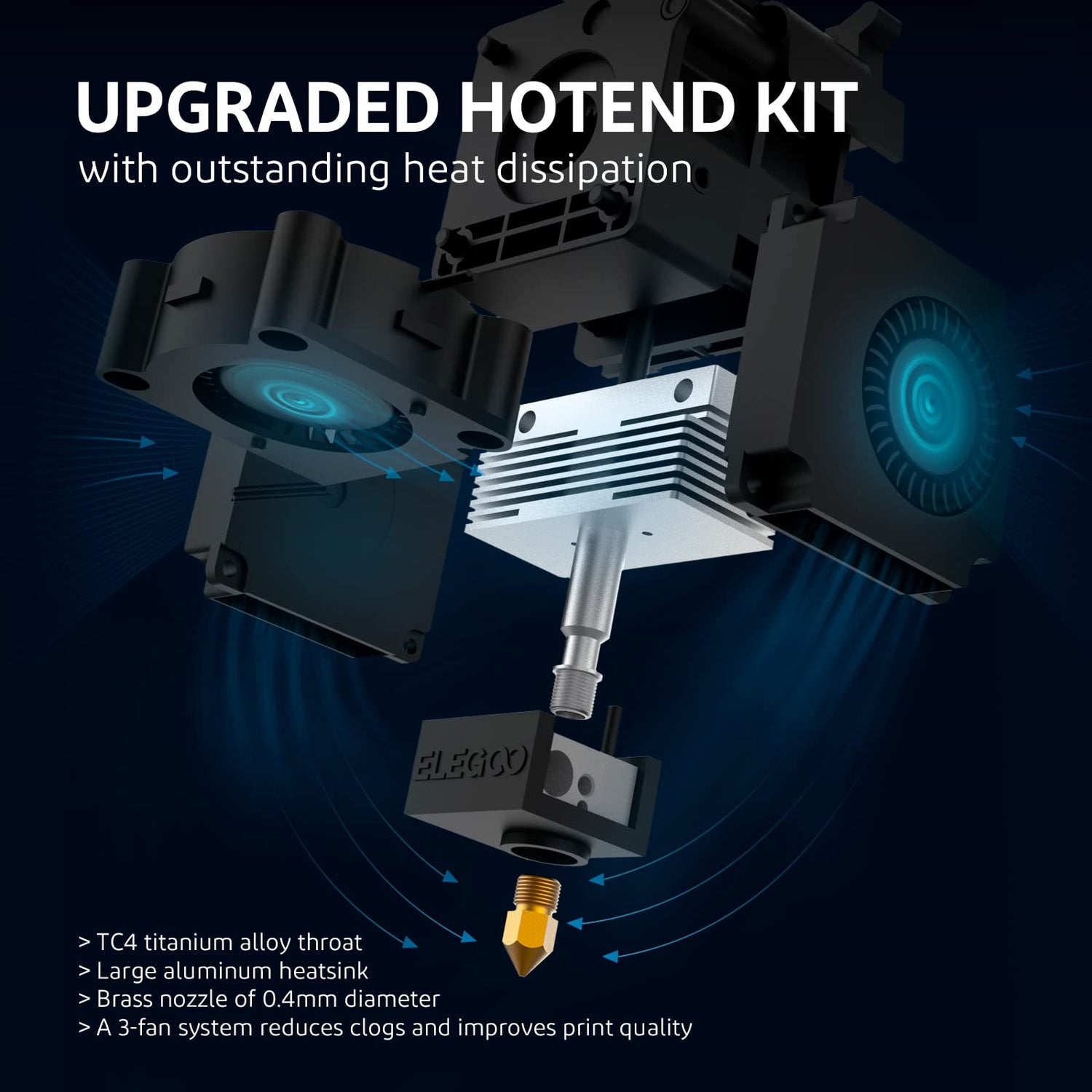

• NOZZLE KIT FOR BETTER PRINTING: The nozzle kit contains a TC4 titanium alloy throat pipe, an aluminum alloy flat heat sink structure, and a brass nozzle.The widened aluminum heat sink paired with the front close-fitting efficient cooling fan for a better heat dissipation effect and lower the temperature of the throat pipe, thereby reducing the possibility of nozzle clogging
• SMARTER PRINTING EXPERIENCE: Auto bed leveling adopts a high precision sensor to automatically scan 36 (6x6) points of the hotbed and collect data in real-time, and then adjust the Z-axis height to compensate for any irregularities and unevenness of the printing platform(Only applicable to metal printing platforms). The printer will auto-pause when the filament runs out or breaks, and you can resume printing after a power outage
• MORE STABLE PRINTING: The Z-axis with dual synchronized lead screws and dual-motor drive for more stable movement of the print head and higher printing accuracy, avoiding the printing deviation driven by a single Z-axis lead screw motor. The 4-wheel V-guide rail pulley is made of POM with more stable movement, low noise, wear resistance, and longer service life

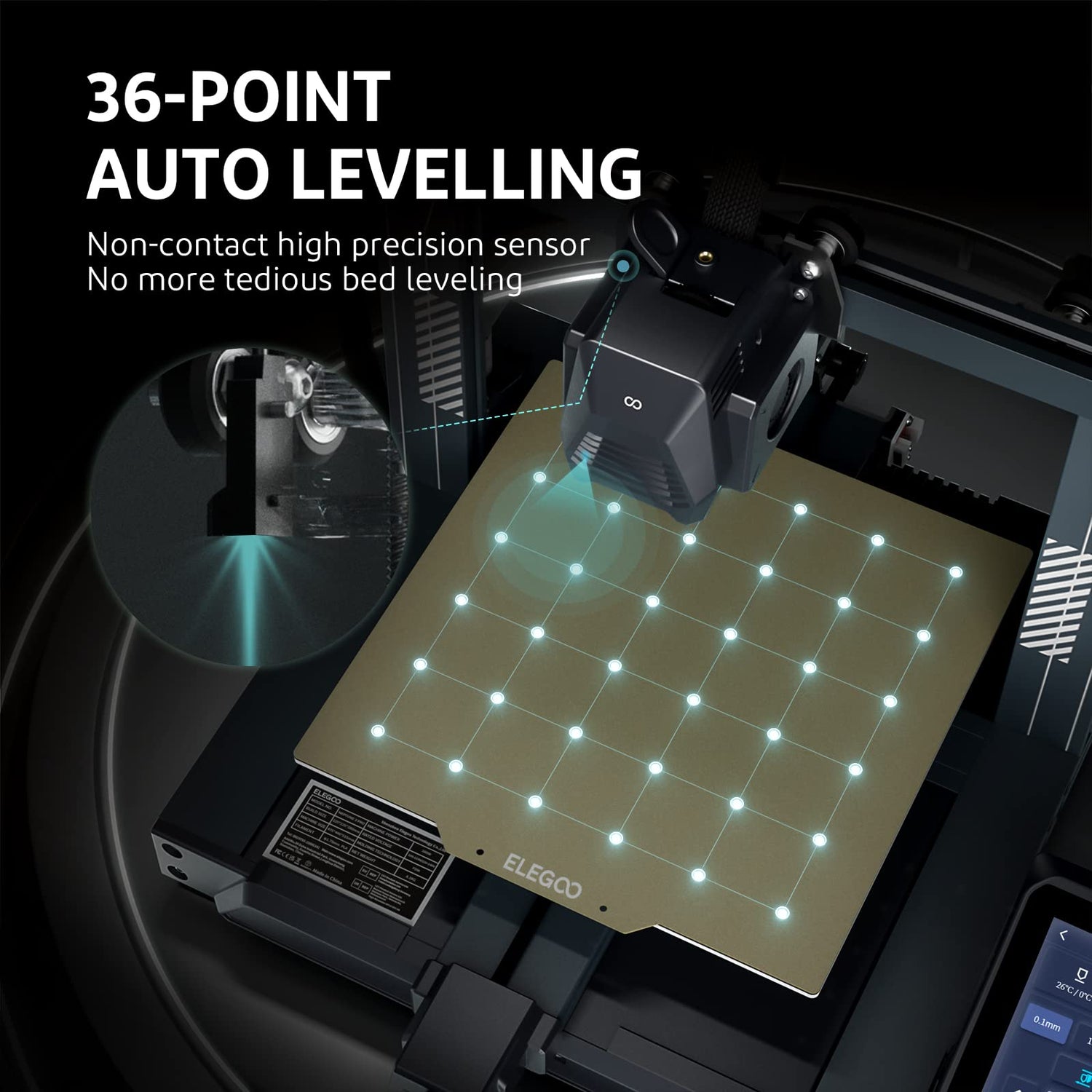

Details: One-click Auto Leveling
The 36-point leveling system adopts a non-contact sensor to precisely measure the distance between the nozzle and hotbed in 36 areas across the print platform, and automatically calibrates and compensates for any inconsistencies or unevenness of the hotbed for better final print quality. All you need to do is level with one click!
The PEI magnetic platform with good adhesion and the printed models can be easily removed by flexing the print steel sheet.

Powerful Extrusion System
Double-gear direct extruder with 3 times extrusion torque motor and enhanced gearing force, work with titanium alloy throat pipe for easier filament feeding and more stable & precise printing.
And the 250W hotbed can quickly heat up to 100ºC, compatible with PLA, ABS, PETG, TPU, and similar filaments.

Quiet & Safe Printing
The whole machine adopts STM 32-bit motherboard silent drivers and a more reasonable nozzle heat dissipation structure, reducing the noise down to 50db, like a person's whisper. Wear resistance POM V-guide roller moves quietly, smoothly, and accurately.
The branded power supply has been repeatedly verified to ensure safe printing and reduce printing errors.

Enhanced Reliability
Z-axis dual lead screw+Z-axis dual-motor design with better synchronization increases the accuracy and stability of printing.
The XY-axis belt tensioner is more convenient to adjust belt tightness by simply rotating the hand-twist knob, and the widened Y-axis profile to make the printing platform more stable.

Smart Resume Printing
No worry about unexpected power failure during the printing process since the printer can resume printing after the power supply is restored.
With a filament detection sensor, whenever the filament runs out or breaks, the printer will pause and alarm until you load the new filament to avoid material waste and model scrapping.

Binding: Electronics

Part Number: US-EL-3D-N3P

model number: US-EL-3D-N3P
