ELEGOO Saturn 3 Ultra 12K MSLA 3D Printer with 10" Monochrome LCD COB Refractive Light Source ACF Release Film WiFi Transfer Printing Size 218.88mm*122.88mm*260mm
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: ELEGOO
Color: Saturn 3 Ultra
Features:
- 【10" 12K LCD Screen】 Saturn 3 Ultra adopts a 10-inch monochrome LCD screen with a resolution of 11520*5120., the printing speed can reach up to 150mm/h with ELEGOO rapid standard resin and ACF release liner film. The new Linux operating system provides more stable file transfer and faster operating speed
- 【COB+Refractive Light Source】 Saturn 3 Ultra uses COB and Refractive light source, which makes the light distribution more uniform, the model surface is smoother and the printing accuracy is higher. Dual heat-conducting copper tubes and cooling fans make the heat dissipation performance more efficient and extend the life of the printer
- 【Laser Carved Platform】 Laser carved build plate enhances the adhesion of the model during the printing process and greatly improves the printing success rate. The build volume increases to 218.88mm*122.88mm*260mm. Z-axis uses an integrated ball screw and dual linear guides, which run faster and print more stably

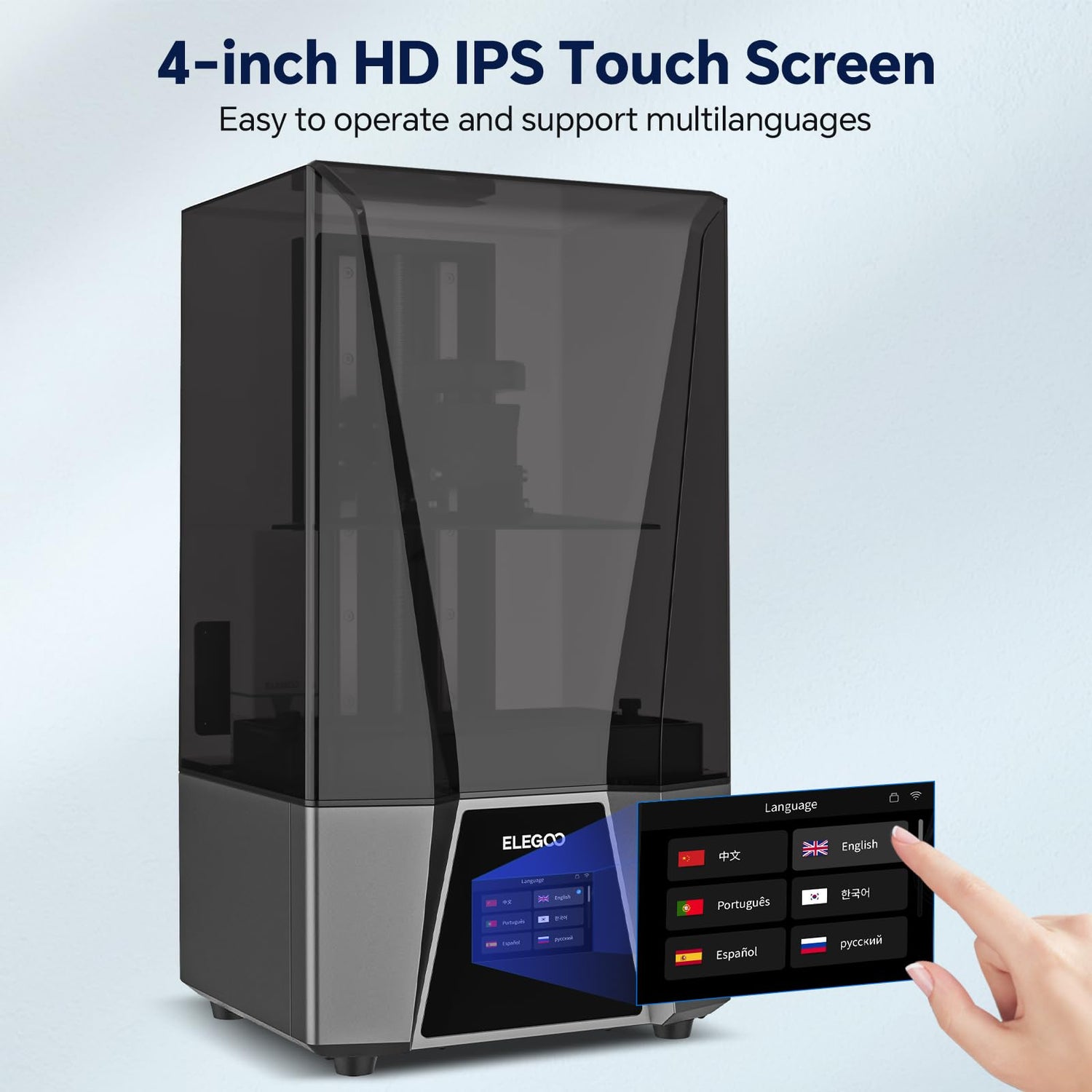

- 【Better Printing Experience】 4-inch HD IPS touch screen, easy to operate and supports multiple languages. The printer comes with a detachable antenna and supports Wi-Fi file transfer. The new slicing software Voxeldance Tango Slicer provides three printing modes and the open source GOO slicing file format
- 【Printing Tips】Suggestions for ensuring successful printing and protection of the LCD screen/release film: ① Before printing, please ensure that the parameters of the machine are correctly debugged. ② Add the model support correctly in the slicing software and improve proficiency in the use of slicing software. ③ Clean up the resin tank in a timely manner after printing
Details: Description
About Brand Vision
Create the future, interpreted as "With the help of programming and 3D printing technology, we can create almost anything—Elegoo provides geeks with the key to a new world.”
Basic Parameters
XY Resolution: 19*24um [12K 11520*5120]
Z Axis Accuracy: 0.01mm
Layer Thickness: 0.01-0.2mm
Printing Speed: Max 150mm/h
Power Requirements: 100-240V ; 50/60Hz ; 24V/7.5A
Dimensions: 305.9mm(L)*273mm(W)*562.5mm(H)

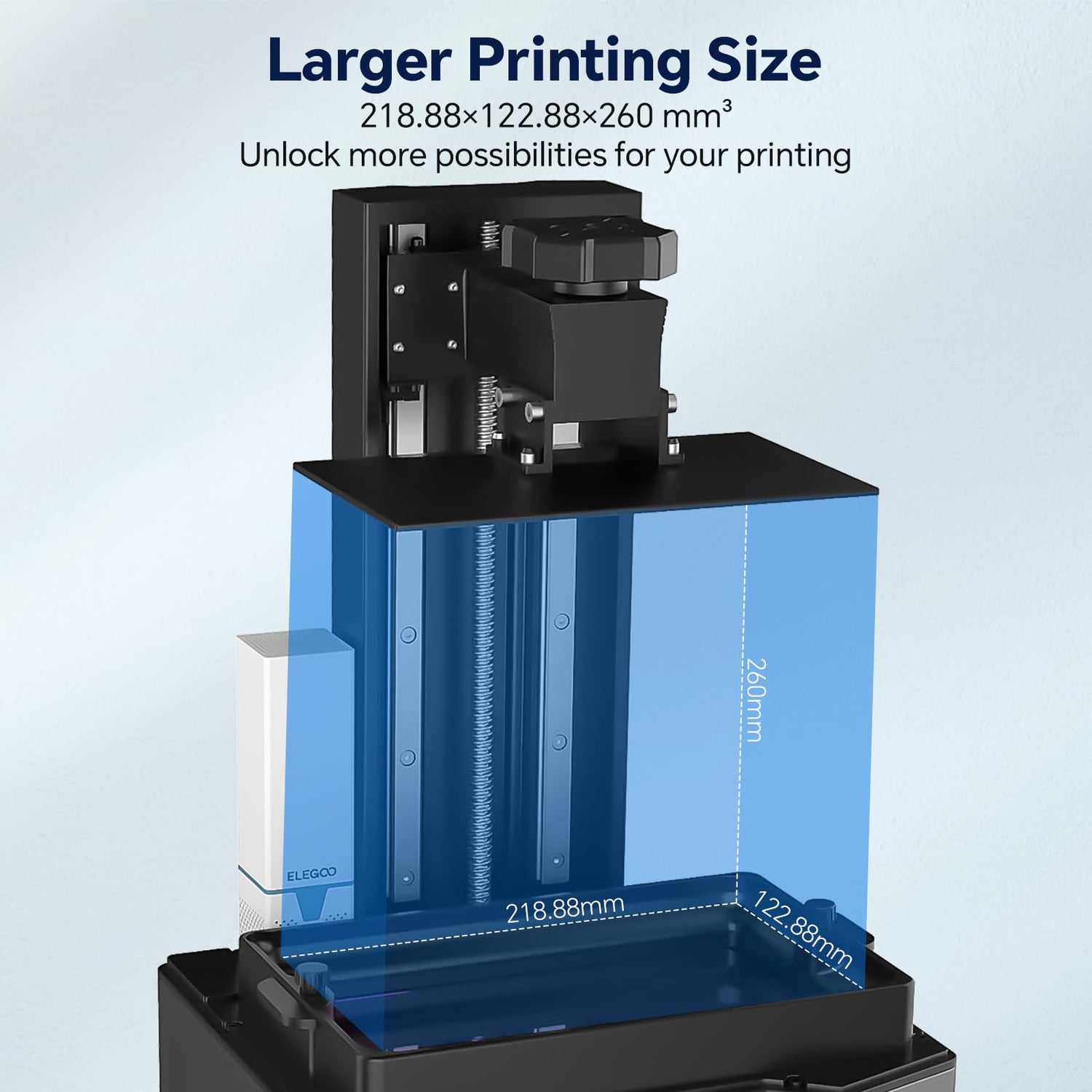

Build Volume: 218.88mm (L)*122.88mm (W)*260mm (H)
Net Weight: 12kg
Technology: MSLA Stereolithography
Light source: COB + RefractiveLight Source (wavelength 405nm)

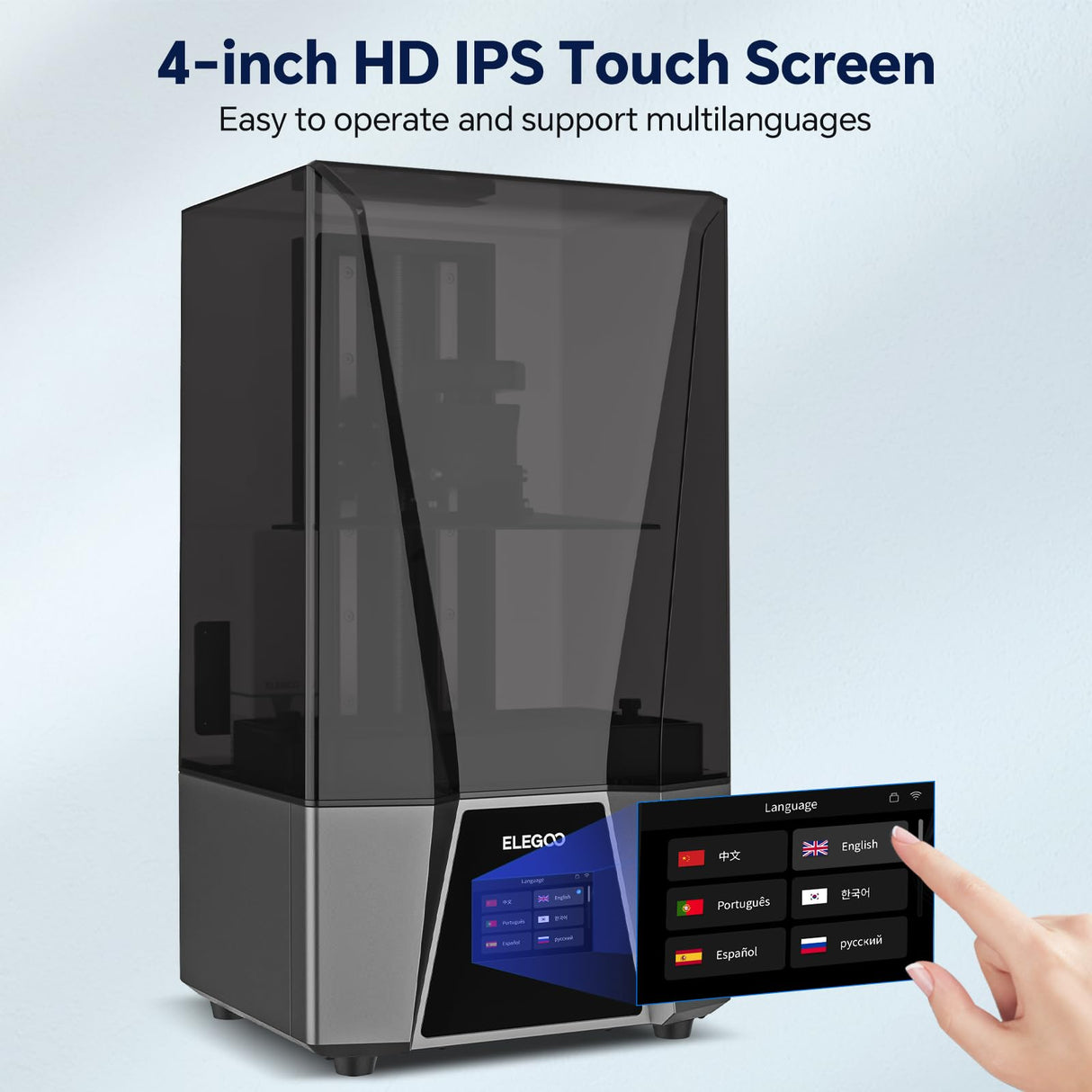

Operation: 4.0-inch Capacitive Touch Screen

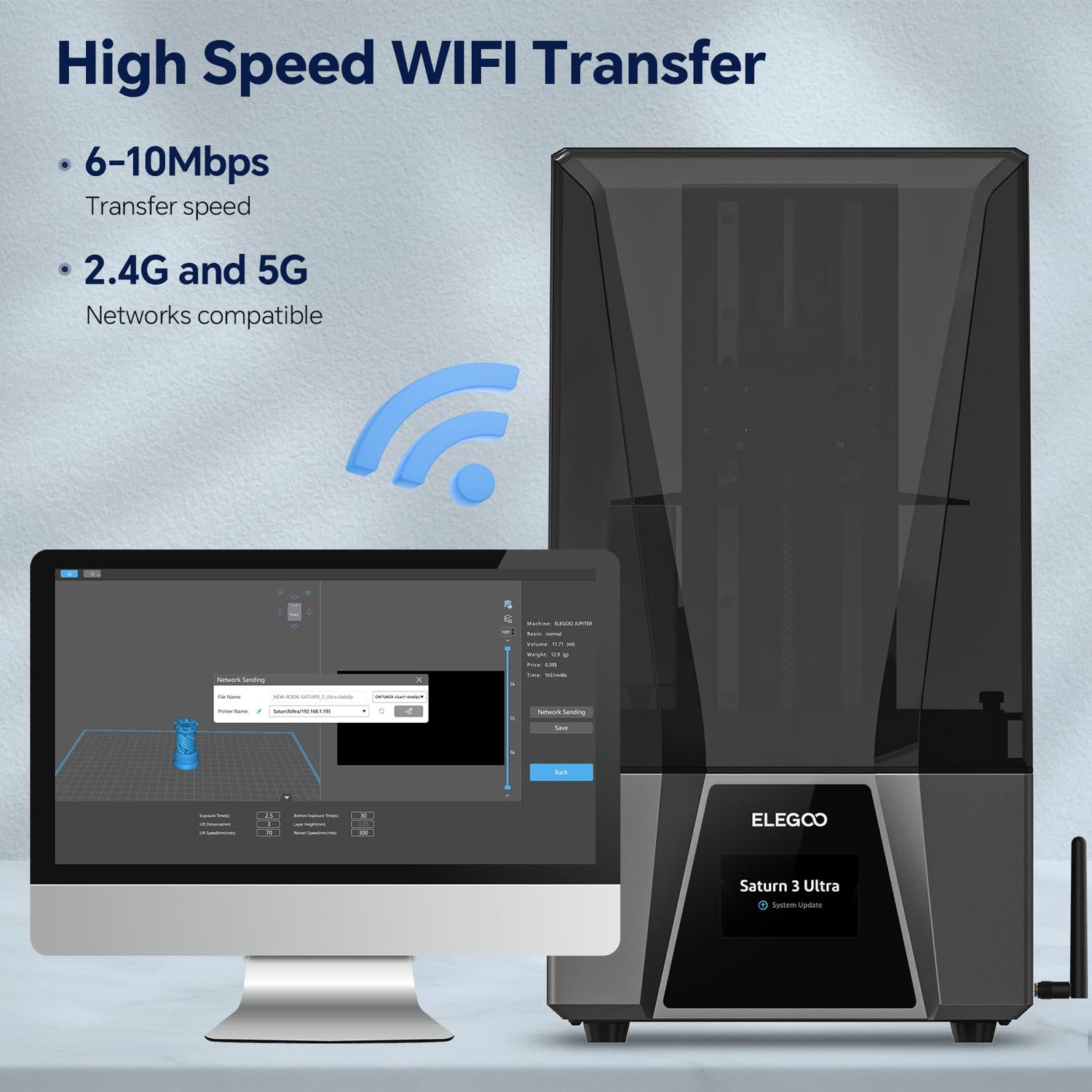

Connectivity: USB Interface & WiFi

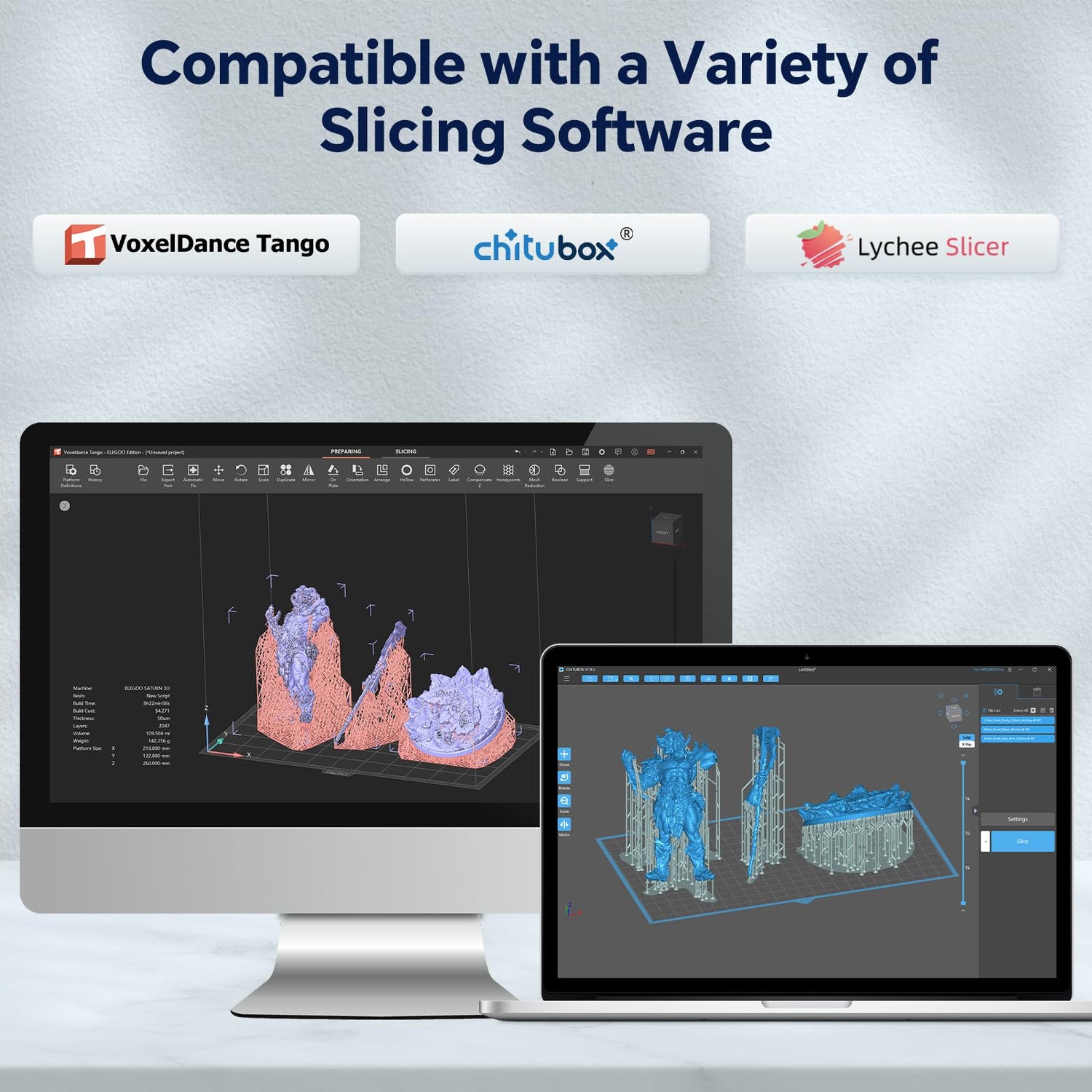

Slicer Software: Chitu Box & Voxeldance Tango
Precautions
Please keep the 3D printer and its accessories out of the reach of children.
Please fill the resin tank no less than 1/3 of its volume, but do not exceed the MAX line position.
Please place the printer in a dry environment and protect it from rain and moisture.
If you run into an emergency during use, please turn off the power supply of the 3D printer fifirst.
Please use the printer indoors and avoid direct sunlight and a dusty environment.
Please use 95% (or higher) ethyl alcohol or isopropyl alcohol to wash your model unless you are using water washable resin.
If the printing fails, you need to clean the excess cured resin in the resin tank and change the resin, otherwise, it may cause damage to your printer.
When operating the 3D printer, please wear a mask and gloves to avoid direct skin contact with the photopolymer resin.
If the release film in the resin tank is whitened, scratched, or has no elasticity, the printing failure rate is high, please replace the release film in time.
Binding: Electronics
Part Number: US-SO-3D-S3U
