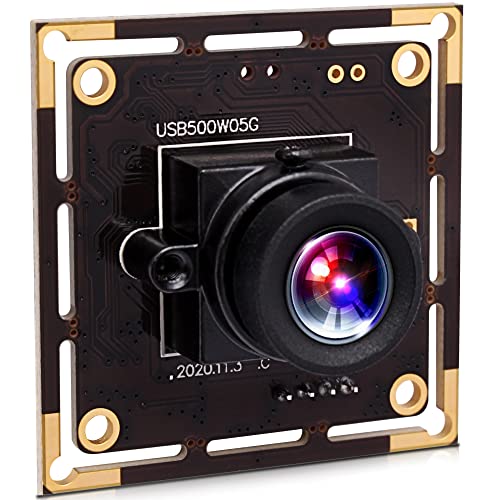

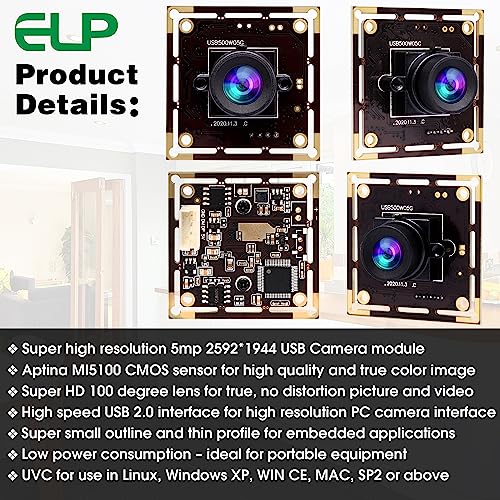

ELP 5mp Wide Angle USB Camera Module for Computer and Raspberry Pi Mini UVC USB2.0 PC Camera 100degree Low Distortion Webcam Board MI5100 Lightburn
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: ELP
Color: 100degree no distorion lens
Features:
- Super high resolution 5mp 2592*1944 USB Camera module.
- Aptina MI5100 CMOS sensor for high quality and ture color image.
- Super HD 100 degree no distortion lens for true, un-distortion picture and video,Low power consumption – ideal for portable equipment.
- High speed USB 2.0 interface for high resolution PC camera interface,super small outline and thin profile for embedded applications.
- UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
model number: ELP-USB500W05G-FD100
Part Number: ELP-USB500W05G-FD100
Details: Product Name:ELP-USB500W05G-FD100
Sensor:Aptina MI5100
Lens Size:1/2.5 inch（4:3）
Pixel Size: 2.2um
image area:5.7mm x 4.28mm
Max. Resolution: 2592(H) X 1944(V)
Compression format:MJPEG / YUV2（YUYV）
Resolution & frame:2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG
1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG
1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG
800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG
S/N Ratio: 38dB
Dynamic Range: 70dBv
Sensitivity: 1.4V/lux-sec@550nm
Mini illumination: 0.1lux
Connecting Port type: USB2.0 High Speed
Free Drive Protocol: USB Video Class（UVC）
OTG protocol: USB2.0 OTG
AEC: Support
AEB: Support
AGC: Support
Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter: No distortion Size: 1/2.5, Iris: F2.4, Focus: 3mm, FOV(D): 100 Degree
LED board control interface: Support 2P-1.25mm socket
LED board power connector: Support 2P-2.0mm socket
Power supply: USB BUS POWER 4P-2.0mm socket
Operating Voltage: DC5V
Working current: 150Ma~200Ma
Working temperature: -10～70℃

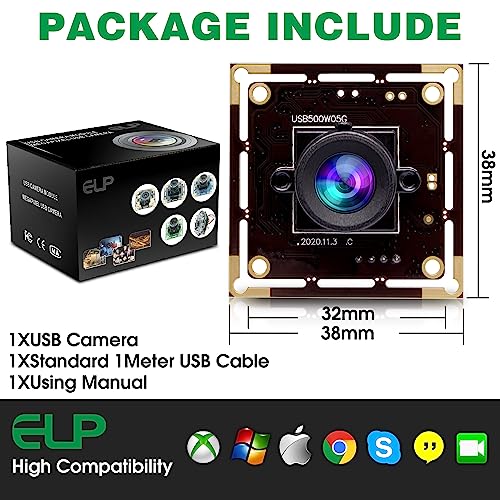

Board size: 38X38mm（compatible 32X32mm）
EAN: 0711978710869
Package Dimensions: 4.7 x 3.6 x 2.9 inches
