Engraver Mainboard 32 Bit Main Board with A4988 Step Motor for Makerbase MKS DLC32 V2.1 12‑24VDC for Engraving
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Hyuduo
Features:
- With Step Motor: The motherboard adopts a dedicated power chip that supports 12V‑24V and multiple stepper drives of 4988, 8825, TMC2208, TMC2100, suitable for LCD2004, LCD12864, for MKS TFT24, 28, 32, 35, 70.
- Ultra High Speed Computing Capability: Due to the high speed IO flipping speed and powerful timer of the main control module, the for MKS DLC32 is suitable for beginners to upgrade the main board of the for Makerbase wood CNC carving machine. The speed of the tool accessories can get to 8000 millimeters per minute, which can achieve a very high carving speed.
- Wide Compatibility: The DLC32 offline controller supports for GRBL and for Lightburn software, which is very easy to use for all engraving machine users.
- Easy Control: The for Makerbase CNC engraving machine motherboard also has a mobile APP function, which can connect to for MKS DLC32, control motion, edit images, upload files, and more.
- Excellent Design: Adopting premium 4 layer PCB, integrating 2560 and the control board onto one PCB, making wiring simpler and more stable.
model number: Hyuduo6x9vzkgibt
Part Number: Hyuduo6x9vzkgibt
Details: Spec:ification
Item Type: Engraver Mainboard
Material: PCB
Model: FOR MKS DLC32, motherboard. A4988, driver.
Voltage: 12-24VDC
MCU: ESP32-WROOM-32U, 32bits.
MCU Frequency: 240MHz
FLASH: 8192K Bytes
RAM: 520K Bytes
Engraving Speed: PC Engraving: Supports
Offline Mode: Supports
LCD: Supports
Integrated WIFI: Supports
Web Page Control: Supports
Mobile APP Control: Supports
For GRB: Supports
For LightBurn: Supports
A4988 Driver Introduction: A4988 is a complete micro stepper motor driver with built in converter, easy to operate. The bipolar stepper motor can operate in full step, half step, 1/4, 1/8, and 1/16 step modes, with an output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off time current regulator that is in slow or mixed decay mode. The A4988 converter is the key to easy implementation. The step input only requires one pulse to drive the motor forward one microstep. There is no phase sequence table, high frequency control line, or complex programming interface. The A4988 interface is very suitable for situations where complex microprocessors are unavailable or overloaded.
How to Use:

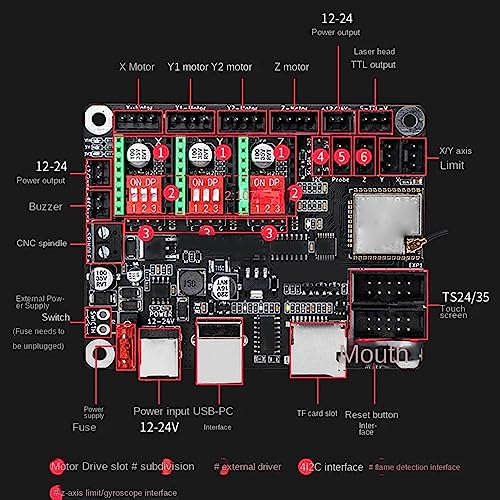

Use according to the picture.

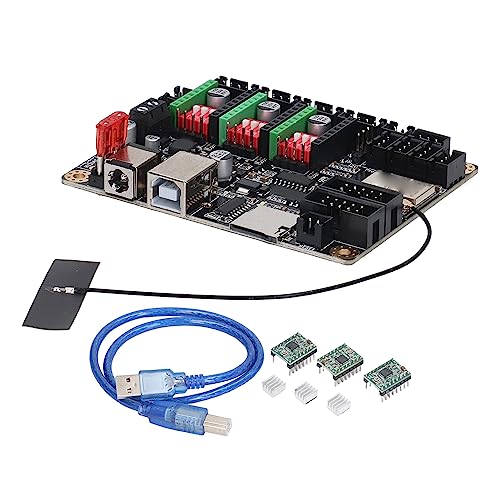

Package List:
1 x Engraver Mainboard
3 x Driver
3 x Accessory
1 x Data Cable
Package Dimensions: 8.6 x 5.5 x 2.5 inches
