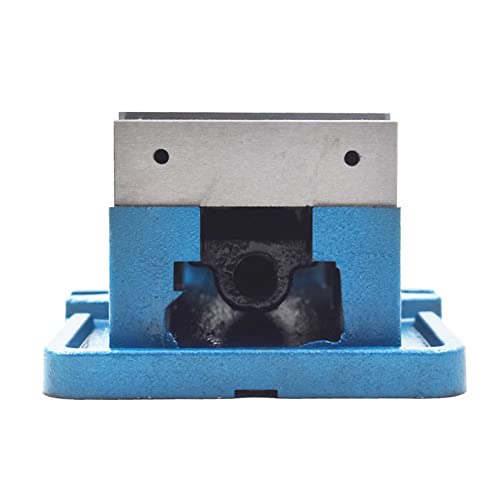

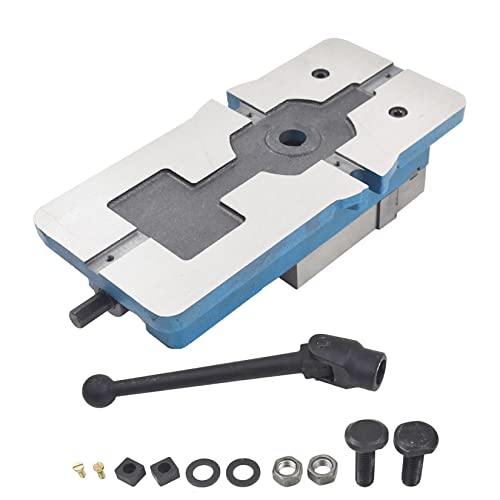

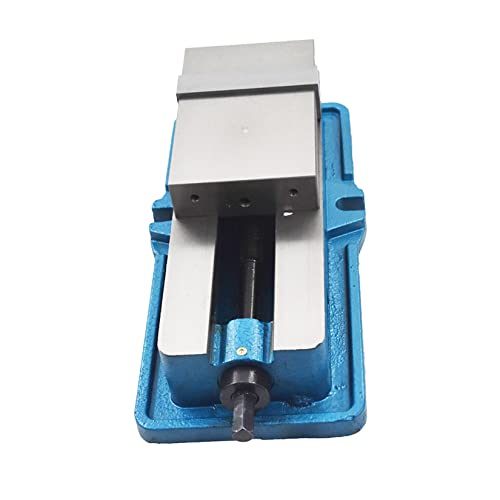

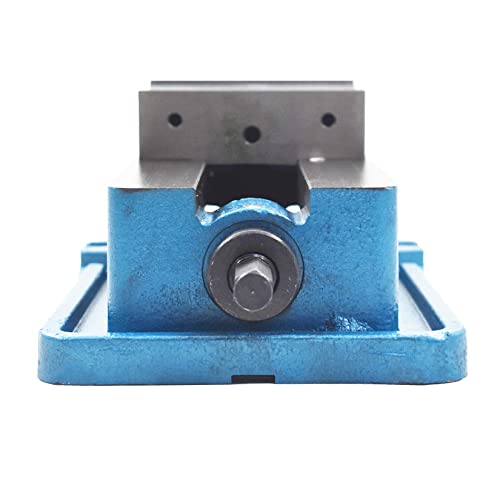

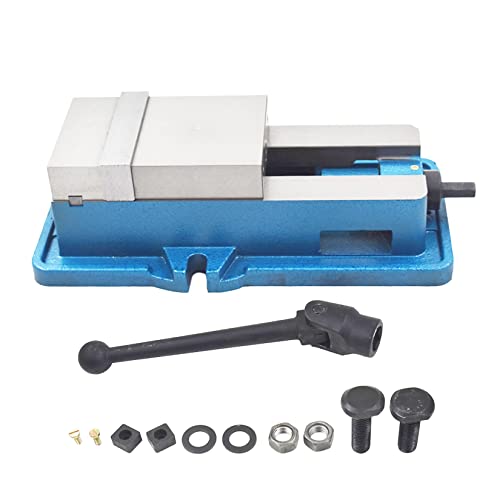

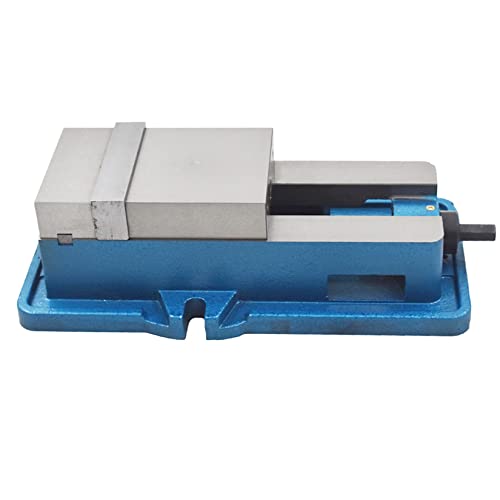

findmall 4 Inch Lock Down Vise Accuracy Milling Vise 4 Inch Jaw Width Drill Press Vise Milling Drilling Machine Bench Clamp Clamping Vice(4")
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: findmall
Color: Blue
Features:
- High accuracy clamp vise with a jaw width of 3. 93 inch (100 mm). Jaw opening: 4.56 inch (116 mm)
- Lock clamp vise height: 3.54 inch (90 mm). Jaw height: 1-1/4 inch (32 mm)
- This bench clamp adopts high quality ductile iron 80000 PSI to achieve minimum bending. Maximum clamping force of 19 KN
- Flame hardened sliding surface of the clamping vise bed ensures ultimate durability & long service life
- The accuracy milling drilling vise is suitable for milling, drilling machine and accuracy parts finishing. Very accurate and durable
Binding: Tools & Home Improvement
Details: Specification:
Milling Vise 4 Inch
Jaw width: 3.93 inch (100 mm)
Jaw opening: 3.93 inch (100 mm)
Bench clamp vise height: 3.86 inch (100 mm)
Jaw height: 1.3 inch (32 mm)
Accurate to 0.002? per 4 on squareness and 0.006 per 4 on parallelism without base
Vise Key: 11.11mm table slot width, 14.00mm base width
Product features
Each pound of force in horizontal induces 1/2 lb of downward force, eliminating jaw tilt. This Vise is so designed that the horizontal force generated by tightening the handle pushes the semi-sphere within the movable jaw and thus thrusts the movable jaw downward. The workplace does not move up, even if it is held at the top of the jaw plates.
Highest clamping power. It's very accurate and durable
Sliding surface of the vise bed is flame hardened and ground
Vise bed is made from grey cast iron and the maximum tensile strength of the vise bed is 28,000 PSI
With anti-jaw lifting mechanism. K type angle lock nut is made from the highest quality ductile Iron, firm and durable
Acme screws and easy to read 0-360 deg scales
Screws from the top through the jaw make the vise more stable and durable. Taiwan new type
The installation size of Soft Jaw is the same as Kurt. 4" Aluminum Soft Jaws which are made in USA can be mounted into this vise
Four setting positions of the jaw plates are available, widening the jaw plates opening.
EAN: 6941110107668
Package Dimensions: 14.3 x 10.0 x 5.1 inches
