Description
Description
Brand: findmall
Features:
- 2" Boring Head With R8 Shank.Head size: 2".Boring bar Hole: 1/2"
- Cross Hole Dia: 1/2".Maximum Offset: 5/8".Thread: 1.5"-18.Graduations: 0.001/0-50
- Center Distance bt 2 bottom hole: 0.60"
- A micrometer lead screw provides 0.0001" direct reading accuracy and ease of adjusting

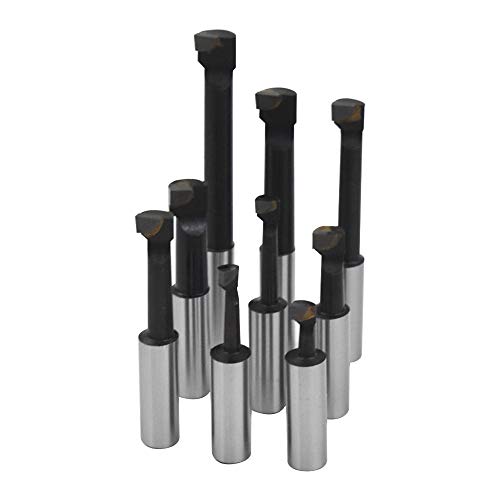

- Packing including:1pcs 2" Boring Head, 1pcs R8 Shank, 9pcs 1/2" Carbide Boring Bar,3pcs Allen Wrench

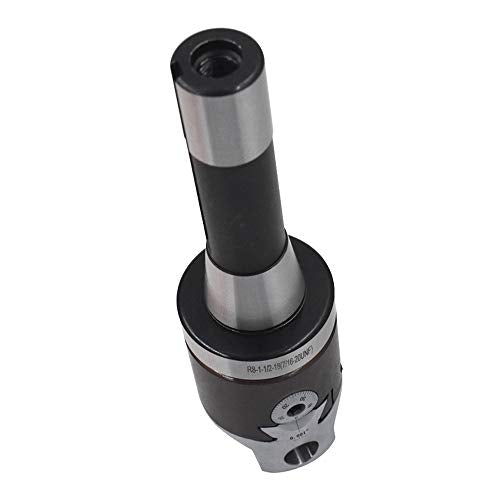

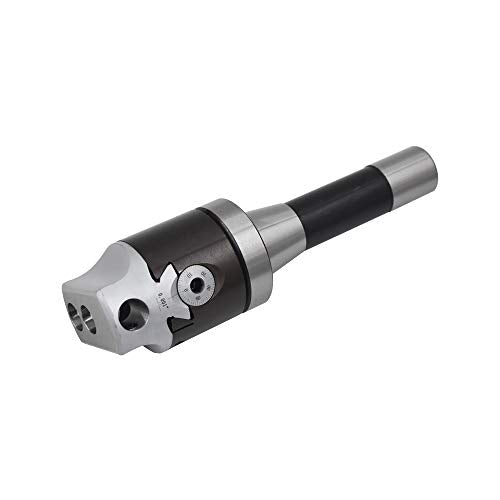

Details: 2" Boring Head With R8 Shank
Head size: 2"
Boring bar Hole: 1/2"
Cross Hole Dia: 1/2"
Maximum Offset: 5/8"
Thread: 1.5"-18
Graduations: 0.001/0-50
Center Distance bt 2 bottom hole: 0.60"
With R8 Shank
A micrometer lead screw provides 0.0001" direct reading accuracy and ease of adjusting
When the direction of the dial is reversed, the backlash between the gear train is listed below.
OVERALL LENGTH --- BORE DEPTH --- MIN. BORE
2-1/4" -------- 3/4" --------- 5/16"
2-5/8" -------- 1-1/8" ------ 5/16"
3" -------------- 1-1/2" ------- 5/16"
2-5/8" ------- 1-1/8" ------- 7/16"
3-3/16" ----- 1-11/16" --- 7/16"
3-3/4" ------- 2-1/4" ------- 7/16"
3" ------------- 1-1/2" ------- 9/16"
3-3/4" ------- 2-1/4" ------- 9/16"
4-1/2" ------- 3" -------------- 9/16"

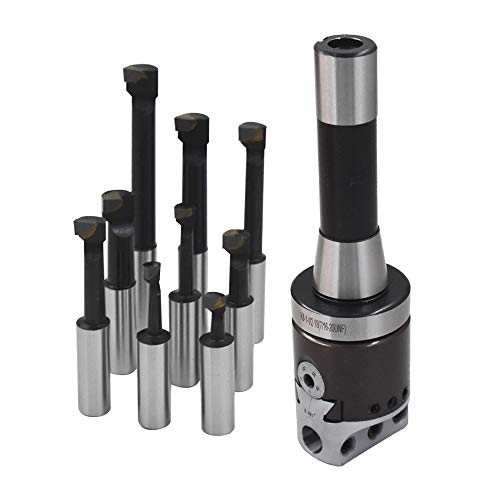

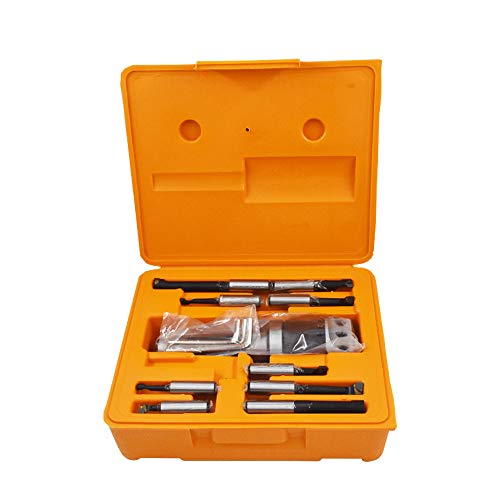

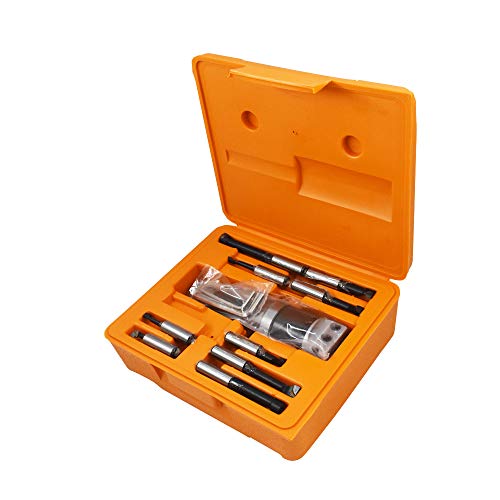

Packing including
1pcs 2" Boring Head, 1pcs R8 Shank, 9pcs 1/2" Carbide Boring Bar,3pcs Allen Wrench
EAN: 7081781698061
Package Dimensions: 10.2 x 9.5 x 3.0 inches
