FoxAlien CNC Router Machine Masuter 3 with Steel Wheels, 3-Axis Engraving Milling Machine 15.75” x 15.75” x 3.74” Working Area for Wood Acrylic MDF Nylon Carving Cutting
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: FoxAlien
Color: Masuter3
Features:

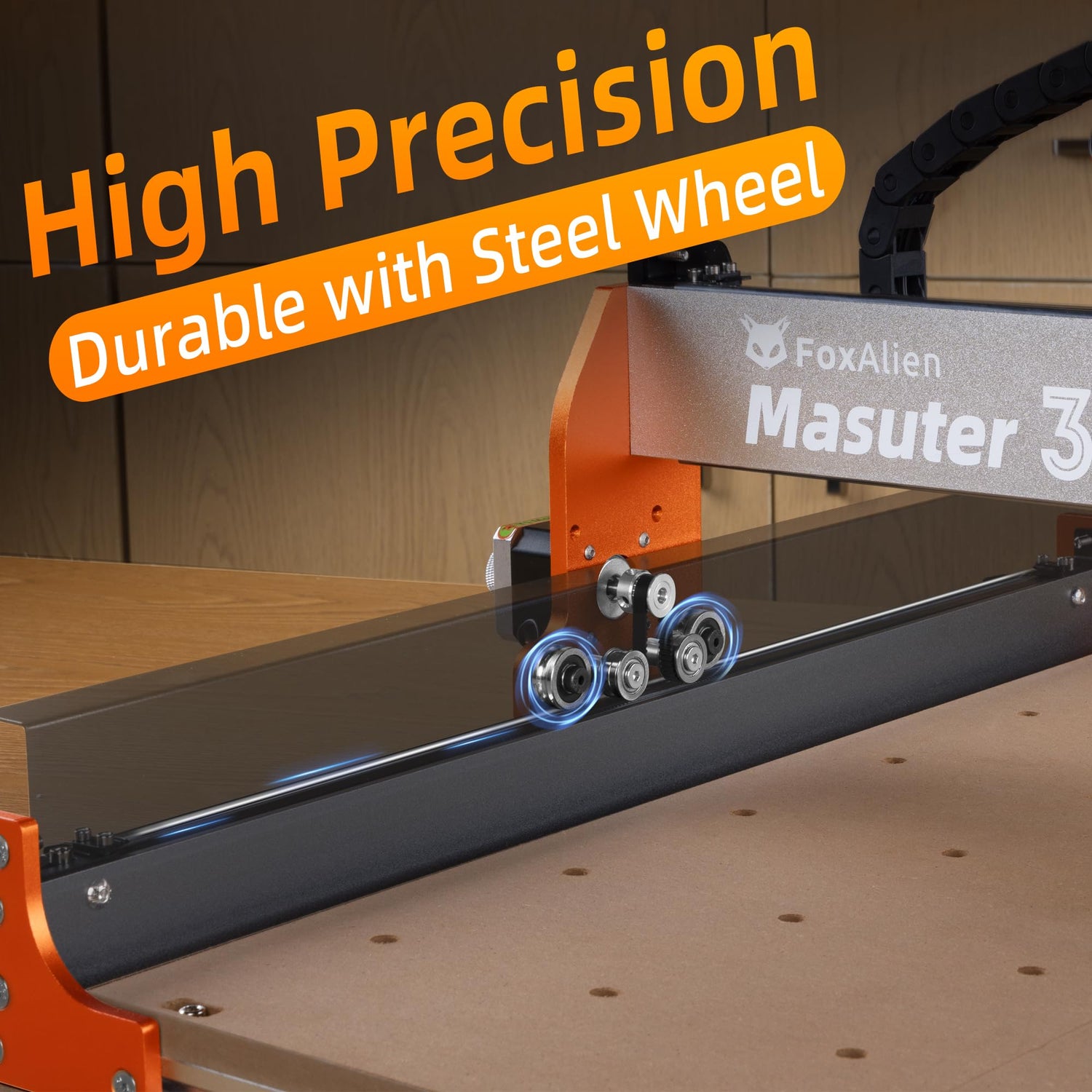

- Sturdier and Smooth: Upgraded X-axis and Y-axis with steel wheels provides enhanced precision and stability during carving and engraving. And the steel wheels greatly improve longer life span than rubber wheels. Regular cleaning is recommended to maintain during engraving.

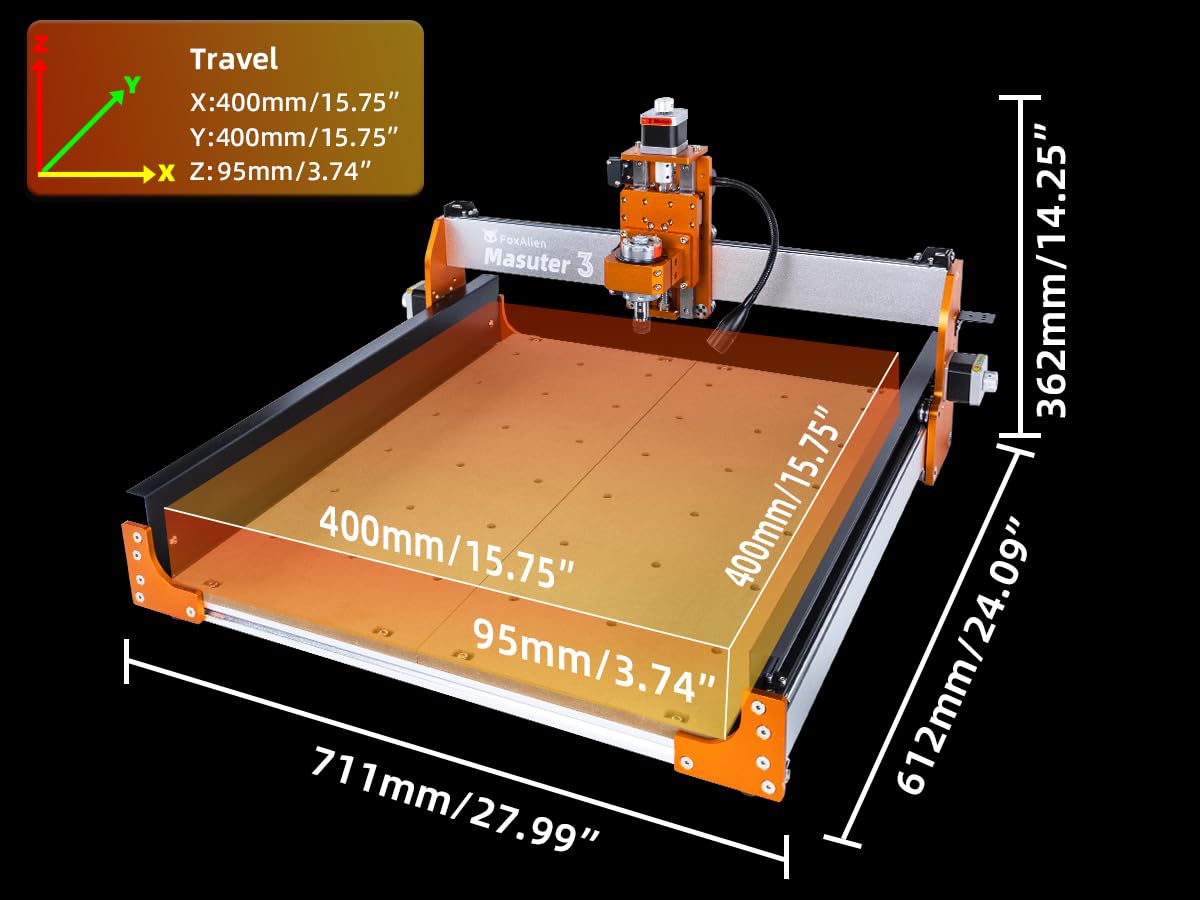

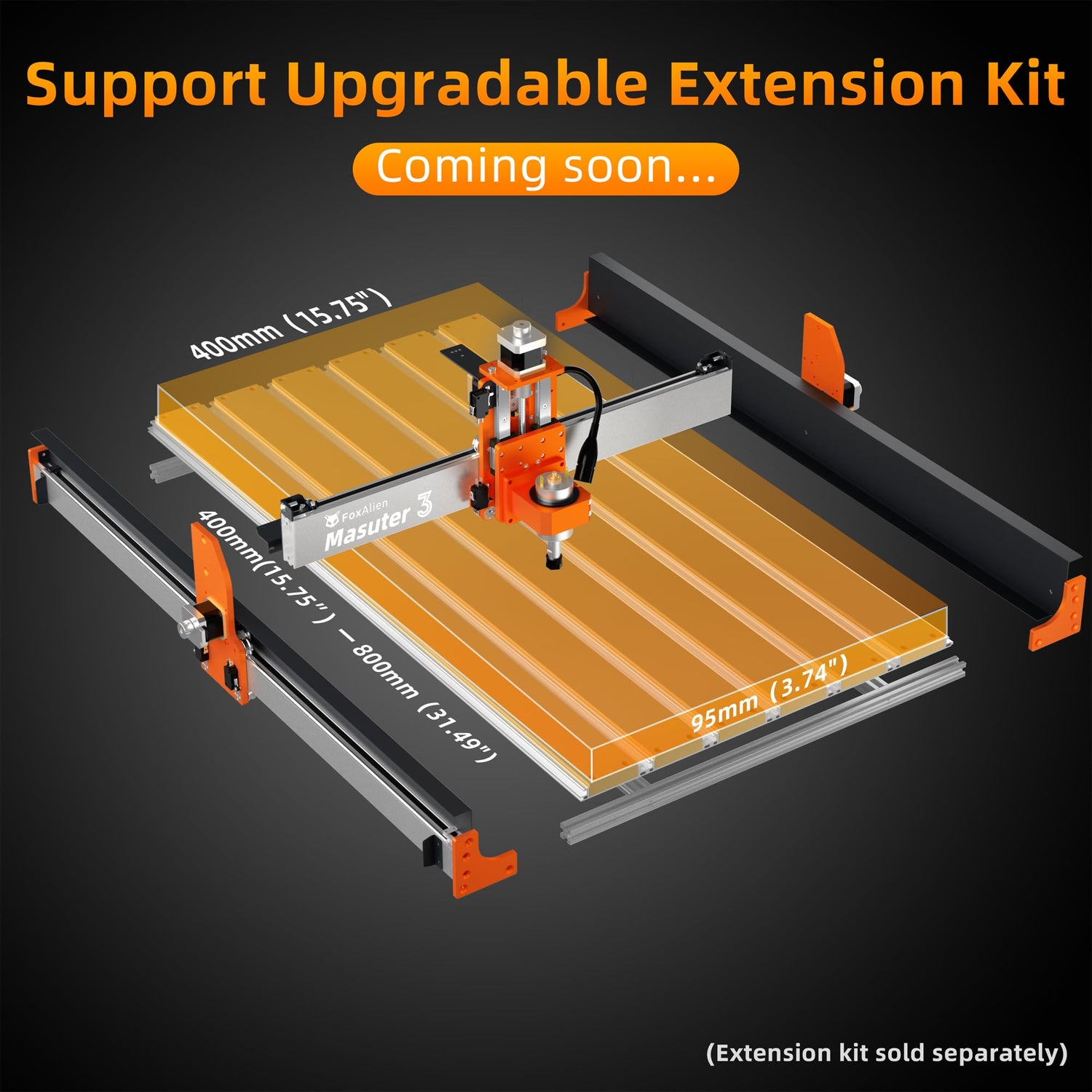

- Improved Z-axis travel: The Masuter 3 extend Z-axis travel up to 3.74” (95mm), which can work with thicker materials. The effective working area is 15.75” x 15.75” x 3.74” (400 x 400 x 95mm). This machine can support the extension kit for large woodworking projects. The extension kit is avialable now!

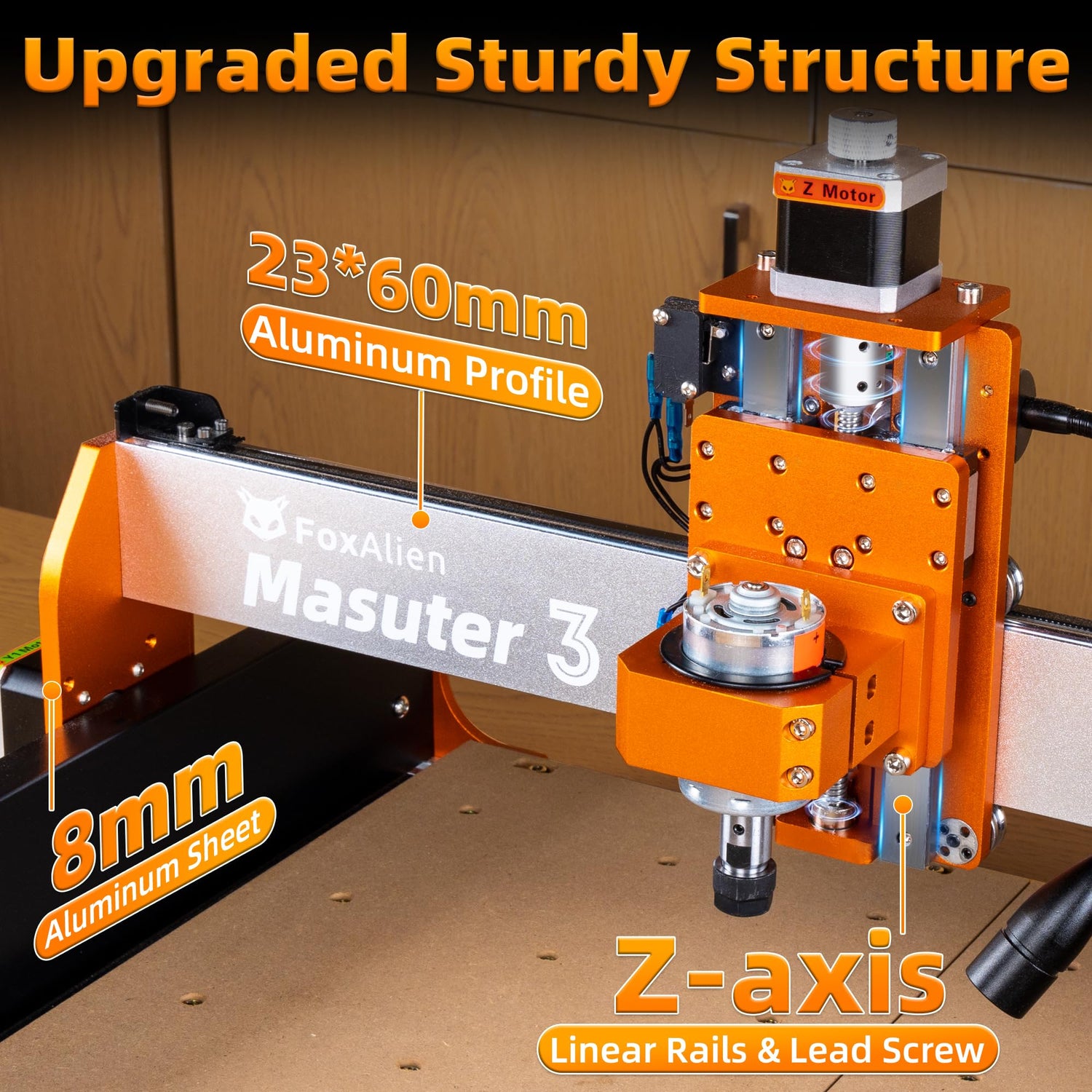

- Stable Structure: X-axis uses 23*60mm profiles and Y-axis uses 8mm aluminum sheet, which makes the machine more rigid. The Z-axis uses linear rails and lead screw to improve stability and accuracy of the machine. This machine can support T-slot hybrid spoilboard work table.
- Upgraded Design: Equipped with Y-axis dust baffles can keep the belts and wheels from dust and debris during carving. A compact controller box and additional working light are newly designed to make it more convenience to work than the last version.

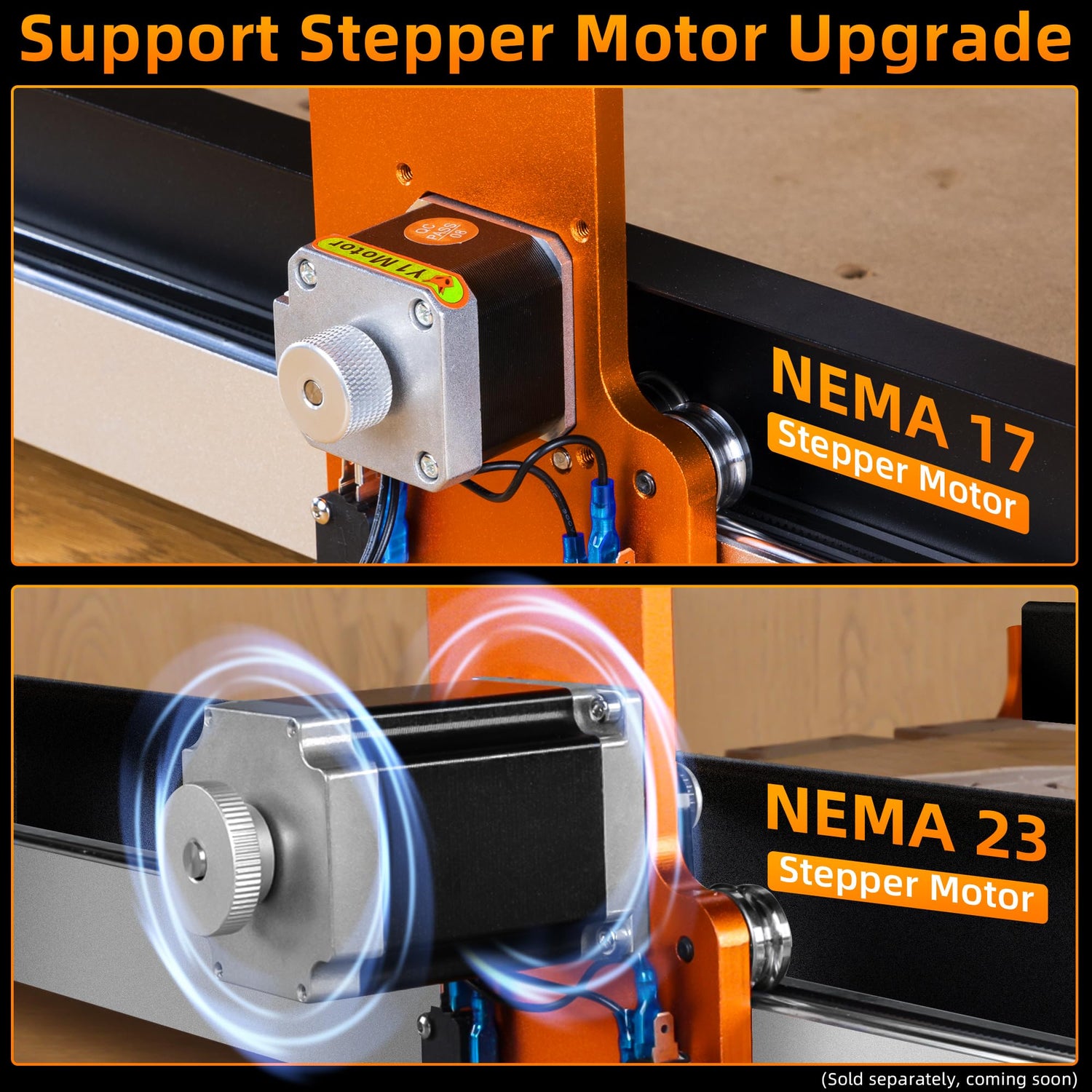

- Support Nema 23 Stepper Motor: The Masuter 3 can support upgrade Nema23 stepper motor for more torque, which is the only entry-level machine that can be upgraded to the Nema23 stepper motor. The stepper motor kit is coming soon.

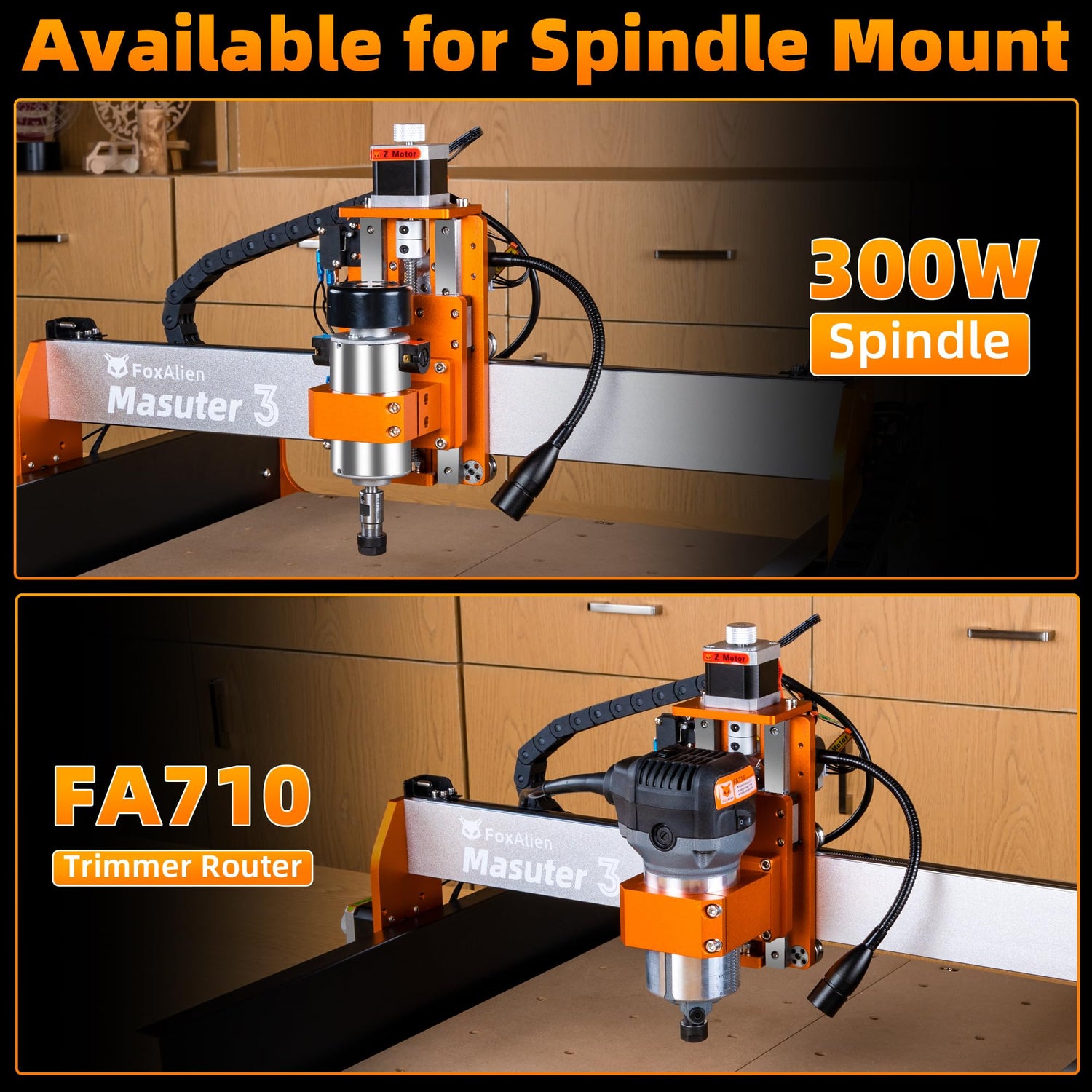

- With Different Spindle Clamps: Masuter 3 comes with 52mm and 65mm spindle clamps to allow the use of different spindles, such as 300W spindle and trimmer router. 69mm spindle clamp is not included. Please purchase separately.

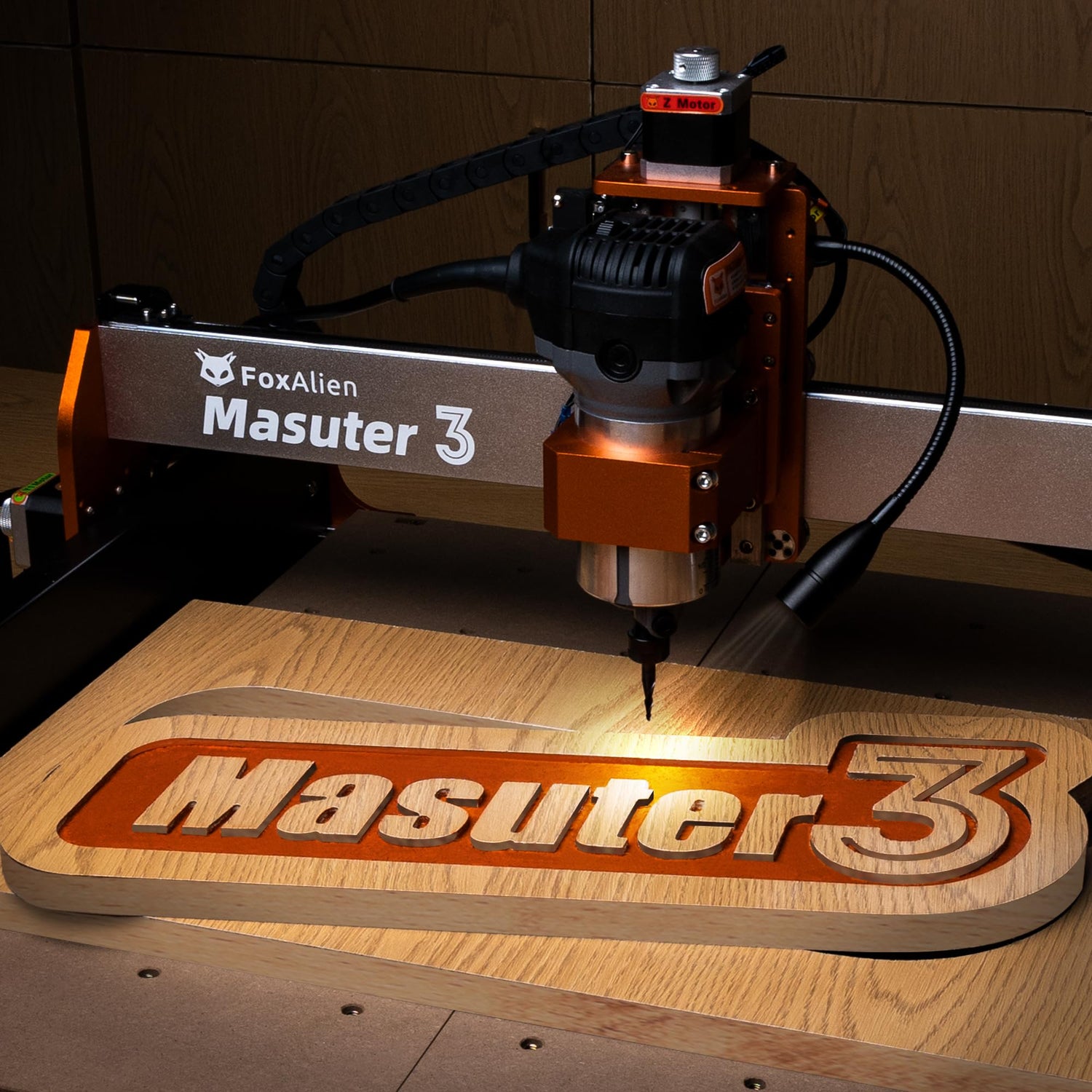

Details: The FoxAlien CNC Router Masuter 3 is the third generation CNC Router in the Masuter Series.
The Masuter 3 is the best entrance-level CNC can satisfy your different needs and help you from CNC beginner to CNC master.
Specifications:
Active Working Area: 15.75” x 15.75” x 3.74” (400 x 400 x 95mm)
Spindle: 775; 10000RPM
Input Supply: 12V/5A
Stepper Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in lb)
Supported OS: Windows XP/7/8/10/11, MAC OS, Linux
Package List:

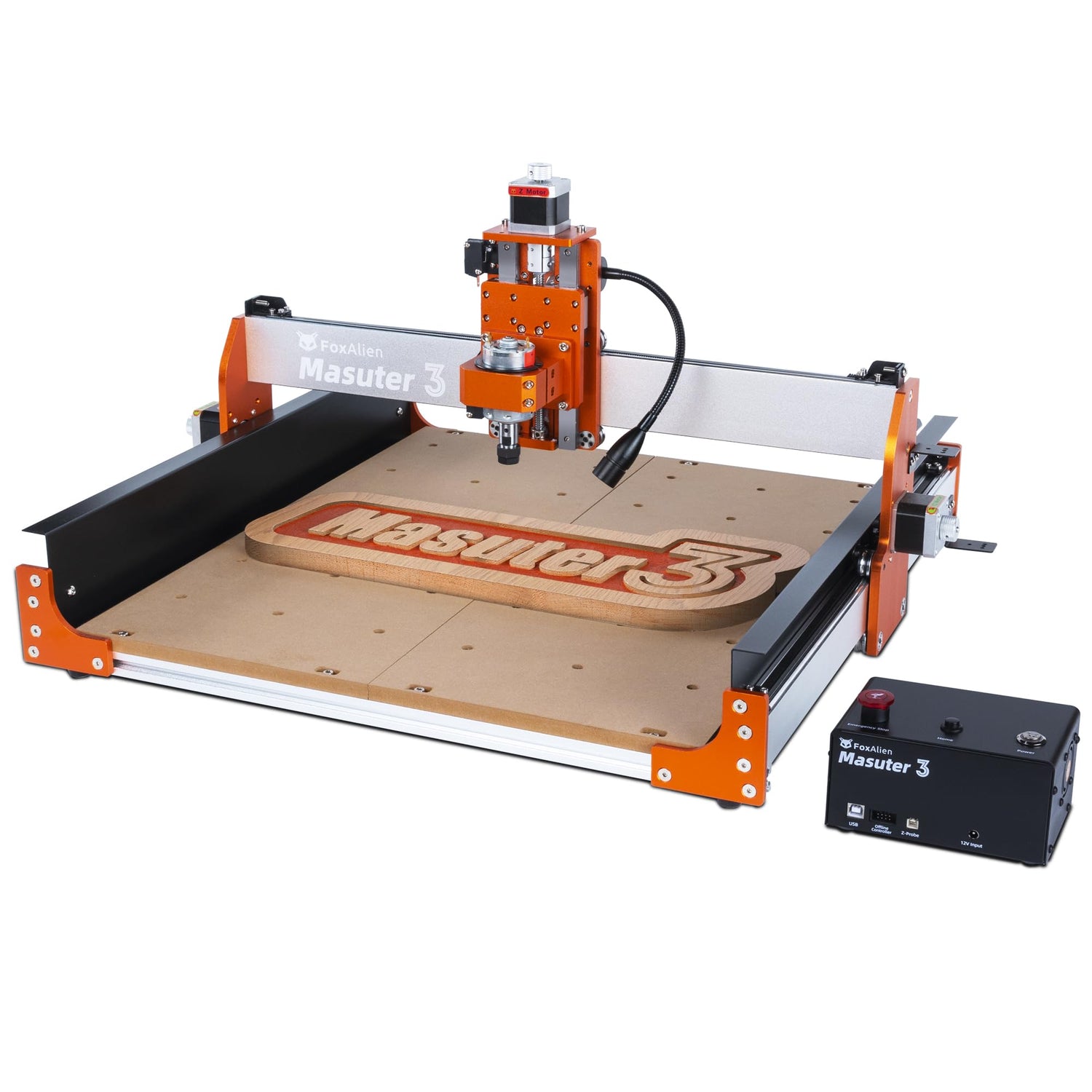

1x Masuter 3 CNC Router Machine (Main part pre-installed)
1x Z Probe
1x Controller Box
4x Hold-down Clamp
1x 52mm Spindle Clamp
1x 65mm Spindle Clamp
1x Power Supply
1x USB Cable
1x U Disk
1x User Manual
10 x Router Bits
1x Tools&screws box
Part Number: Masuter3
model number: Masuter 3
