FoxAlien Fixed-focus 20W Engraver Module Class 4 450nm PWM TTL for FoxAlien Masuter 4040, Masuter Pro, XE-PRO, 4040-XE, WM-3020 CNC Engraving Machine

Brand: FoxAlien

Color: 20w

Features:

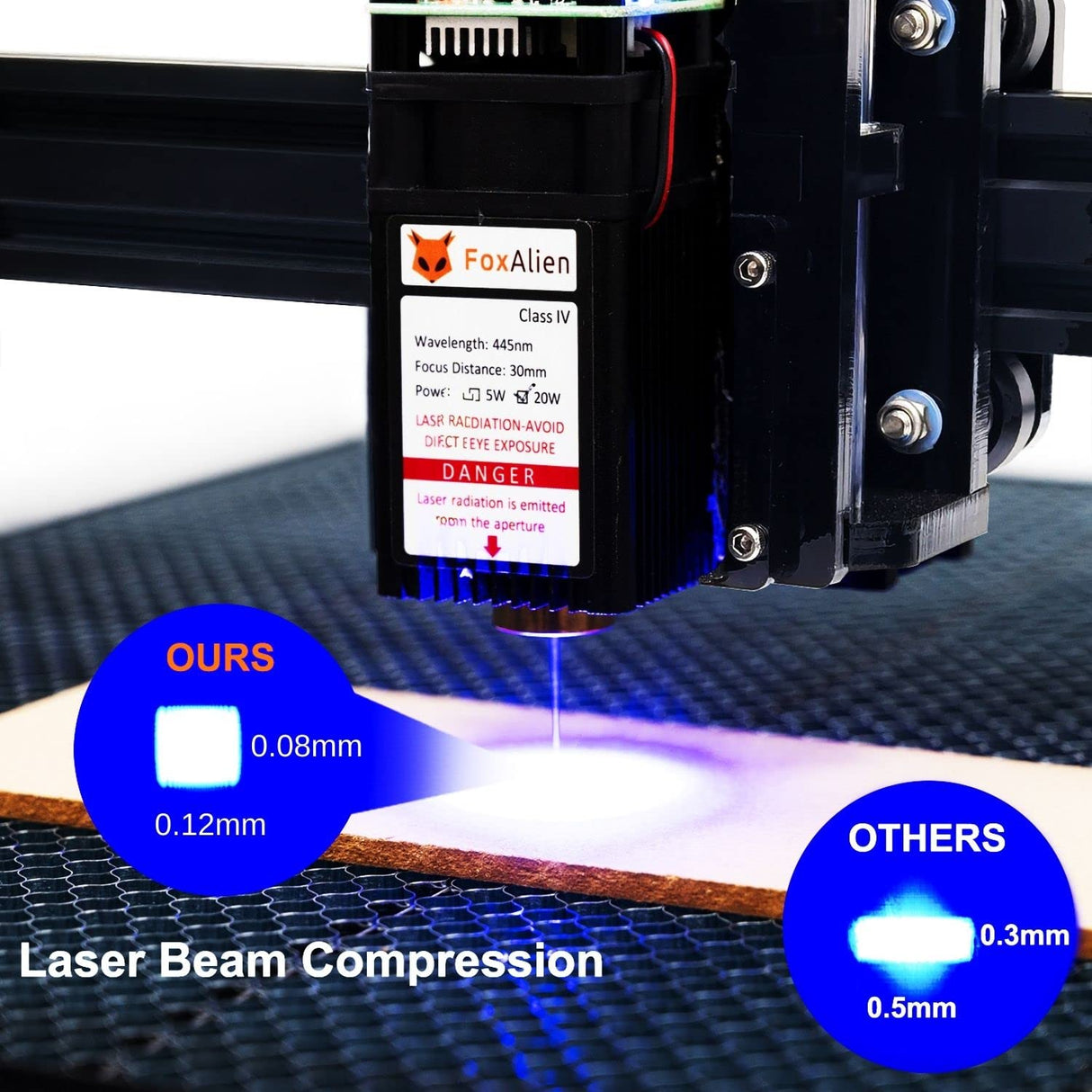

• The FoxAlien 20W engraving module features a new technology "light beam compression", which have excellent performance in engraving delicate jobs and details.

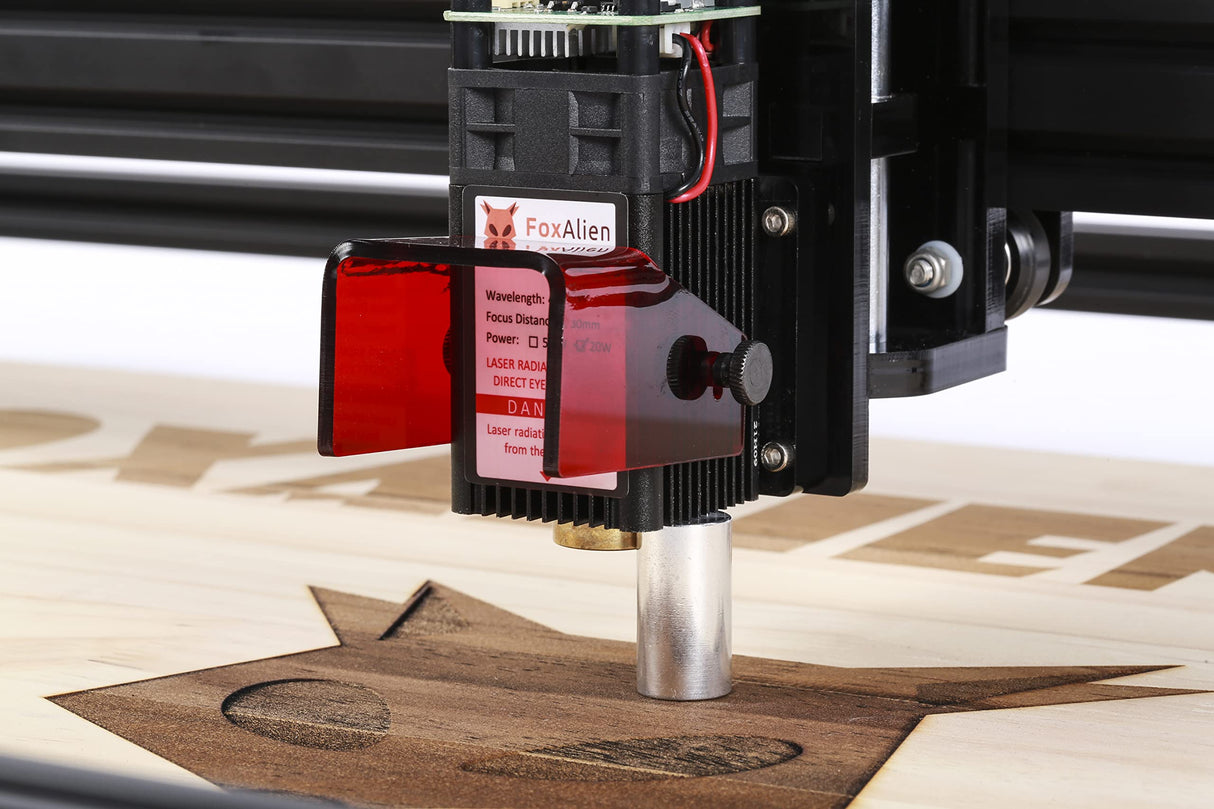

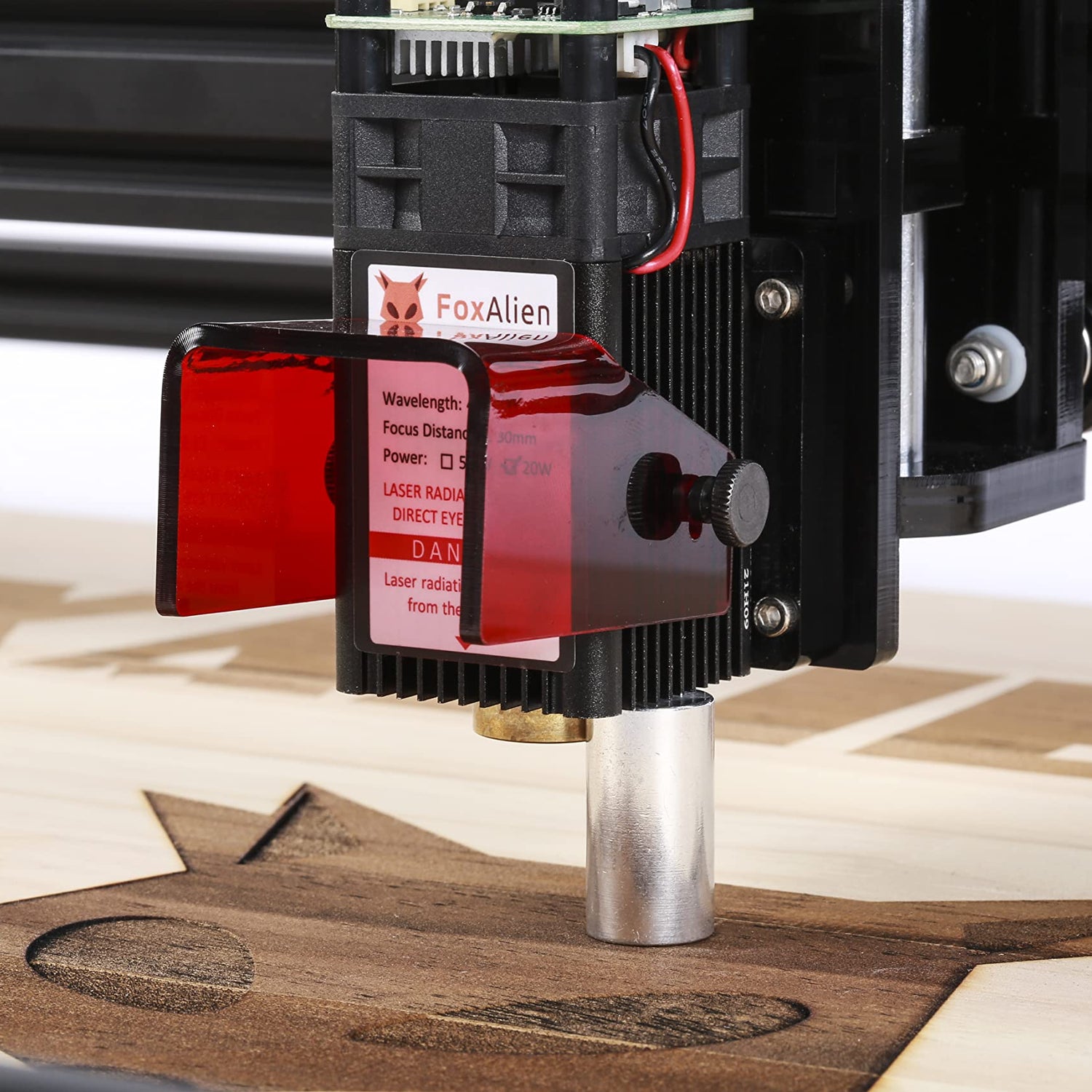

• The focus distance is fixed by 30mm. The package includes a positioning block for easy focusing. Electrical output: 20W; Optical output: 5W-5.5W.
• It is made of high-quality aluminum which also functions as a large heatsink. With the aluminum body and cooling fan, heat dissipates faster. This ensures the module has a long service life.
• It is compatible with all FoxAlien CNC machines, such as Masuter 4040, Masuter Pro, XE-PRO, 4040-XE, WM-3020, and Vasto series.
• This power module is ideal for engraving and cutting many different kinds of material such as plywood, bamboo, cardboard, acrylic, MDF etc.

Part Number: LH-20WF

Details: !!! Warnings:
This power unit belongs to Class 4. Please wear protective goggles whileoperating the module. Please avoid direct exposure to the eyesand skin. In order to avoid unexpected accidentshappens, please stay with the machine while the module is working.

Specifications
Electric Output power: 20W Optical Output power: 4900mW-5000mW Class: Class 4
Wave length: 445nm blue light Recommend Focus Distance for Cutting: 30mm Recommend Focus Distance for Engraving: 30mm to 32.5mm Voltage: 12V Current: 2A Service life: >10,000 hours Working temperature: -40~75℃

Applications:

Engraving/cutting MDF/Balsa wood/plywood/wood/fabric/plastic/leather/EVA Foam/Anodized Aluminum/Coated metal surface

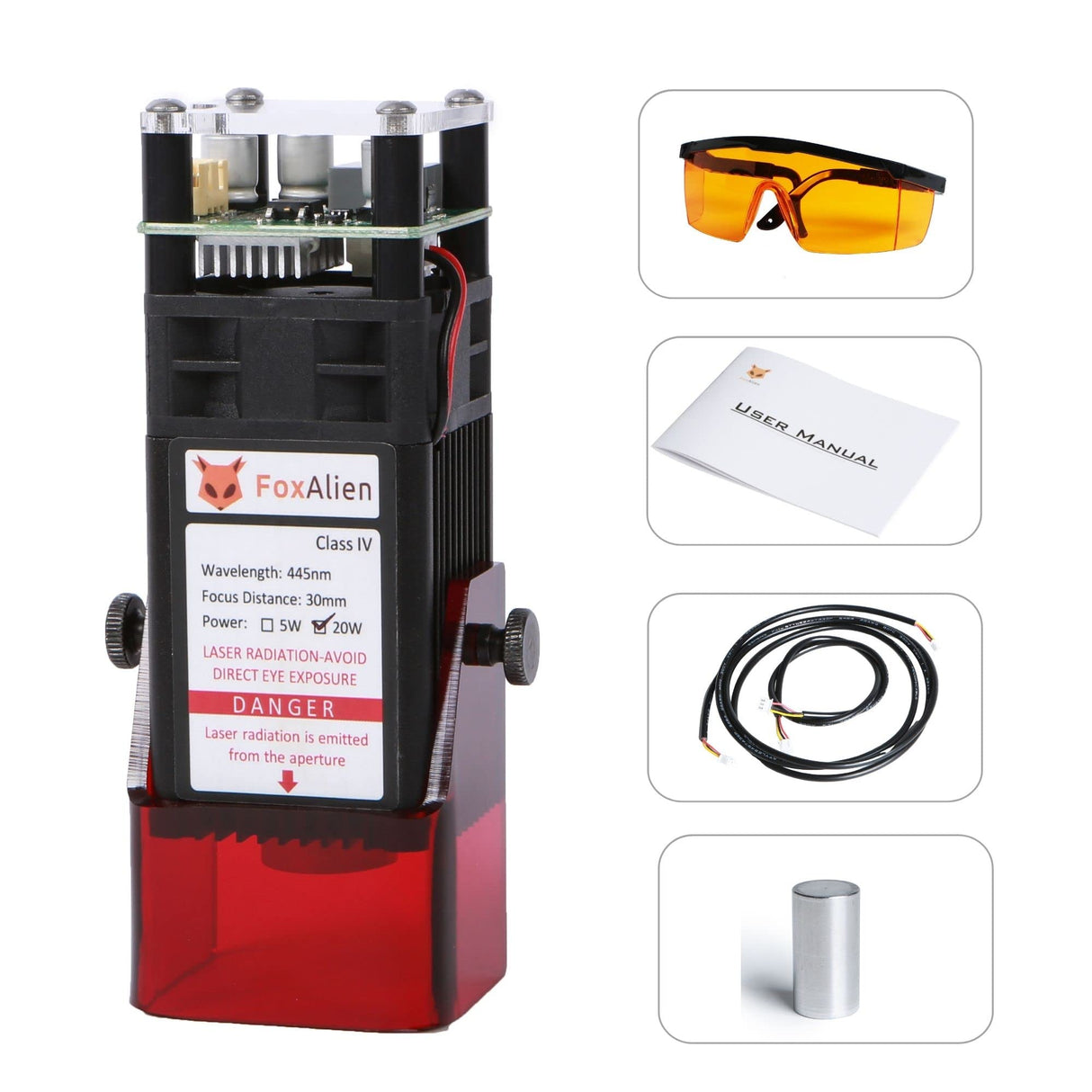

Package List
1 x FoxAlien Power Module (Compatiblewith LE-4040 Engraver/ 3018-SE/4040-XE CNC Router) 1 x Goggles 1x Positioning Block 30mm 2x Wires

EAN: 0778107043069

Package Dimensions: 7.9 x 6.4 x 3.2 inches
