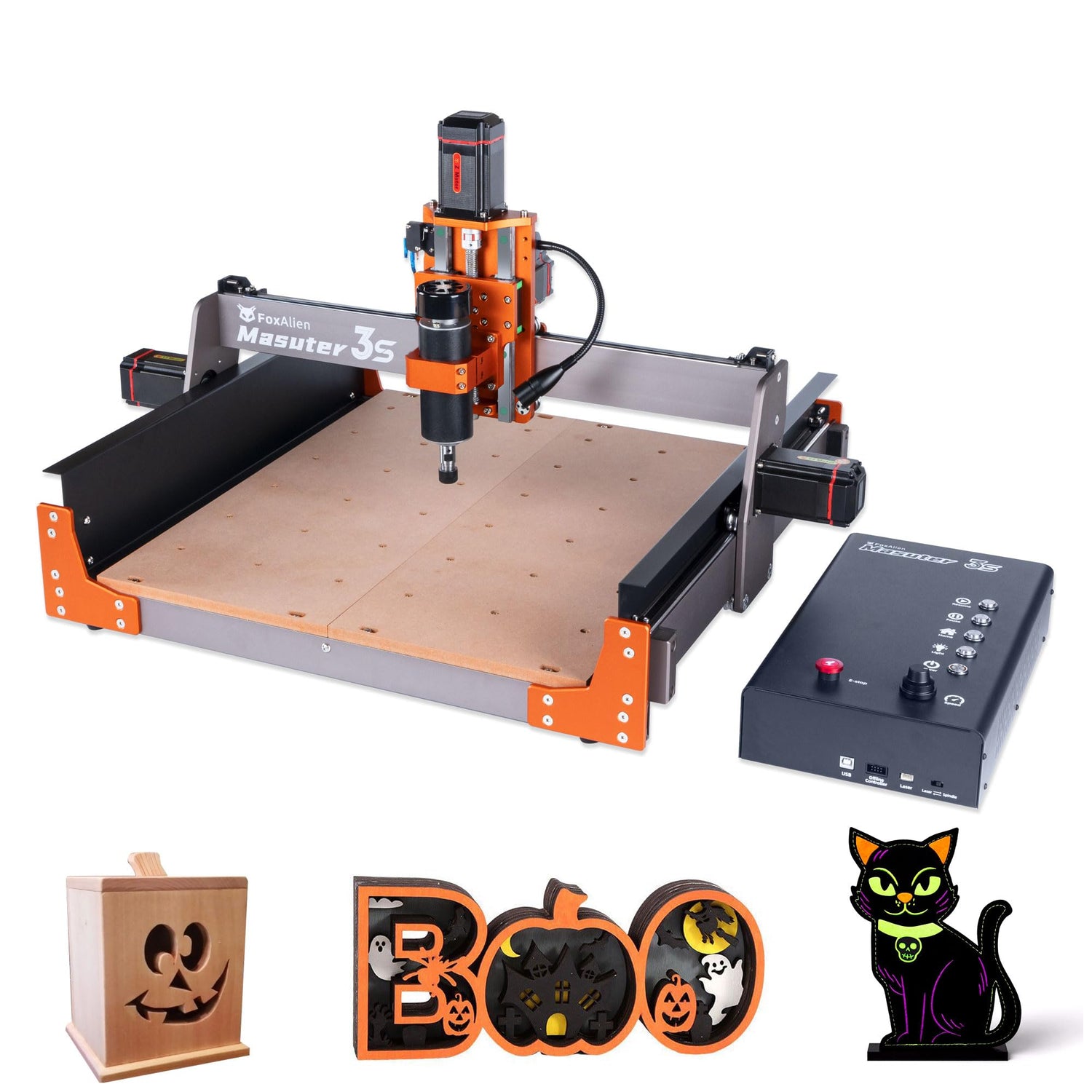

FoxAlien Masuter 3S CNC Router Machine with NEMA 23 Closed-Loop Stepper Motor, 400W Spindle 3 Axis Engraving Milling Machine for Wood Acrylic Aluminum Carving Cutting

Brand: FoxAlien

Features:

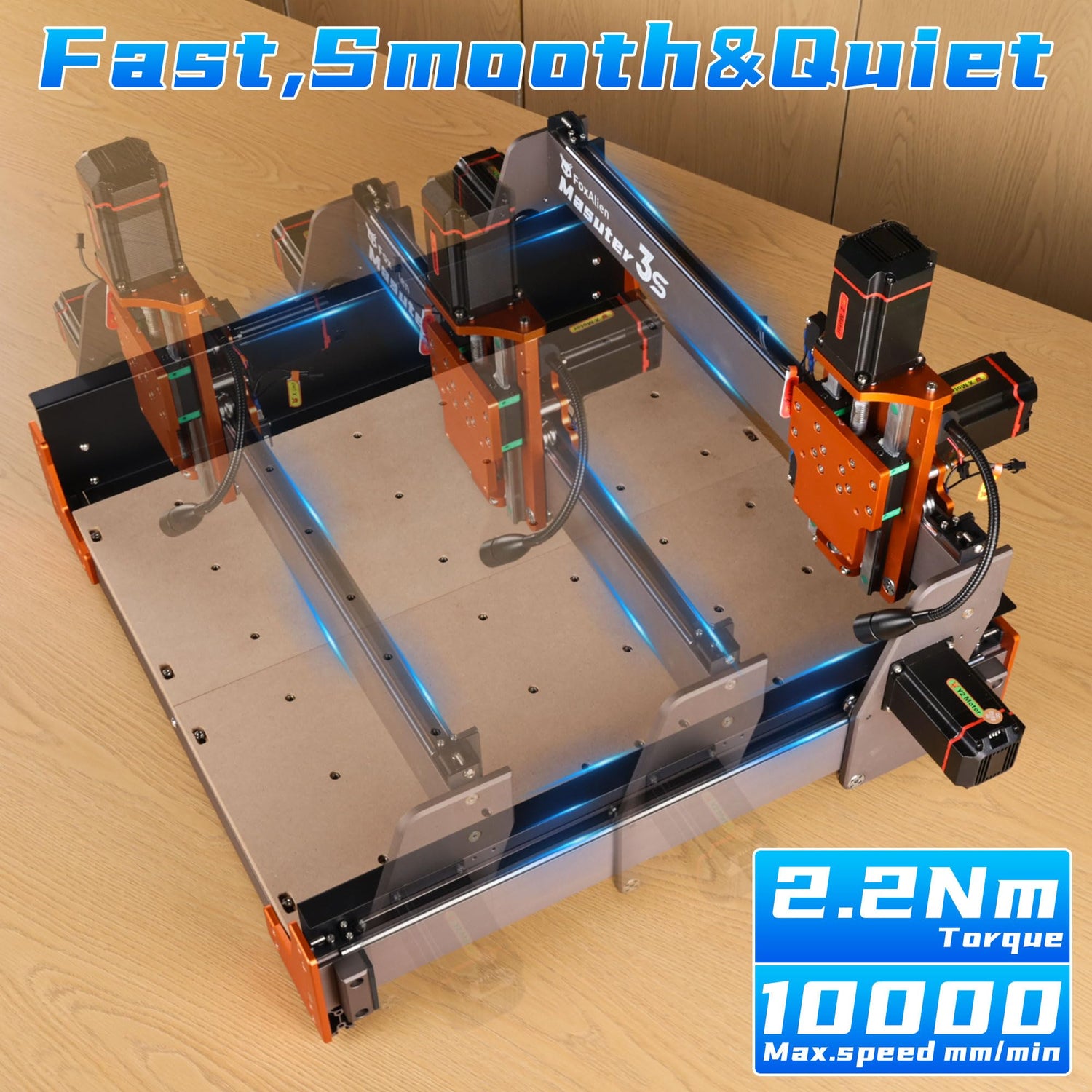

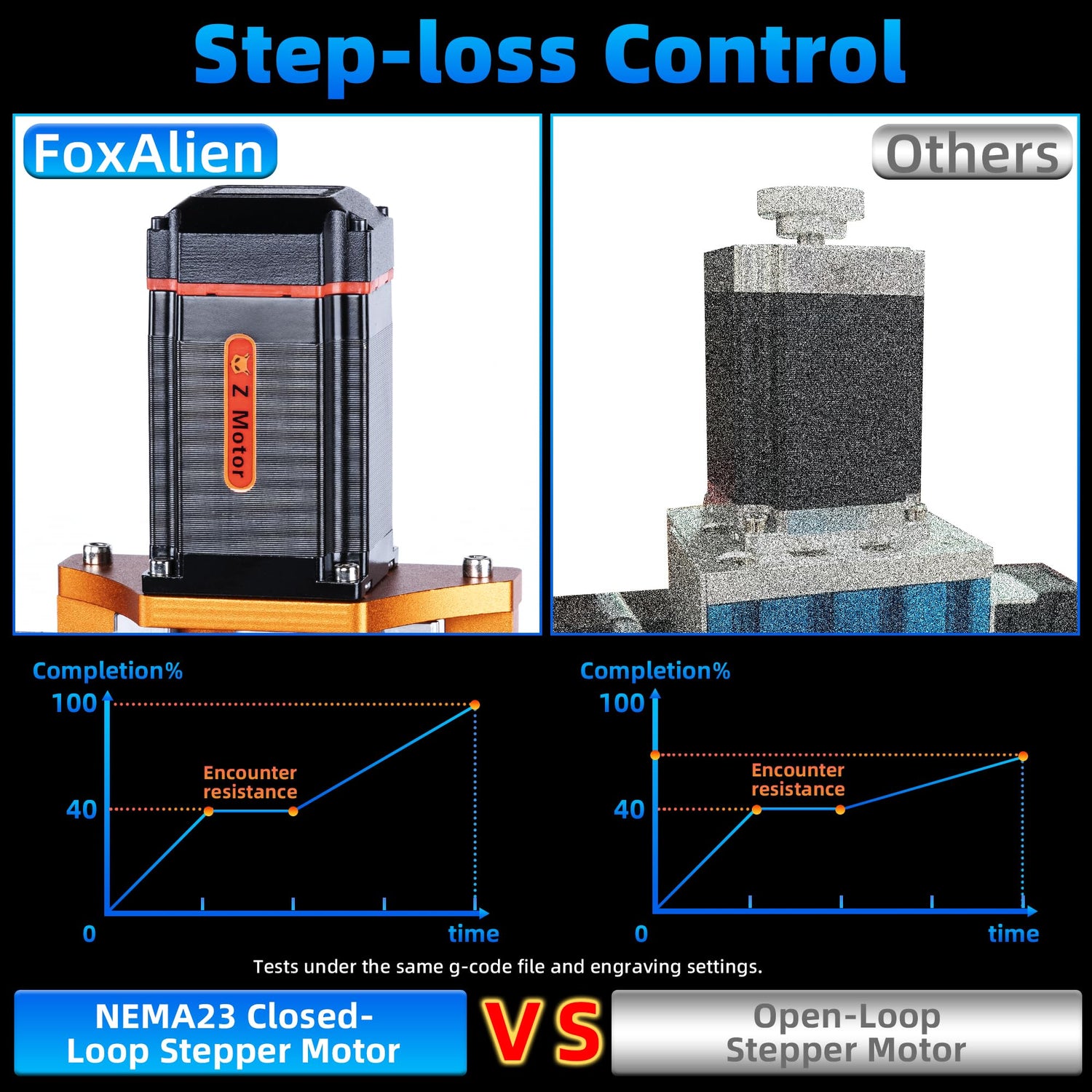

• Fast & Strong Closed-loop Motors: The Masuter 3S is equipped with NEMA23-76 closed-loop stepper motors. They have great performance in step-loss control. And the torque is 2.2 Nm. and its moving speed is up to 10000mm/min.

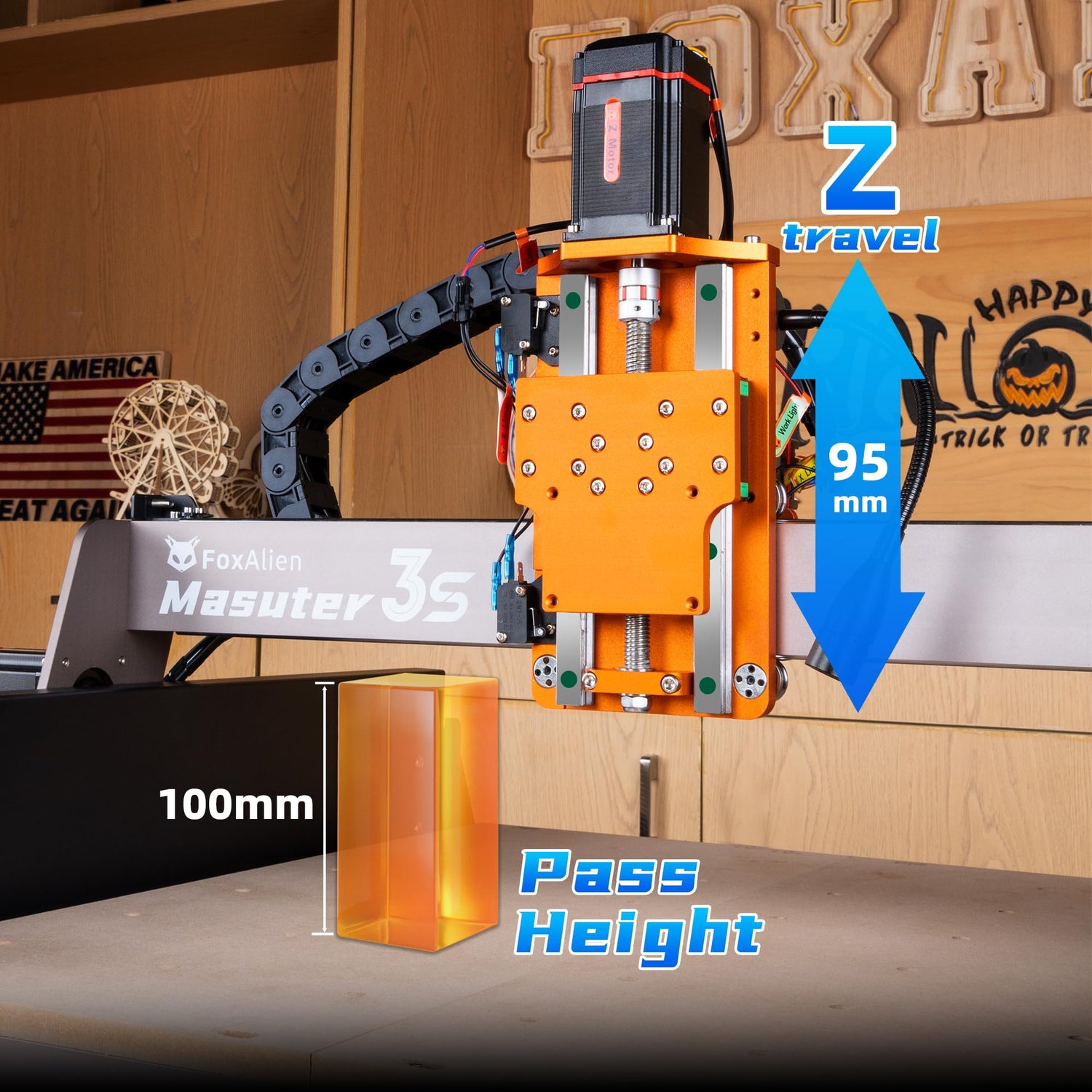

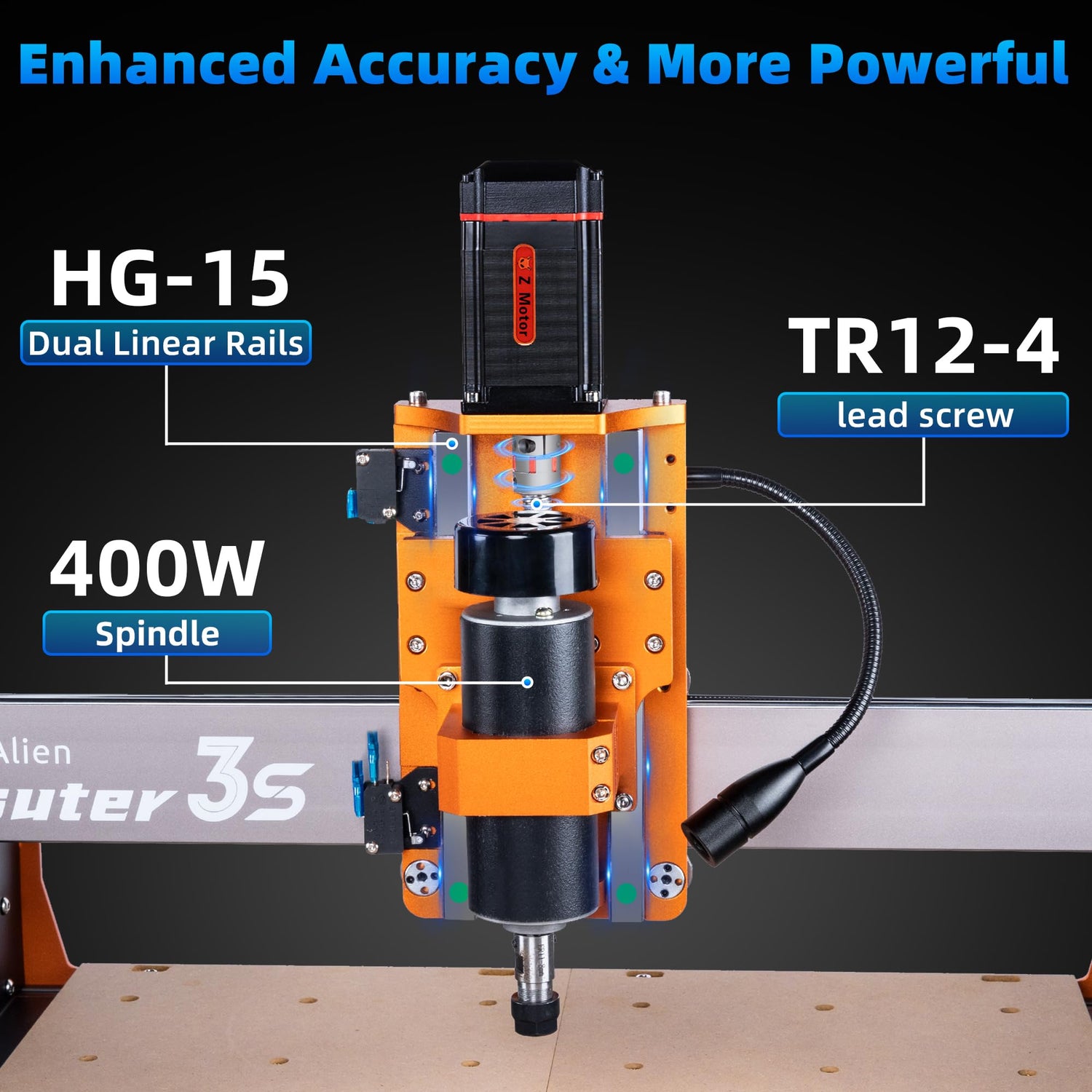

• Rigid Structure & High Accuracy: The Masuter 3S uses 23*60mm extrusions that ensure the stability during carving. The Z-axis uses dual HG-15 linear rails and T12 lead screw, which effectively reduce wobble and enhance the engraving accuracy to 0.05mm.
• 400W Powerful Spindle: It comes with a 400watt spindle, which is capable to engrave and cut soft metal such as aluminum. An extra spindle clamp (65mm) is included in the package for trimmer router upgrade.
• Easy-maintenance Controller Box: the newly designed controller box is easy to use and maintain. There are several shortcut buttons for fast operation. And it is dust-proof and easy to clean. It supports offline controller (coming soon).

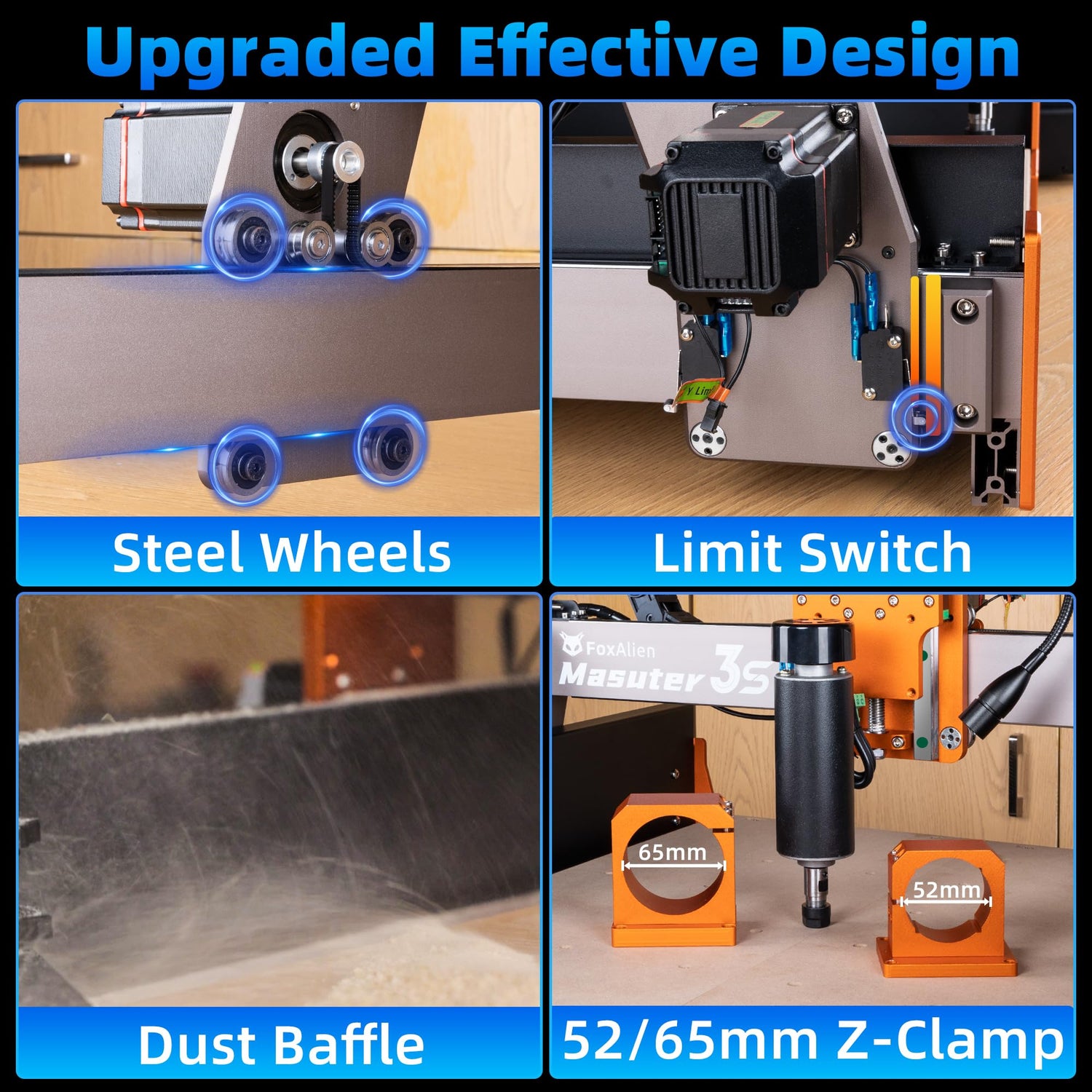

• More Upgrade Details: Innovative steel wheels pulley system improves the durability. The machine runs more smoothly and quietly. Additional supports are added to the base frame to make the worktable more solid.

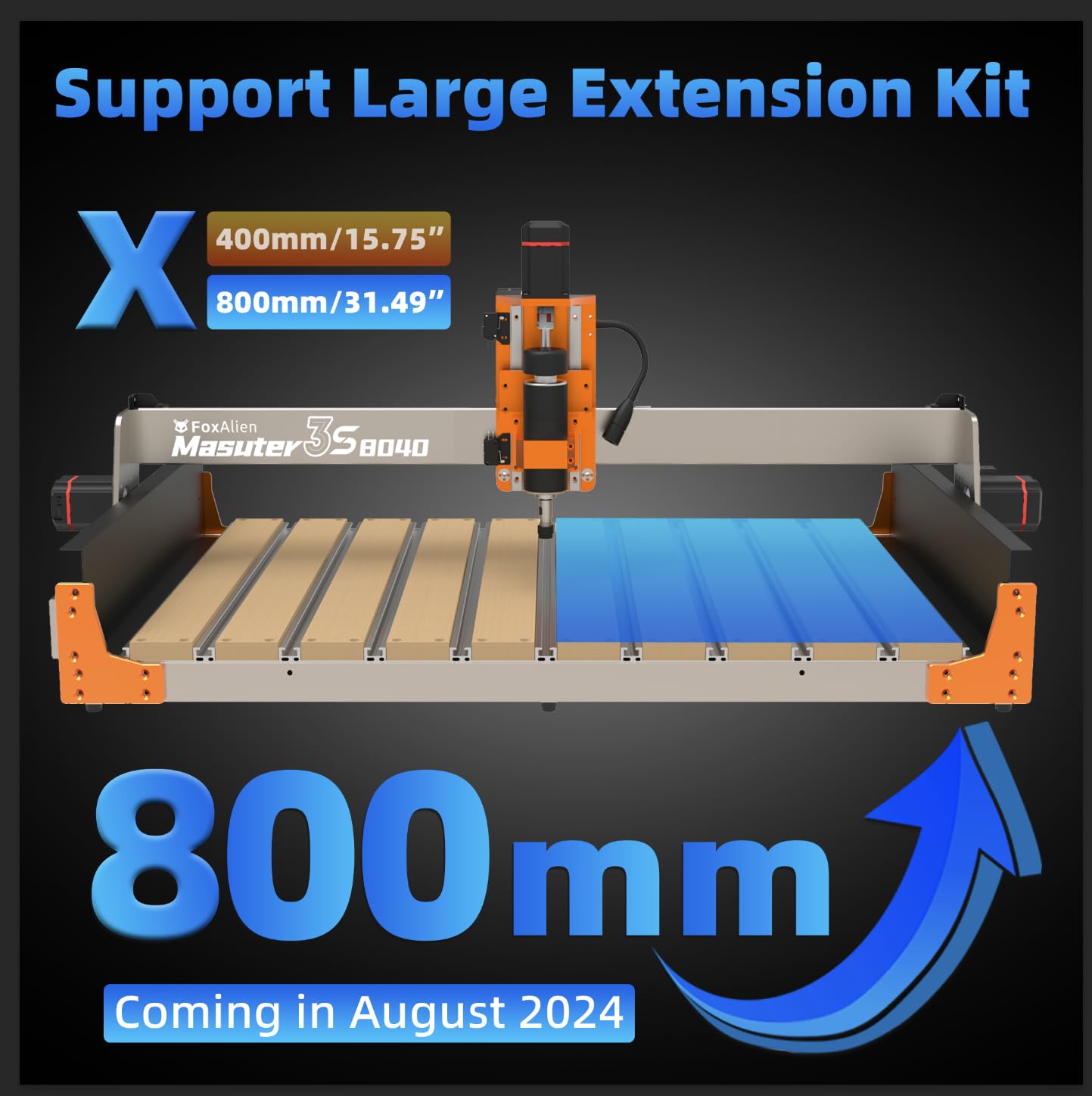

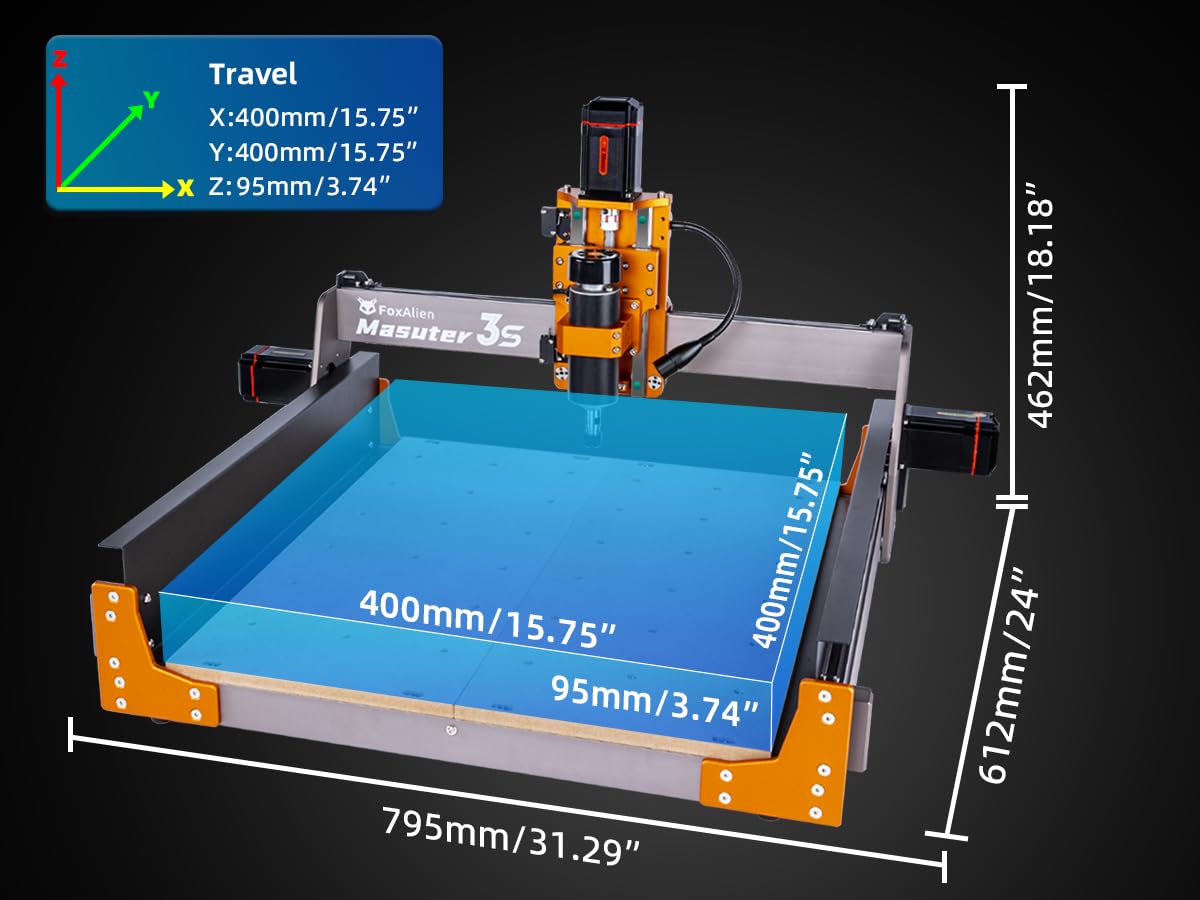

• Large Engraving Area: The active work area is 15.75” x 15.75” x 3.74” (400 x 400 x 95mm). It also supports X-axis extension kit for large projects (B0D5HK72MP).

Details: Description:

The FoxAlien CNC Router Machine Masuter 3S has a huge improvement comparing to the Masuter seriers. Equipped with closed-loop stepper motors and a powerful 400W spindle, the Masuter 3S is more stable and accuracy to accomplish a lot of carving.

Specification:
Model Name: Masuter 3S Working Area: 15.75“ x 15.75” x 3.74“ (400 x 400 x 95mm) Frame & Structure: Metal Frame & MDF Spoilboard XYZ Axis Stepper Motor: Nema23 76mm Closed Loop Stepper Motor Max Speed: 10000mm/min Spindle Power: 400W Extra Mount: 52mm & 65mm

Package List:
1x CNC Router Masuter 3S 1x MDF Table 1x Control box 2x Set of engraving bits (10pcs/set) 1x USB cable 1x Power cord 1x Box of screws and tools 1x User manual

Binding: Tools & Home Improvement

Part Number: CNC

model number: CNC-Masuter-3S-JP
