FoxAlien R42 Y-axis Rotary Roller Engraving Module for Cylindrical Objects Curved Surface Compatible with FoxAlien Masuter Pro, Masuter 4040 CNC

Brand: FoxAlien

Color: R42

Features:

• This Y-axis Rotary roller engraving module is designed for FoxAlien Masuter Pro, Masuter 4040 CNC router machines and Reizer engraver. (Not compatible with 4040-XE & XE-PRO)

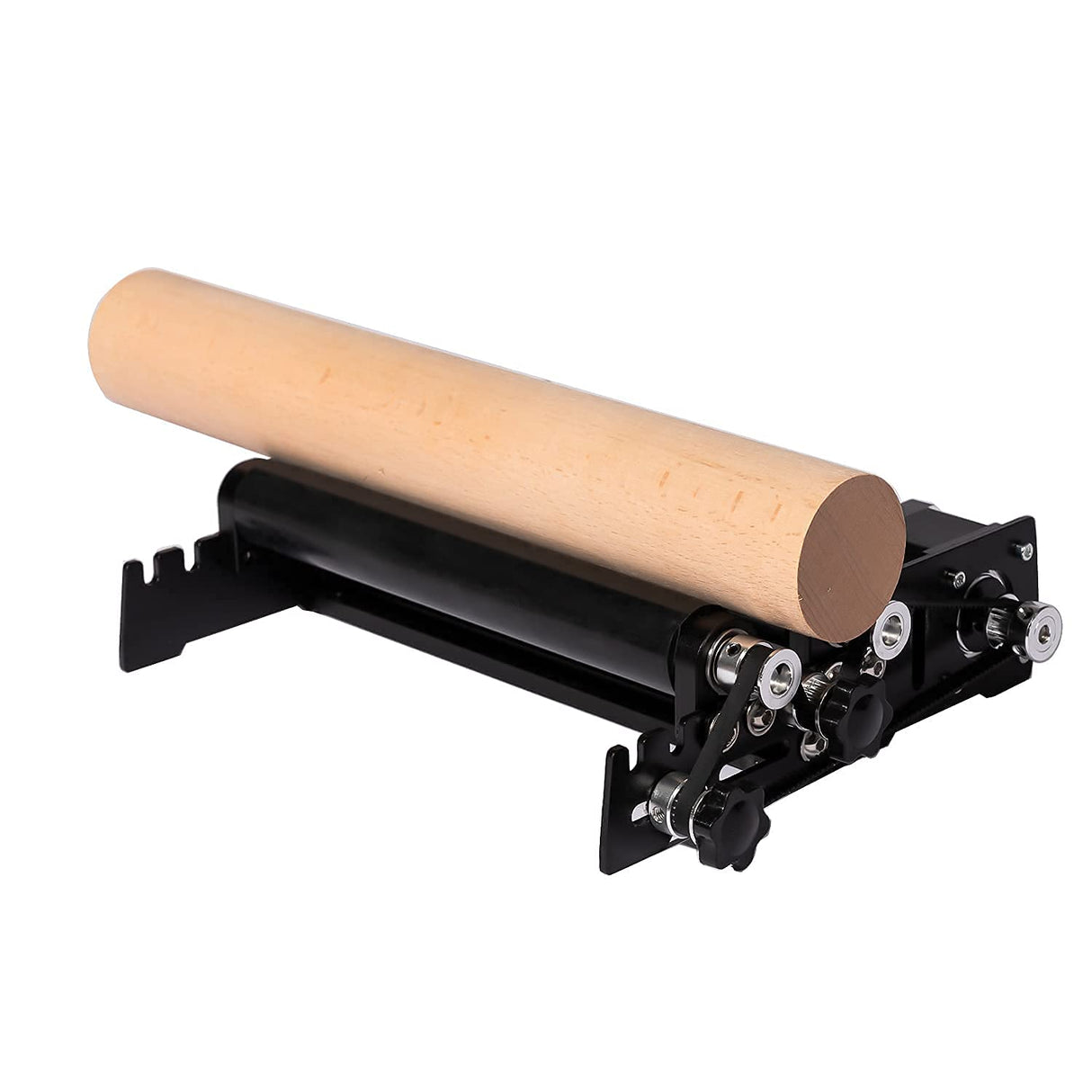

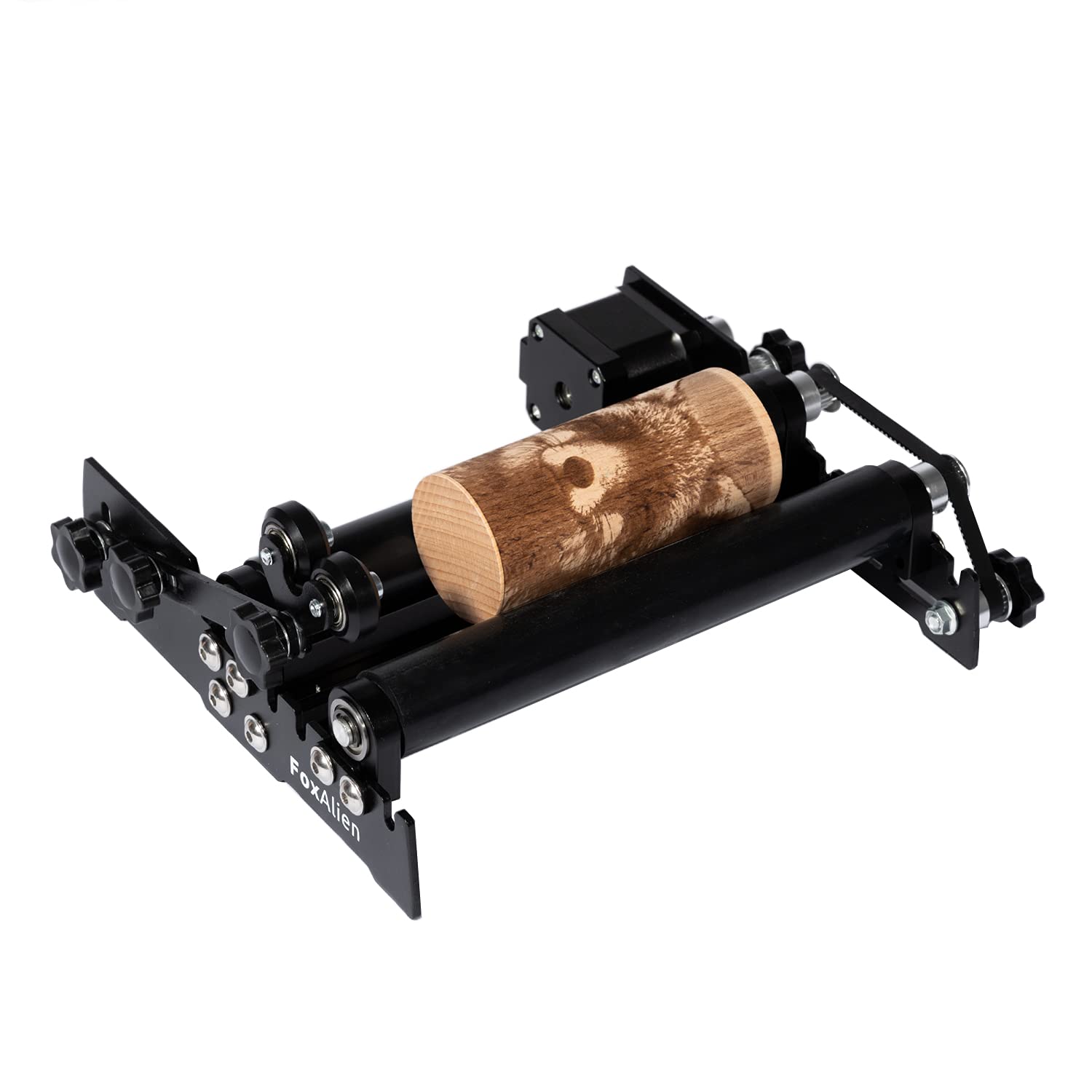

• The rotary roller module is applied to engraving curved surface and cylindrical objects such as round wood, cup, cans, bottles and glass etc.
• The rotary module is fully assembled. No complicated assembly. Easy wiring. The package comes with a detailed and clear manual for using introduction and wiring.
• The rotary module is adjustable according to different size of cylindrical objects. The rollers spacing can be adjusted by relocating the screws to fix different size of objects.

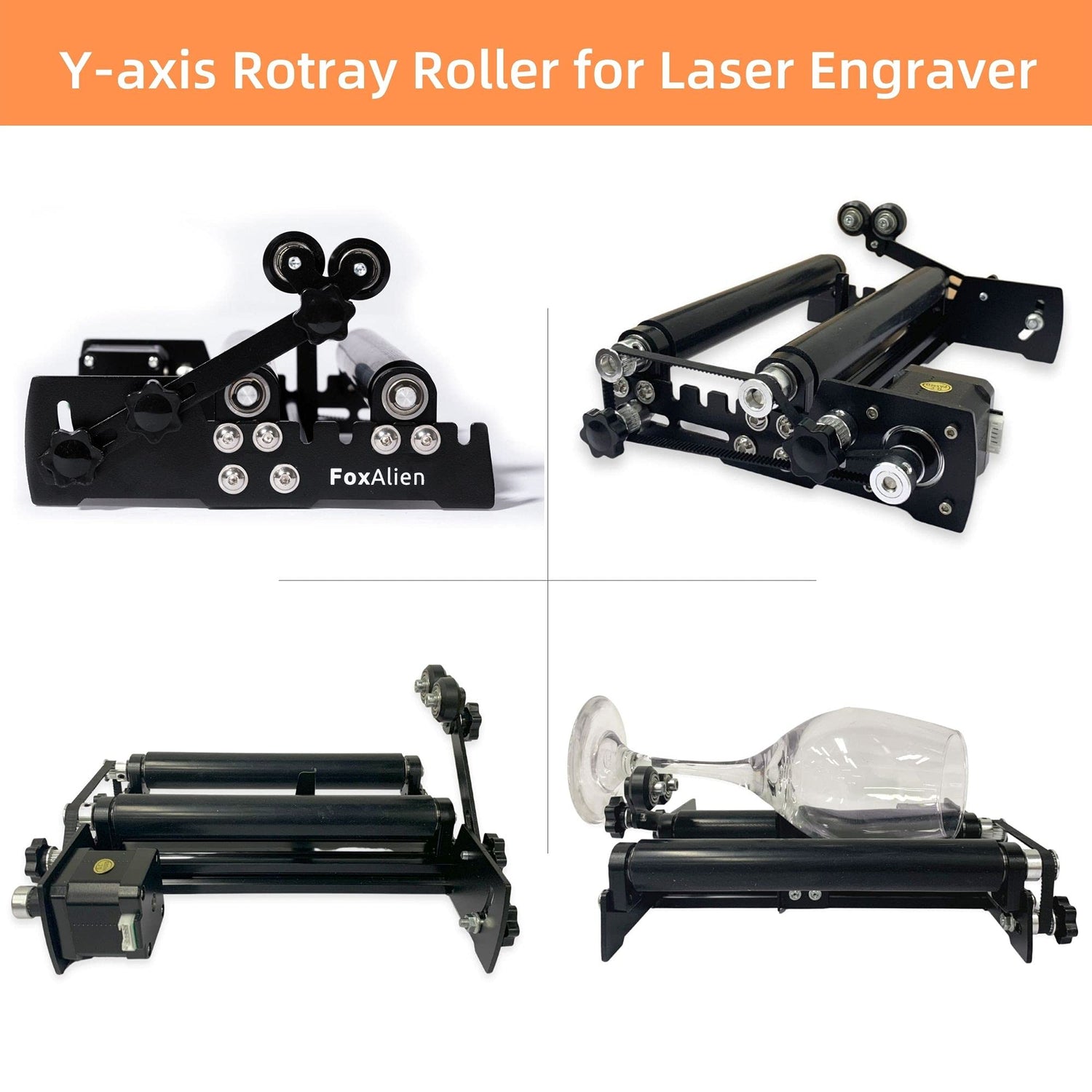

• There is a bracket with wheels which is designed to provide support to goblets such as wine glass. The angle of the holder is adjustable according to different objects.

Part Number: LE-Roller

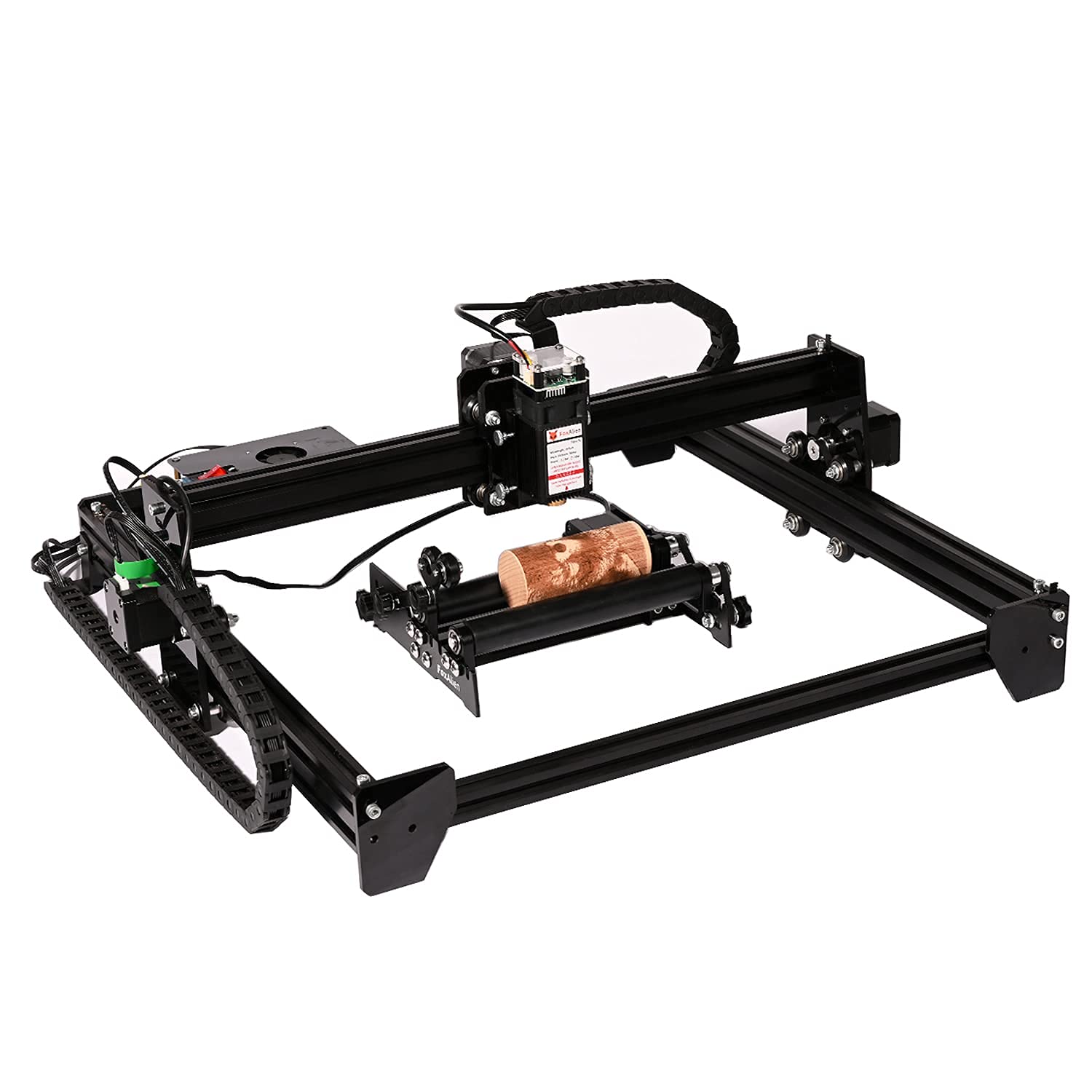

Details: FoxAlien Rotary Roller Engraving Module is designed for LE-4040 and LE-4040 PRO CNC engraving machines to engrave cylindrical objects.
The whole rotary module is pre-assembled. It is available to plug-and-use with simple wiring and adjusting after you receive it.

Applications:
The rotary axis module can be applied to engrave cylindrical objects such as round wood, cup, cans, bottles and glass etc.

Product specification:

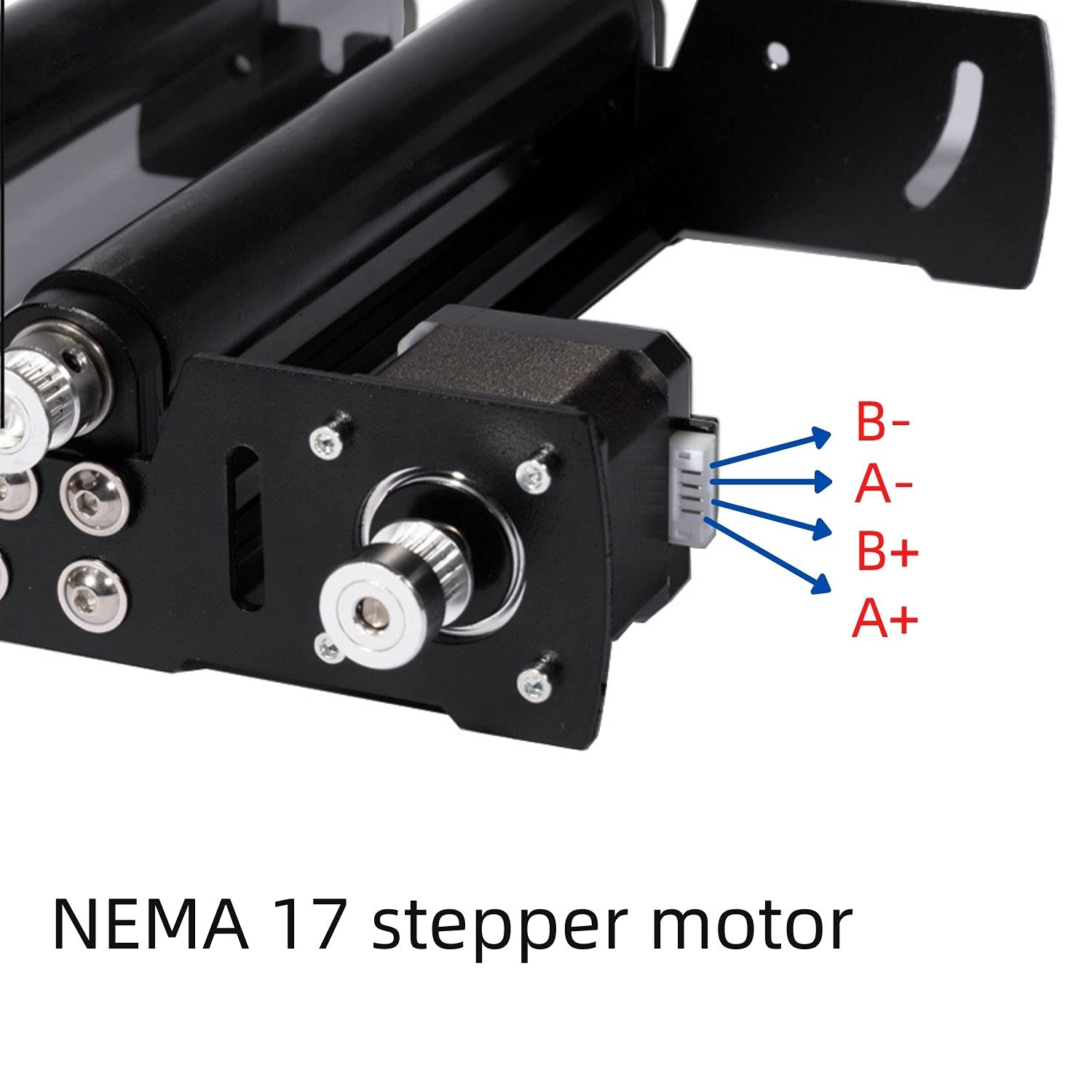

Stepper motor: NEMA17 stepper motor
Compatible with: FoxAlien LE-4040, LE-4040PRO
Support software: Lasergbrl, Lightburn

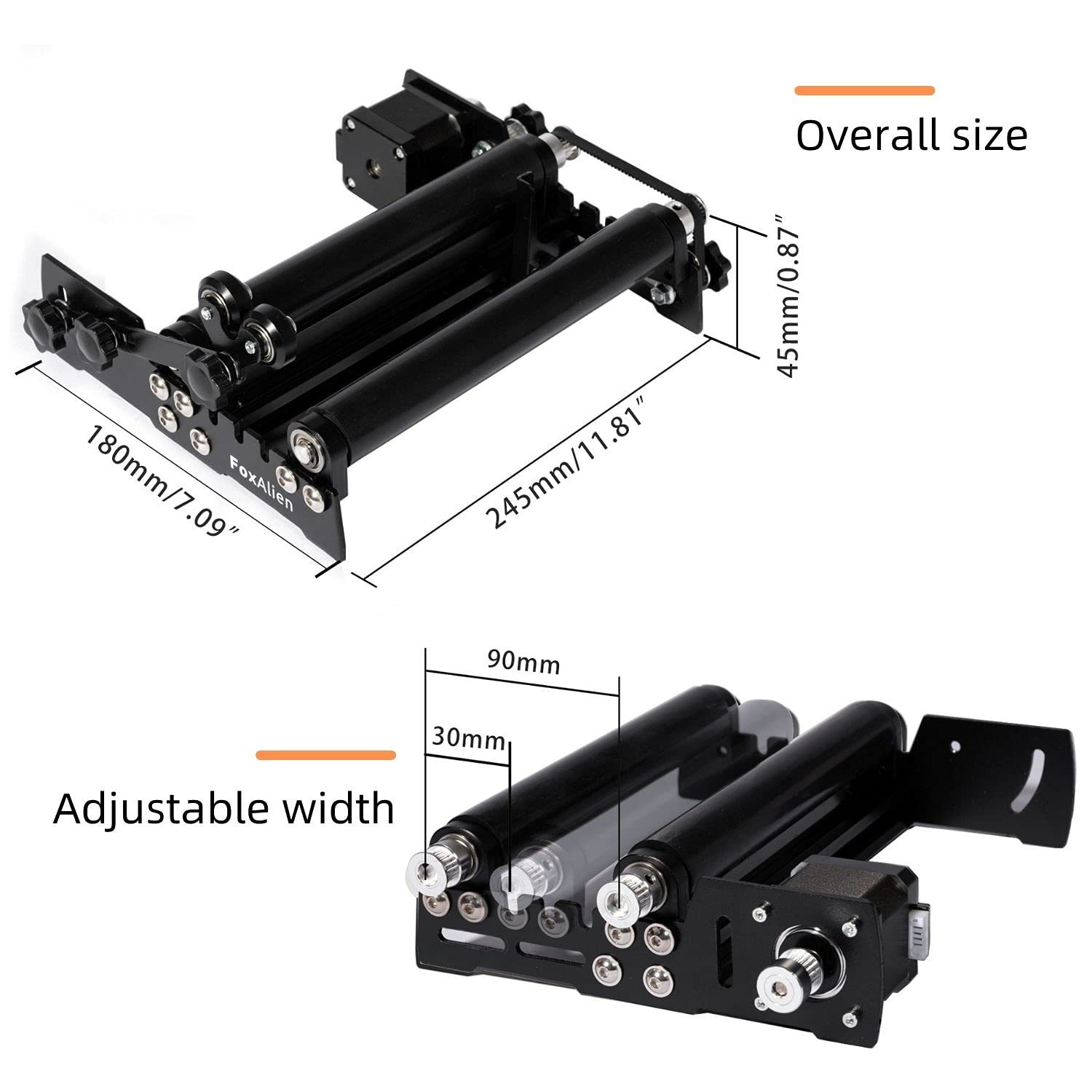

Product size: 24.5*18*8cm/9.45*7.08*3.15inch


Using Tips:

Check the set screws on the synchronouswheels from time to time in case they get loose during engraving. Make sure theset screws are tightened.
The belt is adjustable, make sure the screw sare tightened after adjusting the belt, otherwise it may lose steps if the belt is loose.
Read the user manual thoroughly before using.


Package List:

1x Rotary roller engraving module
1x User Manual

EAN: 0778107043083

Package Dimensions: 12.2 x 9.2 x 5.0 inches
