Description
Description
Brand: FTVOGUE
Features:

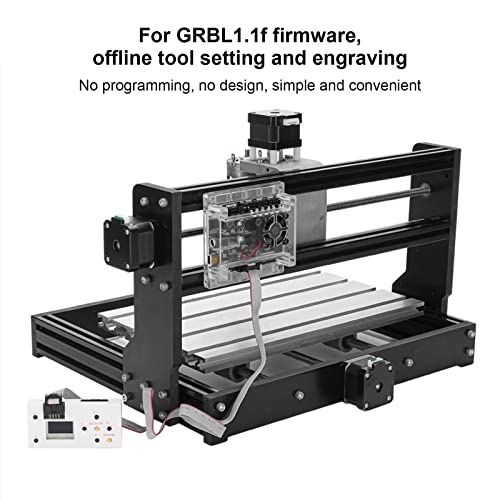

- OFFLINE ENGRAVING: using GRBL1.1f firmware, stable performance. Optional offline module to realize offline tool setting and engraving. The laser directly enters the picture for engraving, no programming, no design, simple and convenient
- SHORT CIRCUIT PROTECTION FUNCTION: cancel the drive module, adopt integrated imported stepping motor drive, with short circuit protection, integrated heat dissipation aluminum alloy
- STABLE OVERCURRENT PROTECTION: Provide stepper motor overcurrent protection to avoid damage, upgrade integrated stepper motor drive, 2A high current, high stability. Added power button switch
- GOOD HEAT DISSIPATION: professional shell protection, fan active heat dissipation, no heat for a long time. Increase the fan port for forced heat dissipation, increase the shell to protect the control board during transportation, and avoid short-circuit problems during use
- POWER ADJUSTABLE: support PWM or TTL control, power 0-100% adjustable. Spindle supports PWM power 0-100% adjustable. Enhanced spindle drive can support 20000rpm spindle
- Industrial Supplies,General Equipment,Cnc, Metal Processing And Fabrication,Laser Engraving Machine
Part Number: FTVOGUE03457d1qa96524
Details: Specification:

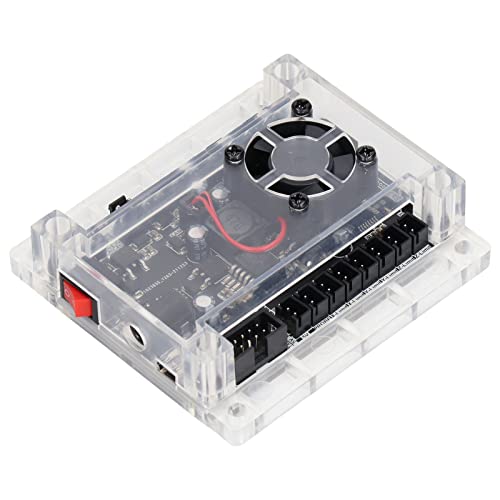

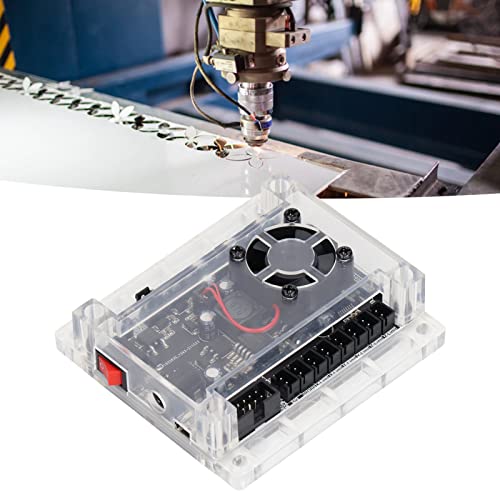

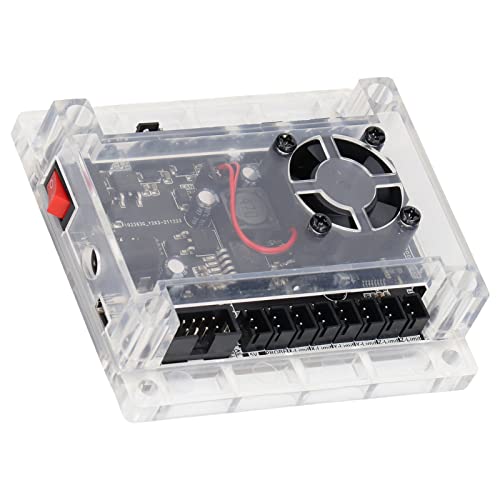

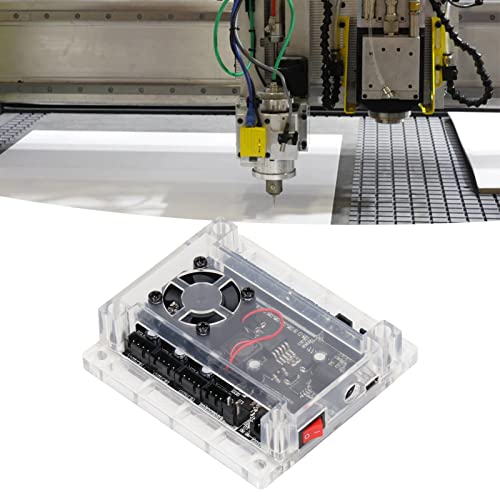

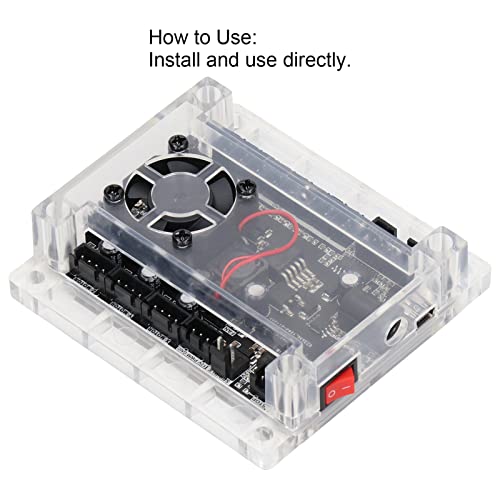

Item Type: CNC Engraving Machine Control Board
Connection: USB
Software: For GRBL Controller, for UniversalGcodeSender
Main Control Chip: 328P
Spindle Drive Chip:
MOSFET (recommended 24V, current within 10A)
Spindle PWM Speed Regulation: Support
Support Stepper Motor: 12V, within 1.5A, it is recommended that the maximum current be less than 2A, and heating. (any stepper motor 42, 57)
Laser Engraving: Support
Power Interface: 5.5-2.5mm DC interface
Supports: For GRBL Contol or Candle (3 axes); Laser for Grbl
Support System: For Win XP 7 8 10
Support Laser: 12V 5A maximum
Spindle Motor Interface: Maximum support 400W DC spindle motor

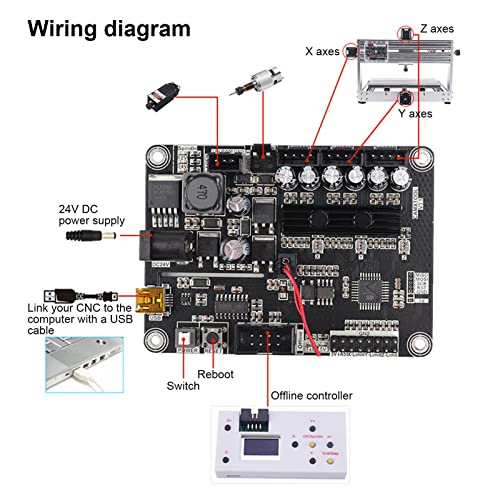

Support XYZ three axes control, spindle, laser head

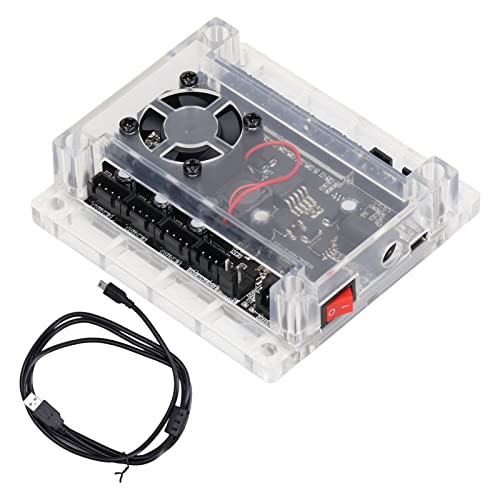

Package List:
1 x CNC Engraving Machine Control Board
1 x USB Data Cable
Package Dimensions: 6.4 x 4.4 x 2.2 inches
