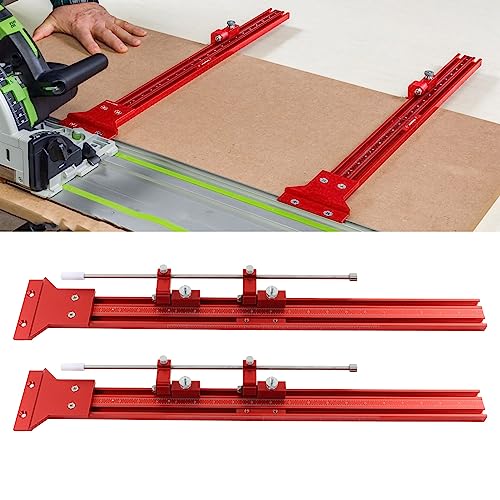

FTVOGUE Parallel Guide Rail System Circular Saw Track Set Woodworking 90 Degree Guide Rail Joining Set T-Track Miter Track Guide Auxiliary Tool for

Brand: FTVOGUE

Features:

• This guide helps you guide the wood while sawing and safely and easily take inventory on planers, molding machines, table saws or wood pickers.
• Guide Rail: Approx. 300mm / 11.8in / piece, Guide Rail Clamp Angle: 90 degree

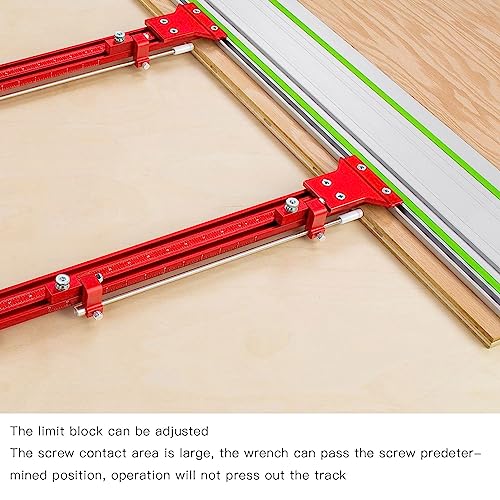

• The limit block of the parallel track can be adjusted by loosening the large screw and then the small screw, so that the limit block can be adjusted left and right.
• The accurately machined drill guide kit is designed with a accuracy scale on the body that can be adjusted to the thickness of the plate.
• After-sales Guarantee: Please feel to contact us for any questions, and we will do our best to help you!

model number: FTVOGUEpkcuqmsg70

Part Number: FTVOGUEpkcuqmsg70

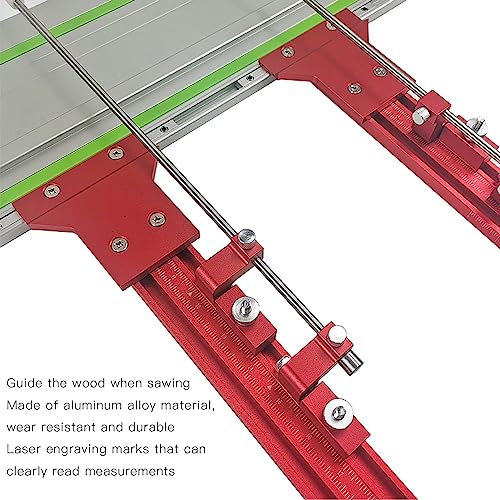

Details: 1. Aluminum Alloy Material: The fixed guide of circular saw is made of aluminum alloy material, which is wear resistant and durable and will not get dirty or fade.
2. Reasonable Design: The back plate is smooth without jamming to improve your work efficiency, and the locking design can fix the slicing distance with one key to reduce operation errors.

Specification:
Item Type: Parallel Guide Rail System
Material: Aluminum alloy
Guide Rail: Approx. 300mm / 11.8in / piece
Guide Rail Clamp Angle: 90 degree

Howtoinstalltherailconnectiondevice?
1.ScrewtheOscrewsontheshortbarandthelongbarrespectively.
2.Connectthelongcrossscrews,connectingplateandsliderinorder.
3.Connectthescalebarinorderwiththeshortbar,andtheninstallthelimitblocker,stainlesssteelbar,plug
4.Fixthecircularsawguideandparallelguidewithshortcrossscrews.
5,theothersideinaccordancewiththeaboveorder,youcancompletethesplicing.

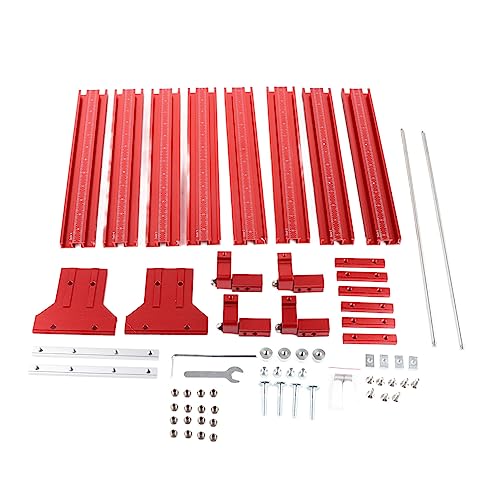

Package List:
8 x Guide Rails
2 x Sliders
4 x Limiters
8 x Sliding Blocks
2 x Connecting Plates
2 x Wrenchs
32 x Screws
4 x Plugs
4 x Nuts
4 x Gaskets

Package Dimensions: 15.7 x 11.3 x 3.2 inches
