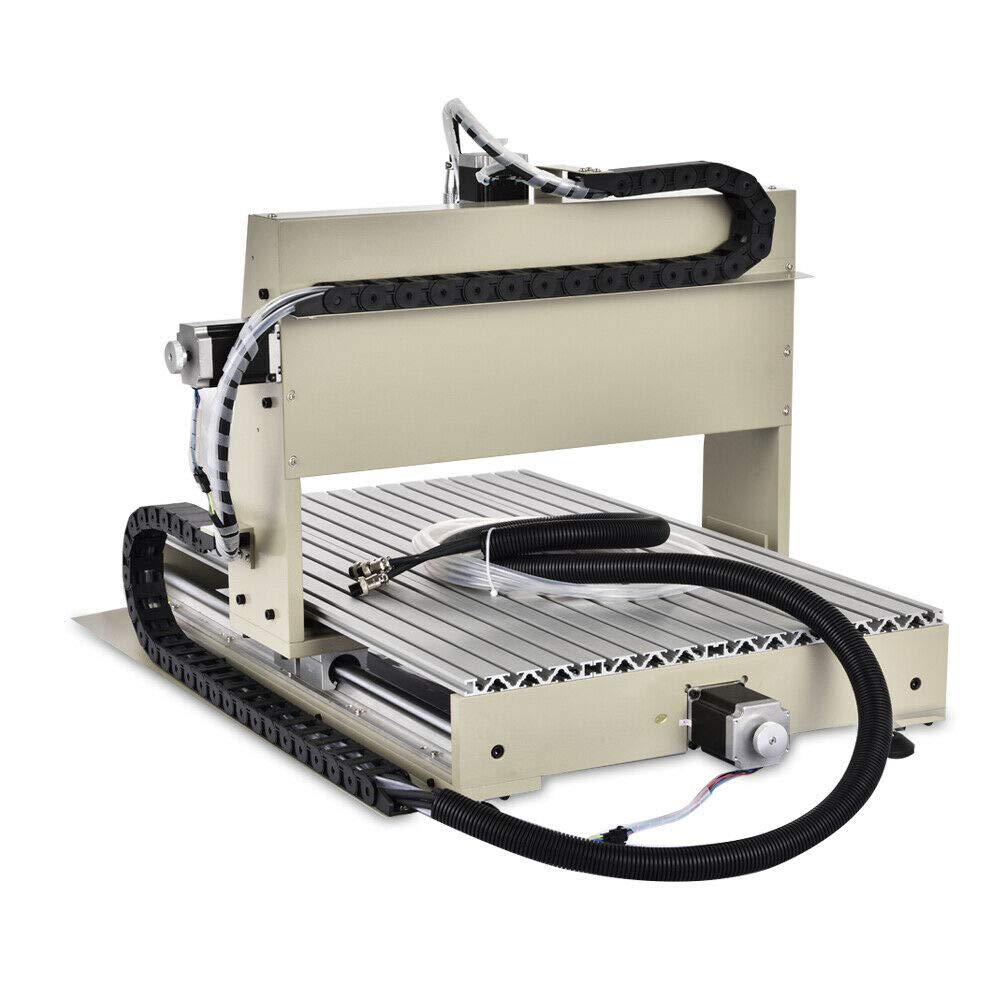

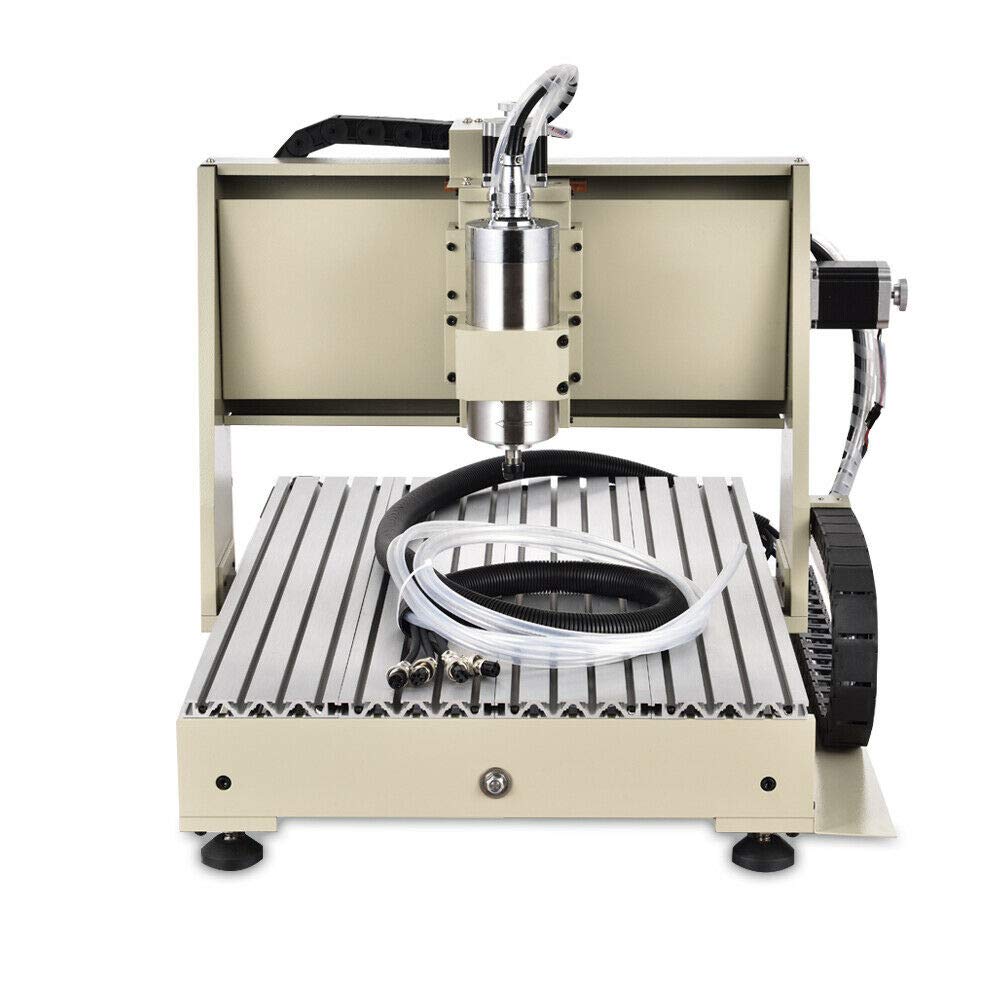

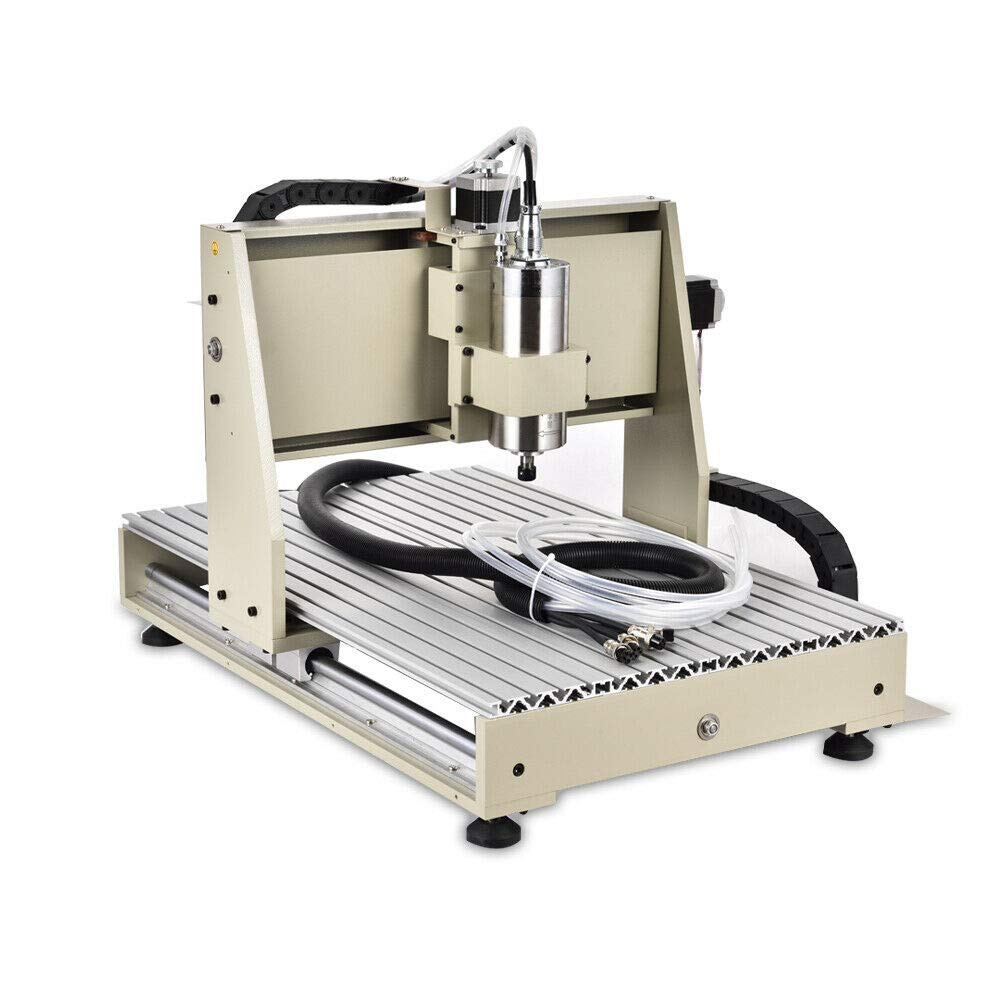

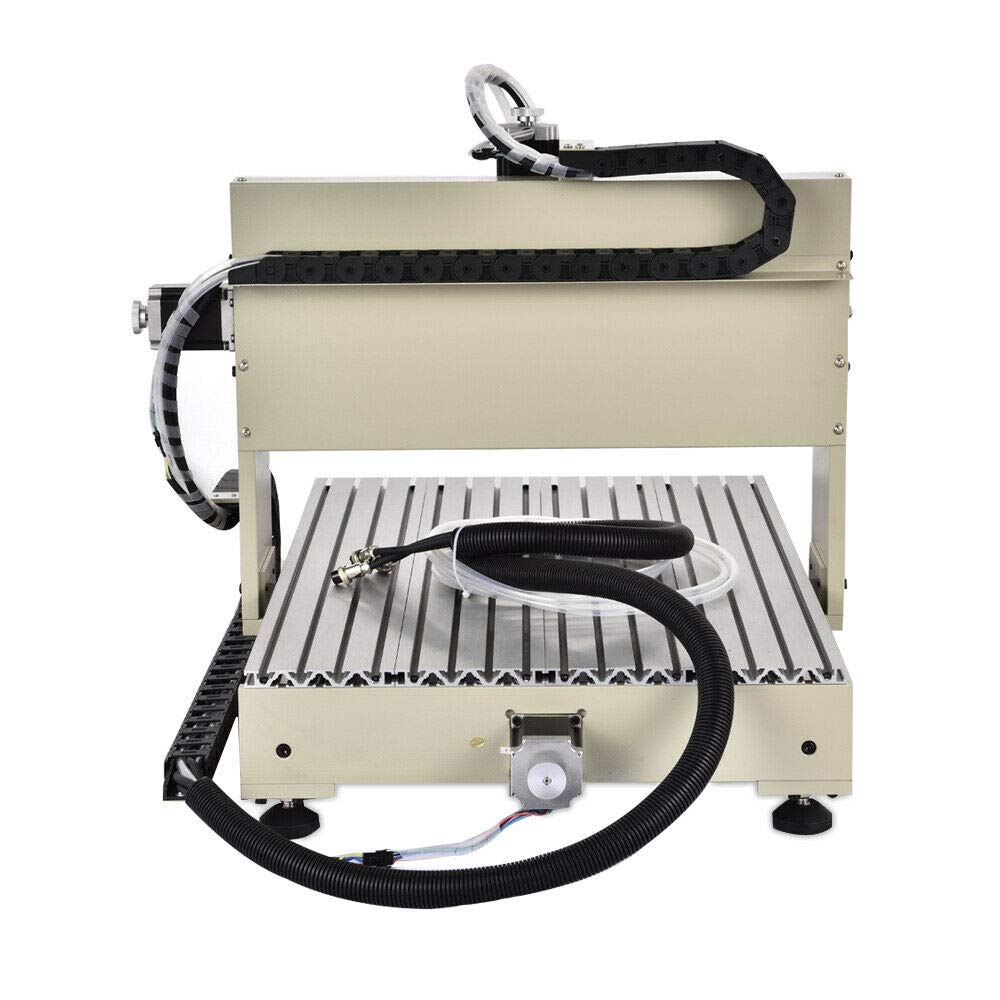

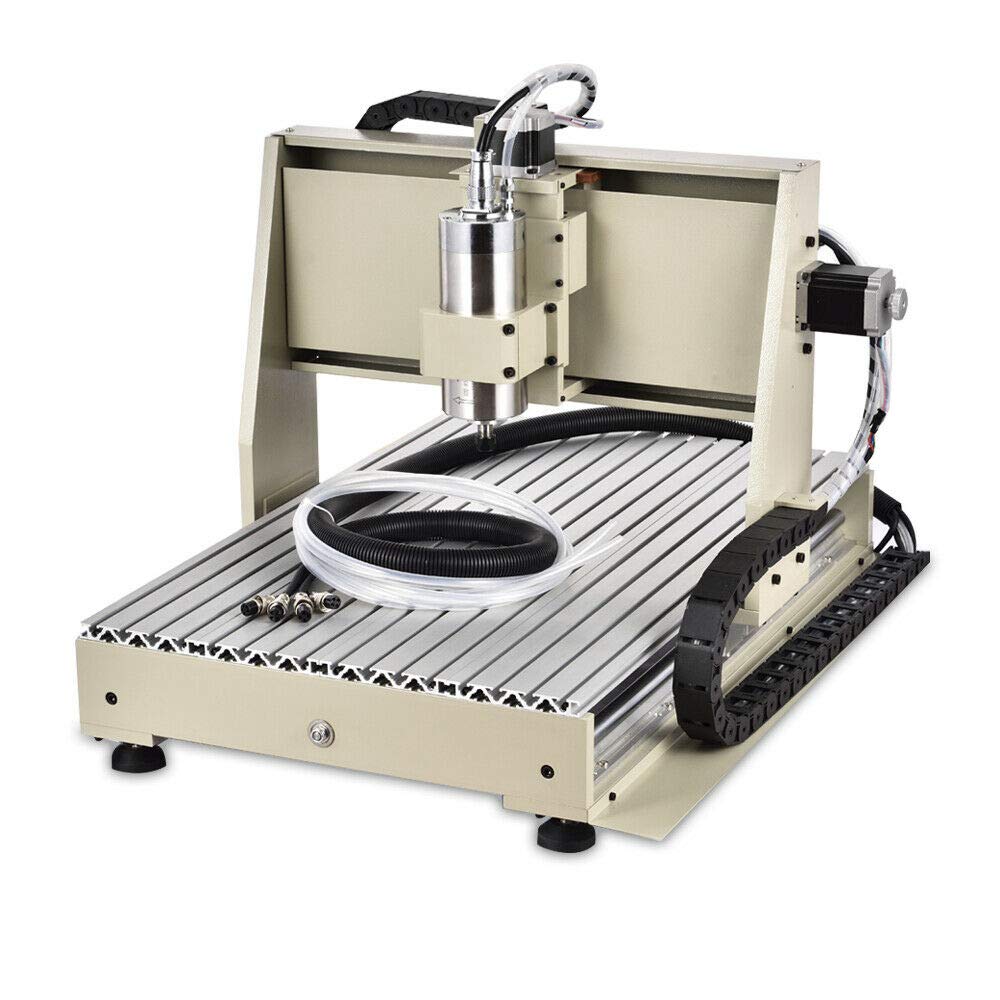

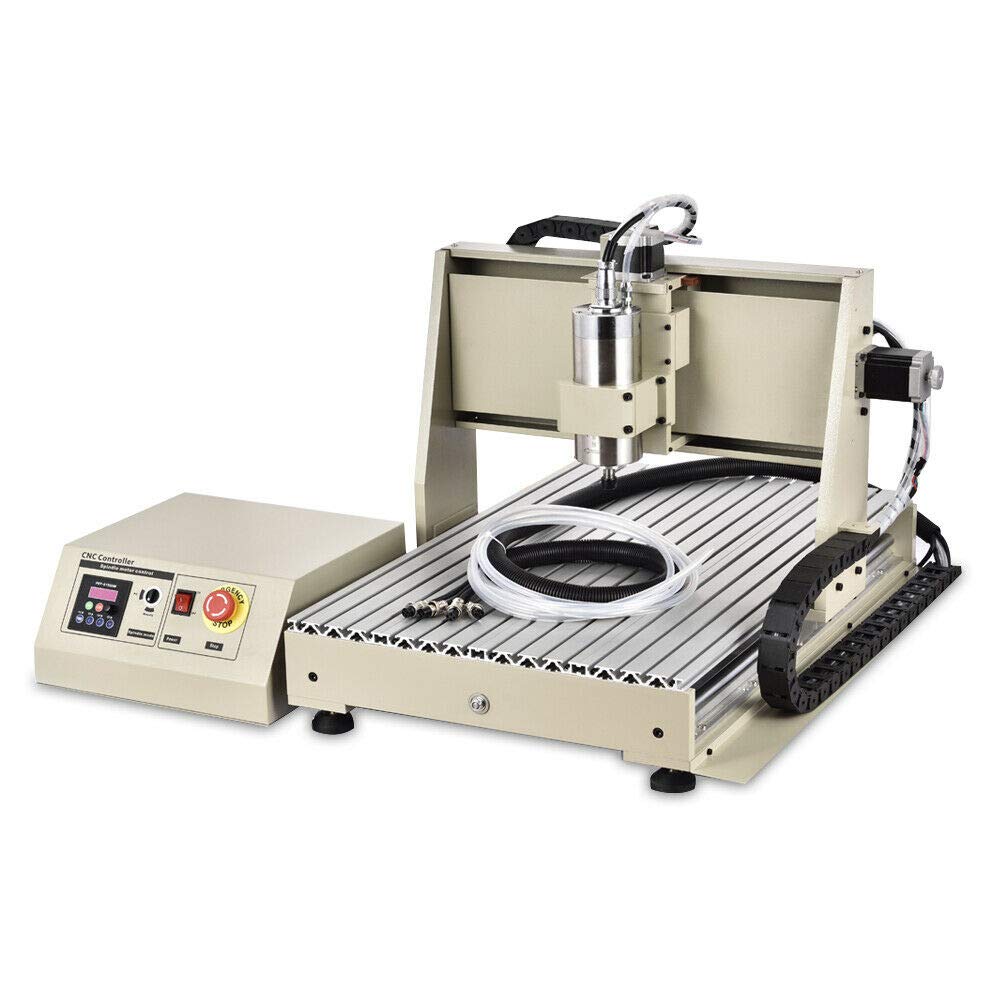

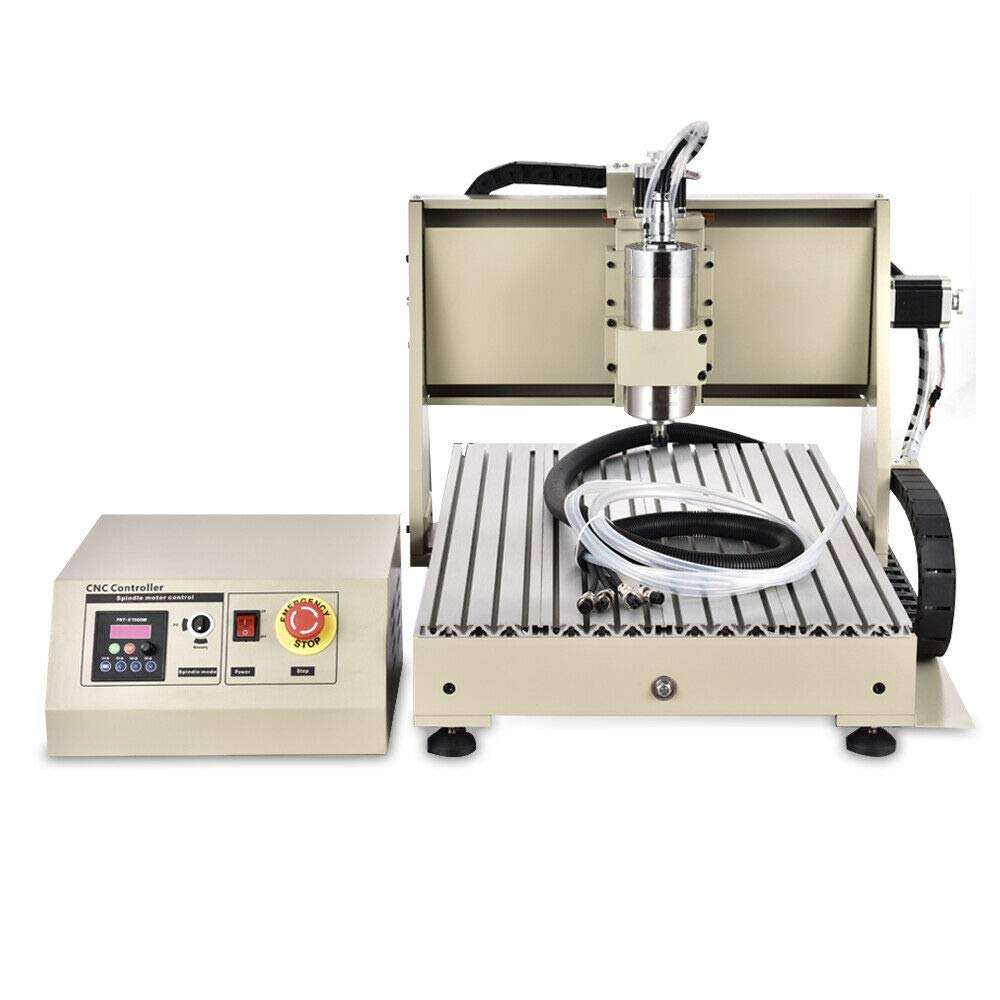

Futchoy 4-Axis USB CNC 6040 Router Engraving Machine PCB Milling Machine With Controller 110V 1.5KW VFD Water-Cooled Router Engraving Machine For
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Futchoy
Color: Style 1
Features:
- ✔This 6040T machine is suitable for industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
- ✔It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal, like aluminum, copper and silver to engrave them into 3D/2D works etc.
- ✔It can used for engraving: advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc.
- ✔The mini router Frame is movable. The machine can connect with computer as other external device such as printer, scanner.
- ✔With the assist of the ROUTER 6040T, your design idea will be real-time display.
- ✔Attention:We only sell the machine, not include the software.
Part Number: Naratop-6040
Details: Engraving machine parameters:
X, Y, Z Working Area: 600(Y)*390（X）*120(Z)mm
Outside dimension: 865*680*570mm（L*W*H）
Table size: 770（Y）*490（X）mm
Lathe structure: 6061/6063 Aluminium alloy
Max. Feeding height: ≤100mm
Spindle motor
Tips

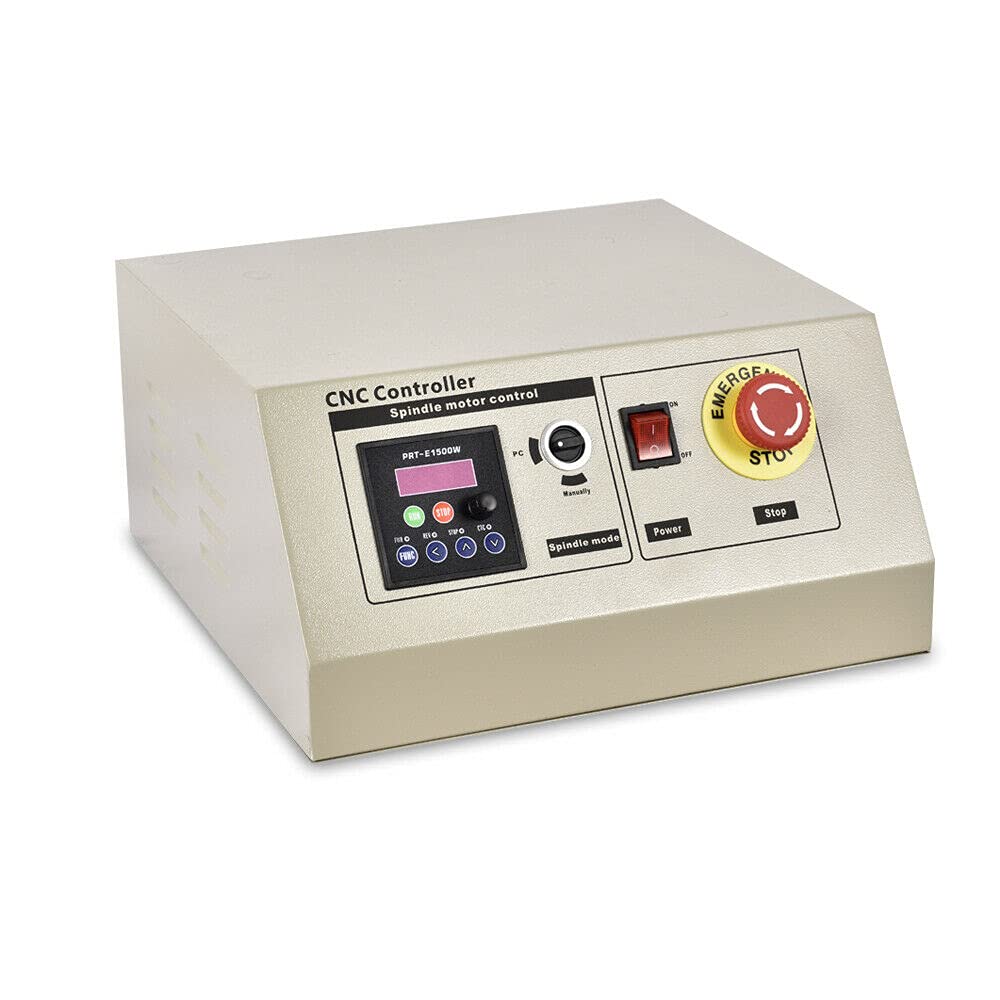

The spindle motor must connect with the VFD.
It cannot directly connect with the supply voltage (AC110V/220V).
Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.
Outside dimension: 65*158mm
Material: 304 stainless steel, Copper coil, Pressure cast aluminum pipe water jacket
VOLTS, current, power: AC110V, 60Hz, 5A, 1.5 KW VFD
Spindle motor: 1.5 KW Water Cooled
Spindle speed: 24000 rpm
Max working frequency: 400Hz
Principal axis collet: ER11collet, Standard configuration :6mm
Nut Model: ER11-A
Cooling: Water-cooling
Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM
Lubrication way: lubricated by high grease
Repeat accuracy: 0.05mm
Spindle precision: radial beat acuities 0.03mm
Carving Instructions: G code / TAB files / nc file / NCC files
Communication interface: through USB connection with computer
Software environment: windows XP / win7 32bits system
Working Speed: 50-1500mm / min (different material with different speed settings)
Maximum Idle speed: 0-1500mm/min
EAN: 0712004870151
