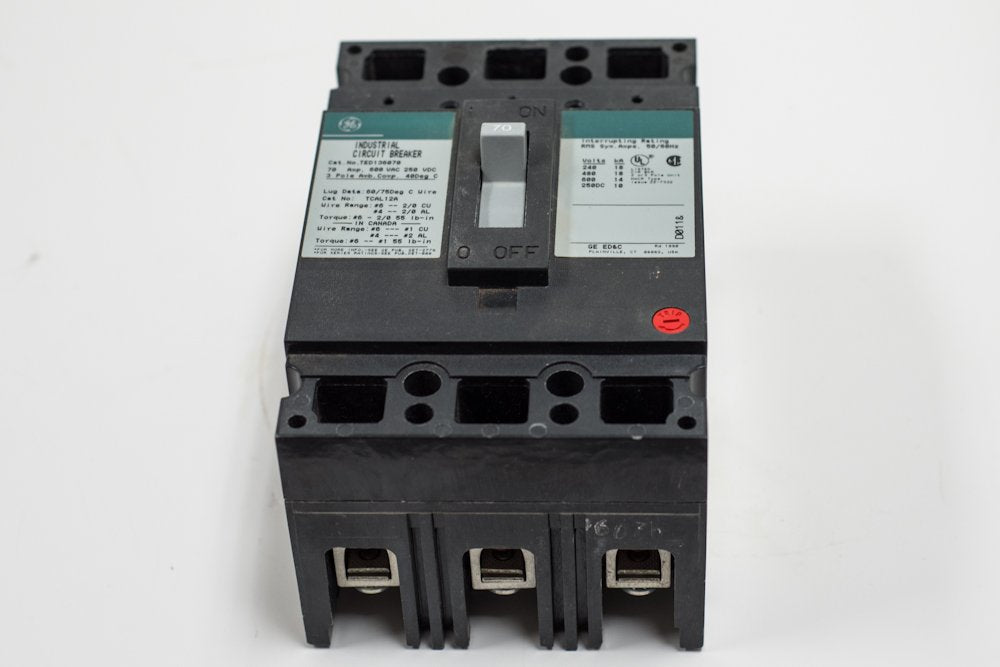

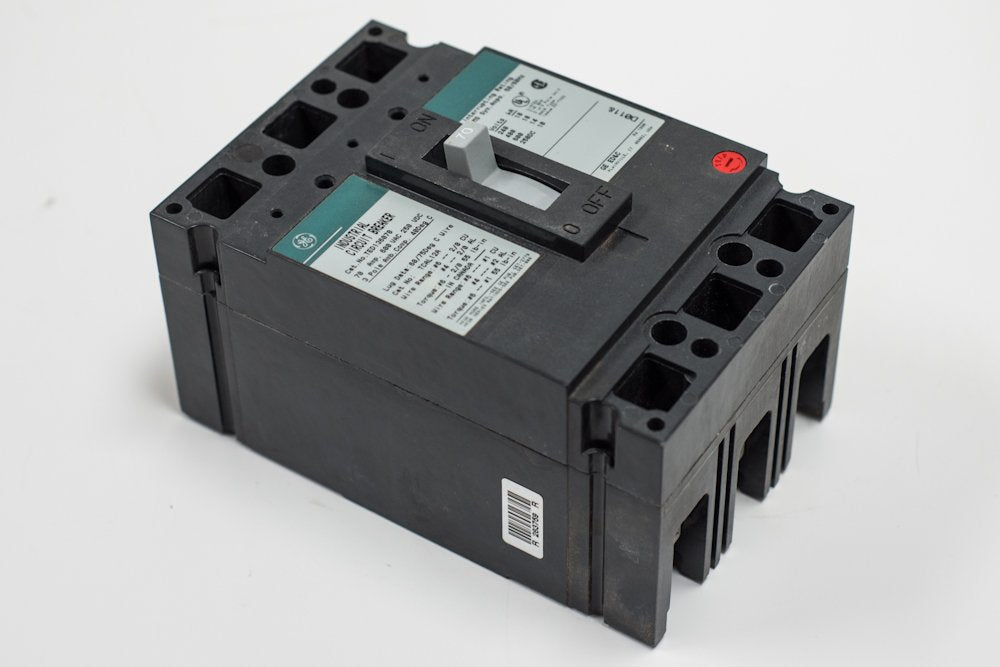

GE TED136150WL Circuit Breaker,150A,3P,600VAC,TED

Brand: GE

Features:

• GE TED136150WL Circuit Breaker,150A,3P,600VAC,TED

Details: Molded Case Circuit Breaker, 150 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 18kA at 120/240/277/480V AC, For Use With GE Panelboards, Series TED, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 125/250/500V DC, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase 3, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 150A/TED, Circuit Breaker Mounting Style Bolt On Panelboard, Height 6.31 in, Width 4.13 in, Depth 4.09 in

EAN: 0783164132977

Part Number: TED136150WL
