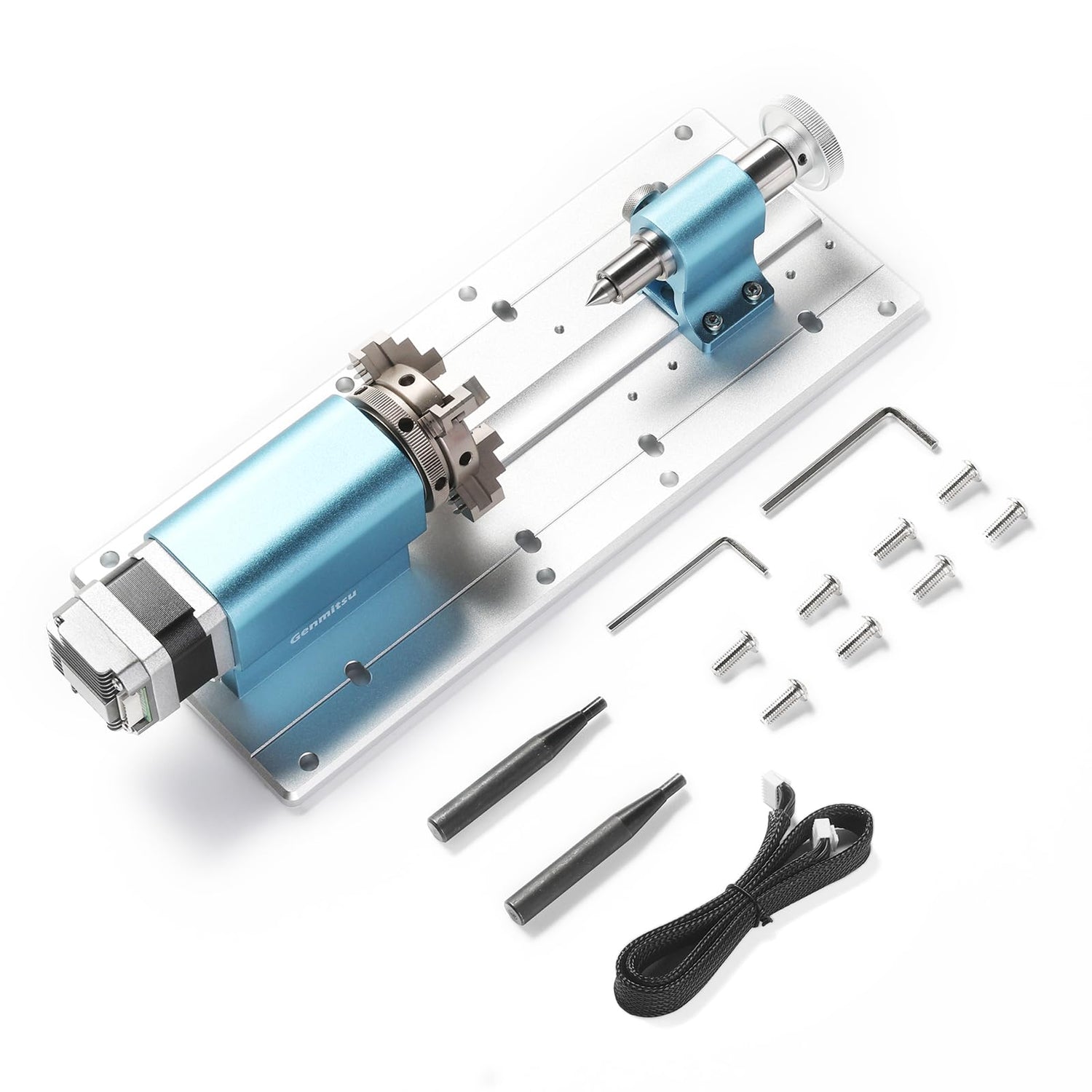

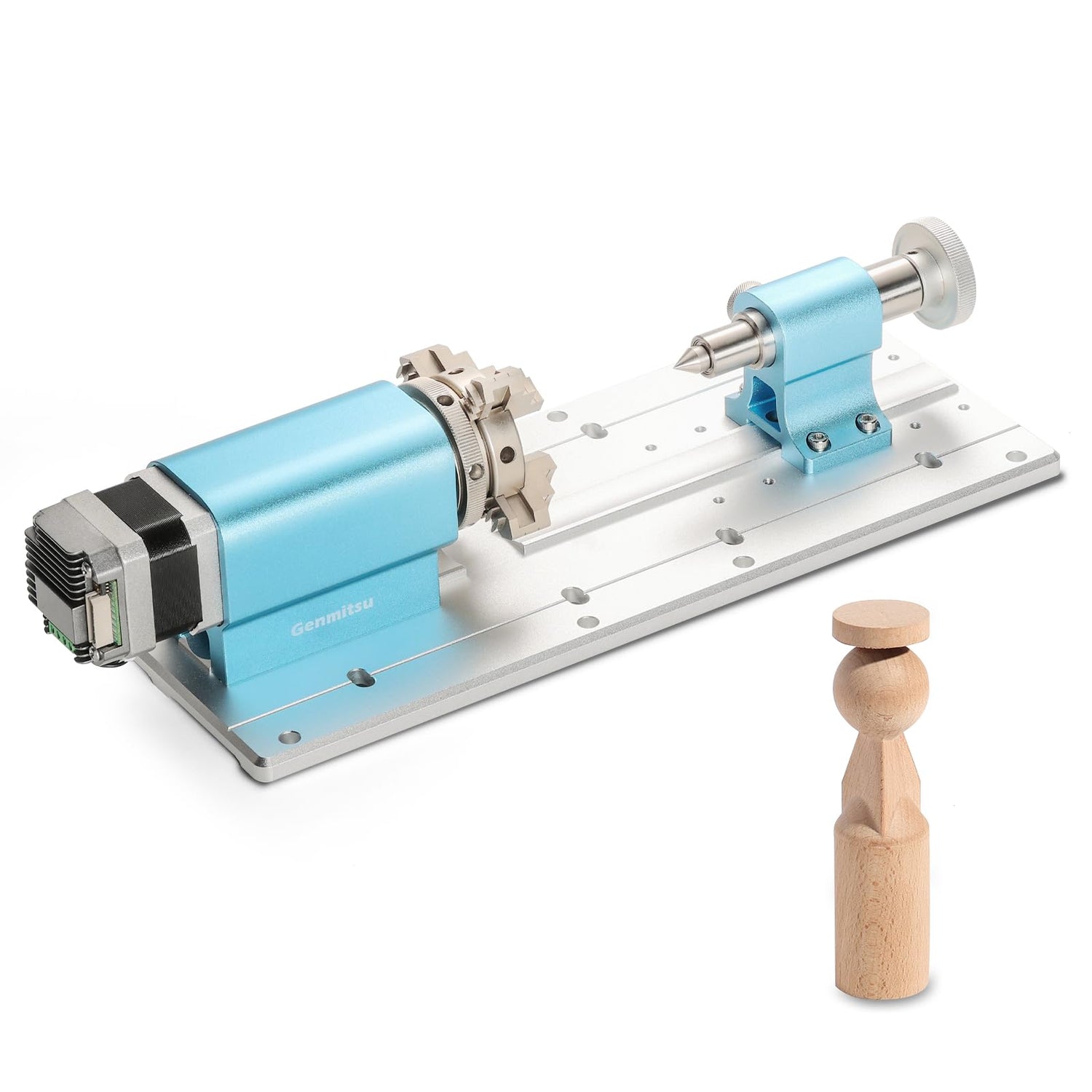

Genmitsu 4th Axis Rotary Module Kit for 4040-PRO, 4040 Reno, 3030-PROVer MAX CNC Machine with Planetary Geared Stepper Motor, 4 Jaw Chuck, 10:1 Speed
Regular price
$269.00
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Genmitsu
Features:

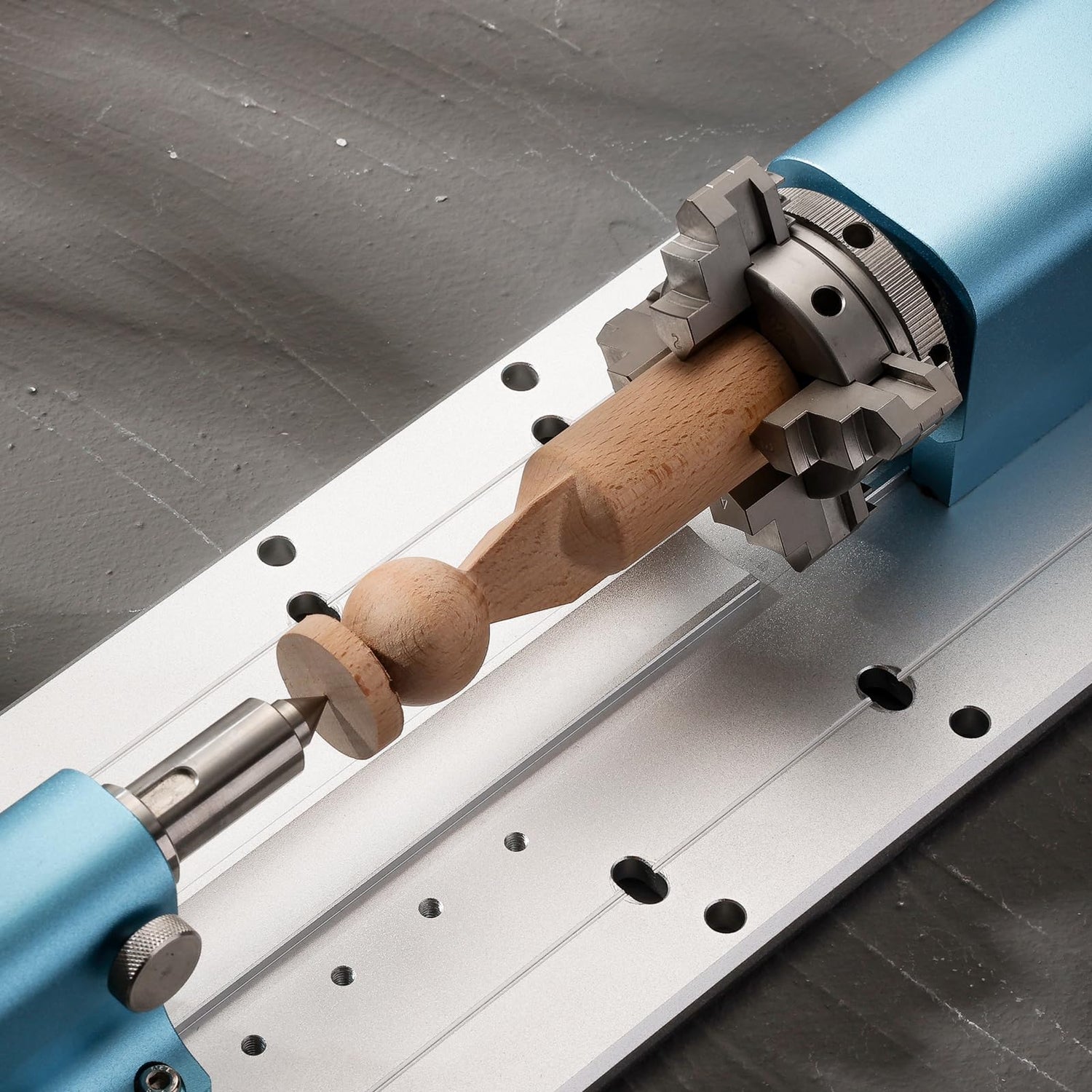

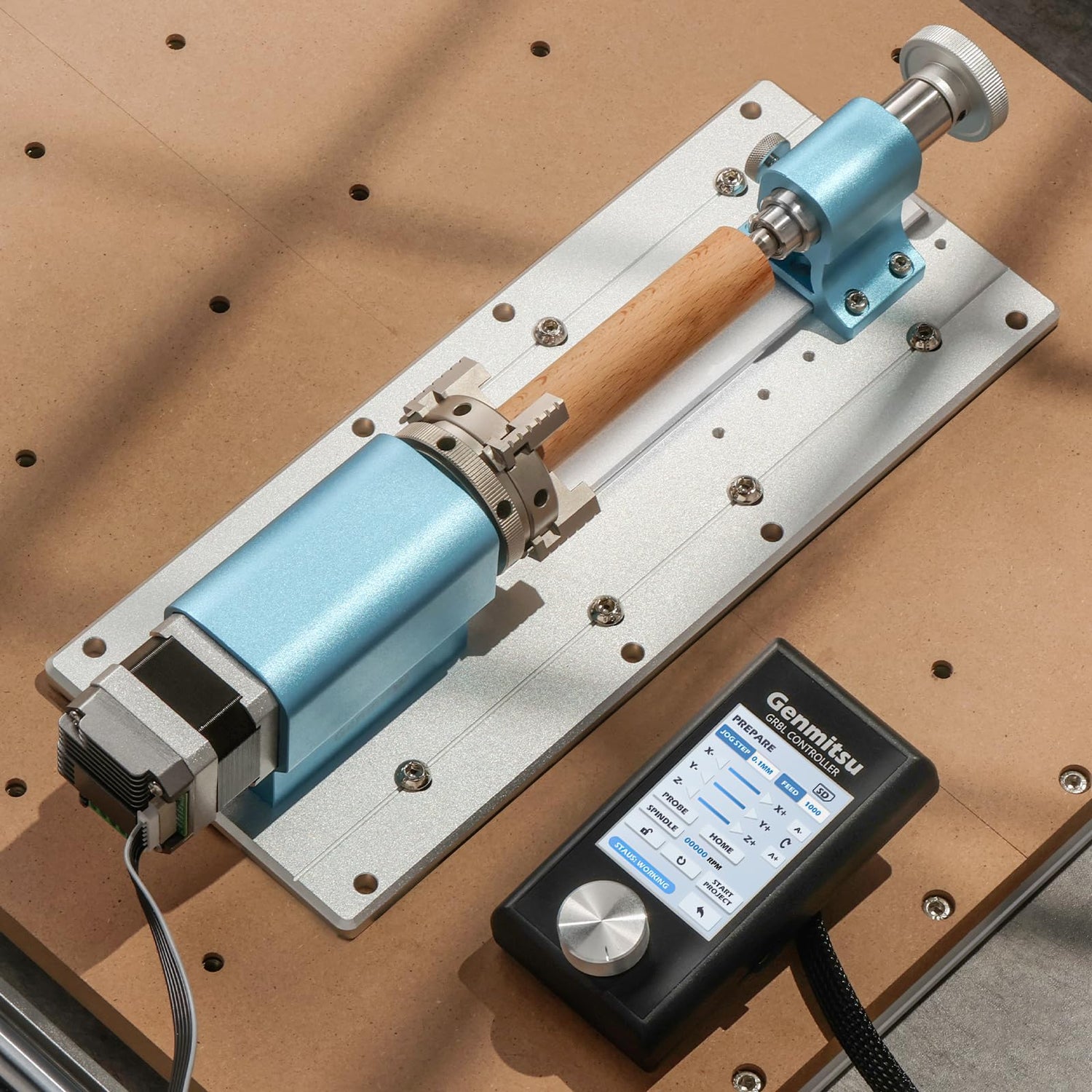

- Discover the Possibilities: The Genmitsu 4th Axis Rotary Module Kit is a drop in upgrade that enables your 4040-PRO, 4040 Reno, 3030-PROVer MAX CNC machine to carve from different angles and positions or with the right software full rotary carving. The 4th axis allows for the creation of complex parts with curved or angled features that are not achievable with a traditional 3-axis CNC machine. Additionally, the G-code for the 4th axis must be sent using an offline controller (ASIN: B0C582HQ6Z), which should be ordered together with the 4th axis to ensure proper functionality (For the 4040-PRO only, the 3030-PROVer Max comes with the offline controller already installed.)
- NEMA17 Planetary Geared Stepper Motor: Take advantage of the high torque provided by the NEMA17 motor, which allows the motion system to rotate workpieces with more force and precision than any other belt-driven rotary modules on the market.

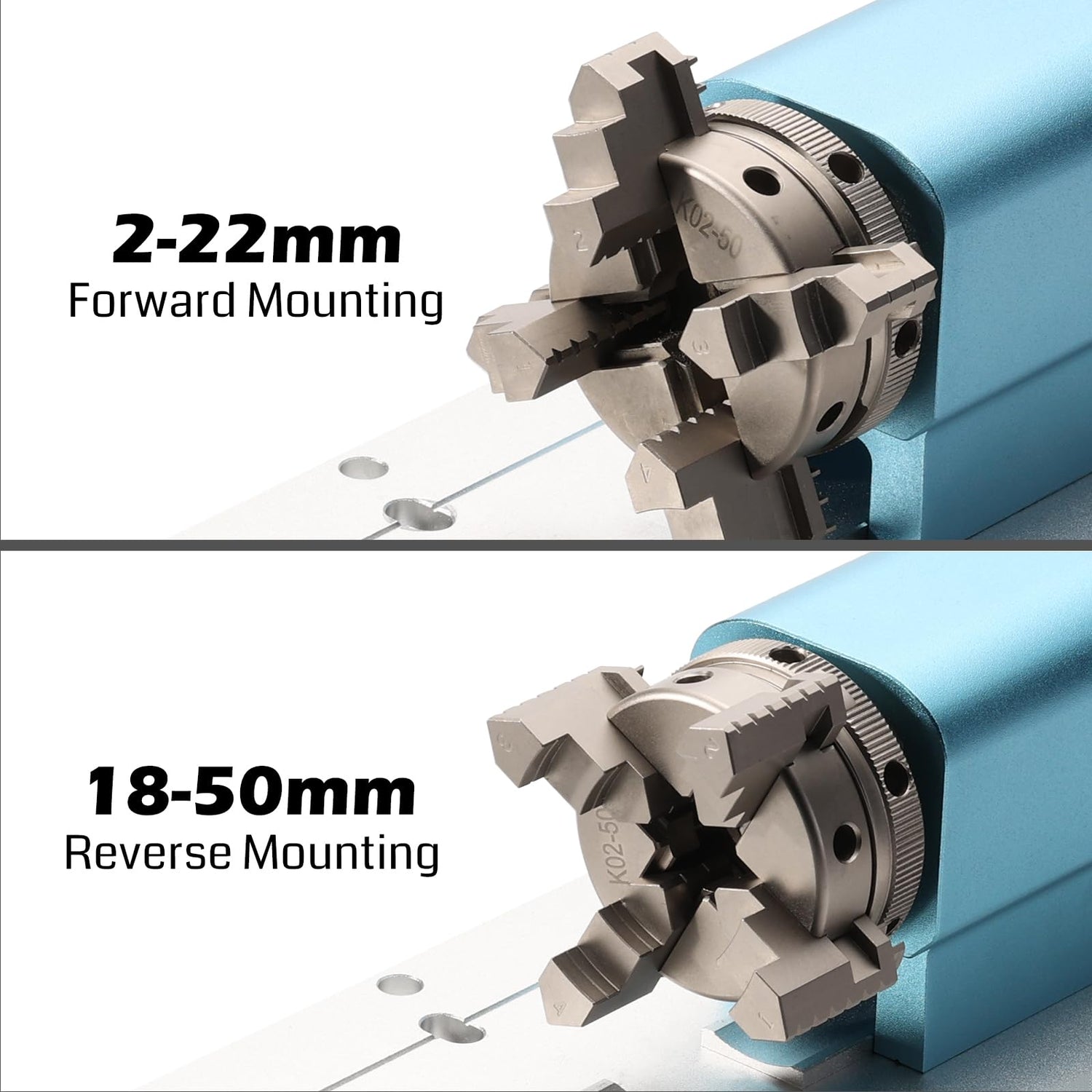

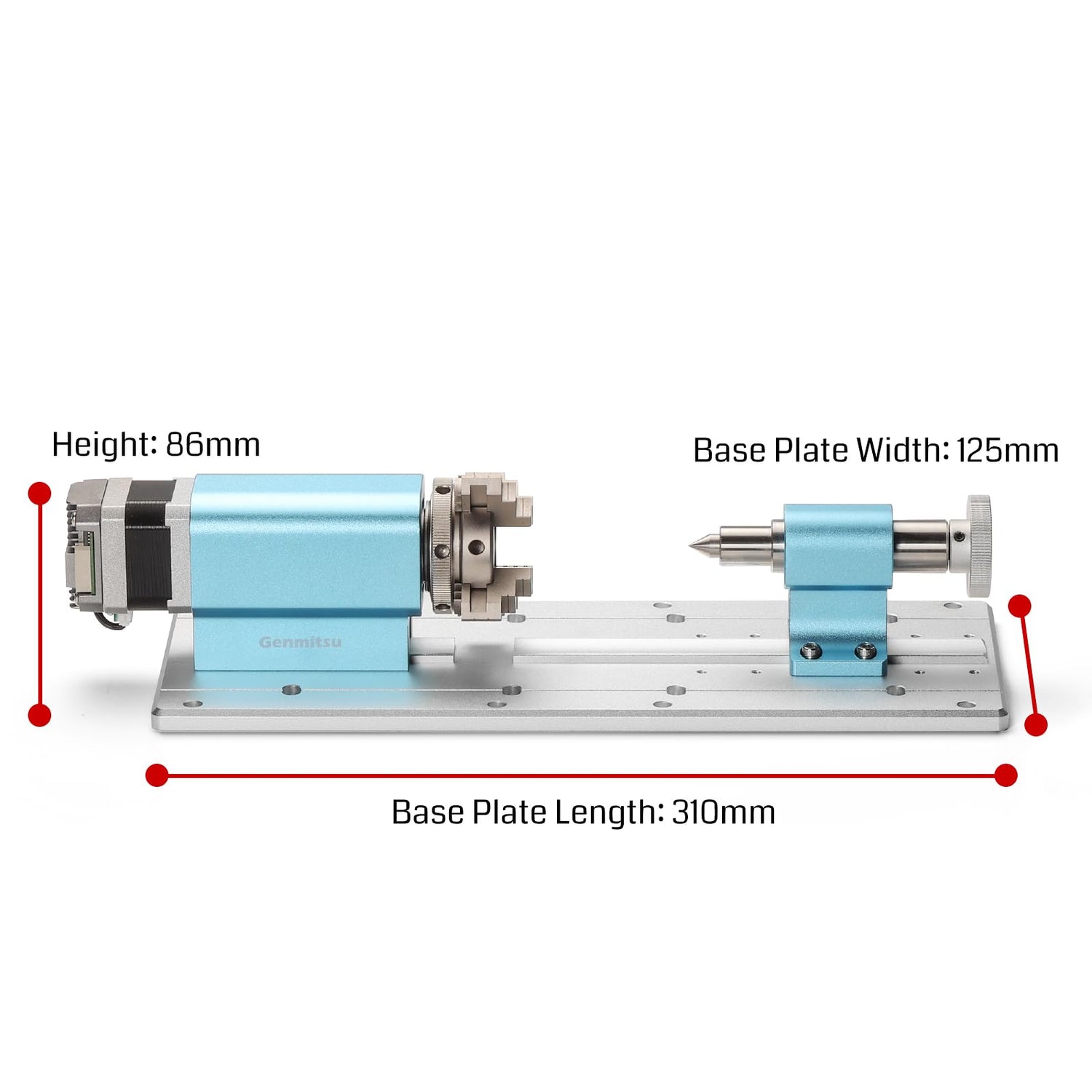

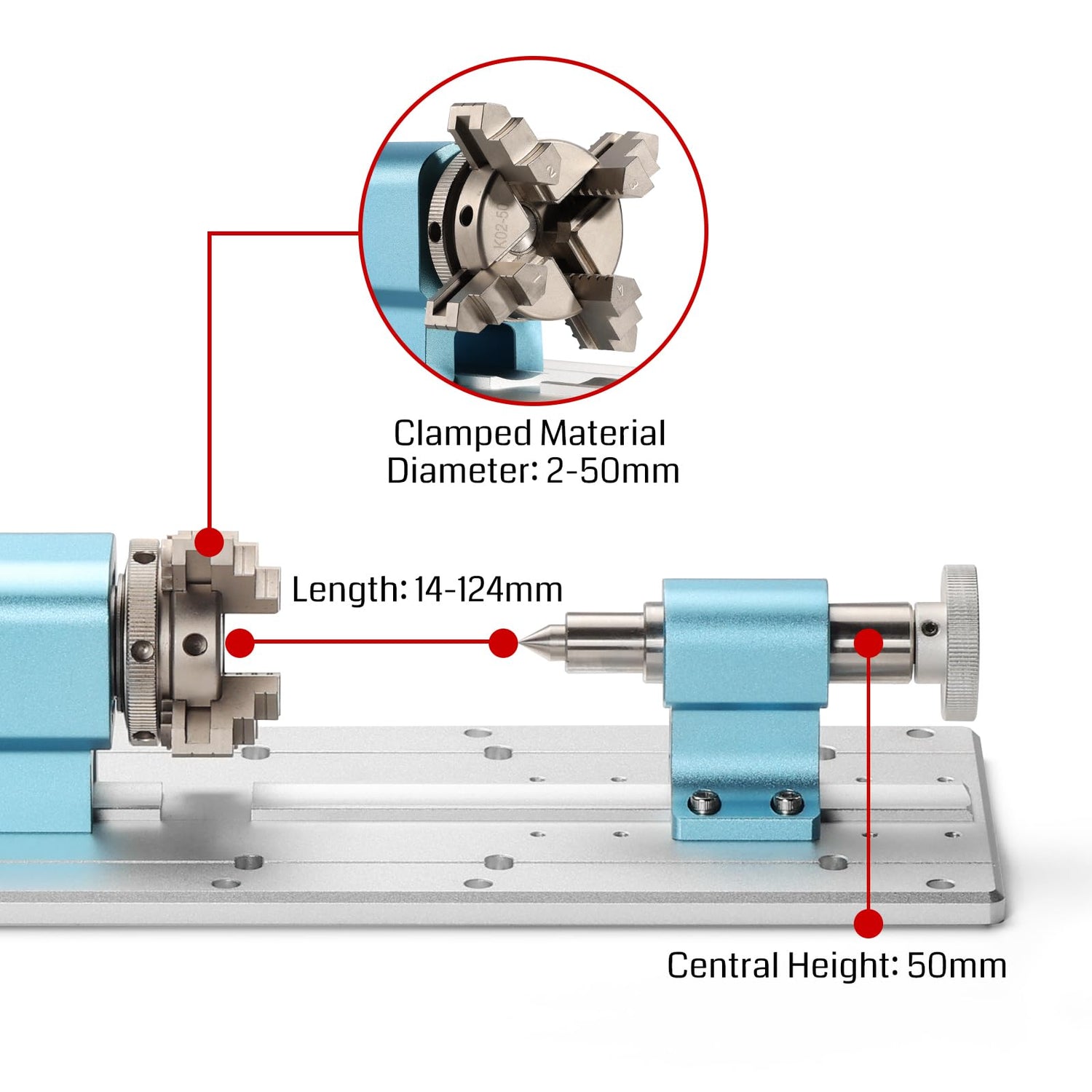

- Versatile dimensions: Adapt to various project requirements with a center height of 50mm, total height of 86mm, and material lengths with tailstock from 10-100mm; without tailstock from 10-200mm for flexibility. Applicable Material diameter: 2-50mm.
- Precision Control: Utilize the 10:1 reduction ratio for precise control, offering a minimum angle of 0.1° and a maximum angular speed of 300° per second, ensuring high speed and unparalleled accuracy.
- Software & Controller: To use a 4th axis on your CNC machine, you will need CAD/CAM software that can generate toolpaths for rotary motion. While options like Fusion 360 and Vectric are recommended, it's important to note that most software capable of generating 4th axis toolpaths is not free.
- We will guide you through each step of the assembly process. You can get the installation guide in the product guide and documentation section.
Binding: Tools & Home Improvement
model number: 4th Axis
Part Number: 4th Axis
Details: Genmitsu 4th Axis Rotary Module Kit for 4040-PRO CNC Router Machine
EAN: 0816550027165
Package Dimensions: 15.4 x 6.6 x 4.7 inches
