Genmitsu Air-Cooled 300W Brush DC Spindle Motor with 0-48V Output Adjustable Switching Power Supply, 52mm Clamp & ER11 Collet, ideal for CNC
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Genmitsu
Features:

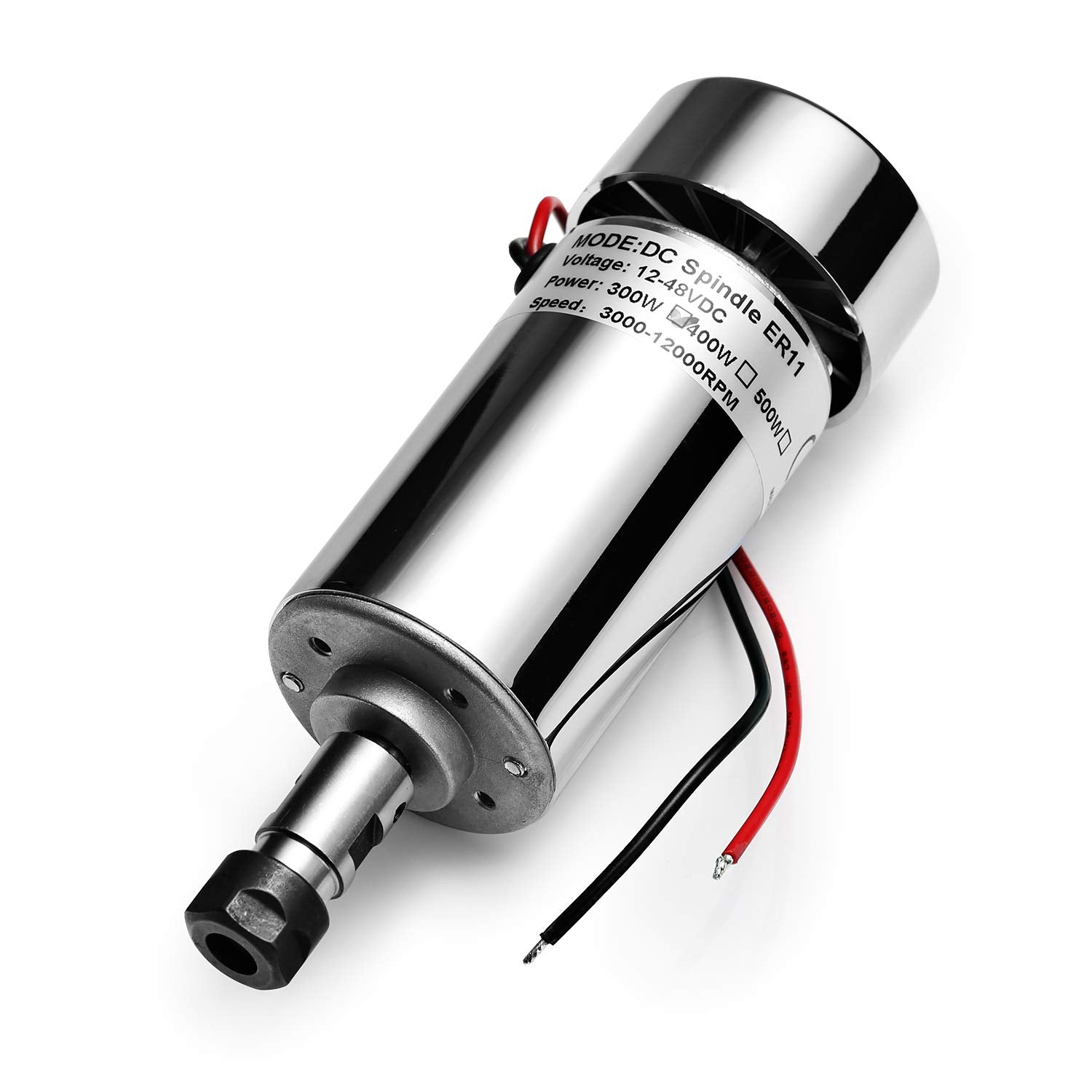

- Spindle Motor: New chrome-plated Brush DC motor; This spindle comes equipped with air-cooled function, which can work for a long time.
- Install this spindle set into your CNC machines, then your machines can easily engrave light metal or other hard-to-cut materials.
- Radial run out of spindle: 0.01-0.04; Speed: 3000-12000 r/min (12V-3000r/min, 24V-6000r/min, 36V-9000r/min, 48V-12000r/min)

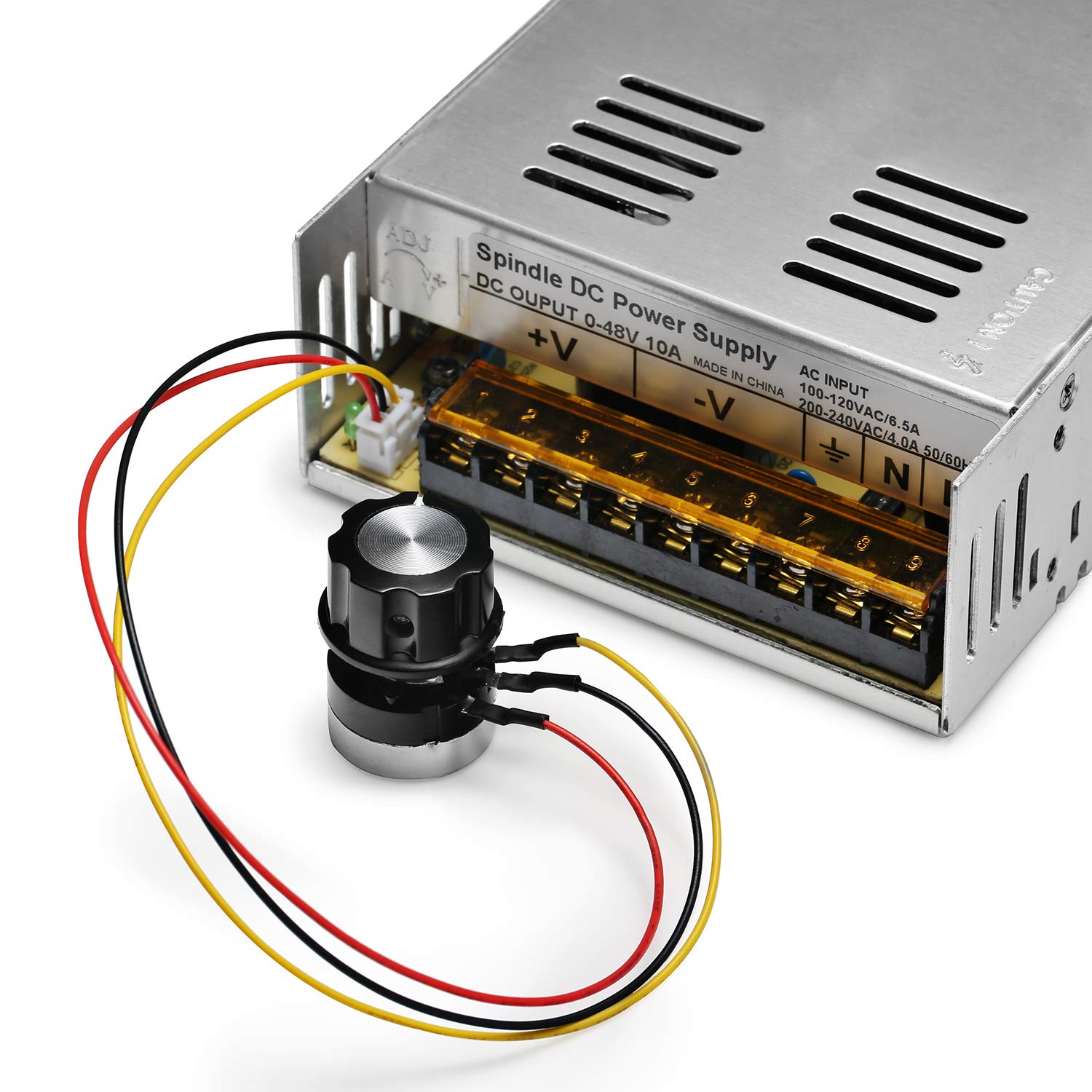

- The output voltage is adjustable, the output current is not adjustable, and the output current is determined by the load.

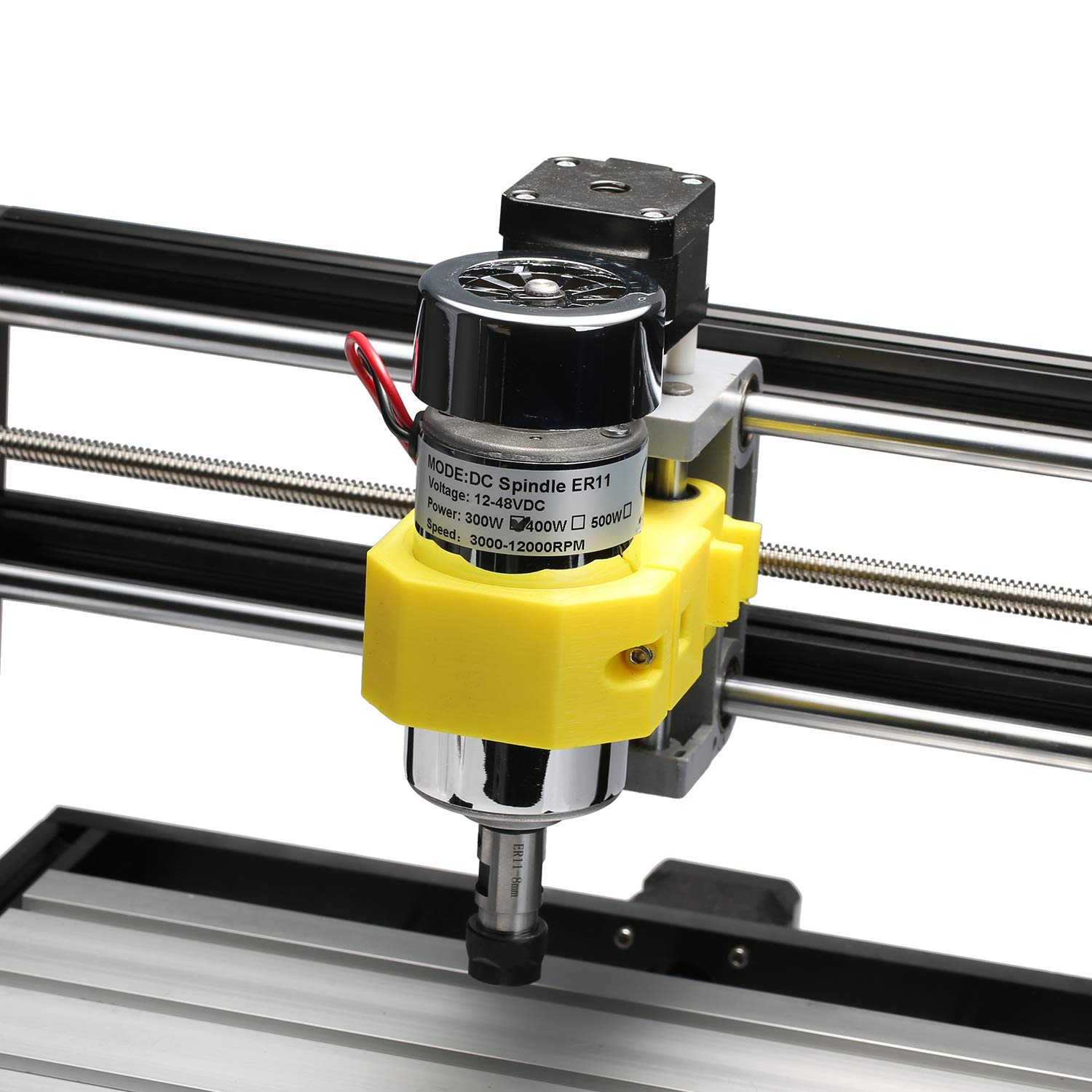

- Note: If you would like to add it on 3018 series CNC machines, an extra 52mm diameter motor mount is needed. The Genmitsu Aluminum Z Axis Spindle Motor Mount (B0BXRX85WM) would be a great choice.
model number: 101-60-SPM300
Part Number: 101-60-SPM300
Details: Note: If you would like to add it to 3018 series CNC machines, you need to add an extra motor mount. You could choose to have a Genmitsu Aluminum Z Axis Spindle Motor Mount(B08SC9K538), or download the 3D model to print one.( Find in User Guide below)
Specifications:

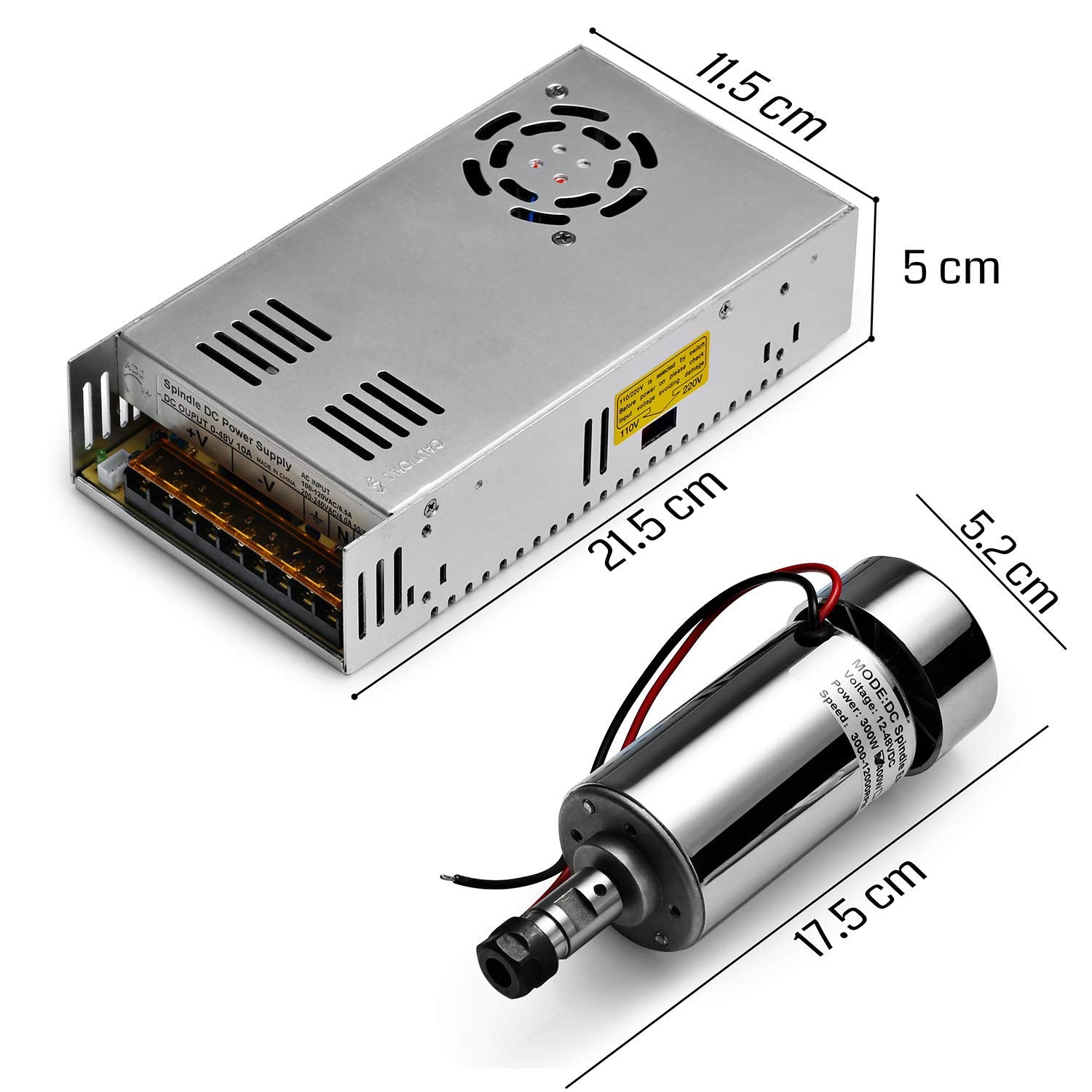

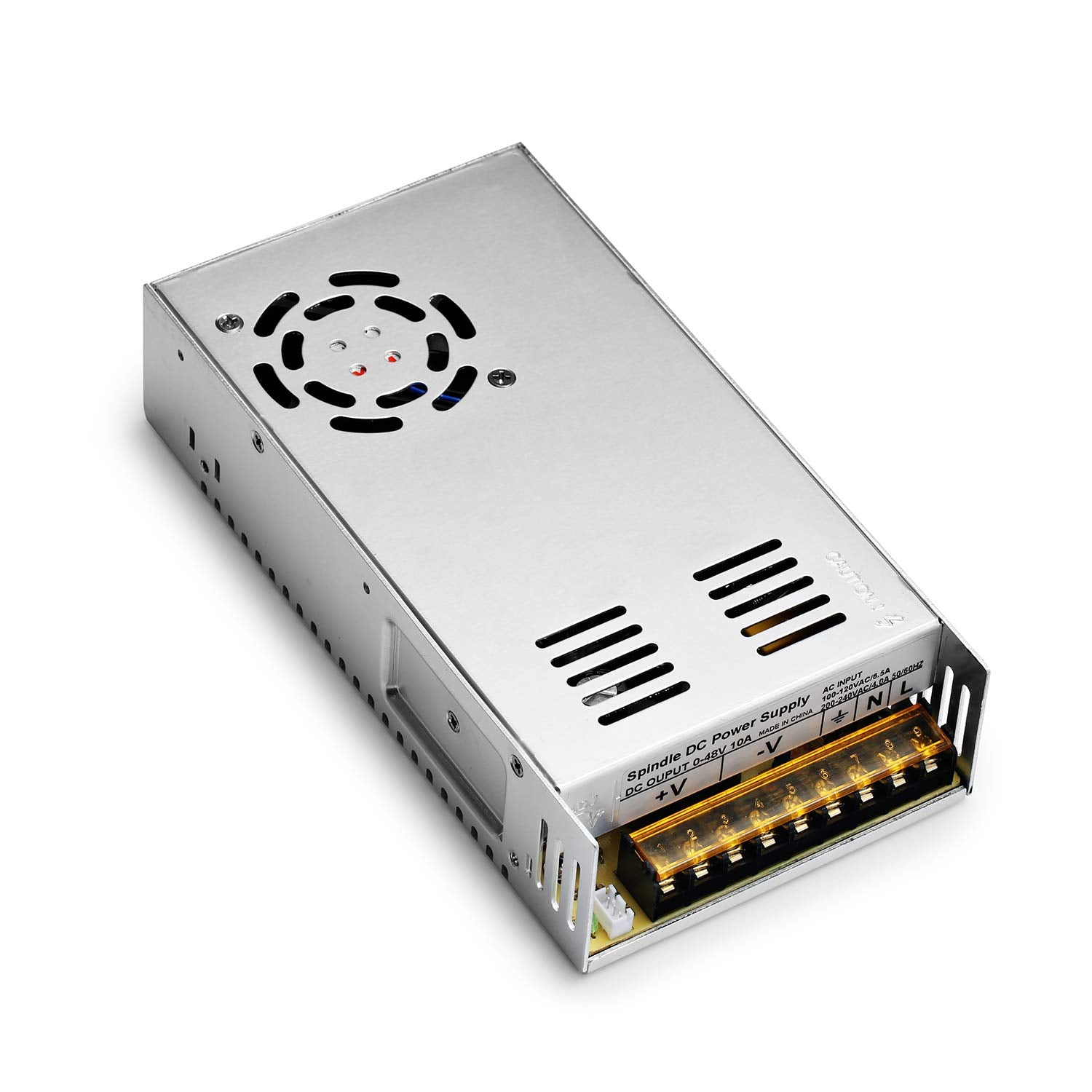

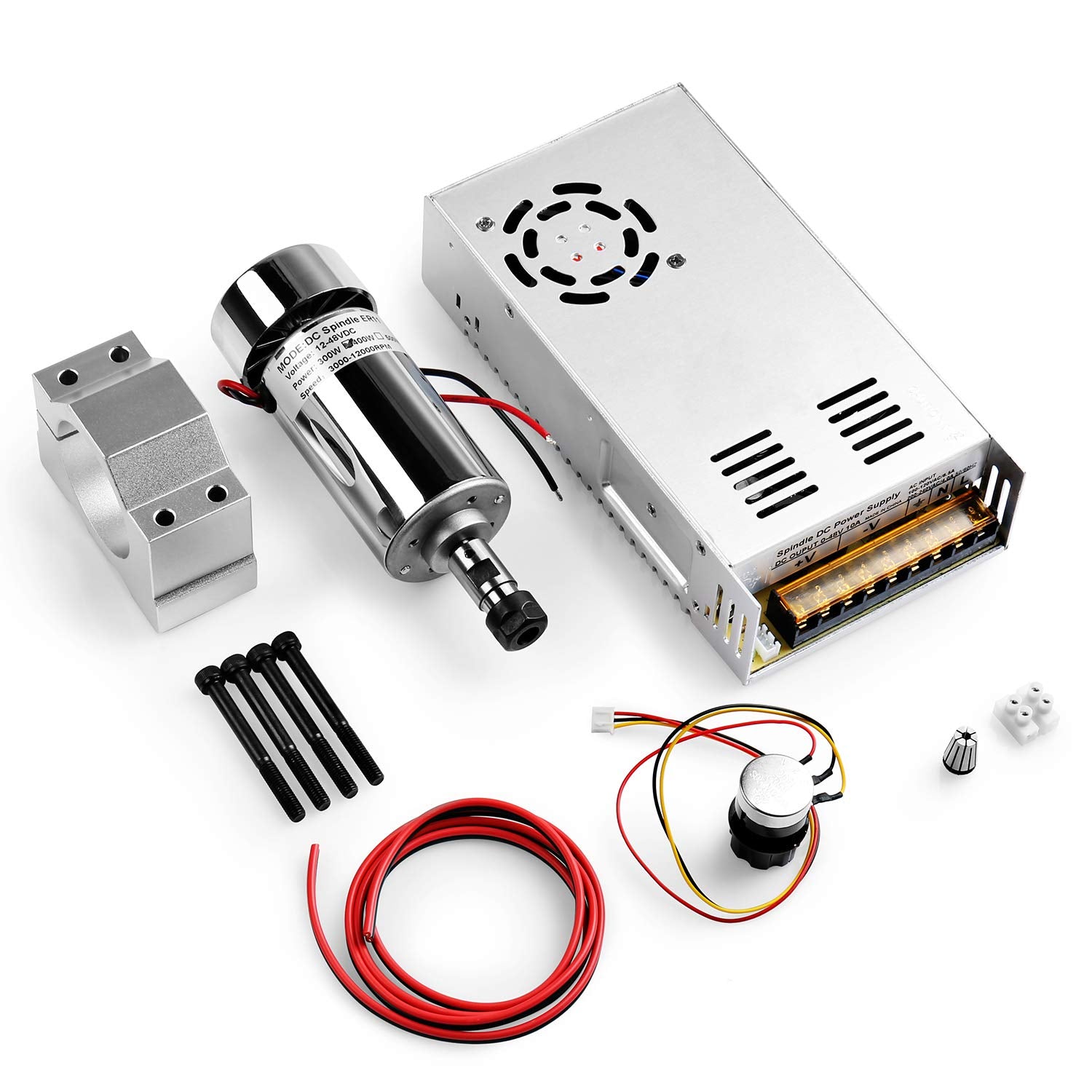

Spindle Motor:Voltage: 12-48V DCTorque: 400mN.mInsulation Resistance: > 2 megohmsSpindle Diameter: 52mmDielectric Strength: 400VMotor length: 172mmPower Converter:Input Voltage: 110-220V ±15% ACOutput Voltage: 0-48V DCOutput Current: 10A (MAX)Output Voltage Regulation: External potentiometer adjustmentRated Power: 480WPackage List:1 x Air-Cooled 300W Spindle Motor1 x 0-48V Output Adjustable Switching Power Supply1 x ER11 Collet
EAN: 0816550023099
Package Dimensions: 10.2 x 7.4 x 6.3 inches
