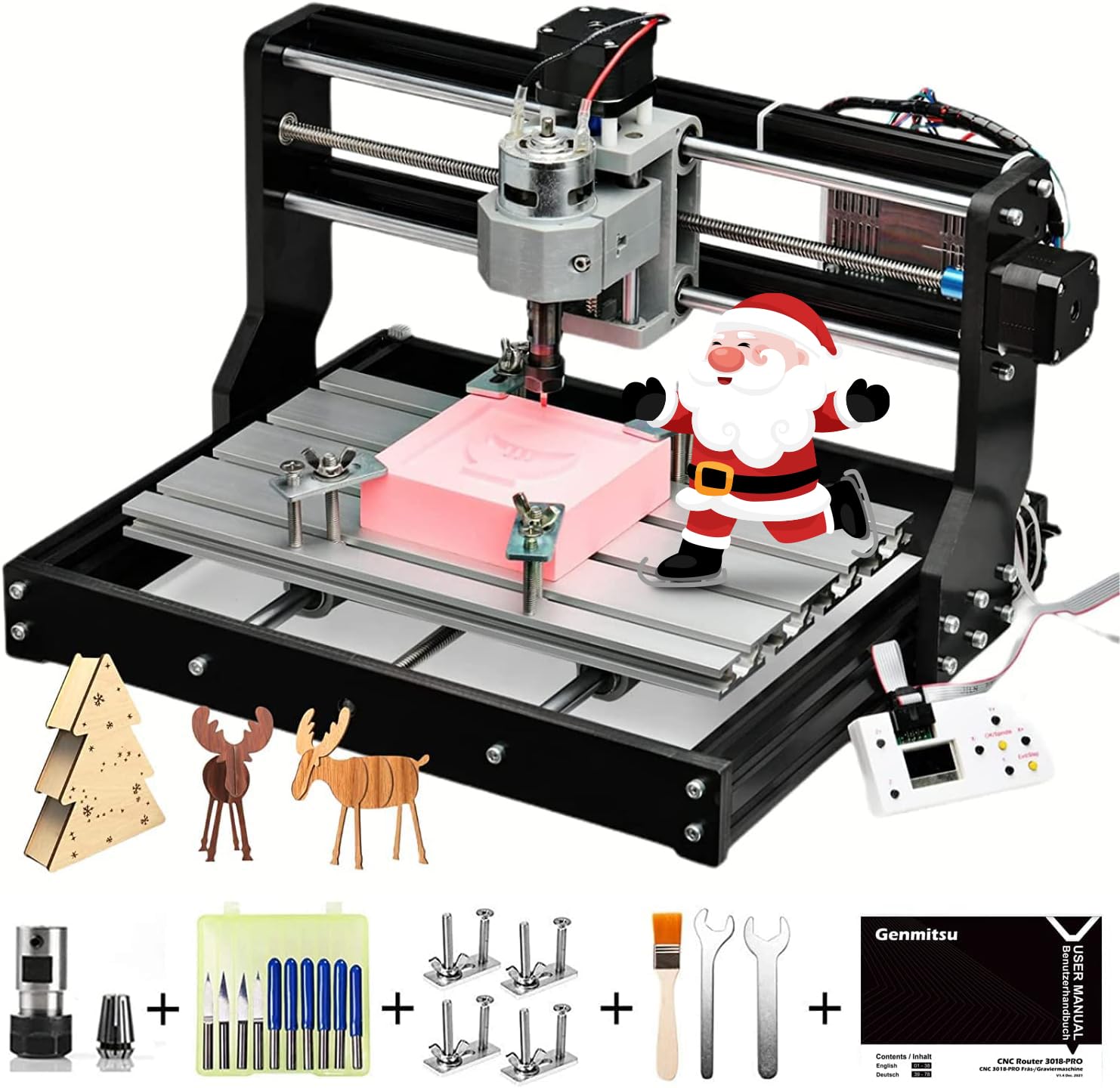

Genmitsu CNC 3018-PRO Router Kit GRBL Control 3 Axis Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine, XYZ Working Area 300x180x45mm

Brand: Genmitsu

Features:

• New Version: Genmitsu CNC 3018-PRO is an upgraded version of 3018. All components do not need to be positioned, which greatly reduces the difficulty of assembly and improves the working accuracy. The base height is raised to 4cm for better stability. Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVC, and PCB, the Genmitsu can be used on a wide range of projects and materials.
• Upgraded Power Adapter: UL Approved and out-of-the-box support for the drop in 20,000rpm Spindle, no need to modify G-code to ramp up to full speed.
• Controller Software: The Genmitsu 3018-PRO uses Grbl, a high-performance open-source software for controlling movement, and runs on Arduino. Its dependability and simplicity make GRBL an industry standard, so there’s no lack of support and resources available when you get stuck.
• Optional Upgraded Parts: Super Size your 3018 CNC to a 3040 by getting a Genmitsu 3040 Y-Axis Extension Kit. The 3040 Aluminum Spoilboard and 3040 MDF Spoilboard for this extension kit are also available to buy.
• Note: Assembly Instructions and User Guide are provided, please find at the Product Guides and Documents Section below and get everything you might need. If you get stuck, check out the SainSmart Resource Center (see at User Guide) or contact us with any questions that arise.

Part Number: B07P6K9BL3

Details: Overview: Designed with the absolute beginner in mind, the Genmitsu is an excellent self-teaching tool which allows you to try your ideas on an inexpensive platform without the risk of damaging expensive equipment. Since it’s built on Arduino and Grbl (both open source) support, tutorials, additional training, and new ideas to try are plentiful and easy to find elsewhere online. SPECIFICATIONS Effective Engraving Area: 300 x 180 x 45 mm(11.8 x 7.1 x 1.8”) Frame Size: 400 x 330 x 240 mm(15.7 x 13.0 x 9.4") Frame Material: PF+ Aluminum Z-Axis Component Material: Nylon Spindle: 775 motor, 24V, 10000 RPM Rated power: 60W; Maximum power: 120W Step Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in lb) Drill Bits: Tip 0.1 mm, 20 degree, Diameter 3.175 mm Supported OS: Windows XP, Windows 7, Windows 8, Windows 10, MAC OS Software: Grbl control(Candle) Power Supply: 24V/5A DOWNLOAD: http://s3.amazonaws.com/s3.image.smart/download/101-60-280PRO/101-60-280PRO_3018PRO.zip WHAT'S INCLUDED? 1 x DIY Router Kit 1 x Extension Rod with ER11 Collet 4 x Plate Clamp 10 x CNC Router Bits 1 x Offline Control Module

EAN: 0816550021620

Package Dimensions: 17.4 x 9.7 x 7.0 inches
