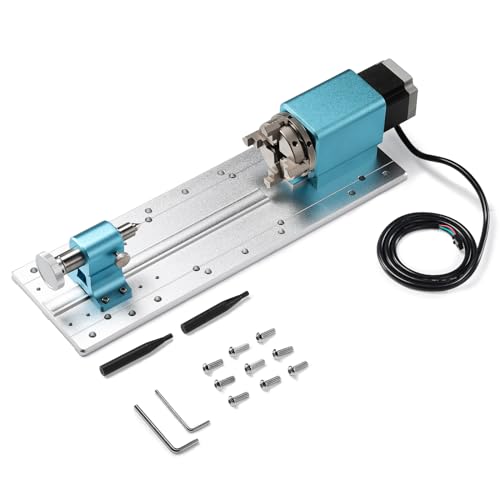

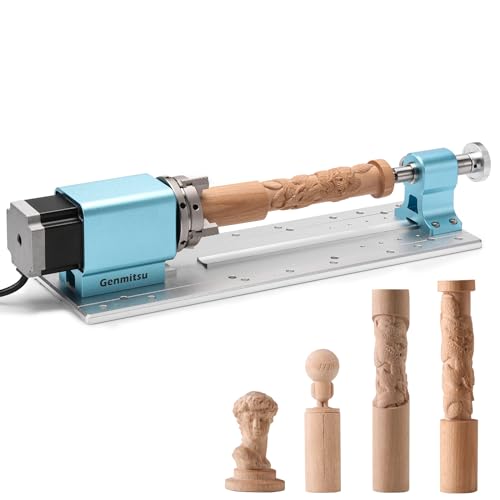

Genmitsu Rotary Module Kit for Prover XL 4030 V1/Prover XL 6050 Plus CNC Router Machine with NEMA23 Planetary Geared Stepper Motor, 4 Jaw Chuck, 10:1

Brand: Genmitsu

Features:

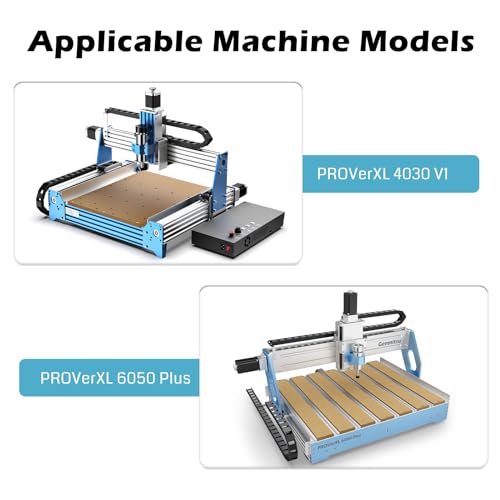

• Discover the Possibilities: Elevate your PROVer XL 4030 V1/PROVer XL 6050 Plus CNC machine's capabilities with the Genmitsu Rotary Module Kit. Carve from different angles and positions, and explore 3D and hybrid 2D rotary carving or laser possibilities with compatible software.
• NEMA23 Planetary Geared Stepper Motor: Take advantage of the high torque and power provided by the NEAM23 motor. This motor enables the motion system to rotate workpieces with superior force and precision compared to other belt-driven rotary modules available in the market.

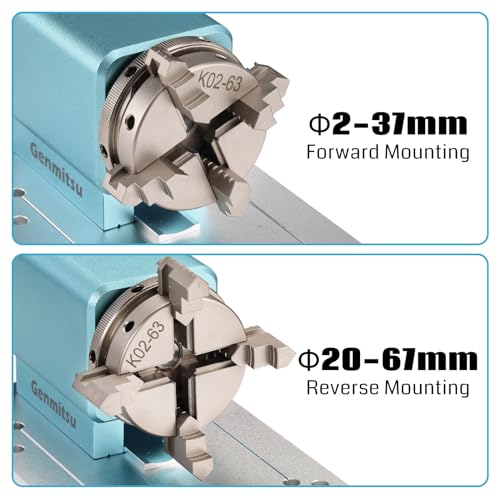

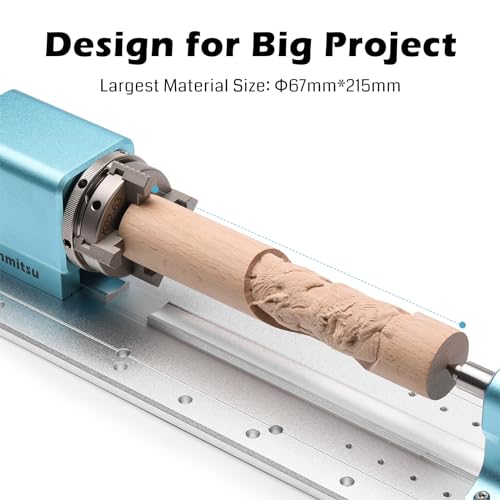

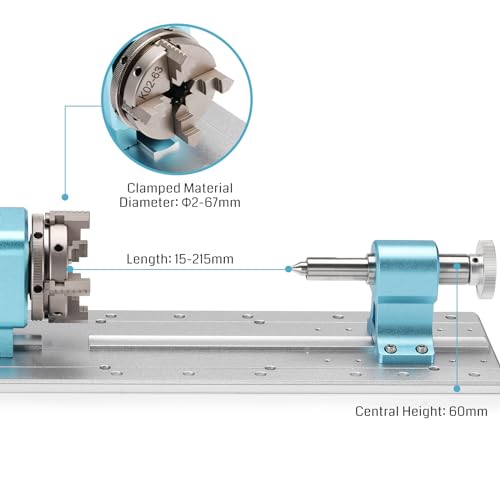

• Larger Compatibility: Designed for big projects and large machines, the Genmitsu rotary module kit easily handles materials of different sizes. With a clamped material range from 15-275mm (without tailstock) to 15-215mm (with tailstock) and compatibility with 2-67mm diameters, it ensures precise engraving for industrial components, artistic creations, and detailed prototypes.
• Precision Control: Utilize the 10:1 reduction ratio for precise control, offering a minimum angle of 0.1° and a maximum angular speed of 480° per second, ensuring high speed and unparalleled accuracy.
• User-Friendly: We provide step-by-step instructions, along with dedicated after-sales support. Your setup and operation experience will be hassle-free.

model number: 4AXIS-57

Part Number: 4AXIS-57

Details: Genmitsu 4-Axis Rotary Module Kit with NEMA 23

EAN: 0816550028384

Package Dimensions: 19.1 x 8.4 x 5.6 inches
