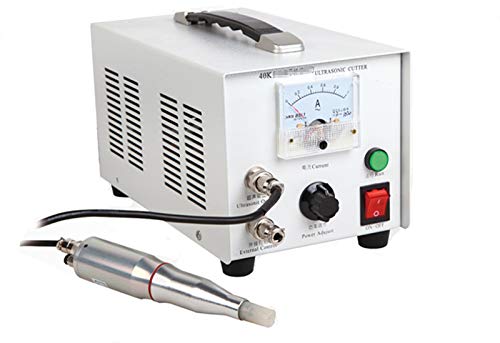

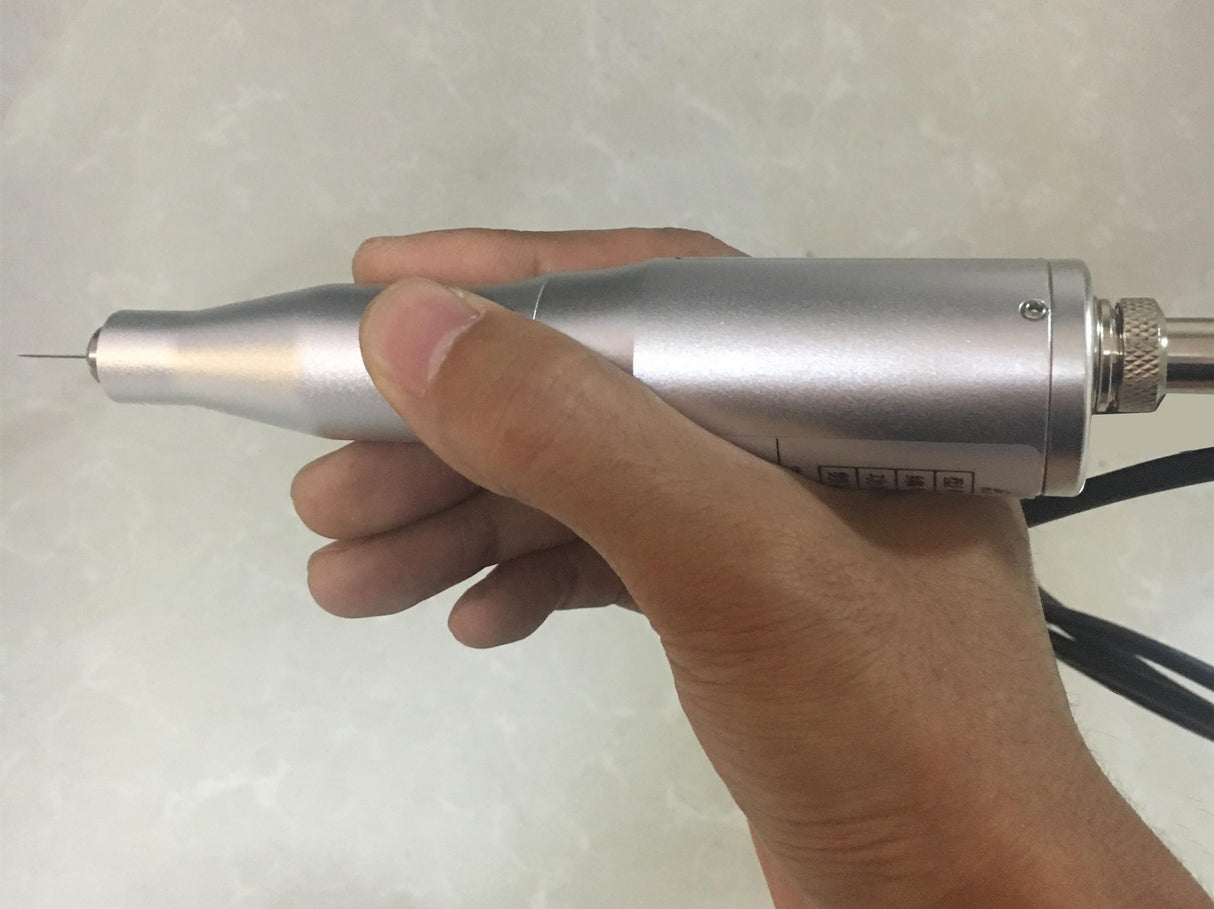

GLTL Ultrasonic Cutter Knife Ultrasonic Multifunctional Hand-held Cutter 40 kHz (220V) With 25PCS blads
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: GLTL
Features:

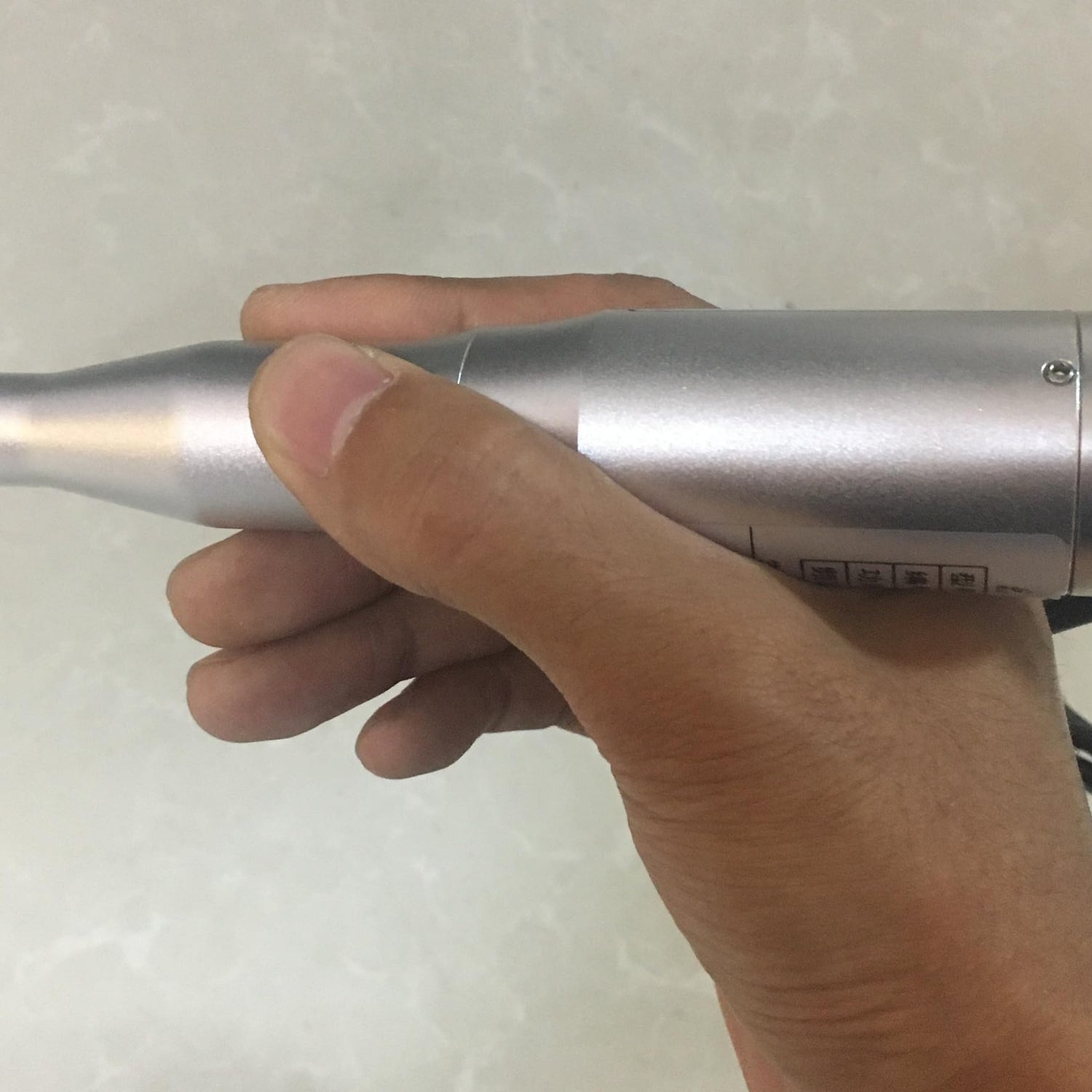

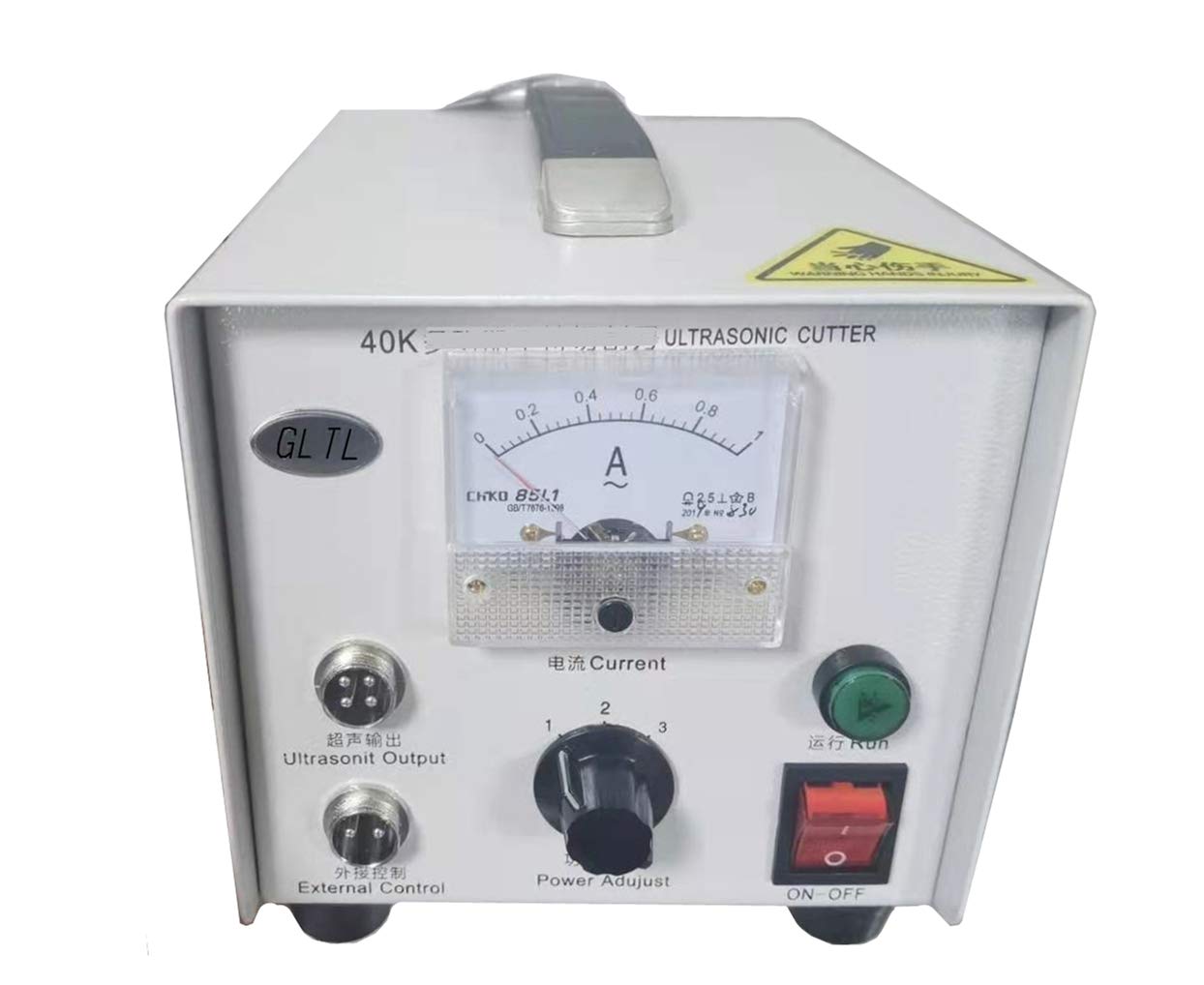

- Vibration frequency 40 KHz.Input power supply 220V, .Shape size, chassis: 155W * 265L * 170H mm, Handle: 32*170mm.
- Product advantages: 1. Cutting surface is smooth, reliable and accurate to control reduction and quantity. 2. It can seal the fabric without distortion and warping when cutting. 3. There are no knots, no silk fabrics, no wrinkles, no hairs cut back. 4. Stable work, fast cutting speed, non-stick knife, a little. 5. Simple operation, no need for professional people, save time and labor. 6. Easy to use and save time. Workers will not be tired after long operation.
- The mechanical vibration energy generated by the ultrasonic generator is more than 40 kHz, which will melt the cutting material by local heating, and make the molecular chain break rapidly, so as to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not need a special sharp edge, nor does it need a lot of pressure, and will not cause the material to be cut to collapse and damage. At the same time, because of the small friction of the ultrasonic vibration cutting to
- Ultrasound cutter also has a great advantage, that is, it cuts cloth at the same time, in the cutting part of the melting effect. The cutting part is perfectly edged to prevent loosening of the cut material organization (such as textile material flying edge).
Details: Input voltage is 220V~
The link to purchase blades is: https://www.amazon.com/dp/B0B7WD49RS
Applicable industries:
1. Plastics or model industries.
2. Non-woven or knitted cutting, textile cutting, clothing, fabric cutting.
3. Artificial resin, rubber cutting, raw rubber, soft rubber cutting.
4. Cutting tapes and films.
5. Paper-cut, printing industry cutting, printed circuit boards, trademarks.
6. Cut food and plants, such as frozen meat, candy, chocolate.

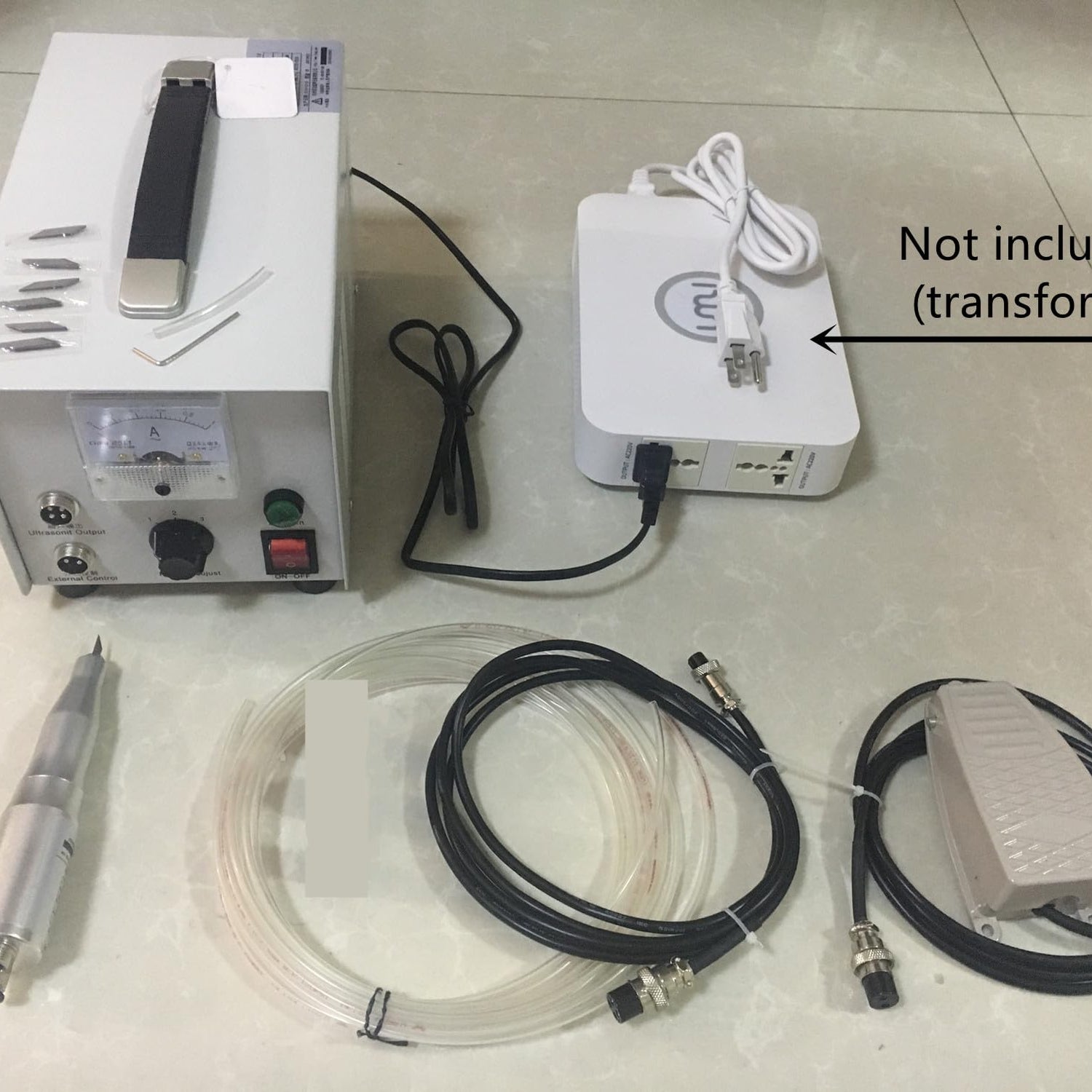

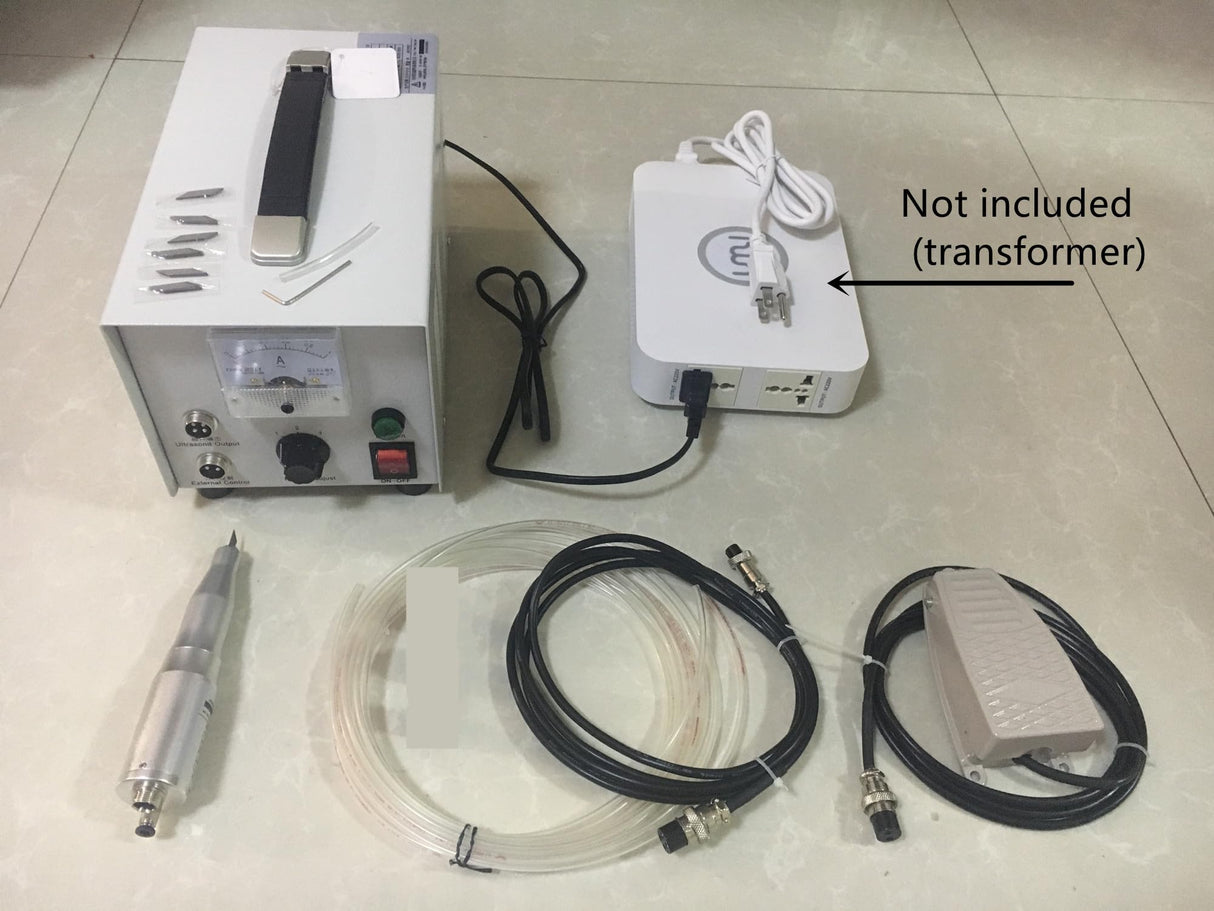

7. For PVC, rubber, leather, plastics, cardboard, acrylic acid, polypropylene, etc. Accessories:

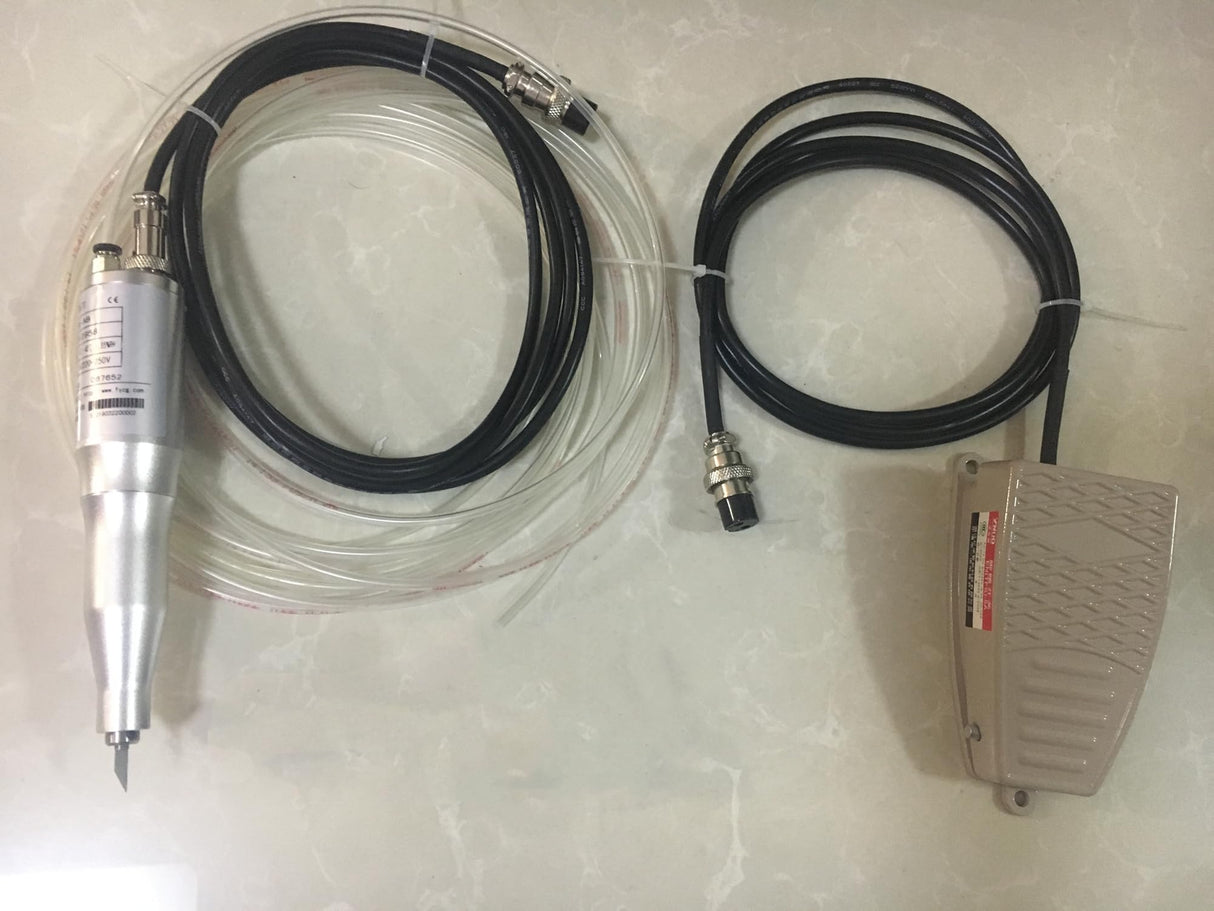

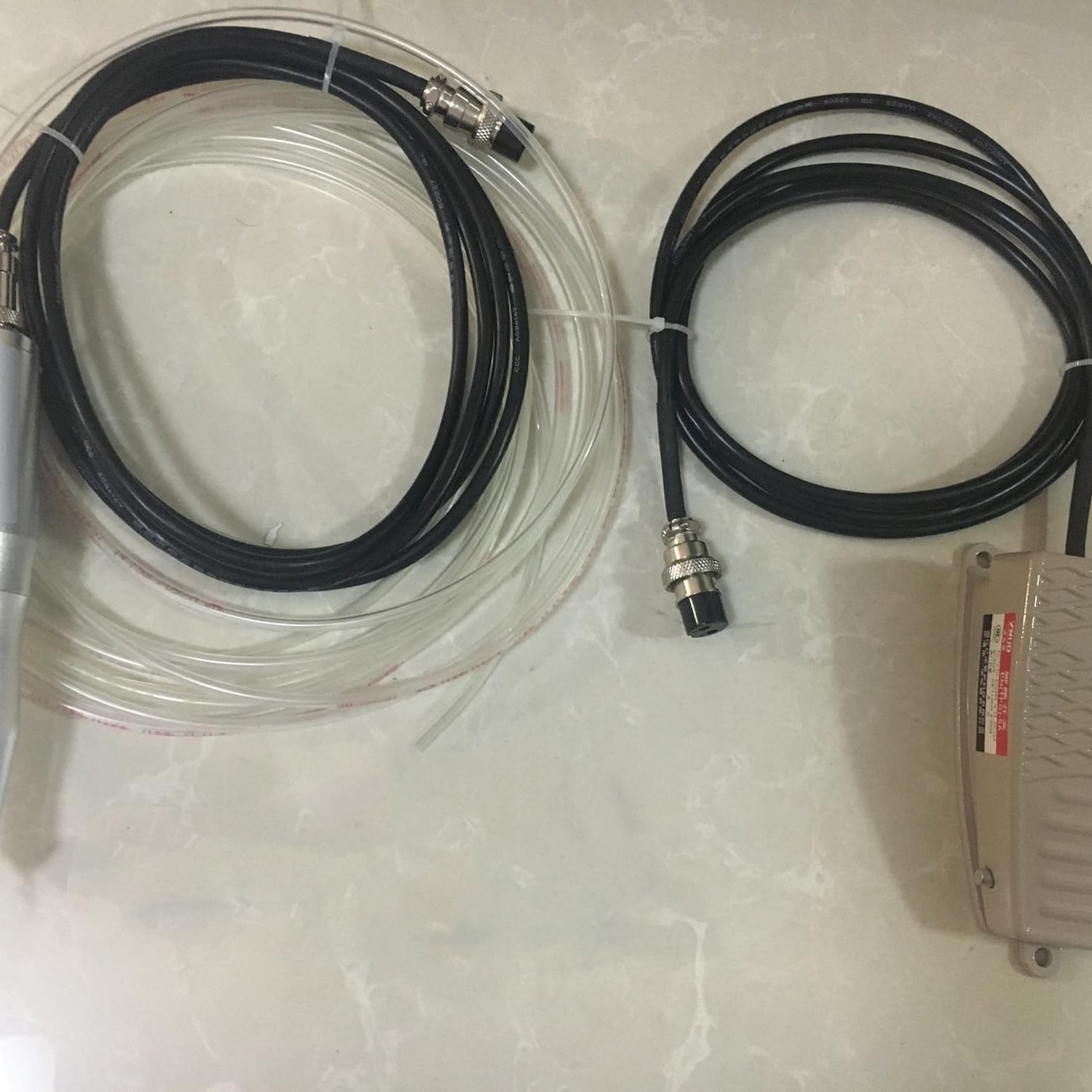

1) One pedal switch;
2) Blade 25pcs;

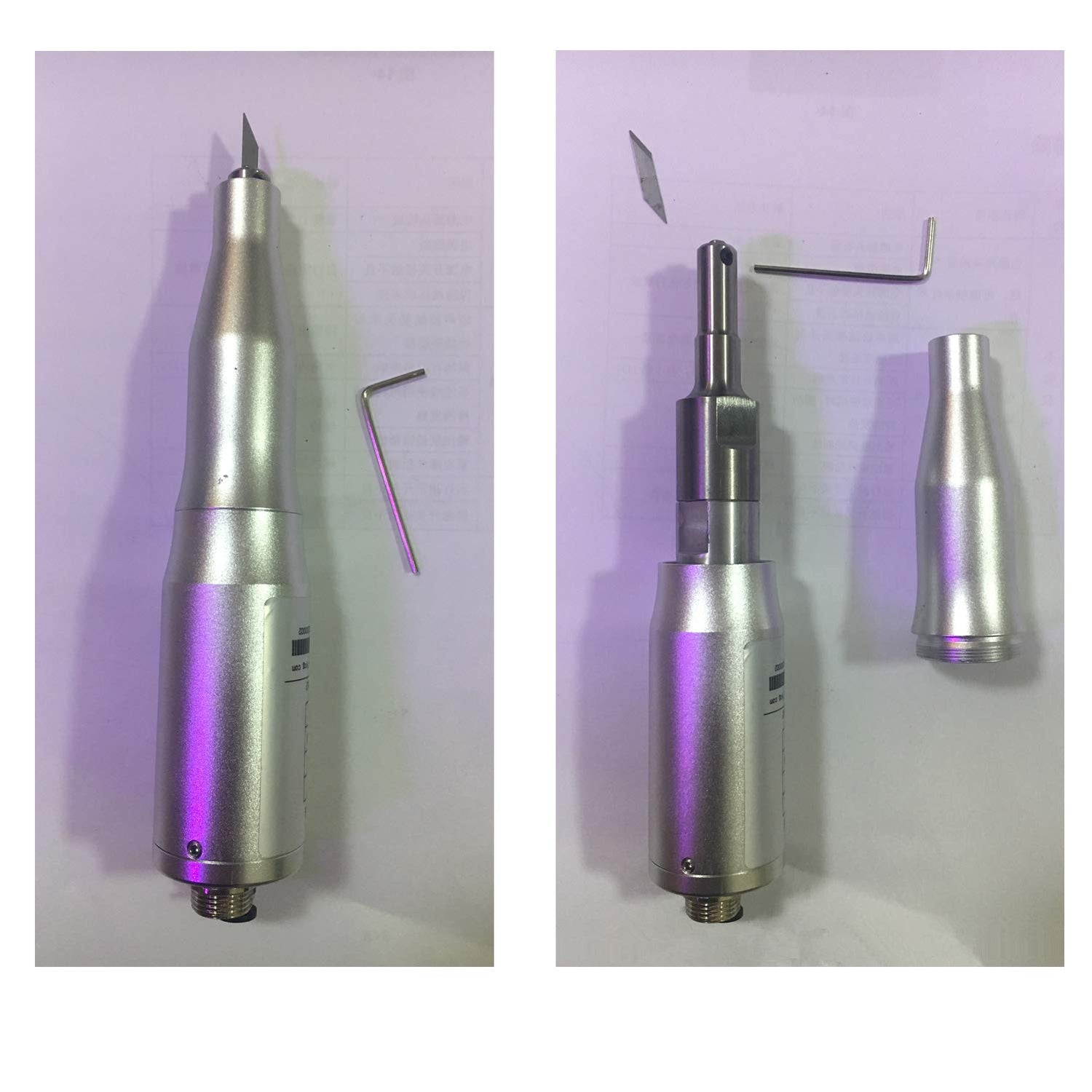

3) 1.5 mm hexagonal wrench for special purpose;
4) Fixed screw M3 *L4 *2PCS.
Take plastics for example， For different materials of plastics and thickness, the manufacturer provides the following recommended cutting speed data reference table.
Cutting Material, Thickness, Cutting Speed
ABS, PE 2mm, ,4mm/s
ABS, PE 3mm , 2mm/s
ABS, PE 4mm, 1mm/s
PVC 2mm, 15mm/s
Acrylic 2mm 3mm/s
Nonwovens 3mm 2mm/s
Chlorobutadiene Rubber 5 mm Easy to Cut
Corrugated Paper 8 mm Easy to Cut
Plywood 2.5mm Easy to Cut
Glass Fiber Resin 1.5mm Easy to Cut
Thick cardboard 1.5mm easy to cut
Flax (linoleum) 2mm easy to cut
Ethyl carbamate 3mm hard to cut
Nylon and PP 2mm Difficult to Cut
Nylon and PP 3mm Difficult to Cut
EAN: 0714035063250
Binding: Tools & Home Improvement
