GRBL 1.1f CNC Controller 3-Axis CNC Router Machine Control Board for CNC 3018 Pro 3018 Max 3018Pro-M Milling Machine

Brand: MYSWEETY

Color: Transparent

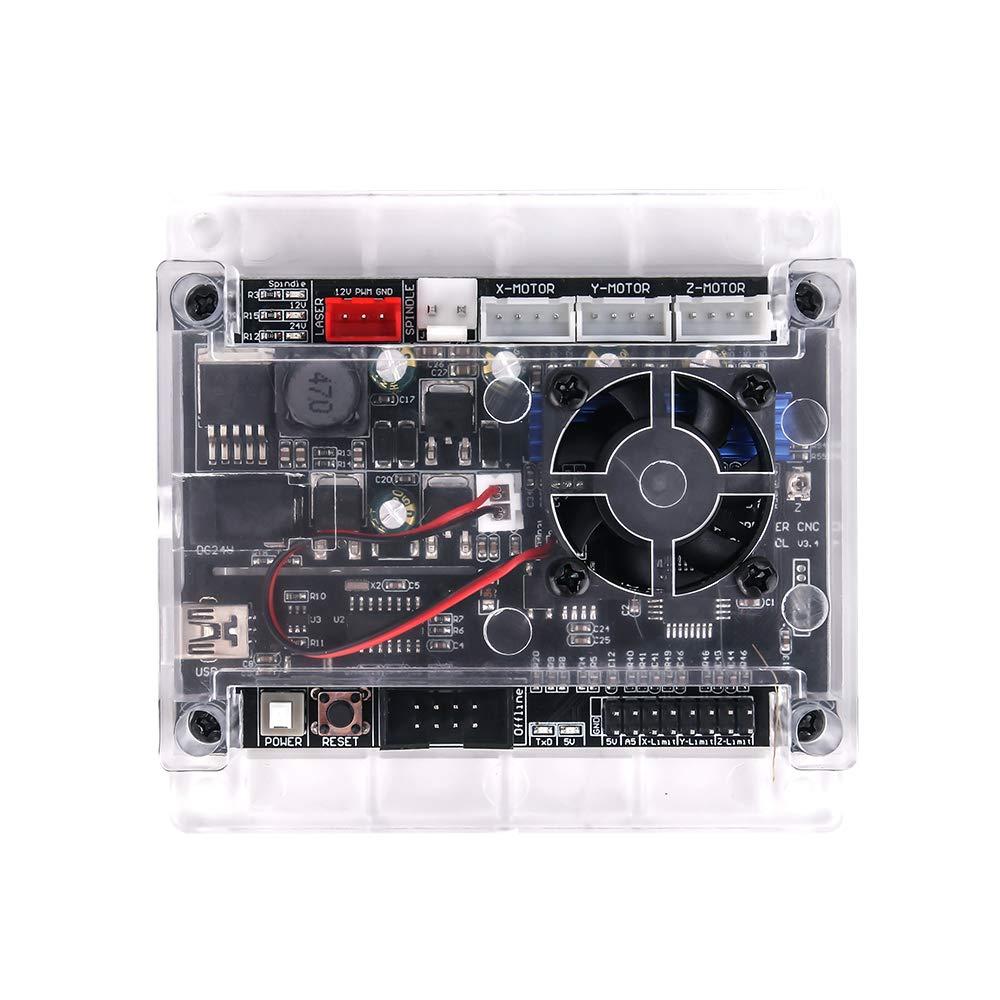

Features:

• ♞ Model: Upgraded 3 Axis GRBL 1.1f USB Port GRBL Control Board. Input voltage: 24VDC

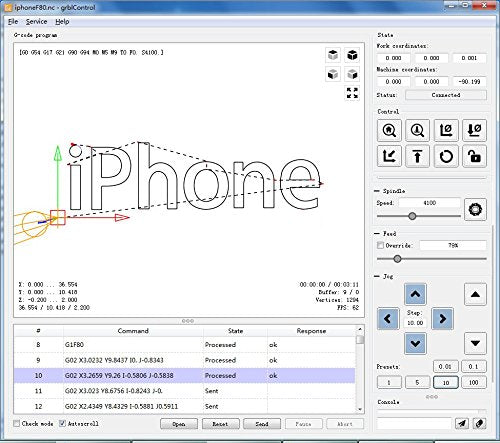

• ♞ Support Software: GRBL Contol, Candle(3 axis), UGS(Universal Gcode Sender). Support System: Windows XP/7/8/10, Linux
• ♞ Applications: The control board can be used with the 1310,1610-PRO, 3018, 3018 PRO and 3018 MAX cnc engraving machine
• ♞ Stepper Motor Drive: A4988. Spindle power: 150W. Input voltage: 24V (12-24V). Maximum current of 2A or less is recommended within 1.5A and additional heat (Any stepper motor Nema17, Nema23)
• ♞ Support XYZ 3-axis control, spindle and laser module. Support 3 pin and 2 pin lasers (the 2 pin lasers: please connect the white interface " + s-")

Binding: Tools & Home Improvement

Details: Package include:
1x Upgraded 3 Axis GRBL 1.1 Control Board
1x USB cable

Specification:
Connection: USB (USB-CH340)
Input voltage: 24VDC (only support 24VDC input)
Control software: GRBL control (candle), Universal Gcode Sender Master chip atmel 328P (arduino nano)
Spindle drive chip: MOSFET recommendation 24V DC, current : within 10A
Spindle PWM speed: Support
Support stepper motor: Maximum current of 2A or less, is recommended within 1.5A and additional heat (any nema17 or nema23 stepper motor)
Support system: Windows XP / Win 7 / Win 8 / Win 10 (32/64 can be), Linux
Power Interface: 5.5-2.5mm DC interface

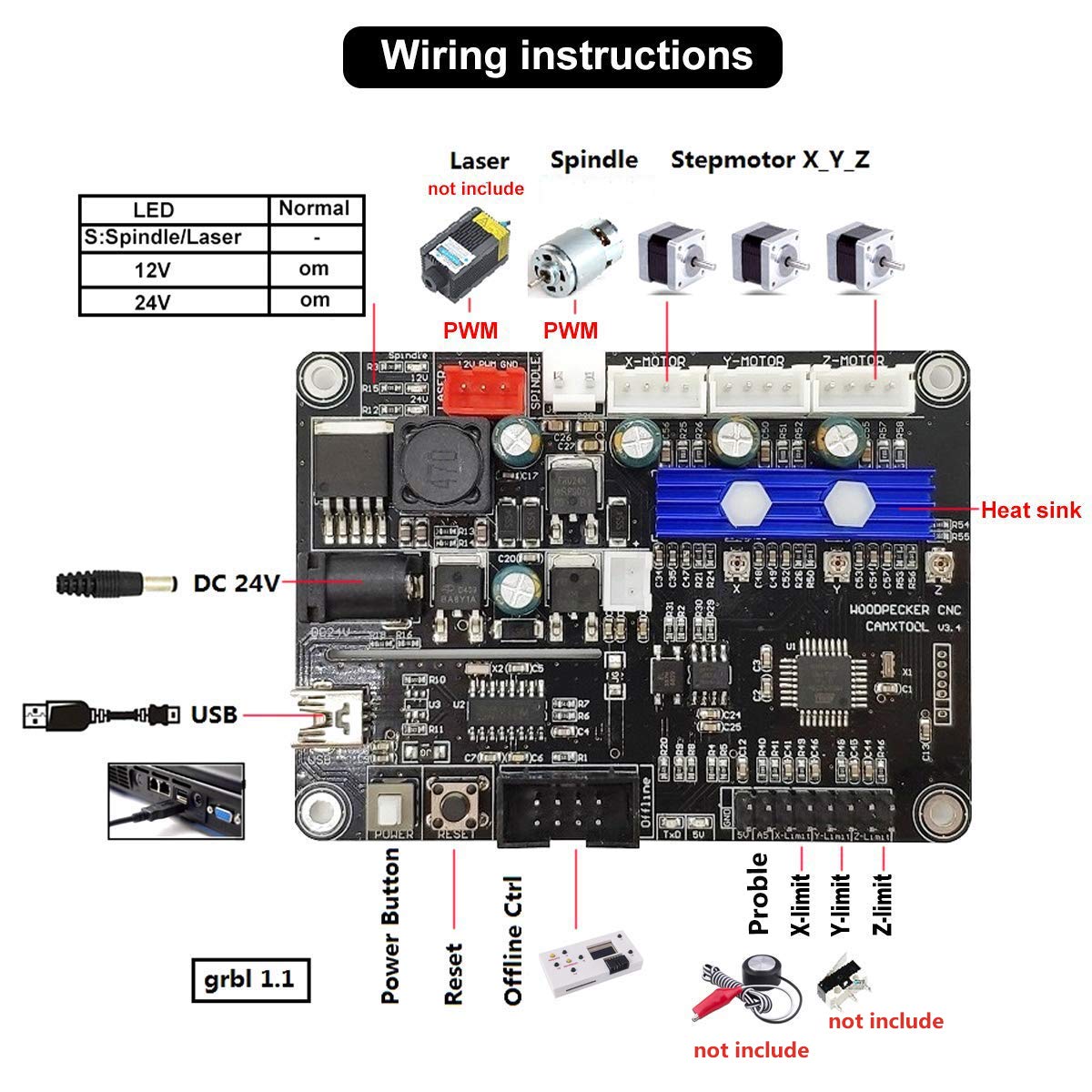

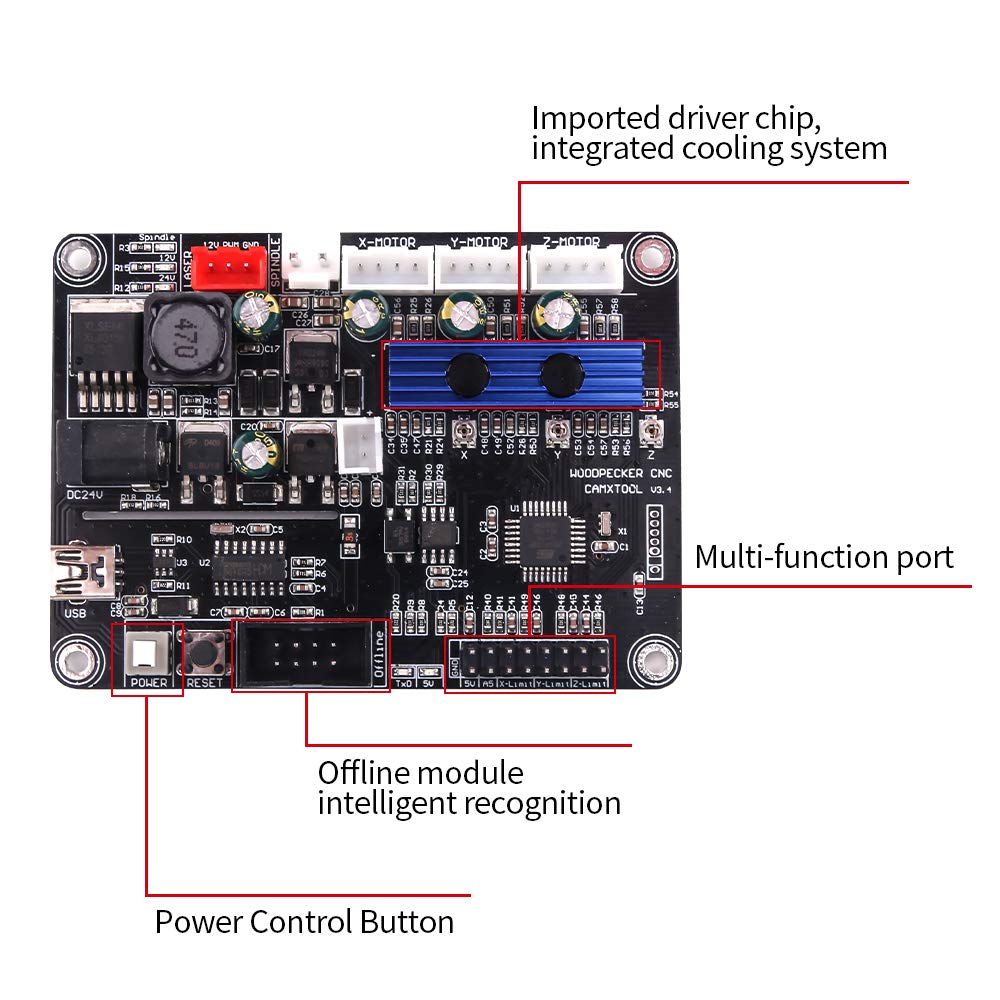

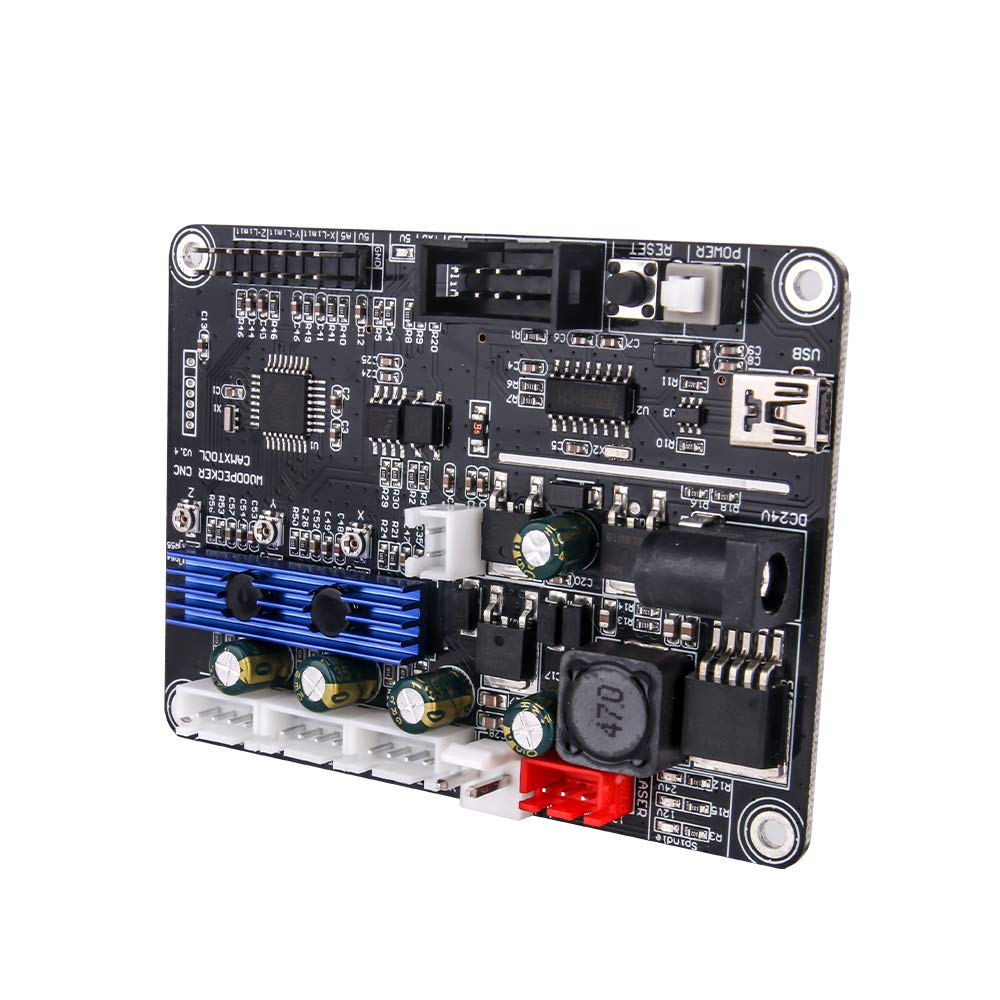

Newly added functional ports: Add emergency stop button port, probe port, XYZ limit port and add the power button switch.
Limit switch/Probe/Estop port: 2-pin port
Module connection port: 3-pin port
Spindle connection port: 2-pin port

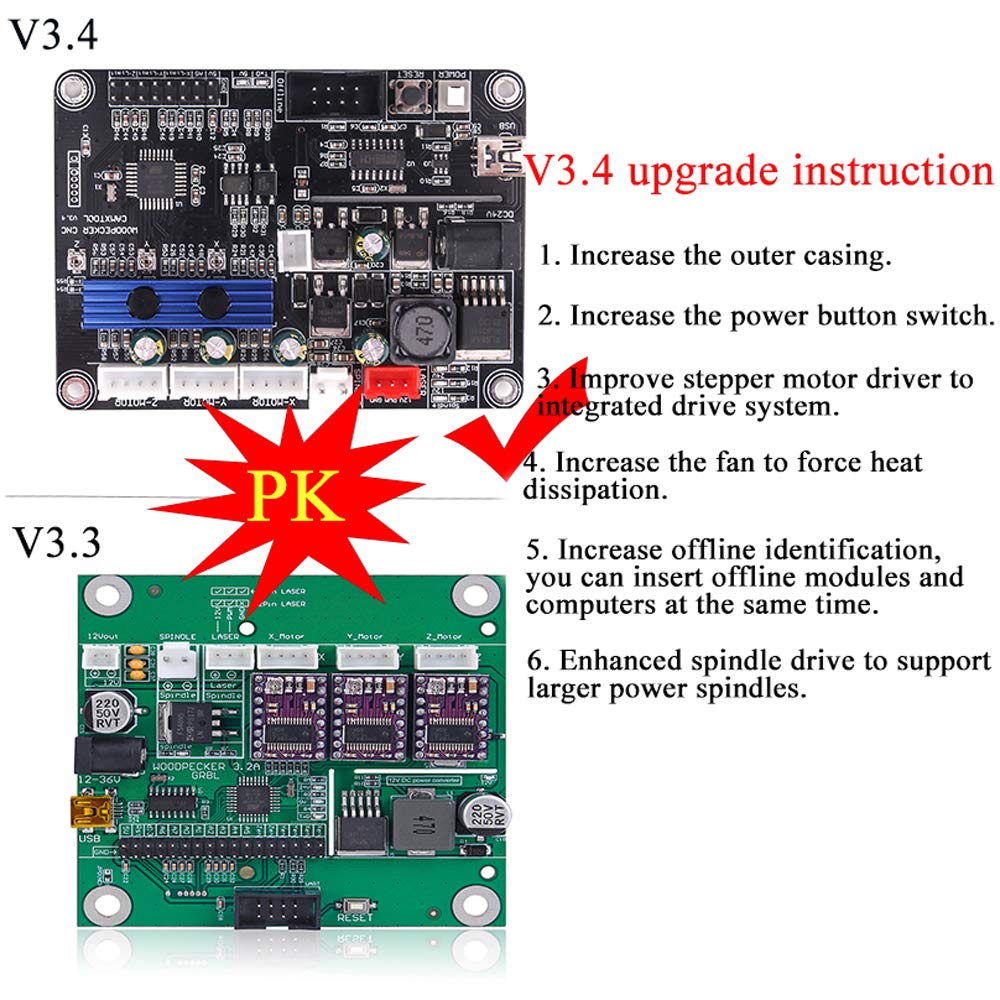

Advantage:

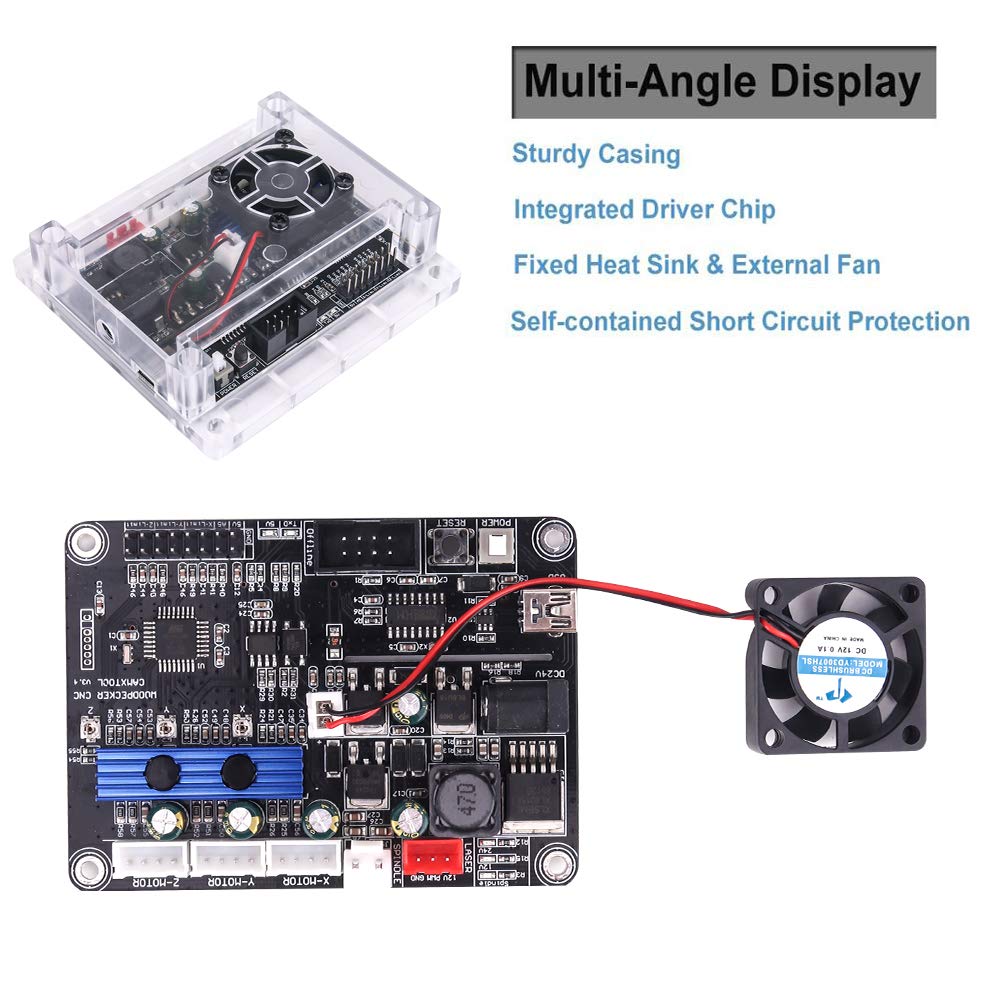

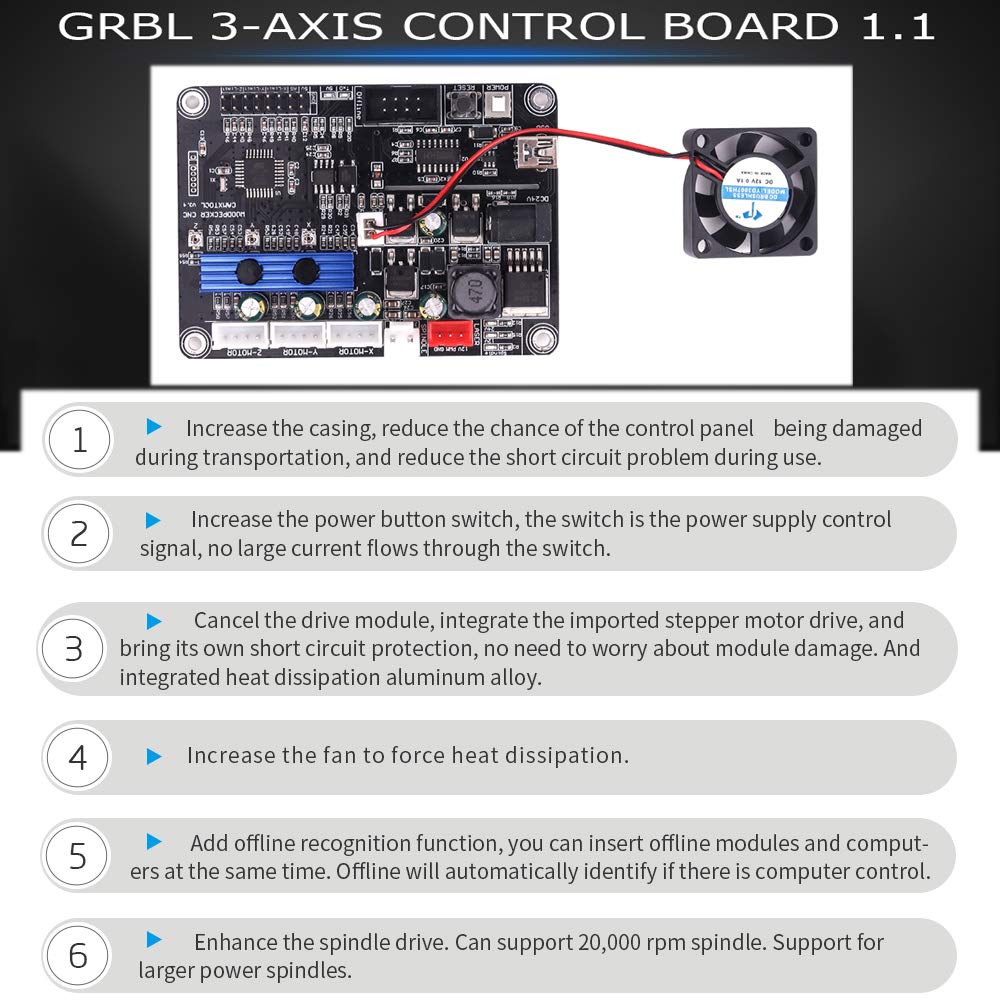

1. Add the outer casing: protect control board in transit,to avoid short circuit problem during use.
2. Add the power button switch.
3. Cancel the drive module,use integrated imported stepper motor drive,with short circuit protection,and integrated heat dissipation aluminum alloy.
4. Add the fan port to force heat dissipation.
5. Add offline recognition,can insert offline modules and computers at the same time.Offline will automatically identify if there is computer control.
6. Enhanced spindle drive,can support 20000rpm spindle.support more powerful spindle.
7. Improved USB interface: The original USB interface is patch soldering, transport collision and improper use, easy to drop, now changed to plug-in, very strong.
8. The spindle drive increases the optocoupler isolation, which makes the control board generate less heat, and the spindle speed adjustment is more linear and safer.
9. Add emergency stop button port, probe port and XYZ limit port.

Package Dimensions: 7.1 x 5.3 x 1.0 inches
