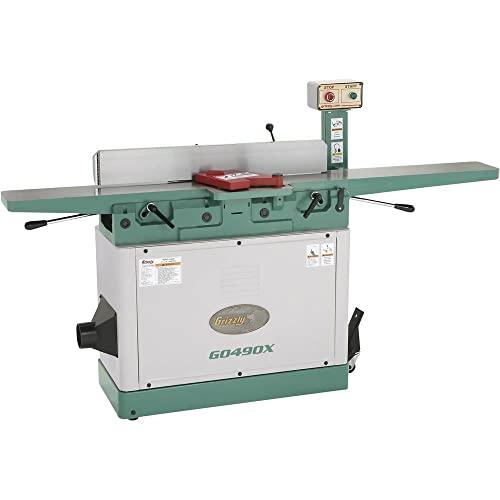

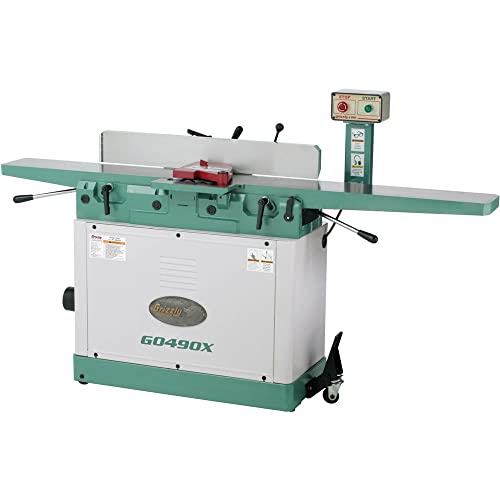

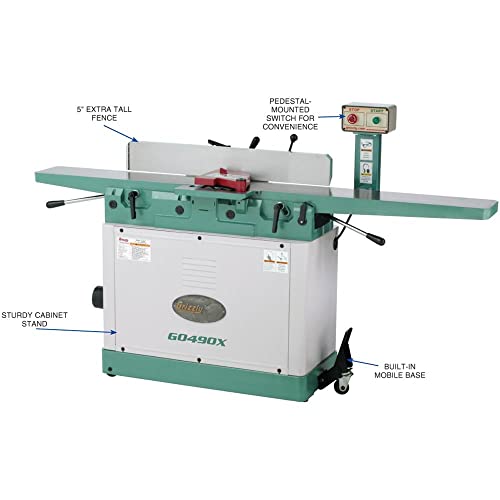

Grizzly Industrial G0490X - 8" x 76" Jointer with Parallelogram Beds and Spiral Cutterhead
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Grizzly
Features:
- Motor: 3 HP, 240V, single-phase, 15A, TEFC, 3450 RPM
- Total table size: 8" x 76-3/8"
- Infeed table size: 8" x 43-3/8"

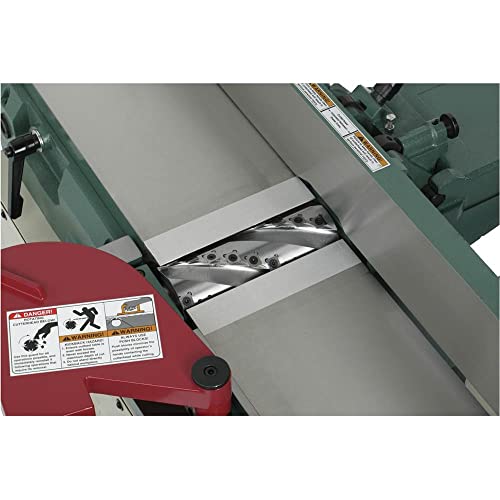

- Cutterhead: Spiral with 40 indexable carbide inserts
- Cutterhead speed: 4800 RPM
Binding: Tools & Home Improvement
model number: G0490X
Part Number: G0490X

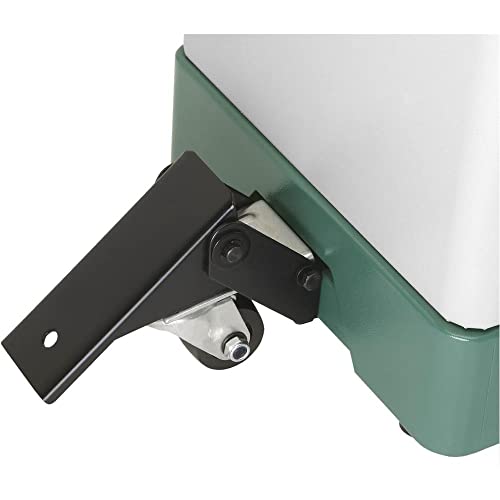

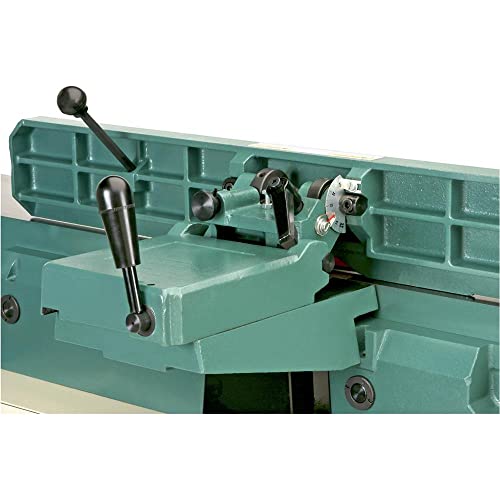

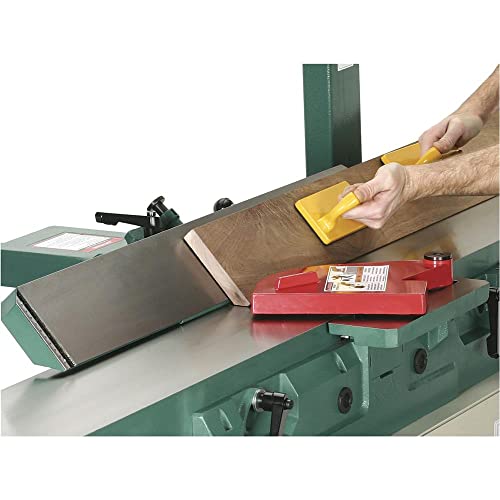

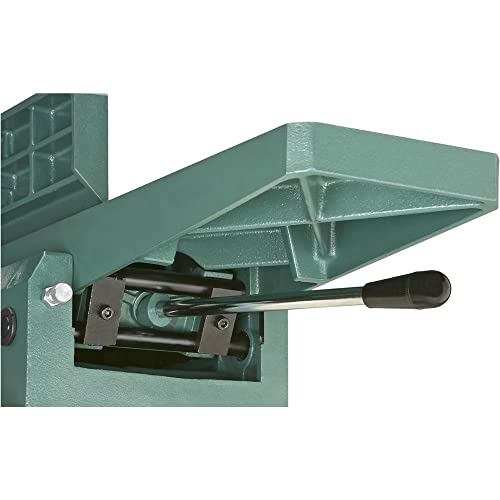

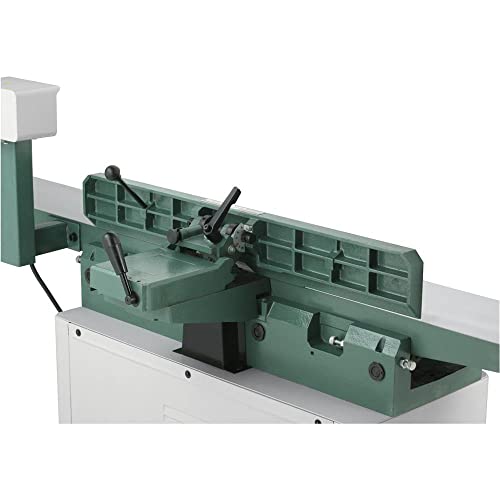

Details: Professionals and hobbyist woodworkers alike, you can't go wrong with this 8" jointer with parallelogram tables and 4-row spiral cutterhead. Featuring an extra-long infeed table, a huge 5" tall fence, and spiral cutterhead with 40 indexable carbide inserts that can each be rotated to expose a new sharp cutting edge, the G0490X is the next level in 8" jointers. Plus you get a rock-solid, oversized welded steel cabinet for the ultimate in stable performance, with a built-in mobile base allowing you to easily move this beast around the shop as needed. Whether you're surface planing rough-cut or warped lumber, or you need to joint that perfect beveled edge, you can easily do it all with confidence using this amazing machine! Certified to CSA & UL standards SPECIFICATIONS: Motor: 3 HP, 240V, single-phase, 15A Maximum width of cut: 8" Maximum depth of cut: 1/8" Maximum rabbeting depth: 1/2" Cutterhead diameter: 3-3/8" Cutterhead type: 4-row spiral Insert size & type: 14 x 14 x 2mm, indexable carbide Cutterhead speed: 4800 RPM Table size: 8" x 76-3/8" Fence size: 36" L x 5" H Minimum stock length: 10" Minimum stock thickness: 1/2" Dust port size: 4" Footprint: 16-1/2" x 44-1/2" Overall dimensions: 76-3/8" W x 24" D x 45-1/2" D Approx. shipping weight: 556 lbs.
EAN: 0690550704901
Package Dimensions: 81.0 x 41.5 x 24.0 inches
